Lenovo X2-EU Bedienungsanleitung

Quick Start Guide

Lenovo X2-EU

ENGLISH

TÜRKÇE

Ⅱ

Getting support

For support on network service and billing, contact your

wireless network operator. For instructions on how to use your

VIBE, go to: http://support.lenovo.com.

Read ﬁrst-Regulatory information

Be sure to read the Regulatory Notice for your country or region

before using the wireless devices contained in your VIBE. To

obtain a PDF version of the Regulatory Notice, refer to the

“Downloading publications” section below.

Downloading publications

To download the publications for your VIBE, go to:

http://support.lenovo.com and follow the instructions on the

screen.

Legal notices

Lenovo and the Lenovo logo are trademarks of Lenovo in the

United States, other countries, or both.

Other company, product, or service names may be trademarks

or service marks of others.

ENGLISH

Contents

First glance.................................................................................... 1

Installing the SIM card................................................................... 2

Charging the battery...................................................................... 3

Technical speciﬁcations................................................................. 4

Important safety and handling information..................................... 5

Service and Support information.................................................. 13

Warranty information.................................................................... 14

Environmental, recycling, and disposal information...................... 16

Restriction of Hazardous Substances Directive (RoHS)................ 18

Electronic emission notices ......................................................... 19

Speciﬁc Absorption Rate information........................................... 22

Precautionary Guidelines for mobile users....................................23

132

First glance

Microphone Flashlight

Micro USB connector

Speaker

Front-facing camera

On/Off buttonVolume buttons

Rear-facing camera

SIM-card tray

Headset connector

Anti-noise mic

Receiver

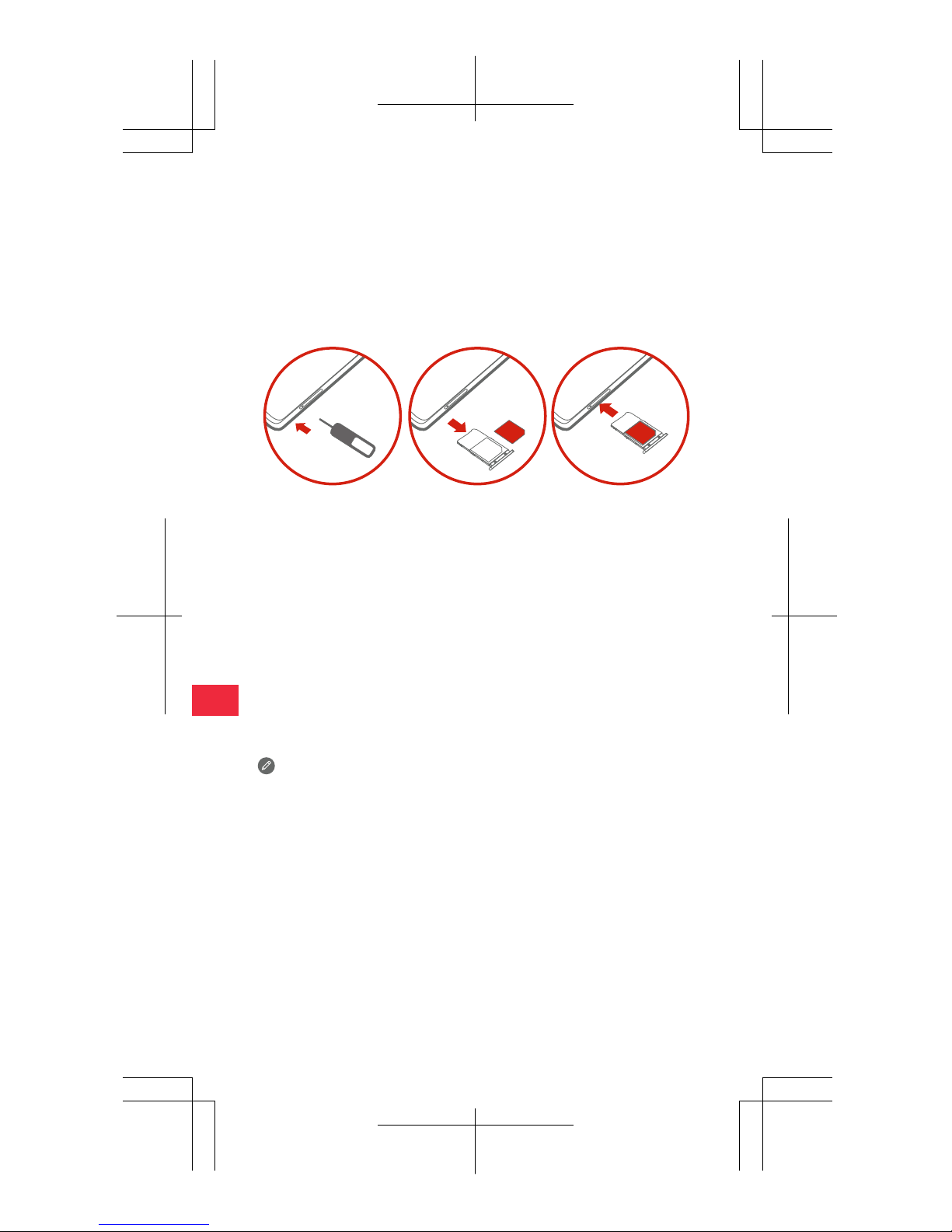

A SIM card provided by your carrier is required in order to use

cellular services. Install the SIM card as shown.

Step 1.

Step 2.

Step 3.

Insert the SIM eject tool that comes with your VIBE

into the hole in the SIM-card tray.

Pull out the SIM-card tray and position the SIM card

into the tray in correct orientation.

Carefully insert the tray with the installed SIM card

back into the slot.

Only Micro SIM card work with your VIBE.

Always turn off your VIBE ﬁrst before you insert or remove a SIM

card. Insert or remove a SIM card with your VIBE on may damage

your SIM card or VIBE permanently.

Installing the SIM card

Your VIBE has a built-in rechargeable battery. For more information

about battery safety, see the “Built-in rechargeable battery notice”.

The battery of your VIBE isn’t user replaceable; it can be replaced

only by an authorized service provider.

Low battery power Charging

Fully charged

Charge the battery as shown.

Turn on

Press and hold the On/Off button for a few seconds.

Press and hold the On/Off button for a few seconds, then

tap Power off.

Press and hold the On/Off button for a few seconds, then

tap Reboot.

Method 1.

Method 2.

Connect your VIBE to a power outlet using the

cable and USB power adapter that come with your

VIBE.

Connect your VIBE to a computer using the cable

that comes with your VIBE.

Turn off

Restart

Charging the battery

Name and model

Name: Lenovo VIBE X2 Model: Lenovo X2-EU

Depending on the measuring method, the dimensions and

weight might vary slightly.

Display

Size: 5 inches Screen: multi-touch

Resolution: 1920 × 1080 pixels LCD type: IPS

Battery

Battery: 2300 mAh

Processor

Processor: MTK6595M, 2.0/1.5 GHz

Dimensions and weight

Camera

Type: CMOS

Pixels: 13 megapixels (back) + 5 megapixels (front)

Wireless communication

Bluetooth 4.1 wireless technology

WLAN

FDD_LTE, WCDMA, GSM

GPS

Technical speciﬁcations

Width: 68.6 mm (2.7 inches)

Weight: 120 g (4.23 ounces)

Height: 140.2 mm (5.5 inches)

Depth: 7.27 mm (0.29 inch)

②

② In some countries, LTE is not supported.

①

Important safety and handling information

Important safety information

CAUTION

To avoid personal injury, property damage, or accidental damage to the

product, read all of the information in this section before using the product.

Handling

zHandle Lenovo Phone with care

Do not drop, bend, or puncture Lenovo Phone; do not insert

foreign objects into or place heavy objects on Lenovo Phone.

Sensitive components inside might become damaged.

zPrevent Lenovo Phone and adapter from getting wet

Do not immerse Lenovo Phone in water or leave Lenovo Phone in a

location where it can get saturated with water or other liquids.

Repairing

Do not disassemble or modify Lenovo Phone. Lenovo Phone is a

sealed unit. There are no end-user serviceable parts inside. All internal

repairs must be done by a Lenovo-authorized repair facility or a

Lenovo-authorized technician. Attempting to open or modify Lenovo

Phone will void the warranty.

Lenovo Phone screen is made of glass. The glass might break if Lenovo

Phone is dropped on a hard surface, is the subject of a high impact, or

is crushed by a heavy object. If the glass chips or cracks, do not touch

the broken glass or attempt to remove it from Lenovo Phone. Stop

using Lenovo Phone immediately and contact Lenovo technical

support for repair, replacement, or disposal information.

Battery

Batteries supplied by Lenovo for use with your product have been

tested for compatibility and should only be replaced with approved

parts.

Dispose of used batteries according to the instructions.

IPIG bound volume_ EN_CELOGO20141 1 8/21/2014 14:09:11

Rechargeable battery notice

DANGER

Do not attempt to disassemble or modify the battery pack. Attempting to

do so can cause an explosion, or liquid leakage from the battery pack. A

battery pack other than the one specified by Lenovo, or a disassembled or

modified battery pack is not covered by the warranty. If the rechargeable

battery pack is incorrectly replaced, there is danger of an explosion. The

battery pack contains a small amount of harmful substances.

To avoid possible injury:

zReplace only with a battery of the type recommended by Lenovo.

zKeep the battery pack away from fire.

zDo not expose it to water or rain.

zDo not attempt to disassemble it.

zDo not short-circuit it.

zKeep it away from children.

zDo not drop the battery pack.

zDo not put the battery pack in trash that is disposed of in landfills.

When disposing of the battery, comply with local ordinances or

regulations.

Built-in rechargeable battery notice

CAUTION

Do not attempt to replace the internal rechargeable lithium ion battery.

Contact Lenovo Support for factory replacement.

Charging

Charge Lenovo Phone in the temperature range of 0°C (32 °F)—45°C

(113°F). You can use any of the following charging methods to safely

recharge the internal battery of Lenovo Phone:

Charging method Display on Display off

ac adapter Supported, but the battery

will charge slowly.

Supported

USB connection

between the dc-in

Supported, but will

compensate power

Supported, but

the battery will

IPIG bound volume_ EN_CELOGO20142 2 8/21/2014 14:09:11
