Leuze electronic SR 15 Bedienungsanleitung

QUICK START GUIDE

SR 15, 25C & 46C

2

3

MOUNTING THE SENSOR

1 | Secure the sensor at the desired position

in the system (use the adapter plate if

necessary).

2 | Do not tighten the screws until alignment

has been completed (see page 6), and

then check that the sensor is functioning

correctly.

4

5

RECEIVER

UB

OUT2*

GND

OUT1

1

2

3

4

1

2

3

4

TRANSMITTER

UB

NC

GND

NC**

CONNECTING THE SENSOR

When connecting to the PLC, take into

account the pin assignment speciﬁed below

* Available for certain variants only (for further infor-

mation, see the data sheet)

** Activation input possible depending on variant

6

A

B

C

77

ALIGNING THE SENSOR

Align the sensor so that

A | the light spot hits the reﬂector

– continue to page 9

B | the light beam is directed toward the

receiver. The transmitter and receiver

must be mounted on one axis – continue

to page 11

C|the light beam hits the part of the object

by which it is to be detected – continue

to page 13

8

9

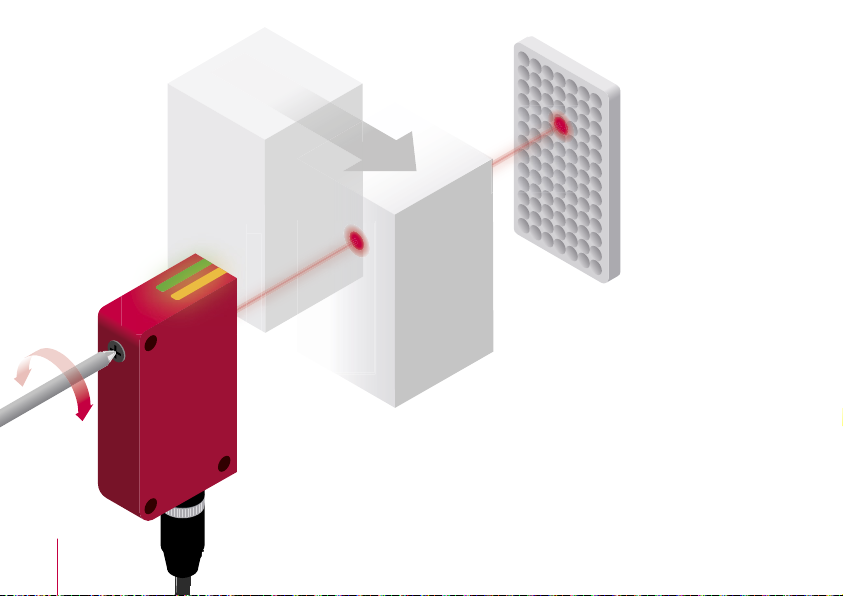

RETRO-REFLECTIVE PHOTOELECTRIC SENSOR

SENSITIVITY ADJUSTMENT *

1|When an object enters the light axis,

the yellow status LED must go out.

If this is not the case, the sensitivity

must be adjusted.

2|Using the screwdriver, turn the potentiometer

until the yellow status LED goes out.

* Only on variants with potentiometer

10
