FVT-6001 / FVT-6301
Copper to Fiber
Smart Media Converter
User Manual
Part No. Model
No. Description
532602 FVT-6001 10/100Base-TX to 100Base-FX
SC, Multi-mode 2km (TS-1000)
532630 FVT-6301 10/100Base-TX to 100Base-FX
SC, Single-mode 30km (TS-1000)
Ver. 1.00 - 0611
FCC Warning
This Equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CE Mark Warning
This is a class A product. In a domestic environment this product
may cause radio interference in which case the user may be
required to take adequate measures.
Table of Contents
1. INTRODUCTION................................................1
1.1. FEATURES......................................................1
1.2. PACKAGE CONTENTS......................................2
2. HARDWARE DESCRIPTION............................2
2.1. FRONT PANEL.................................................2
2.2. REAR PANEL ..................................................2
2.3. LED INDICATORS............................................3
2.4. DIP-SWITCH...................................................4
3. CONNECTION...................................................5
3.1. CABLING ........................................................5
3.2. RJ-45 PORT...................................................5
3.3. FIBER.............................................................6
4. SPECIFICATION................................................7
4.1. OPTICAL FIBER...............................................7
4.2. TECHNICAL SPECIFICATION .............................8
1
1. Introduction
The LevelOne 10/100 TX to 100FX Media Converter is a
cost-effective solution for the converting between 10/100Base-TX
and 100Base-FX cabling, it allows you to extend the cabling
distance of your 100Base-FX network. The 10/100 TX to 100FX
Media Converter provides cabling connectors: SC multi- mode fiber
connector and SC single-mode fiber connector. There are 4 DIP-
switches to set the operation mode for UTP, Fiber ports and link loss
forwarding function. With TS1000 compliant, it supports alarm
output, display and loop-back test functions simplify maintenance
and fault isolation tasks
The 10/100 TX to 100FX Media Converter can be slotted in
FVT-4000 Multi-Converter Chassis, which allows your network
connectivity to be more flexible. It also can be use as stand-alone
without slot in Multi-Converter Chassis. The package has included
the AC power adaptor for stand-alone using.
1.1. Features
Comply with IEEE 802.3, 802.3u, and 802.3x standards
Convert between UTP cabling and Fiber-optic
Support 10/100 Mbps Auto-negotiation for UTP port
SC Fiber cabling connectivity up to 30Km
Store-and-forward switching to separate two collision domains
Link- Lost-Forwarding function
4DIP-switches to set the operation mode
Standalone and Chassis design
Support TS-1000 for CPE side
2
1.2. Package Contents
- FVT-6001 / FVT-6301 Media Converter
- Power Adaptor DC 9V, 0.7A
- User manual
Compare the contents of your converter module with the checklist
above. If any item is damaged or missing, please contact your local
dealer for service.
2. Hardware Description
2.1. Front Panel
(1) RJ-45 Port (3) DIP-Switch
(2) LED (4) SC Fiber Connector
2.2. Rear Panel
Power Adapter: DC 9V, 0.7A
1 2
3
4
3
The rear panel contains a power socket. This power socket accepts
DC9V voltage and minimum 0.7A supplied current.
2.3. LED Indicators
LED Status Meaning
PWR Green Power on
Green 100Mbps UTP Speed
100 OFF 10 Mbps UTP Speed
Green The unit is linking with it’s link partner.
Blinks The unit is transmitting or receiving packets
LK/ACT
(UTP)
Off No device attached
Green The unit is linking with it’s link partner.
Blinks The unit is transmitting or receiving packets
LK/ACT
(Fiber)
Off No device attached
Orange The UTP port is operating in full-duplex mode.
Blinks Collision of Packets occurs in the port.
FDX/COL
(UTP)
Off Half-duplex mode or no device attached
Orange The fiber port is operating in full-duplex mode.
Blinks Collision of Packets occurs in the port.
FDX/COL
(Fiber)
Off Half-duplex mode or no device attached
4
2.4. DIP-switch
The DIP-switch is used to configure operation mode for LLF (Link
Lost Forwarding) and operation mode for UTP/Fiber port. The
default value of DIPswitch is OFF.
No Status Description
ON UTP 100Mbps Full Duplex mode
1 OFF UTP Auto-Nego
ON Fiber in Half Duplex
2 OFF Fiber in Full Duplex
ON LLF Enable
3 OFF LLF Disable
ON Pure converter mode
4 OFF Switch Converter mode
Link Lost Forwarding:
When LLF is enable, allow UTP link failures to be reported to the
fiber side and also allow Fiber link failure to be reported to the UTP
side. Therefore, A link loss forward feature is provided in both UTP
and Fiber side.
Pure Converter mode (Fast Ethernet Module):
When pure converter mode is enabling (on), it operates with the
minimum latency. The transmission flow does not wait until entire
frame is ready, but instead it forwards the received data immediately
after the data being received. And TP port should be forced at 100M
in this application. When DIP-Switch is in Switch Converter mode
(off), the converter function is same as Switch Hub.
Note:
Please don’t change the DIP-switch setting when UTP or fiber port is
transmitting or receiving data. It may cause some data error.
5
3. Connection
3.1. Cabling
Twisted-pair segment can be use unshielded twisted pair (UTP)
or shielded twisted pair (STP) cabling. The cable must comply
with the IEEE 802.3u 100Base TX standard for Category 5. The
cable between the converter and the link partner (switch, hub,
workstation, etc.) must be less than 100 meters (328 ft.) long.
Fiber segment using multi-mode connector type must use 50 or
62.5/125 um multi-mode fiber cable. You can connect two
devices up to a 2-kilometer (6,562 ft.) distance.
Fiber segment using single-mode connector type must use
8/125 or 9/125 um single-mode fiber cable. You can connect two
devices in the distance of 30 Kilometers in full duplex operation.
For half-duplex operation, the recommended maximum distance
is 412 meters (1,352 ft.)
3.2. RJ-45 Port
RJ-45 Port (Auto MDI/MDIX): the Ethernet RJ-45 will auto-sense for
10Base-T or 100Base-TX connections. Auto MDI/MDIX means that
you can connect to another Switch or workstation without changing
non-crossover or crossover cabling. See the below figures for
straight through and crossover cable schematic.
Pin Number Assignment
1 Tx+
2 Tx-
3 Rx+
6 Rx-
RJ-45 Pin Assignments
[Note] “+” and “-” signs represent the polarity of the wires that
make up each wire pair.
6

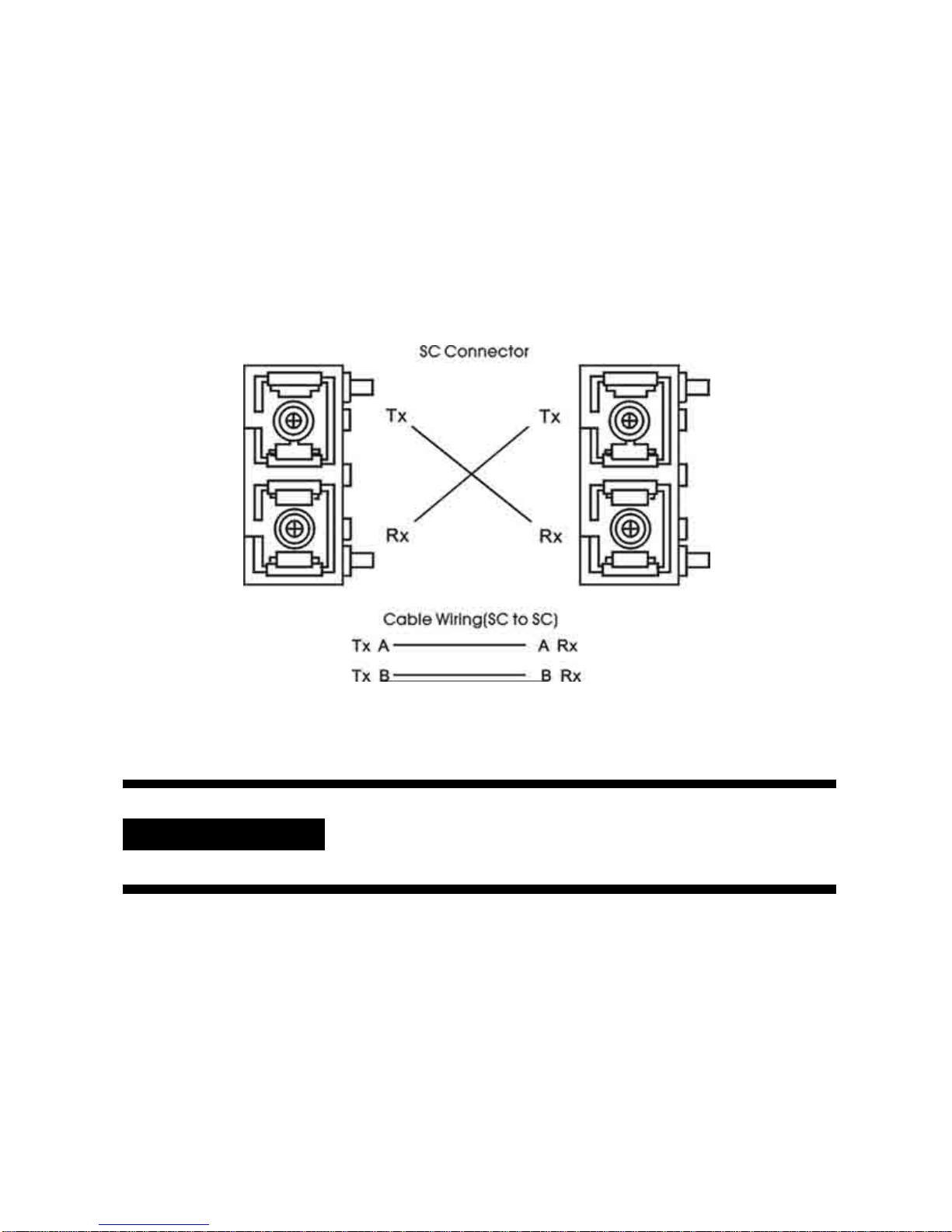

3.3. Fiber
Fiber Port: It is a 100 Base-FX connection. We provide SC
connectors (multi/single mode). Please follow the below figure to
connect it. Wrong connection will cause the port cannot work
properly.
ATTENTION This is a Class 1 Laser/LED product
Do not stare into the Laser/LED beam
7
4. Specification
4.1. Optical Fiber
Model No. Wavelength
(nm) Avg. Launch
Power (dB) Avg.
Sensitivity (dB)
FVT-6001
SC, Multi-mode 1310 (nm) -18 (dB) -30 (dB)
FVT-6301
SC, Single-mode 1310 (nm) -6 (dB) -34 (dB)
Model No. Avg. Power
Loss Budget
(dBm)
Max. FDX Fiber
Distance (Km) Fiber Size (um)
FVT-6001
SC, Multi-mode 12 (dBm) 2 (Km) 62.5/125
50/125
FVT-6301
SC, Single-mode 28 (dBm) 30(Km) 10/125
8/125
