Leviton LDC Series Bedienungsanleitung

PK-A3216-10-00-0B

For Technical Assistance Call: 1-800-824-3005 (U.S.A. Only)

1 800 405-5320 (Canada Only) www.leviton.com PK-A3216-10-00-0B

IMPORTANT SAFETY INSTRUCTIONS - READ ALL INSTRUCTIONS BEFORE USING.

INSTALLATION INSTRUCTIONS

Nos. LDCxx, LDCxx-W

Cover and Door Assembly

PATENTS PENDING

LIMITED PRODUCT WARRANTY

For Leviton’s limited product warranty, go to www.leviton.com. For a printed copy of the warranty you may call 1-800-323-8920.

WARNING

Fig. 1

• TO AVOID FIRE, SHOCK OR DEATH: TURN OFF POWER SUPPLYING THIS EQUIPMENT, AND CONFIRM POWER IS OFF,

before installing, removing or servicing this equipment.

• This equipment MUST BE installed and serviced by an electrician.

• Replace all doors and covers before connecting power to this equipment.

• To be installed and/or used in accordance with electrical codes and regulations.

Twist-outs

(B)

Main

breaker

knockout

(A)

INSTALLATION

WARNING: TO AVOID FIRE, SHOCK OR DEATH: TURN OFF POWER

SUPPLYING THIS EQUIPMENT, AND CONFIRM POWER IS OFF,

before installing, removing or servicing this equipment.

Installing Cover

Remove the main breaker knockout (A) from deadfront (F) if a main

breaker was installed. Do not remove in installations using the main lugs.

2. Twist-outs (B) must be removed for each position that contains a branch

circuit breaker.

3. To remove twist-outs (B), ﬁrst strike with a screwdriver, then twist with

pliers until detached (ﬁg. 1).

NOTE: Fill any unused open spaces in cover using ﬁller plates

(see ﬁller plate instructions).

4. Apply circuit directory label. For observation window door units, apply

labels to the deadfront (F) area shown (Fig. 2b). For solid door units

apply labels to the back of the door.

NOTE: Apply pocket to door if desired.

5. Install cover assembly (C) using the six (x6) cover screws (D)

(provided) (ﬁg. 2).

6. Leviton®covers contain a feature for adjustment in ﬂush mounting

applications. Turn each adjustment screw (E) until the cover ﬁts tightly

against the circuit breakers (ﬁg.3).

SAVE THESE INSTRUCTIONS

Deadfront

(F)

WEB VERSION

For Technical Assistance Call: 1-800-824-3005 (U.S.A. Only)

1 800 405-5320 (Canada Only) www.leviton.com PK-A3216-10-00-0B

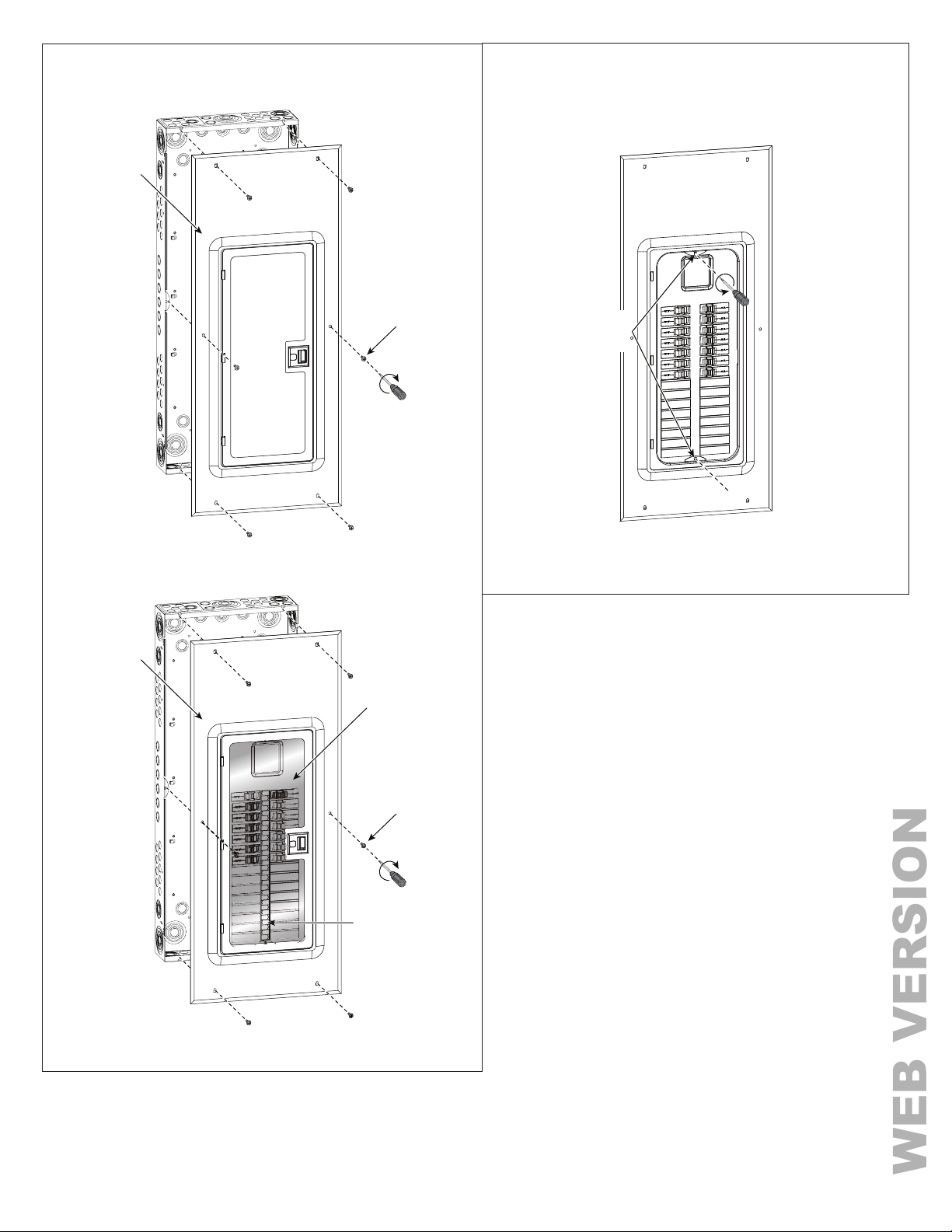

Fig. 2 Fig. 3

Cover assembly without observation window

Cover assembly with observation window

Adjustment

screws

(E) (x2)

Cover

screws

(D) (x6)

Cover

screws

(D) (x6)

Observation

window

Cover

assembly

(C)

Cover

assembly

(C)

Circuit

directory

labels

(G)

WEB VERSION
