PRODUCT SPECIFICATIONS(ENGLAND)

Item/Model LG Robot Cleaner

External Dimensions 340 mm × 340 mm × 89 mm

Power Consumption 58 W

Weight 3 kg

Battery (When Charging) DC 16.8 V

Traveling Velocity 350 mm/s (Maximum)

Use Time Up to 100 minutes

(Based on general wooden ﬂoor)

Charging Time 3 hours

Main Functions Turbo Mode

Learning Mode

Obstacle Sensing

Anti-Plunge function

Scheduled Cleaning

Error Displaying

Navigation

Auto/Manual Recharging

Dry Mopping (cleaning)

Corner Clean

Voice Messaging

Map Drawing

Spot Cleaning

Repeat Cleaning

My Space Cleaning

Cell by Cell cleaning

Zigzag Cleaning

Smart Application function

Item/Model Terrestrial wireless device/

TWFM-L302D

Used frequency 2400 MHz ~ 2483 MHz

Applied output 100 mW

Modulation method BPSK, QPSK, QAM

Wave type F9DF

Oscillation/

Communication method

X-Taloscillation /

OFDM, DSSS, CCK

PRODUCT SPECIFICATIONS(ENGLAND)

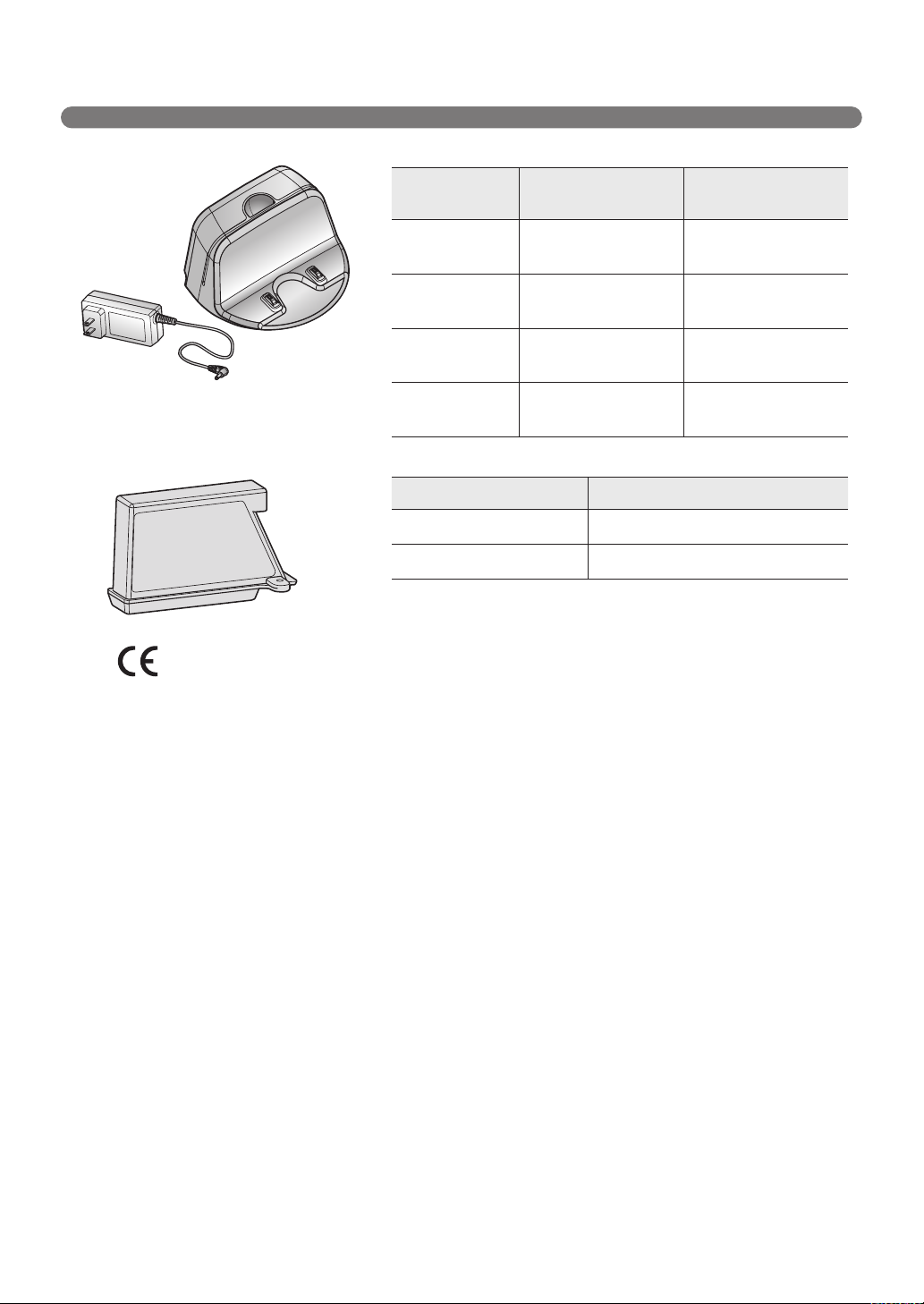

Item/Model Home Station

(VR650)

EPS : ADS-30FSA-17

17030EPG

External

Dimensions

236 mm ×181 mm

×128 mm

95 mm x 43 mm

x 30.7 mm

Rating

16.65 VDC AC 100–240 V~

50/60 Hz

Output Voltage/

Current

16.65 VDC / 1.7 ADC 16.65 V/ 1.7 A

Current

Consumption

1.7 A0.8 A

Item/Model Battery

Type Lithium Battery

Rating DC 14.4 V/ 2330 mAh

LG Electronics Inc. hereby declares that this Automatical Battery Operated Vacuum Cleaner with Docking Station

is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm

between the device and the body.

0197

FEATURES

Corner Master

By having adopted a brand new concept design that is appropriate for

walls, the Robot Cleaner's cleaning performance is incredibly efﬁcient.

Learning Mode

The Robot Cleaner is capable of memorizing the cleaning environment

via its Smart Operation feature for smarter cleaning.

Turbo Mode

In the Turbo mode, the Robot Cleaner operates the suction motor and

the brushes at a greater speed giving cleaner results.

When selected, the "Turbo" mode is automatically activated on carpets,

which enables the Robot Cleaner to run more efﬁciently.

Drawer Mop Plate (Option)

The "Drawer mop plate" makes it much easier for users to ﬁt and remove

the mop without having to turn over the device.

My Space Mode

By commanding it to clean a particular area, the Robot Cleaner quickly

cleans that desired area.

Repeat Cleaning

The Robot Cleaner will continuously clean until the battery runs out.

Location Search Function

If the Robot Cleaner is moved from a spot while operating, the device will

automatically search for the previous location and return to the spot from

where it was interrupted.

Smartphone application description

You can control the Robot Cleaner from your smartphone.

Cleaning

Zigzag

CONTENTS

Safety precautions

Included with product

Parts description

Button functions

Display status information

Before you start

Overview

BEFORE USING

METHOD OF USE

HANDLING METHOD AFTER USE

59~61

How to install the home station

How to turn the Robot Cleaner power

supply on & off

How to start and stop cleaning

How to charge the battery

Cleaning modes

Auxiliary cleaning modes

Time setting

Scheduled cleaning

Mop cleaning (option)

Location search function

Smart diagnosis

Smart Application Function

Product info initialization

Cleaning the dust bin

Cleaning the dust bin ﬁlter

Cleaning the brush

Cleaning the sensor/charging terminal

Cleaning the side brush

Cleaning the ultra microﬁber mop (option)

ADDITIONAL INFORMATION

REFERENCE

2~6

8~9

10~11

18~19

20~21

22~23

28~29

30~51

Troubleshooting

Before you call for service

Reference items

SAFETY PRECAUTIONS

The purpose of the safety precautions described below is for the user to use the product safely and

correctly to prevent any unexpected risk of injury or damage.

WARNING

1. This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person

responsible for their safety.

2. Children should be supervised to ensure that they do

not play with the appliance.

3. If the supply cord is damaged, it must be replaced by

LG Electronics Service Agent in order to avoid a hazard

4. This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved. Children

shall not play with the appliance. Cleaning and user

maintenance must not be made by children without

supervision.

Basic safety precautions

After reading this manual, please keep it in an easily accessible location.

This is the safety alert symbol. This symbol alerts you to potential hazards that can

result in property damage and/or serious bodily harm or death.

Indicates a hazardous situation which, if not avoided, could result in death or

serious injury.

Indicates a hazardous situation which, if not avoided, could result in minor or

moderate injury.

WARNING

CAUTION

SAFETY PRECAUTIONS

WARNING

For your safety, do not remove

the battery from the Robot

Cleaner. If you need to replace

the battery of the Robot

Cleaner, take it to the nearest

authorized LG Electronics

service center or dealer for

assistance.

Failure to follow this warning can

cause ﬁre or product failure.

Never use the Robot Cleaner

with a battery and/or home

station from any other product

than the Robot Cleaner.

Doing so can cause ﬁre or

product failure.

Make sure the power cord of

the home station is not crushed

under a heavy object or

damaged by contact with sharp

objects.

Failure to follow this warning

can cause electric shock, ﬁre

or product failure. If the power

cord is broken, do not plug it

in. Take the product to an LG

Electronics Authorised service

repairer.

Do not place the home station

and the Robot Cleaner near a

heating device.

Doing so can cause product

deformation, ﬁre, or product

failure.

Do not use the Robot Cleaner

when candles or fragile objects

are placed on the ﬂoor.

Doing so can cause ﬁre or

product failure.

Always use a dedicated power

outlet with a 10 amp rating.

If multiple appliances are

connected to an outlet

simultaneously, they can

generate enough heat to cause

a ﬁre.

Do not force the power plug

to bend. Do not use the power

plug when it has been damaged

or loosened.

Doing so can cause ﬁre or

product failure.

When pulling out the home

station power plug, always pull

it out by grabbing the plug, not

the cord. When pulling out the

power plug, do not to touch the

prongs with your ﬁngers.

Doing so can cause an electric

shock.

Do not touch the power plug

with wet hands.

Doing so can cause electric

shock.

Do not allow children or pets

to play with or rest upon the

Robot Cleaner at any time. Do

not use the Robot Cleaner while

an object is hanging from it.

Doing so can cause injury or

product damage.

SAFETY PRECAUTIONS

Do not insert any part of the

body, such as a hand or foot,

below the brush or wheels of

the Robot Cleaner while in use.

Doing so can cause injury or

product damage.

Do not operate the Robot

Cleaner on narrow and high

furniture such as a wardrobe,

refrigerator, desk, table, etc.

Doing so can cause injury,

product failure or damage which

is not covered by the warranty.

Do not operate the Robot

Cleaner in a room where a child

is sleeping.

Doing so can cause injury or

product damage.

Do not leave Children or

pets near the Robot Cleaner

unsupervised.

Doing so can cause injury or

product damage.

This product is intended for indoor domestic

home use and should not be used in mobile

applications. it should not be used in

commercial applications such as workshops

or garages or around indoor swimming pools,

etc.

Do not activate the device on a

ﬂoor that has more than a 10

degree incline.

The device may not work

properly.

WARNING

Gasoline

Detergent

Do not spray or use

inﬂammable materials,

surfactants, or drinking water

in the vicinity of the Robot

Cleaner.

Doing so can cause ﬁre or

product failure.

* Inﬂammable materials:

gasoline, thinner, etc.

* Surfactant: detergent, articles

for bath, etc.

Turn the power supply off

immediately if any abnormal

sound, odor, or smoke is

generated from the Robot

Cleaner by removing it from the

home station and turning off

the main switch on the rear side

of the unit.

Failure to do so can cause ﬁre

or product failure.

SAFETY PRECAUTIONS

CAUTION

Frequently empty the dust bin

and maintain its cleanliness.

The dust collected in the dust

bin can trigger allergies and

may contain harmful insects. it

should be cleaned after each

use.

Use the Robot Cleaner indoors

only.

Using it outdoors can cause

product failure and irreparable

damage to the unit.

Close the cover of the dust bin

on the main unit before starting

cleaning.

If the cover is not closed, it

can cause injury or product

damage.

DO NOT use the Robot Cleaner

around a banister, staircase or

any other dangerous place.

Doing so could cause injury or

damage to the unit.

Do not drop the Robot Cleaner

or subject it to strong impacts.

Doing so can cause injury or

product failure not covered by

the warranty.

Do not expose the Robot

Cleaner to cold temperatures

(less than -5 C) for a long

period of time.

Doing so can cause product

failure.

Remove any cables or string

from the ﬂoor before starting.

Cable or string can get tangled

in the wheels of Robot Cleaner

and cause product failure or

the cord of an appliance can be

disconnected.

Make sure the Robot Cleaner is

not put on a table or desk, with

the power ON.

It may result in an injury or

damage to the product.

In rare cases, the Robot

Cleaner’s brush can damage

carpet. If this happens,

immediately stop the cleaning

operation.

When a carpet has long tassels,

the tassels can be damaged.

Do not let the main unit and

charging terminal of the home

station come into contact with

metallic objects.

Doing so can cause product

failure.

Do not put water, detergent, etc.

into or onto the Robot Cleaner.

Doing so can cause product

failure. Do not put any water

or detergent on the Robot

Cleaner. If liquids get inside of

the Robot Cleaner, turn off the

power supply and contact an

LG Electronics sales agent or

customer care center.

Do not allow the Robot Cleaner

to sweep up liquids, blades,

thumb tacks, sharp objects or

ashes, hot or cold. etc.

These items can cause product

failure or damage.

Do not put sharp objects into

the opening of the Robot

Cleaner’s ultrasonic sensors.

Doing so can cause product

failure.

Do not use the Robot Cleaner

when the dust bin is completely

full.

Doing so can cause product

failure.

SAFETY PRECAUTIONS

Check the following items before use:











For example, remove expensive ceramics and valuables from the floor.





During cleaning, the Robot Cleaner may enter another room and continue cleaning.



hurt or woken.



by the brush.

mm as

they may cause it to malfunction.



Please install the mop board since climbing low heights, such as bottom of a standing

electric fan, may cause damage to the robot cleaner.

Connecting to a wireless router without proper security setup may cause security issues.

If security is set up internally for your organization, it may affect connection therein.

Tip

CAUTION

If the ﬂoor is wet or has wet

spots, wipe them up before

using the Robot Cleaner. Do

not use the Robot Cleaner on a

wet surface.

Doing so can cause product

failure.

When attaching the mop,

ensure that it is ﬁtted correctly

so that it does not block the

lower camera sensor.

Blocking the bottom camera

sensor may not allow the

product to work correctly.

When the robot cleaner is

operating, it may hit the chair

leg, desk leg, table leg or other

narrow pieces of furniture.

For quicker and better cleaning,

place the dining chairs on top

of the dining table.

NOTE: Very low thresholds will

allow the Robot cleaner to go

over them and perhaps into an

undesirable location. Make sure

that all the doors of the rooms

that are not to be cleaned are

closed. Oddly shaped and

sized thresholds can cause the

cleaner to become stuck. This

is not a malfunction.

To save energy when the Robot

Cleaner is not in use for longer

periods, turn off the power

switch, and turn on the power

switch again just prior to using

the Robot cleaner again.

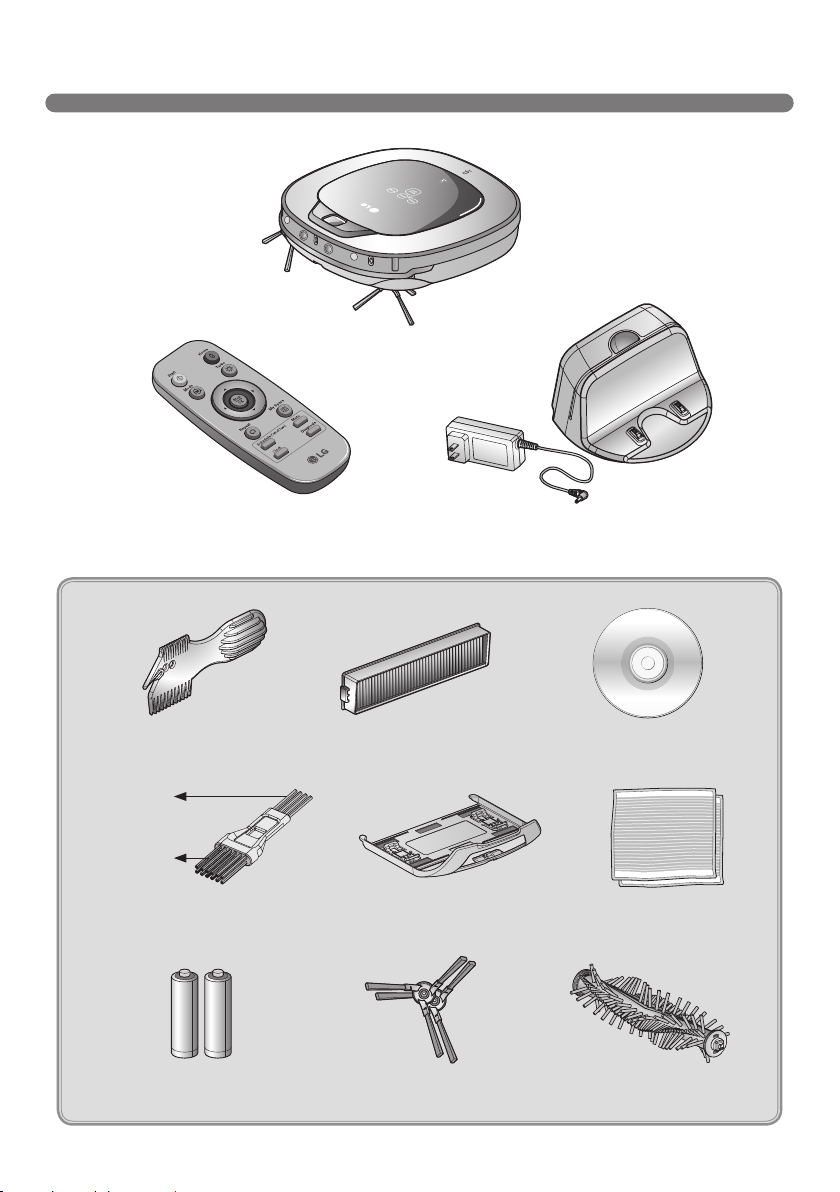

INCLUDED WITH PRODUCT

 Figures can be different from actual objects.

Dust bin ﬁlter (spare)

(option)

Cleaning Tool

Cleaning brush

(It’s on the dust bin cover)

Mop plate (option)

for cleaning

sensors

for cleaning

the ﬁlter

Ultra microﬁber mop

(2 pieces) (option)

Batteries for remote controller

(2 units of AAA size)

Home station

Robot Cleaner

Remote controller

Side brush (2 pieces)

(option)

Pet Brush

(option)

DVD manual

Inhaltsverzeichnis

Andere LG Staubsauger Handbücher

LG VB2715NNTN Bedienungsanleitung

LG VK7050 Series Bedienungsanleitung

LG LUV400T Bedienungsanleitung

LG VK691**N* Bedienungsanleitung

LG LCV701R Bedienungsanleitung

LG VC908 Series Bedienungsanleitung

LG VC23series Bedienungsanleitung

LG FOLLOW ME VC9025FM Bedienungsanleitung

LG VK704 N Series Bedienungsanleitung

LG HOM-BOT LRV590S Bedienungsanleitung

LG VK7314 Bedienungsanleitung

LG V-KC902HTQM Bedienungsanleitung

LG VC49 KOS Series Bedienungsanleitung

LG VB-20700HRF Bedienungsanleitung

LG V-CD5 4S C Series Bedienungsanleitung

LG V-CP953NB Bedienungsanleitung

LG VC391 H Series Bedienungsanleitung

LG V-CD54S Series Bedienungsanleitung

LG VS84 Series Bedienungsanleitung

LG V-CQ3-H Series Bedienungsanleitung

LG V-WA266ND Bedienungsanleitung

LG V-CF761RTV Bedienungsanleitung

LG V-CR3 H Series Bedienungsanleitung

LG 9098NT Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung

Nobles

Nobles 608669 Produkthandbuch
