P/NO : MFL67646518

July, 2015

Printed in Korea

MODEL : VR657* LVMP

VR657** LVMP

VR95** Ser

VR86** Ser

ROBOTIC CLEANER

SERVICE MANUAL

Caution

Please read the safety cautions of this booklet

before the maintenance of the product.

-2-

Table of Contents

1. Product SPEC

2. Structure and Name of Each Part

3. Cautions and Methods during the Usage

4. How to Use Main Body Operation Buttons and Remote Controller

5. Technical Descriptions of the Parts

6. Safety Cautions and Verifications During the Repair

7. How to Disassemble/Assemble and Repair Major Parts

8. Cabling Diagram

9. Types of Defects and the Countermeasures

10. How to Use R-Manager RK diagnosis program

11. How to Use Black Box Viewer

12. Deal Drawing of the Structure and List of the Parts

-3-

Product Specifications

■Main Unit

ITEM LG Robot Cleaner

MODEL

VR657*LVMP / VR657**LVMP / VR95** Ser / VR86** Ser

Battery (Fully Charging)

Li ion, DC 16.8V

Power Consumption

58W

Charging Time

3 hours

Use Time

Approx. 100 minutes

(based on general wooden oor )

Traveling Velocity

0.35 m/s

Cleaning Mode

zigzag cleaning / Cell by Cell Cleaning / My Space Cleaning / Spot Cleaning

Weight

3kg

External Dimensions

340mm x 340mm x 89mm

Accessary

Home station / remote controller / Filter / Cleaning Brush / Brush

Main Function

Turbo Mode / Learning Mode / Obstacle Sensing / Anti-Plunge function /

Scheduled Cleaning / Error Displaying / Navigation / Auto/Manual Recharging /

Corner Clean / Voice Messaging / Map Drawing /

Spot Cleaning / Repeat Cleaning / My Space Cleaning / Cell by Cell cleaning /

Zigzag Cleaning /

■Home Station

ITEM Home Station

Model

VR621

Rating

AC 220V, 60Hz

Power Consumption

23W

Output Voltage/Current

DC 17.1V / 1.1A

■Remote Controller

ITEM AKB73296002

Battery

DC 3V(AAA, 2ea)

Type

Infra Red(38kHz)

Operating Range

5m

Size(WxLxH)

45 X 22 X 115 mm

-4-

Structure and Name of Each Part

– Robot Cleaner

-5-

Structure and Name of Each Part

– Robot Cleaner

-6-

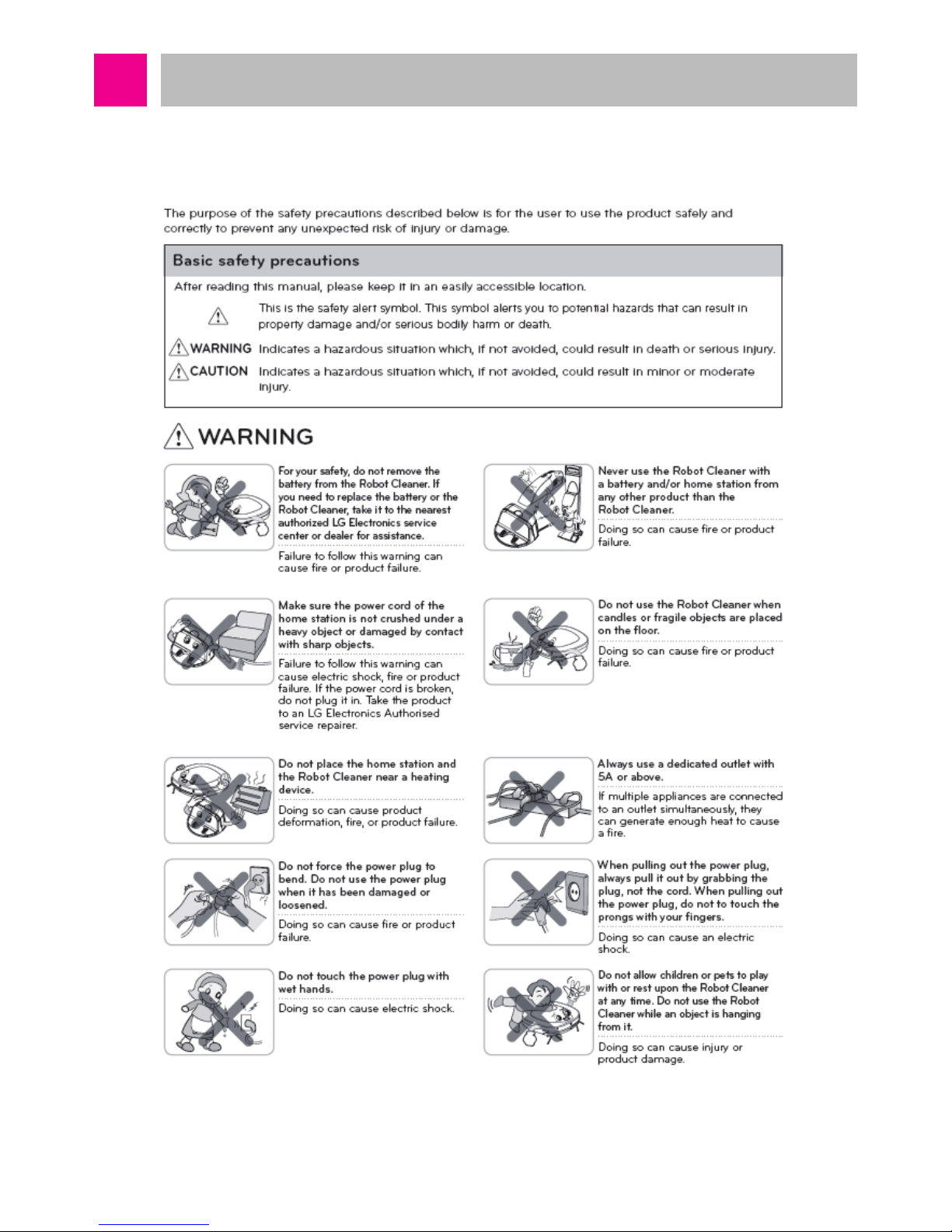

Cautions and Methods during the Usage

-7-

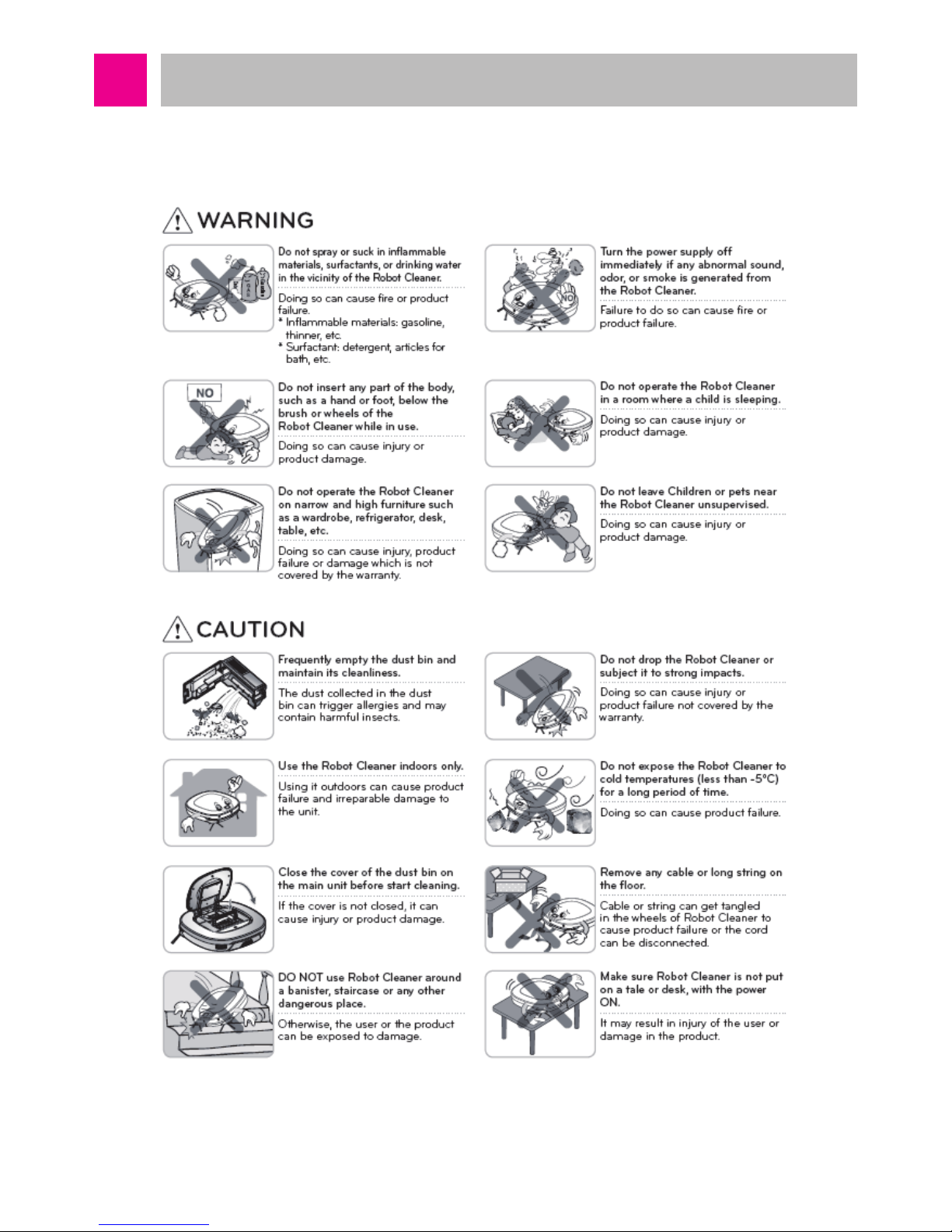

Cautions and Methods during the Usage

-8-

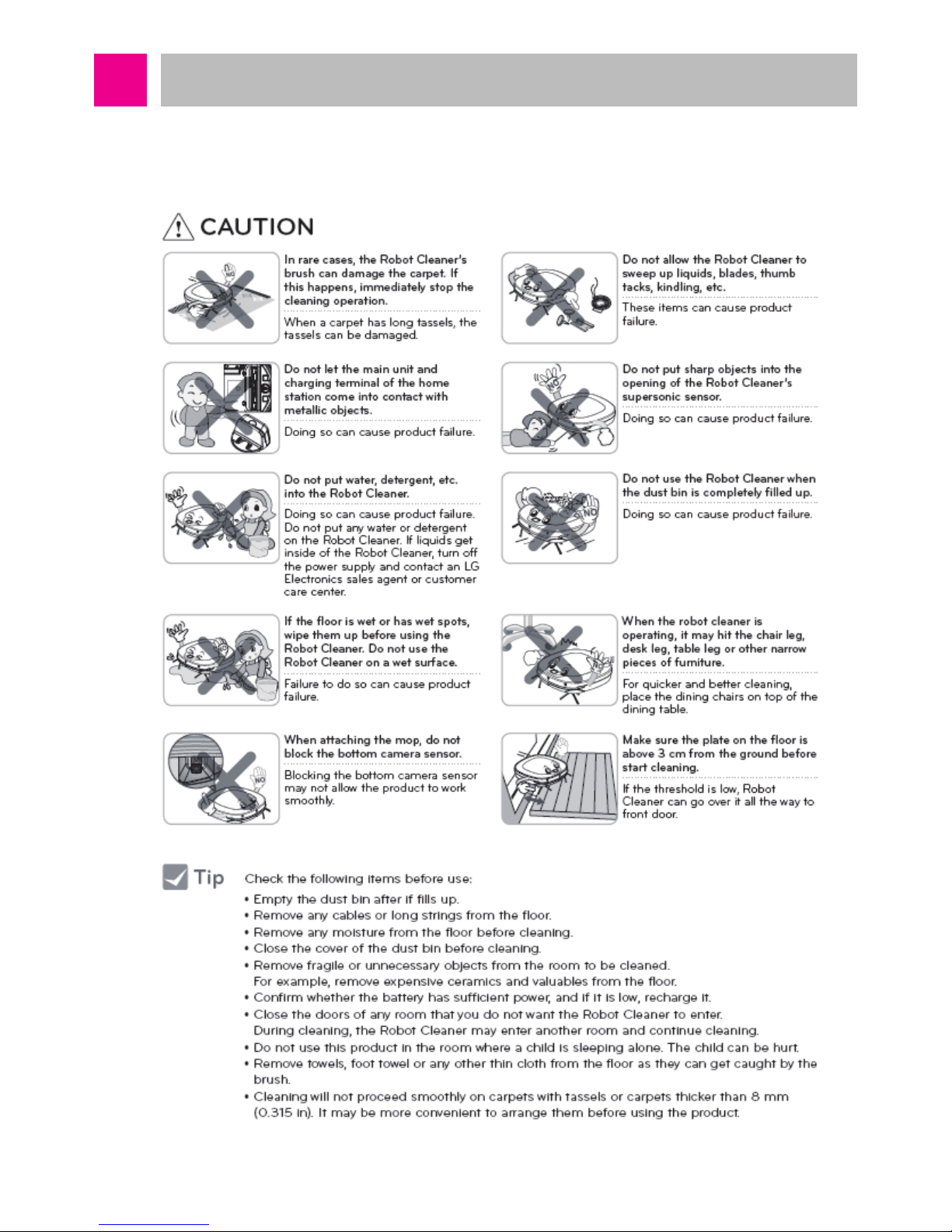

Cautions and Methods during the Usage

-9-

Cautions and Methods during the Usage

1. About Dust Bin

-10-

Cautions and Methods during the Usage

2. About Filter

■

Dust Bin Filter

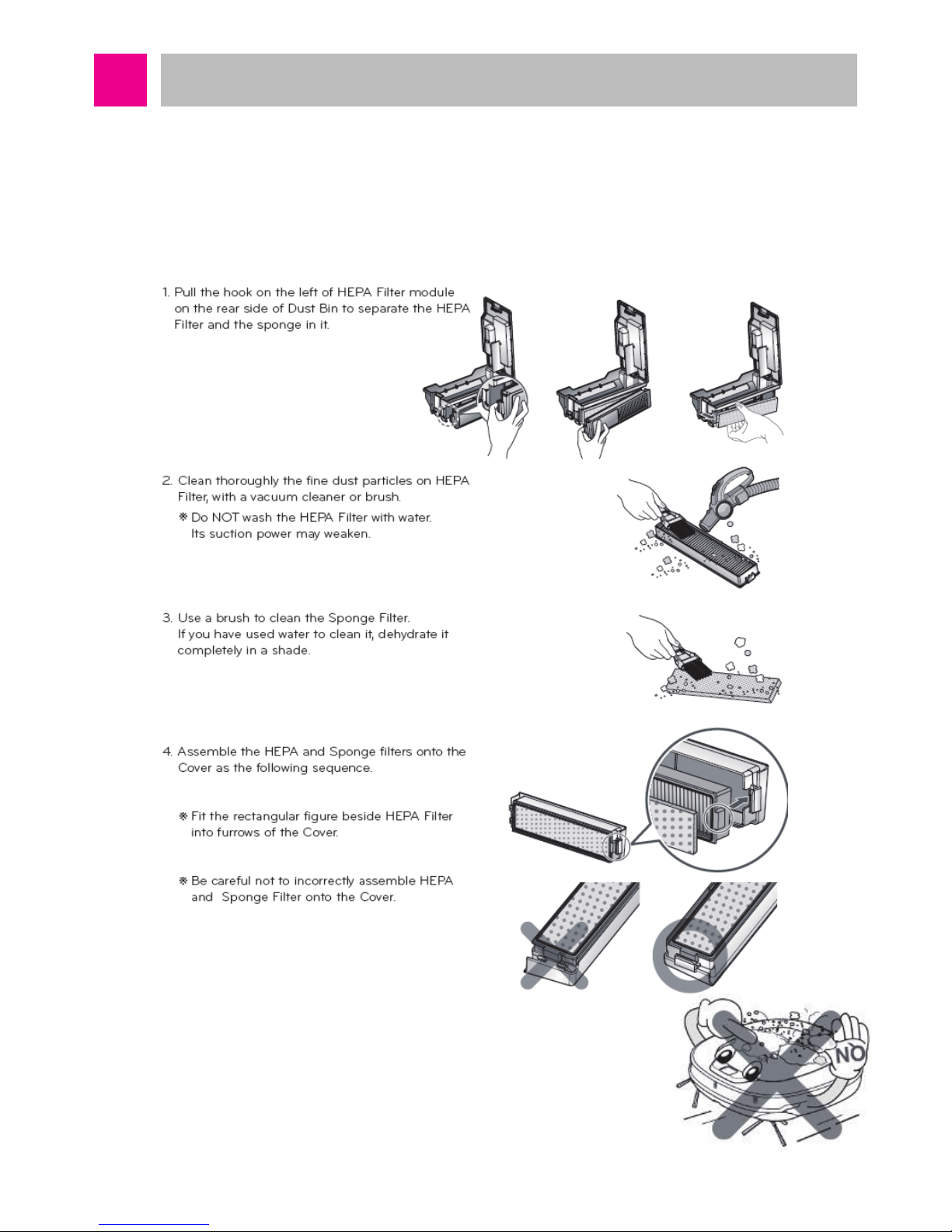

It is recommended to clean the dust bin filter with HEPA 11 once a week. During the cleaning,

clean thoroughly with cleaning brush and the cleaner. Never clean the filter with water. When it

is washed with water, the cleaning performance will be degraded.

Make sure to install the dust bin filter (HEPA filter, sponge

filter) to the dust bin after the cleaning.

If the dust bin or dust bin filter is not installed, dust may enter

inside Roboking and cause disorder.
