Life Gear 93385 Bedienungsanleitung

CLASSIC,

ELLIPTICAL TRAINER

ITEM NO: 93385

OWNER’S MANUAL

IMPORTANT: Read all instructions carefully before using this product. Retain this

owner’s manual for future reference.

The specifications of this product may vary from this photo, subject to change without notice.

2012, March

TABLE OF CONTENTS

WARRANTY ------------------------------------------------------------------------------- 2

IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3

PARTS LIST ------------------------------------------------------------------------------- 4

HARDWARE PACKING LIST --------------------------------------------------------- 6

TOOLS -------------------------------------------------------------------------------------- 7

OVERVIEW DRAWING -----------------------------------------------------------------8

ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 9

OPERATING THE COMPUTER ------------------------------------------------------ 15

ADJUSTMENTS -------------------------------------------------------------------------- 16

MAINTENANCE -------------------------------------------------------------------------- 17

TROUBLESHOOTING ------------------------------------------------------------------ 17

WARM UPAND COOL DOWN ROUTINE ----------------------------------------- 18

ONE YEAR LIMITED WARRANTY

LifeGear Inc. warrants to the original purchaser that this product is free from defects in

material and workmanship when used for the purpose intended, under the conditions that it

has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's

obligation under this warranty is limited to replacing or repairing free of charge, any parts

which may prove to be defective under normal home use. This warranty does not include

any damage caused by improper operation, misuse or commercial application.

From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.

This warranty is offered only to the original owner and is not transferable. Proof of

purchase is required.

When ordering replacement parts please have the following information ready:

1. Owner's Manual

2. Model Number

3. Description of Parts

4. Part Number

5. Date of Purchase

IMPORTANT SAFETY INSTRUCTIONS

Basic precautions should always be followed, including the following important

safety instructions when using this equipment: Read all instructions before using this

equipment.

1. Read all instructions and follow it carefully before using this equipment. Make sure the

equipment is properly assembled and tightened before use.

2. Before exercise, in order to avoid injuring the muscle, warm-up exercise is necessary.

Refer to the Warm Up and Cool Down Routine pages. After exercise, relaxation of the

body is suggested for cool-down.

3. Please make sure all parts are not damaged and fixed well before use. This

equipment should be placed on a flat surface when using. Using a mat or other

covering material on the ground is recommended.

4. Please wear proper clothes and shoes when using this equipment; do not wear clothes

that might catch any part of the equipment.

5. Do not attempt any maintenance or adjustments other than those described in this

manual. Should any problems arise, discontinue use and consult your local dealer.

6. Be careful when step on or leave the pedal always hold the handlebars first. Make the

pedal at your side at the lowest position, step on the pedal, and stride over the main

frame then step on the other pedal. When using, please hold the handlebar by hands,

make the pedals running smoothly by push or pull handlebars, then run the equipment

regularly by cooperation of hands and feet. After exercise, please also make one

pedal at the lowest position and leave your foot on the higher pedal first and then

another.

7. Do not use the equipment outdoors.

8. This equipment is for household use only.

9. Only one person at a time should use this equipment.

10. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop

exercising immediately and consult your physician before continuing.

11. Care should be taken in mounting or dismounting the equipment.

12. Do not allow children to use or play on the equipment. Keep children and pets away

from the equipment while in use. This machine is designed for adults use only. The

minimum free space required for safe operation is not less than two meters.

13. The maximum weight capacity for this product is 110 kgs.

WARNING:Before beginning any exercise program consult your physician.

This is especially important for the persons who are over 35 years old or who have

pre-existing health problems. Read all instructions before using any fitness

equipment.

CAUTION:Read all instructions carefully before operating this product.

Retain this Owner’s Manual for future reference.

PARTS LIST

No. Description Qty No. Description Qty

001 Main Frame 1 026 Bolt M8x50 2

002L Left Foot Bar 1 027 Nylon Nut M6 8

002R Right Foot Bar 1 028 Washer Ø6xØ12x1 7

003L Left Handrail Arm 1 029 Bolt M6x40 6

003R Right Handrail Arm 1 030 Tension Cable L=1600 1

004L Left Handrail Ø32x1.5x633 1 031 Cap S13 2

004R Right Handrail Ø32x1.5x633 1 032 Screw ST4.2x25 10

005 Front Post 1 033L Left Handrail Arm Cover-B 1

006 Hand Pulse Sensor Spring Wire 2 033R Right Handrail Arm Cover-B 1

007 Bolt M6x10 1 034 Big Washer Ø20Ø8x1.5 2

008 Screw ST2.9x10 2 035 Bolt Ø15.8x62.5 2

009 Washer Ø102xØ14x1 2 036 Left Foot Pedal 395x153x70 1

010 Front Stabilizer 1 037 Right Foot Pedal 395x153x70 1

011 Rear Stabilizer Ø50x1.5x480 1 038 Front Stabilizer End Cap Ø50 2

012 Bolt M10x57 4 039 Bolt M6x48 2

013 Rear Stabilizer End Cap Ø50x1.5 2 040 Transport Wheel Ø23xØ6x32 2

014 Big Curve Washer Ø10xØ25x2 4 041 Bolt M8x16 6

015 Cap Nut M10 4 042 Big Curve Washer Ø20xØ8x1.5 6

016L Bolt for left U Shape Bracket 1/2” 1 043 Bolt M10x18 2

016R Bolt for right U Shape Bracket

1/2” 1 044 Spring Washer Ø18xØ10.5x3 2

017L Left Nylon Nut 1/2” 1 045 Bolt M6x35 4

017R Right Nylon Nut 1/2” 1 046 Washer Ø28x5 2

018 Wave Washer Ø28xØ17x0.3 2 047 Powder Metal Bushing

Ø33xØ29xØ16x14x3 4

019 Powder Metal Bushing

Ø29xØ16x14 8 048 Curve Washer Ø6xØ12x1 4

020 Spring Washer Ø13xØ20x2 2 049 Cap S16 2

021 Bearing 6000 ZZ 2 050 Cap Nut M6 4

022 Bolt M8x20 2 051 Plastic Bushing

Ø32xØ16x5xØ50 2

023 U Shape Bracket 2 052 Big Washer Ø10xØ20x1.5 2

024 Nylon Nut M8 2 053 Wire Grommet Ø12.1 2

025 Washer Ø16xØ8x1.5 2 054 Tension Control Knob 1

PARTS LIST

No. Description Qty No. Description Qty

055 Spring Washer Ø8 6 076 Washer Ø34.5xØ23x2.5 1

056 Computer RD-93112 1 077 Washer Ø40xØ24x2.5 1

057 Bolt M5x12 4 078 Crank Nut 7/8” 1

058 Hand Pulse Sensor with Wire

L=750 2 079 Crank with Belt Pulley 1

059 Handrail Foam Grip

Ø31xØ37x480 2 080 Nut M10x1 2

060 Phillips Self Tapping Screw

ST4.2x20 4 081 Flywheel Ø230 1

061 Handrail End Cap Ø32x1.5 2 082 Belt PJ330 J6 1

062 Screw ST2.9x12 8 083 Idle Wheel Bracket 1

063 Screw ST4.2x20 2 084 Bolt M8x30 1

064 Curve Washer for Tension

Control Knob Ø20xØ5.2 1 085 Eyebolt M6x36 2

065 Bolt for Tension Control Knob

M5x45 1 086 U Bracket 2

066 Phillips Self Tapping Screw

ST4.2x25 6 087 Spring Washer Ø6xØ11.2x2 2

067 Sensor Wire I L=1100 1 088 Nut M6 2

068 Sensor Wire II L=1600 1 089 Bolt M8x10 1

069 Cover Cap Ø40xØ25x10 2 090 Right Decorative Cover Ø50 1

070 Left Cover 538x374x79 1 091 Left Decorative Cover Ø50 1

071 Right Cover 538x374x81 1 092 Powder Metal Bushing Ø18xØ8.5 4

072 Bearing Cup 2 093L Foot Bar Cover-A 2

073 Bearing 2 093R Foot Bar Cover-B 2

074 Notched Bearing Nut 15/16" 1 094L Left Handrail Arm Cover-A 1

075 Slotted Bearing Nut 7/8" 1 094R Right Handrail Arm Cover-A 1

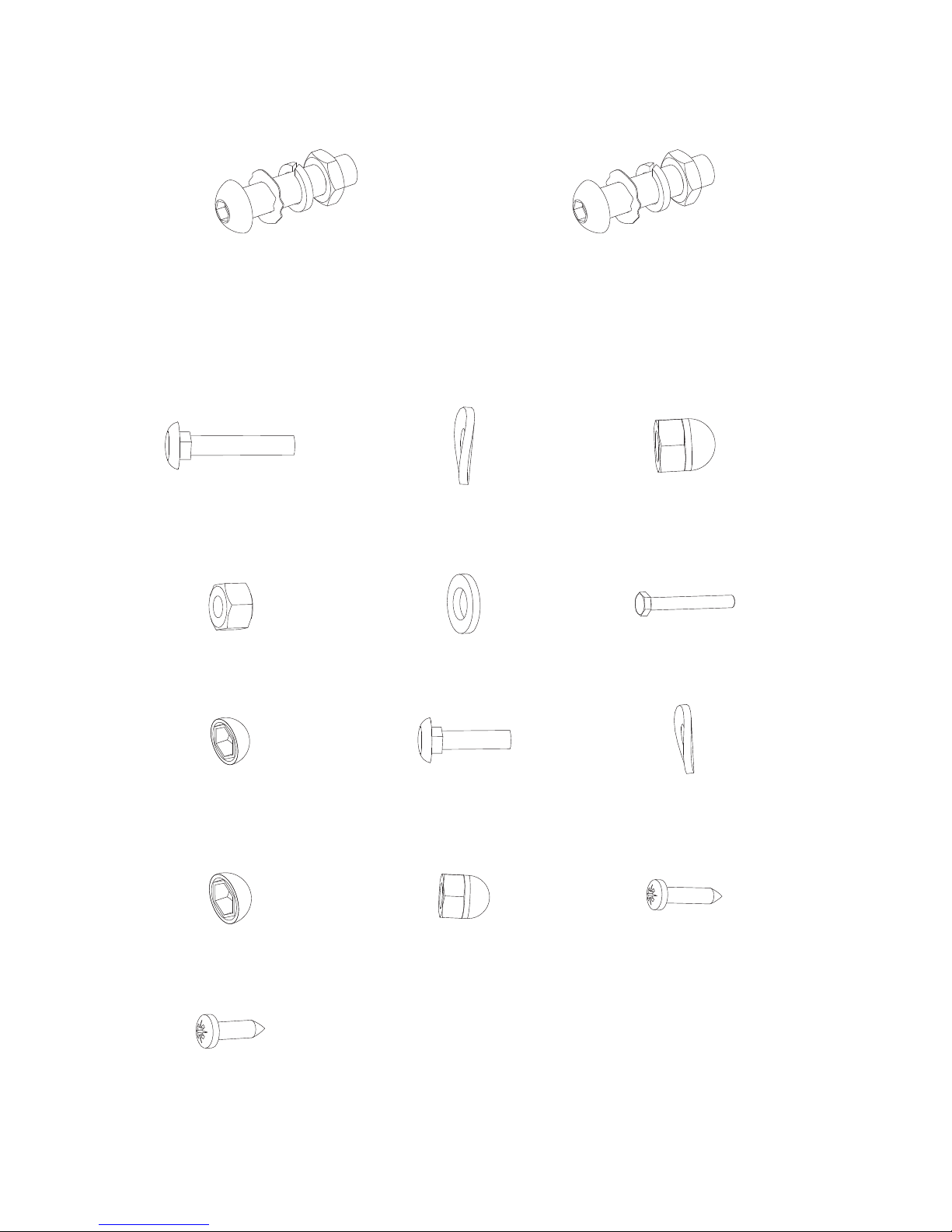

HARDWARE PACKING LIST

(12) Bolt M10x57

4 PCS (14) Big Curve Washer

Ø10xØ25x2

4 PCS

(15) Cap Nut M10

4 PCS

(27) Nylon Nut M6

6 PCS (28) Washer Ø6xØ12x1

6 PCS (29) Bolt M6x40

6 PCS

(31) Cap S13

2 PCS (45) Bolt M6x35

4 PCS (48) Curve Washer

Ø6xØ12x1

4 PCS

(49) Cap S16

2 PCS (50) Cap Nut M6

4 PCS (60) Phillips Self Tapping Screw

ST4.2x20

4 PCS

(62) Screw ST2.9x12

8 PCS

(16R) Bolt for right U Shape

Bracket 1/2” 1 PC

(17R) Right Nylon Nut 1/2” 1 PC

(18) Wave Washer

Ø28xØ17x0.3 1 PC

(20) Spring Washer

Ø13xØ20x2 1 PC

(16L) Bolt for left U Shape

Bracket 1/2” 1 PC

(17L) Left Nylon Nut 1/2” 1 PC

(18) Wave Washer

Ø28xØ17x0.3 1 PC

(20) Spring Washer

Ø13xØ20x2 1 PC

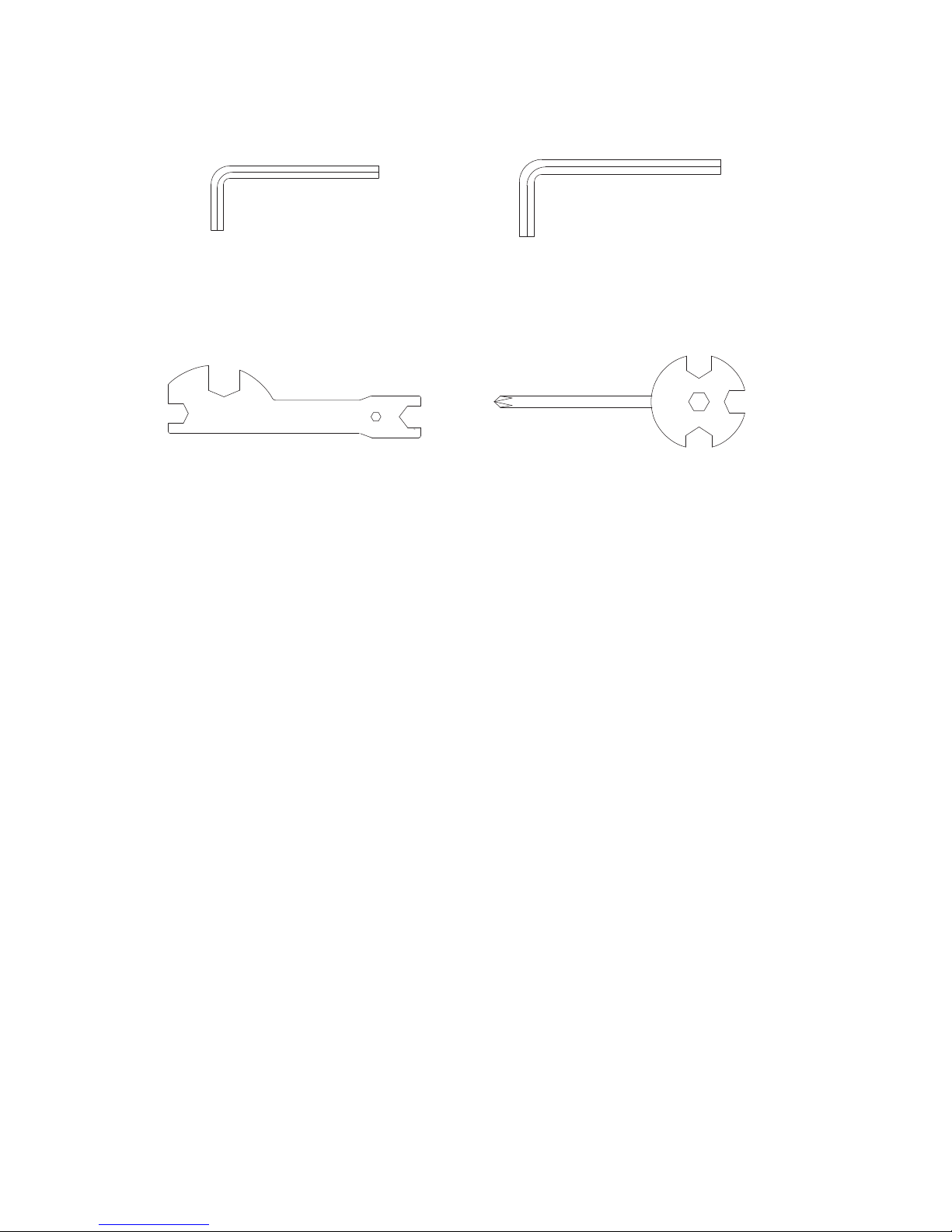

TOOLS

Allen Wrench S6

1 PC Allen Wrench S8

1 PC

Multi Hex Tool

1 PC Multi Hex Tool with Phillips Screwdriver

S10, S13, S14, S15

1 PC

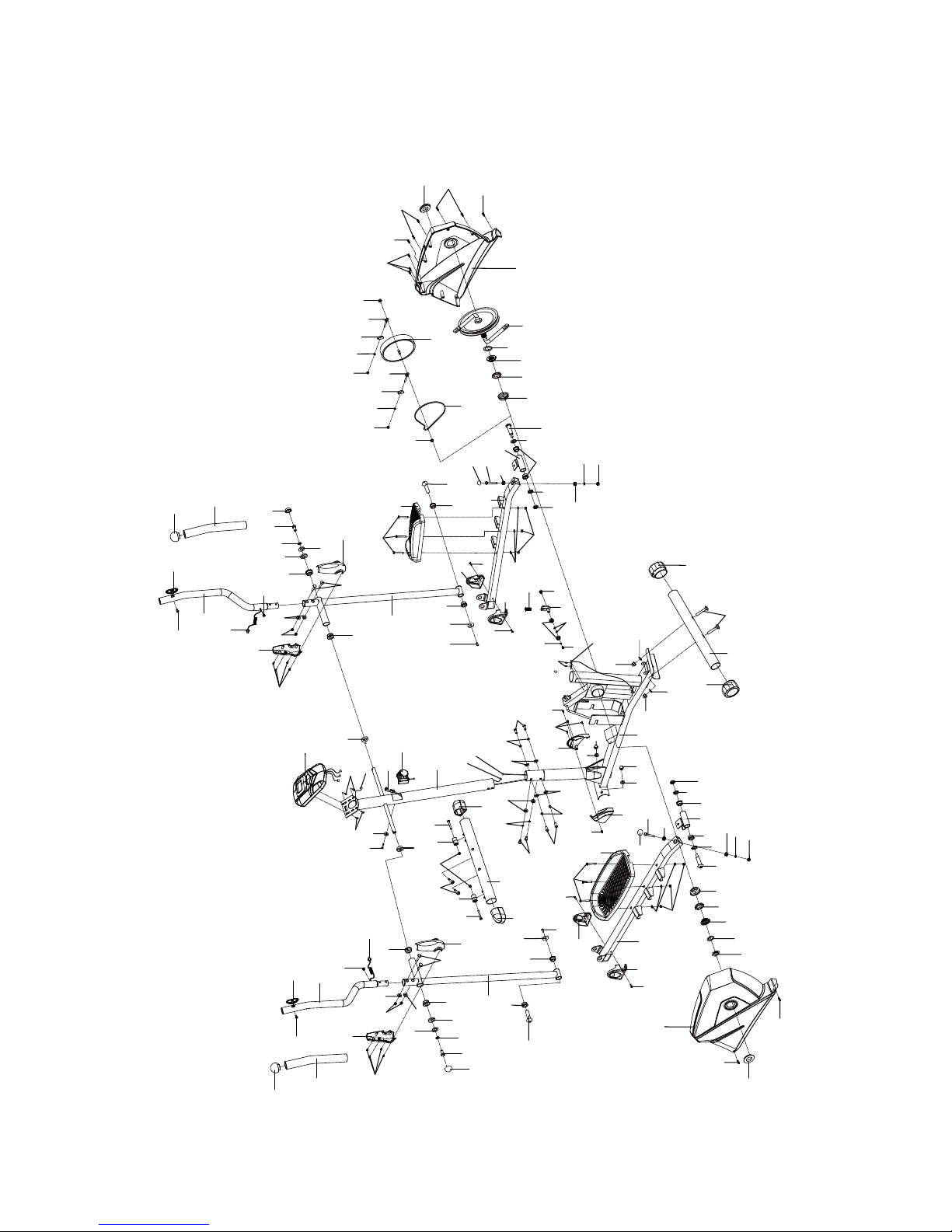

OVERVIEW DRAWING

59 4L

49 43 44 46 47

46 44

39 40

12 27 40 39

16L 18

19 23

31 14 15

17L

16R

17R

50 48

19 81

88 86

50 48

72 74

88 86

93L

93R

93L

93R

94L

33R

94R

55 55

33L

60 60

ASSEMBLY INSTRUCTIONS

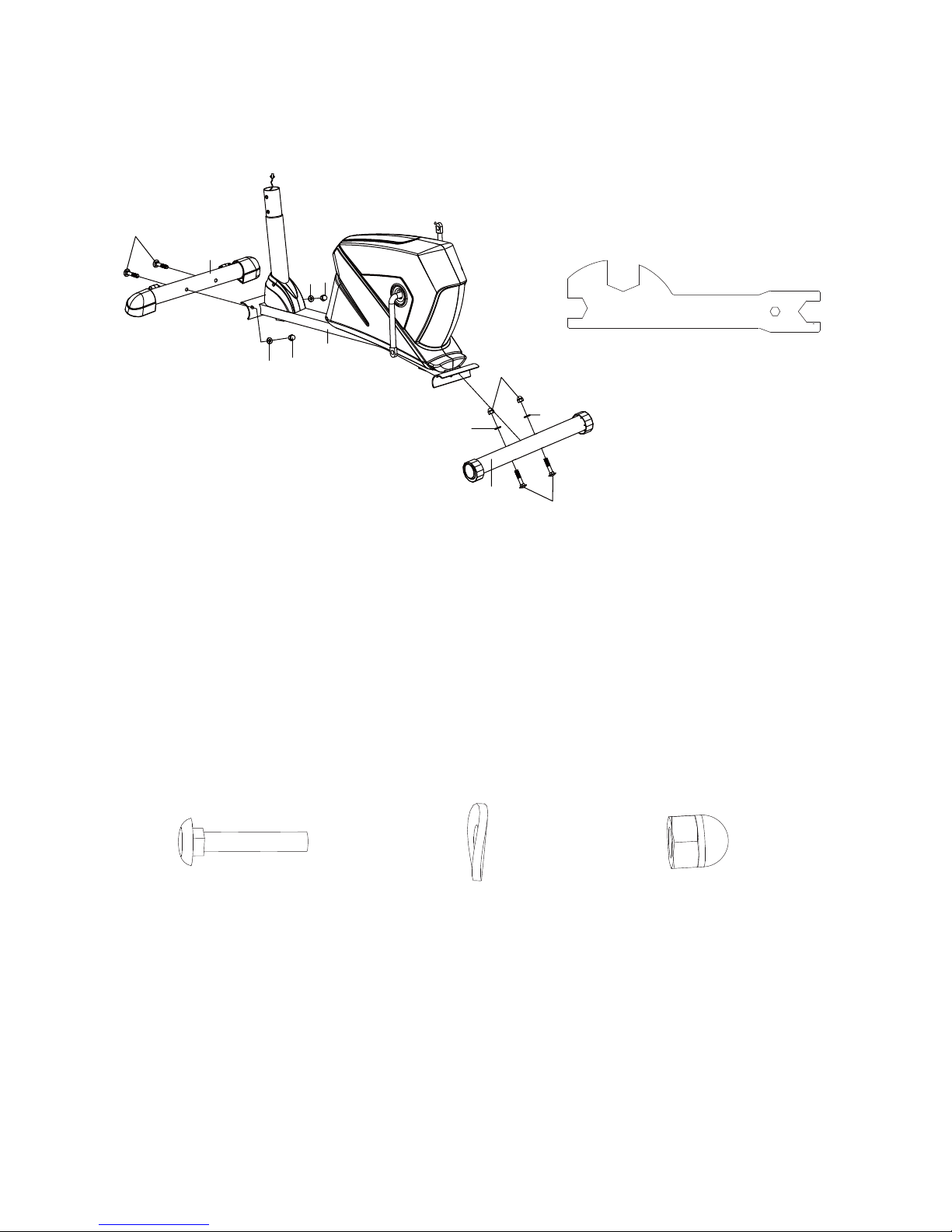

1. Front and Rear Stabilizers Installation

Position the Front Stabilizer (10) in front of Main Frame (1) and align bolt holes.

Attach the Front Stabilizer (10) onto the front curve of the Main Frame (1) with two M10x57

Bolts (12), two Ø10xØ25x2 Big Curve Washers (14), and two M10 Cap Nuts (15). Tighten

cap nuts with the Multi Hex Tool provided.

Position the Rear Stabilizer (11) behind the Main Frame (1) and align bolt holes.

Attach the Rear Stabilizer (11) onto the rear curve of the Main Frame (1) with two M10x57

Bolts (12), two Ø10xØ25x2 Big Curve Washers (14), and two M10 Cap Nuts (15). Tighten

cap nuts with the Multi Hex Tool provided.

Hardware:

Multi Hex Tool

Tool:

14 15

(12) Bolt M10x57

4 PCS (14) Big Curve Washer

Ø10xØ25x2

4 PCS

(15) Cap Nut M10

4 PCS
