Evoke Magnetic Upright Bike

Item No.: 20290

Owner’s Manual

IMPORTANT: Read all instructions carefully before using this product. Retain this

owner’s manual for future reference.

The specifications of this product may vary from this photo, subject to change without notice.

2011, Sept.

TABLE OF CONTENTS

WARRANTY ------------------------------------------------------------------------------- 1

SAFETY INSTRUCTIONS ------------------------------------------------------------- 2

ADJUSTMENTS -------------------------------------------------------------------------- 3

OPERATING THE COMPUTER ------------------------------------------------------ 3

PARTS LIST ------------------------------------------------------------------------------- 5

HARDWARE PACKING LIST --------------------------------------------------------- 6

TOOLS ------------------------------------------------------------------------------------- 6

OVERVIEW DRAWING ---------------------------------------------------------------- 7

ASSEMBLY INSTRUCTIONS -------------------------------------------------------- 8

MAINTENANCE -------------------------------------------------------------------------- 12

TROUBLESHOOTING ------------------------------------------------------------------ 12

WARM UPAND COOL DOWN ROUTINE ----------------------------------------- 13

ONE YEAR LIMITED WARRANTY

LifeGear Inc. warrants to the original purchaser that this product is free from defects in

material and workmanship when used for the purpose intended, under the conditions that it

has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's

obligation under this warranty is limited to replacing or repairing, free of charge, any parts

which may prove to be defective under normal home use. This warranty does not include

any damage caused by improper operation, misuse or commercial application.

From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.

This warranty is extended only to the original owner and is not transferable.

When ordering replacement parts please have the following information ready:

1. Owner's Manual

2. Model Number

3. Description of Parts

4. Part Number

5. Date of Purchase

SAFETY INSTRUCTIONS

Basic precautions should always be followed, including the following safety

instructions when using this equipment: Read all instructions before using this

equipment.

1. Read all the instructions in this manual and do warm up exercises before using this

equipment.

2. Before exercise, in order to avoid injuring the muscle, warm-up exercise of every

position of the body is necessary. Refer to Warm Up and Cool Down Routine page.

After exercise, relaxation of the body is suggested for cool-down.

3. Please make sure all parts are not damaged and fixed well before use. This

equipment should be placed on a flat surface when using. Using a mat or other

covering material on the ground is recommended.

4. Please wear proper clothes and shoes when using this equipment; do not wear clothes

that might catch any part of the equipment; remember to tighten the pedaling straps.

5. Do not attempt any maintenance or adjustments other than those described in this

manual. Should any problems arise, discontinue use and consult an Authorized

Service Representative.

6. Do not use the equipment outdoors.

7. This equipment is for household use only.

8. Only one person should be on the equipment while in use.

9. Keep children and pets away from the equipment while in use. This machine is

designed for adults only. The minimum free space required for safe operation is not

less than two meters.

10. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop

exercising immediately and consult your physician before continuing.

11. The maximum weight capacity for this product is 110 kgs.

WARNING:Before beginning any exercise program consult your physician.

This is especially important for the persons who are over 35 years old or who have

pre-existing health problems. Read all instructions before using any fitness

equipment.

CAUTION:Read all instructions carefully before operating this product.

Retain this Owner’s Manual for future reference.

ADJUSTMENTS

Adjusting the Tension Control Knob

To increase the load, turn the tension control knob in a clockwise direction.

To decrease the load, turn the tension control knob in a counterclockwise direction.

Adjusting the Rear Stabilizer End Cap

Turn the rear stabilizer end cap on the rear stabilizer as needed to level the bike.

Adjusting the Seat Height

Turn the seat post knob in a counterclockwise direction until the seat post can be slid up or

down and then slide the seat post up or down direction to the suitable position. Lock the

seat post in place by tightening the seat post knob in a clockwise direction.

NOTE: When adjusting the height of seat post, the maximum insert depth mark line

cannot higher than the edge of seat post bushing.

OPERATING THE COMPUTER

SPECIFICATIONS:

TIME---------------------------------------------------- 0:00-99:59 MIN: SEC

SPEED------------------------------------------------- 0.0-999.9 KM/H

DIST (DISTANCE)-----------------------------------0.0-999.9 KM

CAL (CALORIES)------------------------------------0.0-999.9 KCAL

ODO (ODOMETER)---------------------------------0-9999 KM

PULSE--------------------------------------------------40-240 BEATS/MIN

BUTTON FUNCTIONS:

MODE: Press MODE button to select each function of computer.

Press and hold MODE button for 3 seconds, all data values will clear to zero except the

ODO (ODOMETER) data values.

COMPUTER FUNTIONS:

AUTO ON/OFF: When you start to exercise or press the MODE button on the computer, the

computer will turn on. If you leave the equipment for 256 seconds, the power will turn off

automatically.

SCAN: Press MODE button until the arrow points to the SCAN; the computer will

automatically scan the function of TIME, SPEED, DIST (DISTANCE), CAL (CALORIES),

ODO (ODOMETER), and PULSE every 6 seconds.

TIME: Press MODE button until the arrow points to the TIME; the computer will display your

elapsed workout time in minutes and seconds.

SPEED: Press MODE button until the arrow points to the SPEED; the computer will display

the current training speed.

DIST (DISTANCE): Press MODE button until the arrow points to the DIST; the computer will

display the accumulative distance traveled during workout.

CAL (CALORIES): Press MODE button until the arrow points to the CAL; the computer will

display the total accumulated calories burned during workout. (This data is a rough guide

for comparison of different exercise sessions and should not be used in medical treatment).

ODO (ODOMETER): Press MODE button until the arrow points to the ODO; the computer

will display the total accumulative distance traveled. The data values of ODO can not be

clear to zero by pressing and holding MODE button for 3 seconds. If you take out the

batteries from the computer, the ODO data values will clear to zero.

PULSE: Press MODE button until the arrow points to the PULSE; the computer will display

your current heart rate figures after you hold both two hands on handlebar grip sensors. To

ensure the pulse readout is more precise, please always hold on to the handlebar grip

sensors with two hands instead of just with one hand only when you try to test your heart

rate figures.

HOW TO INSTALL THE BATTERIES:

1. Remove the battery cover at the rear of computer.

2. Place two "SIZE-AA" batteries into the battery housing.

3. Insure batteries are correctly positioned and battery springs are proper contact with

batteries.

4. Re-install the battery cover.

5. If the display is illegible or only partial segment appear, remove batteries and wait 15

seconds before reinstalling.

PARTS LIST

No. Description Qty No. Description Qty

001 Main Frame 1 030 Adjustable Bolt 2

002 Handlebar Ø25x1.5 1 031 U Bracket 2

003 Handlebar Post 70x30x1.5 1 032 Spring Washer Ø6 2

004 Rear Stabilizer Ø50x1.5x430 1 033 Hex Nut M6 2

005 Flywheel Ø230 1 034 Cap Nut M10 4

006 Front Stabilizer Ø50x1.5x380 1 035 Carriage Bolt M10x57 4

007 Tension Control Knob 1 036 Curve Washer Ø10 4

008 Seat Post Knob M16x1.5 1 037 Front Stabilizer Support 1

009 Belt PJ 380J6 1 038 Washer Ø8 12

010 Computer JVT29120 1 039 Curve Washer Ø16xØ8 2

011 Nut M10x1 2 040 Pan Head Phillips Self Tapping

Screw ST4.2x25 6

012 Seat Post Bushing 1 041 Spring 1

013 Left Cover 1 042 Locknut M8 2

014 Right Cover 1 043 Bolt M8x18 1

015 Screw ST2.9x12 2 044 Idle Wheel Bracket 1

016 Ring 1 045 Idle Wheel 1

017 Axle Sleeve 15/16” 1 046 Seat Post Cover 1

018 Nut 7/8" 2 047 Handlebar Post Cover 1

019 Belt Pulley with Crank 240J6 1 048 Bolt M5x20 1

020 Left Foot Pedal YH-30X 1 049 Axle Sleeve 7/8” 1

021 Right Foot Pedal YH-30X 1 050 Handlebar Foam Grip

Ø30xØ24x455 2

022 Axle Bush 2 051 Screw ST4.2x20 2

023 Ball Bearing 2 052 Transport Wheel Ø23xØ6x32 2

024 Bolt M8x15 7 053 Hand Pulse Sensor with Wire

L=750mm 2

025 Seat Post 60x20x1.5 1 054 Big Washer Ø5 1

026 Sensor with Wire L=750mm 1 055 Nylon Nut M6 2

027 Seat Cushion DD-982AT 1 056 Bolt M6x48 1

028 Front Stabilizer End Cap Ø50x1.5 2 057 Curve Washer Ø20xØ8 1

029 Rear Stabilizer End Cap Ø50x1.5 2 058 Tension Cable L=1150mm 1

PARTS LIST

No. Description Qty No. Description Qty

059 Middle Section Sensor Wire

L=900mm 1 063 Washer 7/8" 1

060 Adjustable Handlebar End Cap

Ø25 2 064 Bolt M5x10 4

061 Bolt M8x30 2 065 Cover Cap 2

062 Bolt M8x10 4

HARDWARE PACKING LIST

TOOLS

(34) Cap Nut M10

4 PCS (35) Carriage Bolt M10x57

4 PCS (36) Curve Washer Ø10

4 PCS

Allen Wrench 6mm

1 PC Multi Hex Tool with Phillips Screwdriver

S13, S14, S15

1 PC

Multi Hex Tool

1 PC

OVERVIEW DRAWING

17 23 22

23 49

919

42 38

52 52

31 32 33

24 38 62

ASSEMBLY INSTRUCTIONS

1. Front Stabilizer Support Installation

Remove six Ø8 Washers (38), four M8x15 Bolts

(24), and two M8x30 Bolts (61) from the Front

Stabilizer Support (37).

Insert the Front Stabilizer Support (37) into the

tube of Main Frame (1) and align bolt holes.

Secure the Front Stabilizer Support (37) with six

Ø8 Washers (38), four M8x15 Bolts (24), and

two M8x30 Bolts (61) that were removed.

Tighten bolts with the Allen Wrench provided.

Tool:

․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․

2. Front and Rear Stabilizers Installation

Position the Front Stabilizer (6) in front of

Front Stabilizer Support (37) and align bolt

holes.

Attach the Front Stabilizer (6) onto the front

curve of the Front Stabilizer Support (37) with

two M10 Cap Nuts (34), two M10x57

Carriage Bolts (35), and two Ø10 Curve

Washers (36). Tighten bolts with the Multi

Hex Tool provided.

Position the Rear Stabilizer (4) behind the

Main Frame (1) and align bolt holes.

Attach the Rear Stabilizer (4) onto the rear

curve of the Main Frame (1) with two M10

Cap Nuts (34), two M10x57 Carriage Bolts

(35), and two Ø10 Curve Washers (36).

Tighten bolts with the Multi Hex Tool

provided.

Hardware:

4 Cap Nuts (M10) 4 Carriage Bolts (M10x57) 4 Curve Washers (Ø10)

Allen Wrench 6mm

24 61

Tool:

Multi Hex Tool

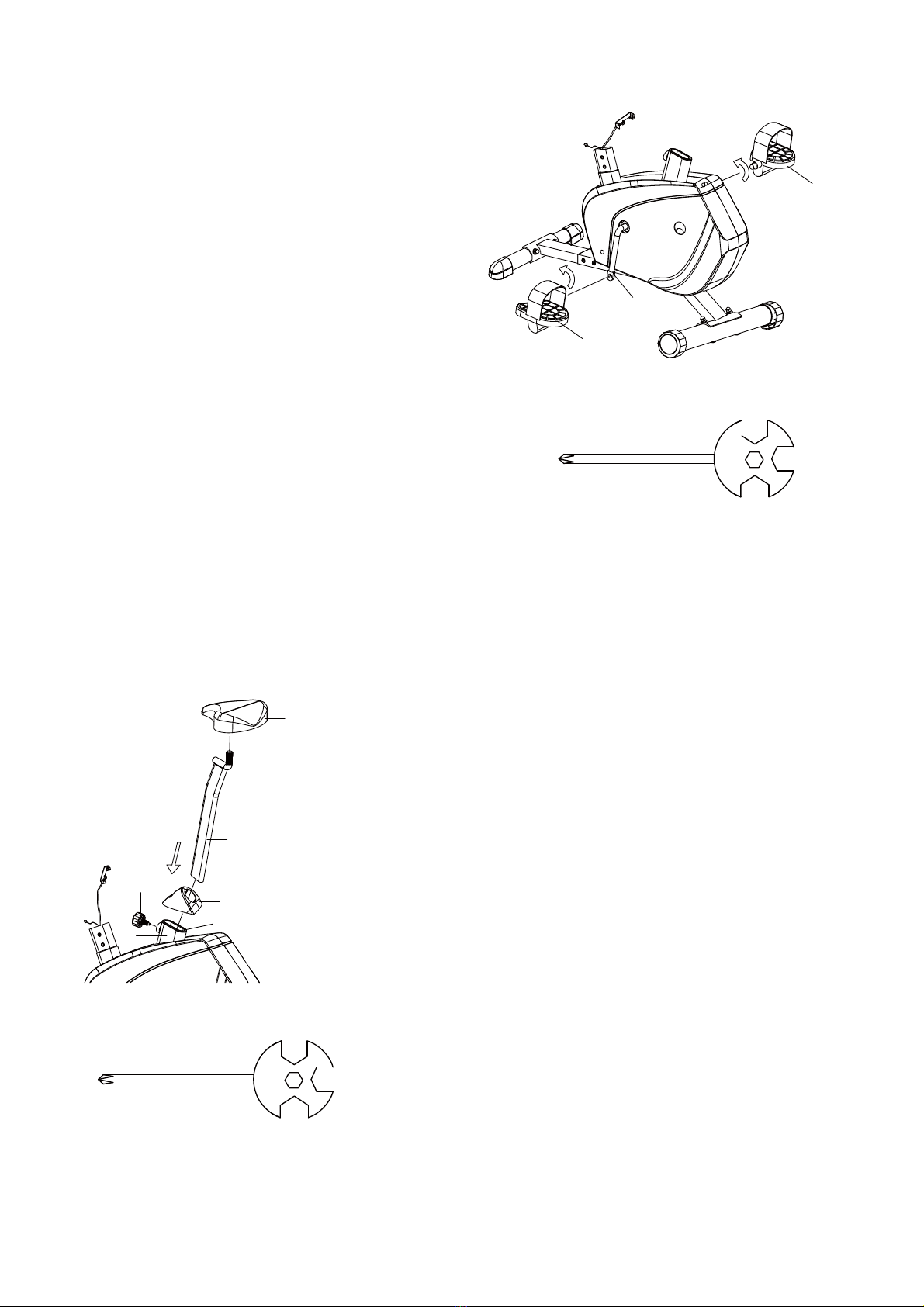

3. Foot Pedal Installation

The Cranks, Pedal Shafts, Pedal Straps, and

Foot Pedal are marked “R” for Right and “L”

for Left.

Insert the pedal shaft of Left Foot Pedal (21)

into threaded hole in the left Crank (19).

Turn the pedal shaft by hand in the

counter-clockwise direction until snug.

Note: DO NOT turn the pedal shaft in the

clockwise direction, doing so will strip the

threads.

Tighten the pedal shaft of Left Foot Pedal (21)

with the Multi Hex Tool with Phillips Screwdriver

provided.

Insert pedal shaft of Right Foot Pedal (20) into

threaded hole in right Crank (19).

Turn the pedal shaft by hand in the clockwise

direction until snug.

Tighten pedal shaft of Right Foot Pedal (20)

with the Multi Hex Tool with Phillips Screwdriver

provided.

․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․

4. Seat Cushion and Seat Post Installation

Release both nut just a little bit from underneath of the

Seat Cushion (27) and then attach the Seat Cushion (27)

onto the top end of the Seat Post (25) with nuts. Tighten

both nuts after adjustment.

Slide the Seat Post Cover (46) onto the Main Frame (1).

Insert the Seat Post (25) into the Seat Post Bushing (12).

Adjust the seat position and insert the M16x1.5 Seat Post

Knob (8). Turn the M16x1.5 Seat Post Knob (8) in the

clockwise direction to tighten.

Tool:

Multi Hex Tool with Phillips

Screwdriver S13, S14, S15

Tool:

Multi Hex Tool with Phillips

Screwdriver S13, S14, S15

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Life Gear Heimtrainer Handbücher

Life Gear

Life Gear 20560 Bedienungsanleitung

Life Gear

Life Gear Jupiter Bedienungsanleitung

Life Gear

Life Gear 26260 Bedienungsanleitung

Life Gear

Life Gear 20570 Bedienungsanleitung

Life Gear

Life Gear 20161N Bedienungsanleitung

Life Gear

Life Gear 20296 Bedienungsanleitung

Life Gear

Life Gear 28400 Bedienungsanleitung

Life Gear

Life Gear 16075 Bedienungsanleitung

Life Gear

Life Gear 26580 Bedienungsanleitung

Life Gear

Life Gear 20145HP Bedienungsanleitung

Life Gear

Life Gear 27960 Bedienungsanleitung

Life Gear

Life Gear MERCURY 26570 Bedienungsanleitung

Life Gear

Life Gear XINGGUI 20040 Bedienungsanleitung

Life Gear

Life Gear 20260 Classic II Bedienungsanleitung

Life Gear

Life Gear Classic Bedienungsanleitung

Life Gear

Life Gear 20310 Bedienungsanleitung

Life Gear

Life Gear X-Kross 21030 Bedienungsanleitung

Life Gear

Life Gear 20163 Bedienungsanleitung

Life Gear

Life Gear 20582 Bedienungsanleitung

Life Gear

Life Gear Formula Bedienungsanleitung

Life Gear

Life Gear 26460 Bedienungsanleitung

Life Gear

Life Gear 27910 Bedienungsanleitung

Life Gear

Life Gear 20390 Bedienungsanleitung

Life Gear

Life Gear 20250N Bedienungsanleitung

Beliebte Heimtrainer Handbücher anderer Marken

Weslo

Weslo Vector 302 Kurzanleitung

TOORX

TOORX BRX85 Bedienungsanleitung

Matrix

Matrix KranKcycle Bedienungsanleitung

Matrix

Matrix IC3 Bedienungsanleitung

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Bedienungsanleitung

Monark

Monark 827E Bedienungsanleitung

Stamina

Stamina 1310 Bedienungsanleitung

American Fitness

American Fitness SPR-BK1072A Bedienungsanleitung

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Bedienungsanleitung

BH FITNESS

BH FITNESS H9158H Bedienerhandbuch

Body Sculpture

Body Sculpture BC-7220G Bedienungsanleitung

Cateye

Cateye EC-2300 Bedienungsanleitung

FYTTER

FYTTER RACER RC MSR Bedienungsanleitung

Kikos

Kikos HM-9090M Bedienungsanleitung

Pro-Form

Pro-Form 345 Zlx Bike Benutzerhandbuch

Fuel Fitness

Fuel Fitness SU135-40 Bedienungsanleitung

NordicTrack

NordicTrack Gxr 4.2 Bike Bedienungsanleitung

Vision Fitness

Vision Fitness U70 Bedienungsanleitung
