Life Gear 40160 Bedienungsanleitung
cv: magnetic/ TREADMILL
ITEM NO.: 40160
OWNER’S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner’s manual for future reference.
The specifications of this product may vary from this photo and are subject to change without
prior notice. 2019, July
1
TABLE OF CONTENTS
WARRANTY ------------------------------------------------------------------------------- 2
IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3
EXPLODED VIEW ----------------------------------------------------------------------- 4
PARTS LIST ------------------------------------------------------------------------------- 5
TOOL ---------------------------------------------------------------------------------------- 6
HARDWARE LIST ----------------------------------------------------------------------- 7
ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 8
OPERATING THE COMPUTER ------------------------------------------------------ 15
STORAGE ---------------------------------------------------------------------------------- 16
MOVING THE TREADMILL ------------------------------------------------------------ 17
ADJUSTMENTS -------------------------------------------------------------------------- 18
LUBRICATION ---------------------------------------------------------------------------- 22
MAINTENANCE -------------------------------------------------------------------------- 23
TROUBLESHOOTING ------------------------------------------------------------------ 23
WARM UP AND COOL DOWN ROUTINE ----------------------------------------- 24
2
ONE YEAR LIMITED WARRANTY
LifeGear Inc. warrants to the original purchaser that this product is free from defects in
material and workmanship when used for the purpose intended, under the conditions that it
has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's
obligation under this warranty is limited to replacing or repairing free of charge, any parts
which may prove to be defective under normal home use. This warranty does not include
any damage caused by improper operation, misuse or commercial application.
From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.
This warranty is offered only to the original owner and is not transferable. Proof of
purchase is required.
When ordering replacement parts please have the following information ready:
1. Owner's Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase
3
IMPORTANT SAFETY INSTRUCTIONS
Basic precautions should always be followed, including the following safety
instructions when using this magnetic treadmill. Read all instructions before using
this magnetic treadmill.
1. Check every part of the equipment before exercise. If there is any defective
component, replace it immediately; keep the equipment out of use until repair.
2. Make sure all parts, bolts and nuts are well assembled and locked before exercise.
3. Never insert any object into any opening.
4. Never operate this magnetic treadmill if it is not working properly. If it has been
dropped or damaged, or been exposed to water, return the appliance to a service center
for examination and repair.
5. Do not attempt any maintenance or adjustments other than those described in this
manual. Should any problems arise, discontinue use and consult your local dealer.
6. Wear comfortable and suitable clothing when using the magnetic treadmill. Do not use
the magnetic treadmill barefoot, in only socks or in sandals, always wear athletic shoes.
7. Never wear loose clothing because it could run the risk of getting caught in the magnetic
treadmill.
8. Keep children and pets away from the equipment while in use.
9. Do not use the magnetic treadmill outdoors. This magnetic treadmill is for household
use only.
10. Only one person should be on the magnetic treadmill while in use.
11. Keep the magnetic treadmill on a solid, level surface with the minimum safety area
clearance of 2000mm x 1000mm around the unit. Be sure the area around the
magnetic treadmill remains clear during use and has adequate clearance.
12. Hold the handlebar with your hands when starting or stopping exercise and increasing
or decreasing the speed.
13. If feeling chest pains, nausea, dizziness, or shortness of breath, you should stop
exercising immediately and consult your physician before continuing.
14. The maximum weight capacity for this product is 110 kg.
WARNING: Before beginning any exercise program consult your
physician. This is especially important for the people who are over 35 years old or
who have pre-existing health problems. Read all instructions before using any
fitness equipment.
CAUTION: Read all instructions carefully before operating this product.
Retain this Owner’s Manual for future reference.
4
EXPLODED VIEW
1
2
5
6
7
16
18
13
20
21
23
39
28
33
33
36
37
38
40
42
42
42
42
43
31
46
30
17
26
22
17
22
24
25
27
44
48
23
41
36
23
18
18
15
40
26
34
34
55
51
50
56
50
56
35
35
45
23
53
52
49
49
55
54
8
33
32
12
11
10
32
12
11
33
9
4
3
19
29
29 47
47
14
14
18
53
52
54
49
49
55
43
30
25
27
26
55
18
39
40
40
21
23
37
5
PARTS LIST
No. Description Qty No. Description Qty
001 Main Frame 1 021 Hexagon Socket Pan Head Cap
Bolt M8x40 2
002 Base Tube 1 022 Extension Sensor Wire (1000 mm) 1
003 Left Upright Tube 1 023 Nylon Nut M8 5
004 Right Upright Tube 1 024 Sensor with Wire (210 mm) 1
005 Handlebar Ø28 1 025 Hand Pulse Sensor 2
006 Magnet Bracket 1 026 Hand Pulse Sensor Wire
(800 mm) 2
007 Front Roller Ø42x417.5 1 027 Cross Recessed Pan Head
Tapping Screw ST4.2x19 2
008 Front Roller Axle Ø12x450 1 028 Spring 1
009 Rear Roller Ø60x444 1 029 Rectangular End Cap (□30x15) 2
010 Rear Roller Axle Ø12x496 1 030 Handlebar Foam Grip 2
011 Hexagon Socket Cheese Head
Cap Bolt M6x75 2 031 Wire Clip 1
012 Washer Ø13xØ6.2 2 032 Main Frame Rear End Cap 2
013 Cross Recessed Pan Head Bolt
M6x20 1 033 Plastic Washer Ø23.5xØ12.2x4 4
014
Cross Recessed Pan Head
Drilling Screws with Tapping
Screw Thread ST5.5x25
6 034 Handlebar Cover 2
015 Lock Knob M8x60 1 035 Side Rail (975Lx30W) 2
016
Cross Recessed Countersunk
Head Drilling Screws with
Tapping Screw Thread M3x10
2 036 Incline Adjustment Frame Round
End Cap Ø33xØ25x25 2
017 Extension Sensor Wire I
(650 mm) 1 037 Main Frame Front End Cap
(D50.8x41.4) 2
018 Hexagon Socket Pan Head Cap
Bolt M8x45 5 038 Plastic Cover 1
019 Cross Recessed Pan Head Bolt
M5x15 1 039 Transport Wheel Ø48xØ8.2x16.5 2
020 Nut M6 1 040 Rubber Pad 4
6
PARTS LIST
No. Description Qty No. Description Qty
041 Computer 1 049 Hexagon Socket Pan Head Cap
Bolt M8x15 6
042 Wire Grommet Ø12 4 050 Cross Recessed Pan Head Bolt
M6x10 4
043 Handlebar End Cap 2 051 Cross Recessed Pan Head Bolt
M5x10 2
044 Magnet 39.5x25x12 6 052 Hexagon Socket Pan Head Cap
Bolt M8x50 2
045 Running Deck 975x450x12T 1 053 Washer Ø22xØ8.3 2
046 Running Belt 2360x335x1.2T 1 054 Washer Ø16xØ8.3 4
047 Tension Control Knob 1 055 Curve Washer Ø16xØ8.3 4
048 Incline Adjuster Ø25x1.5Tx555 1 056 Washer Ø13xØ6.1 4

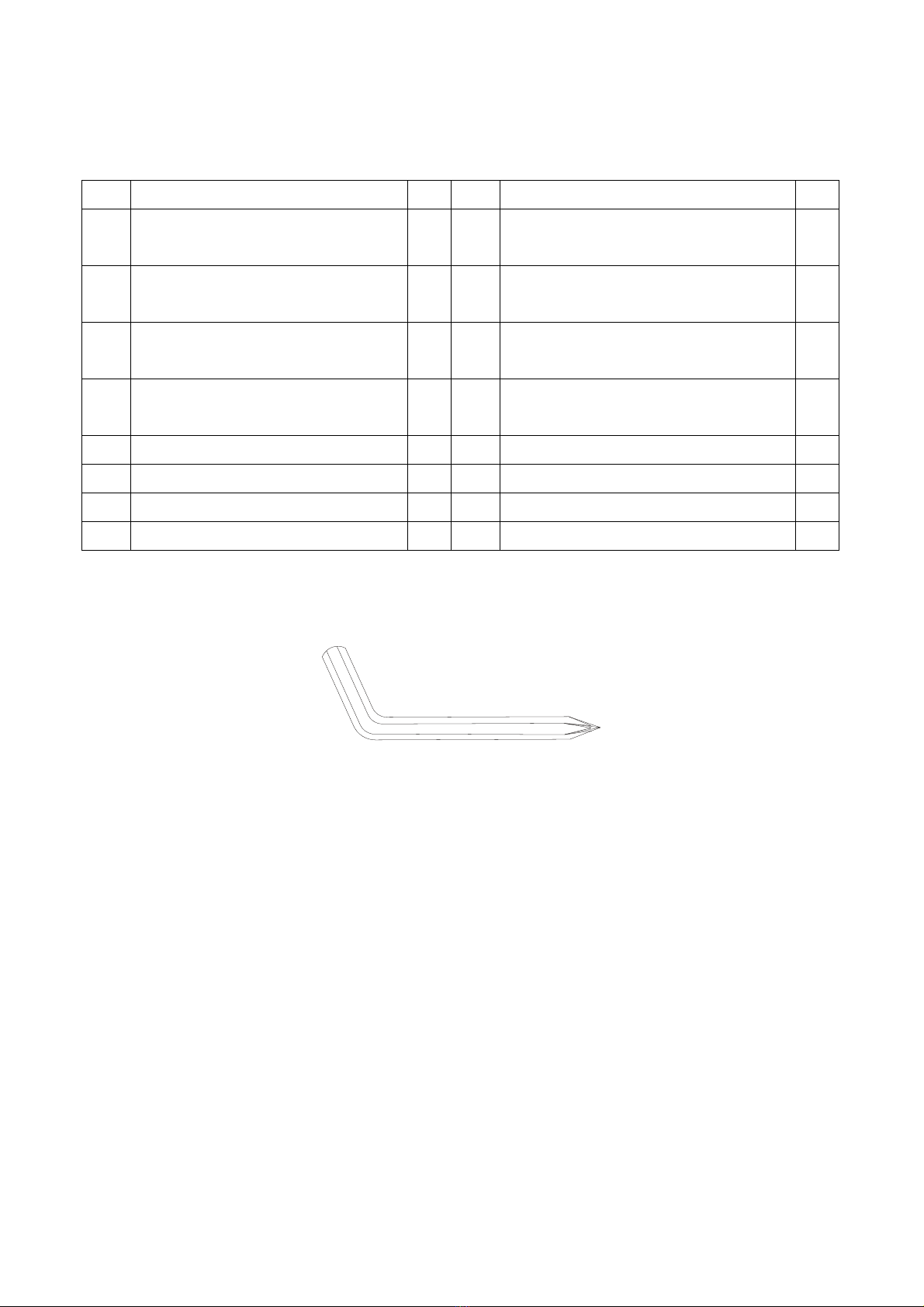

TOOL
S5 Allen Wrench with Phillips Screwdriver
1 PC
7
HARDWARE LIST
(15) Lock Knob
1 PC
(18) Hexagon Socket
Pan Head Cap Bolt
2 PCS
(49) Hexagon Socket
Pan Head Cap Bolt
6 PCS
(52) Hexagon Socket
Pan Head Cap
2 PCS
(53) Washer
2 PCS
(54) Washer
4 PCS
(55) Curve Washer
4 PCS
8
ASSEMBLY INSTRUCTIONS
Step 1
Attach both Left/Right Upright Tubes (3, 4) onto the Base Tube (2) with six Hexagon Socket
Pan Head Cap Bolts (49), four Washers (54), and two Curve Washers (55). Semi-tighten
bolts with the Allen Wrench with Phillips Screwdriver provided.
NOTE: DO NOT FULLY TIGHTEN BOLTS IN STEP 1 UNTIL THE STEP 5 IS COMPLETE.
Hardware:
(49) Hexagon Socket
Pan Head Cap Bolt
6 PCS
(54) Washer
4 PCS
(55) Curve Washer
2 PCS
49
54
2
49
55
49
55
54
49
2
4
3
3
49 54
49 55
9
47

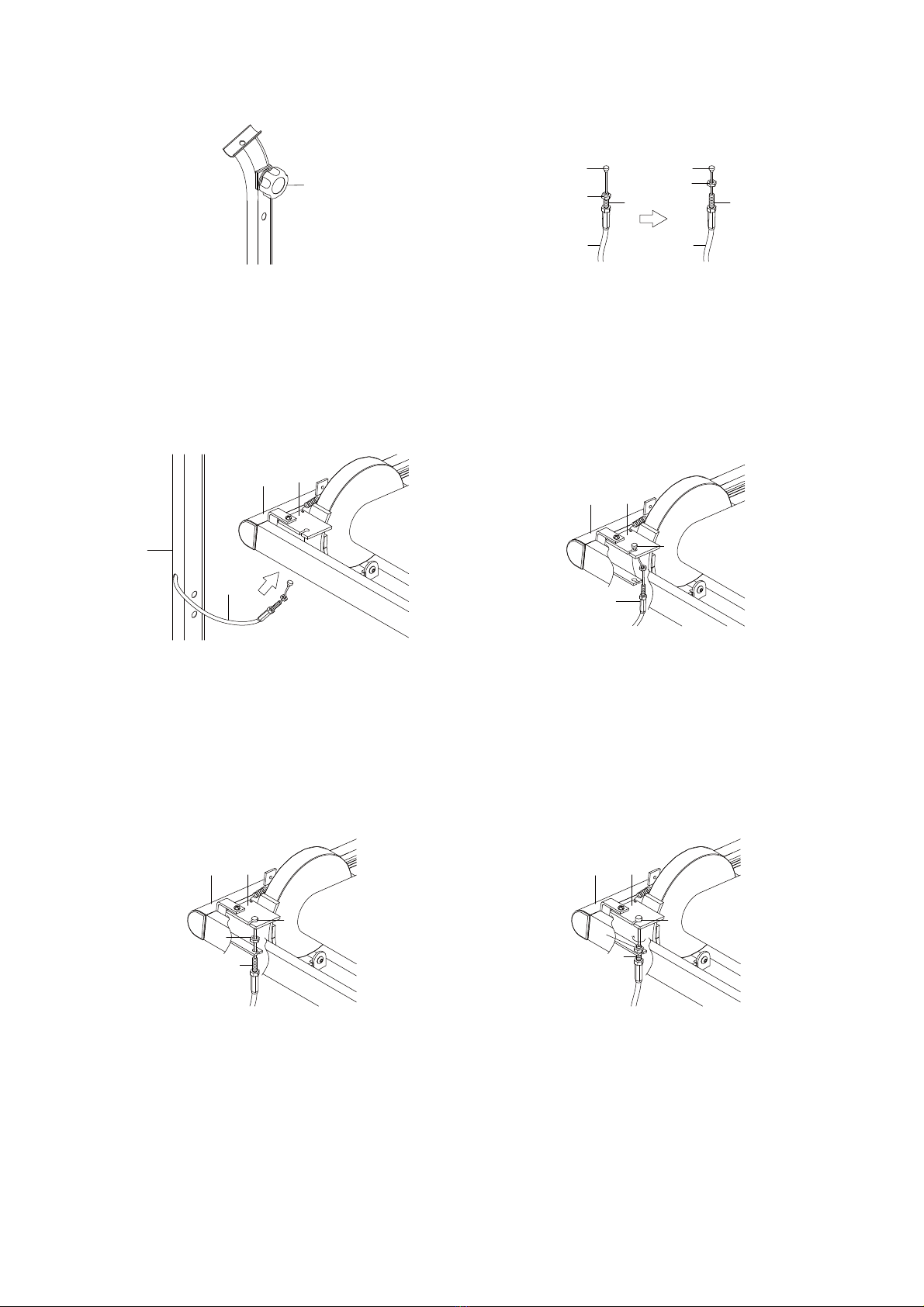

Step 2-1
Turn the Tension Control Knob
(47) clockwise to the highest level
(8-Level).
AA
B
B
CC
47 47
Step 2-2
Remove the B (Nut) from the
resistance cable of the Tension
Control Knob (47).
47
4
16
Step 2-3
Insert the resistance cable of the
Tension Control Knob (47) to the
Magnet Bracket (6).
A
16
47
Step 2-4
Put the A (cable end of resistance
cable) into the cable lock of
Magnet Bracket (6).
16
A
C
B
Step 2-5
Pull the resistance cable down
and force C into the slot of metal
bracket.
16
A
C
B
Step 2-6
Finally, tighten the B (Nut) by
hand.
