1. IMPORTANT SAFETY INSTRUCTIONS

WARNING - Read all instructions before using this treadmill.

It is important your treadmill receives regular maintenance to prolong its

useful life. Failing to regularly maintain your treadmill may void your warranty.

Danger–To reduce the risk of electric shock disconnect your treadmill from the electrical

outlet prior to cleaning and/or service work.

DO NOT USE AN EXTENSION CORD: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG

BY USING IMPROPER ADAPTERS OR IN ANY WAY MODIFY THE CORD SET.

zInstall the treadmill on a flat level surface with access to a 220-240 volt (50/60Hz),

grounded outlet.

zDo not operate treadmill on deeply padded, plush or shag carpet. Damage to both

carpet and treadmill may result.

zDo not block the rear of the treadmill. Provide a minimum of 1 metre clearance

between the rear of the treadmill and any fixed object.

zPlace your unit on a solid, level surface when in use.

zNever allow children on or near the treadmill.

zWhen running, make sure the plastic clip is fastened on your clothing. It is for your

safety, should you fall or move too far back on the treadmill.

zKeep hands away from all moving parts.

zNever operate the treadmill if it has a damaged cord or plug.

zKeep the cord away from heated surfaces.

zDo not operate where aerosol spray products are being used or where oxygen is being

administered. Sparks from the motor may ignite a highly gaseous environment.

zNever drop or insert any object into any openings.

zThe treadmill is intended for in-home use only and not suitable for long time running.

zTo disconnect, turn all controls to the off position, remove the safety key, and then

remove the plug from the outlet.

LIFESPAN BOOMER Page 3

zThe pulse sensors are not medical devices. Various factors, including the user’s

movement, may affect the accuracy of heart rate readings. The pulse sensors are

intended only as exercise aids in determining heart rate trends in general.

zUse handrails provided; they are for your safety.

zWear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for

use on your treadmill. Quality athletic shoes are recommended to avoid leg fatigue.

zAllowed temperature: 5 to 40 degrees.

Remove the safety key after use to prevent unauthorized treadmill operation.

1.1 IMPORTANT ELECTRICAL INFORMATION

WARNING!

zNEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route

the power cord away from any moving part of the treadmill including the elevation

mechanism and transport wheels.

zNEVER remove any cover without first disconnecting AC power.

zNEVER expose this treadmill to rain or moisture. This treadmill is not designed for use

outdoors, near a pool, or in any other high humidity environment.

Main Technical Parameter

Input voltage: 220V±10% (50HZ-60HZ)

Input current:≤6A

Rating Power:1.5HP (horsepower continuous)

Max Speed Range:0.8-12(km/h

1.2 IMPORTANT OPERATION INSTRUCTIONS

zBe sure to read the entire manual before operating your machine.

zUnderstand that changes in speed and incline do not occur immediately. Set your

desired speed on the computer console and release the adjustment key. The computer

will obey the command gradually.

LIFESPAN BOOMER Page 4

zUse caution while participating in other activities while walking on your treadmill; such

as watching television, reading, etc. These distractions may cause you to lose balance

or stray from walking in the centre of the belt; which may result in serious injury.

zIn order to prevent losing balance and suffering unexpected injury, NEVER mount or

dismount the treadmill while the belt is moving. This unit starts with at a very low

speed. Simply standing on the belt during slow acceleration is proper after you have

learned to operate this machine.

zAlways hold on to handrail while making control changes.

zA safety key is provided with this machine. Remove the safety key will stop the

walking belt immediately; the treadmill will shut off automatically. Insert the safety

key will reset the display.

zDo not use excessive pressure on console control keys. They are precision set to

function properly with little finger pressure.

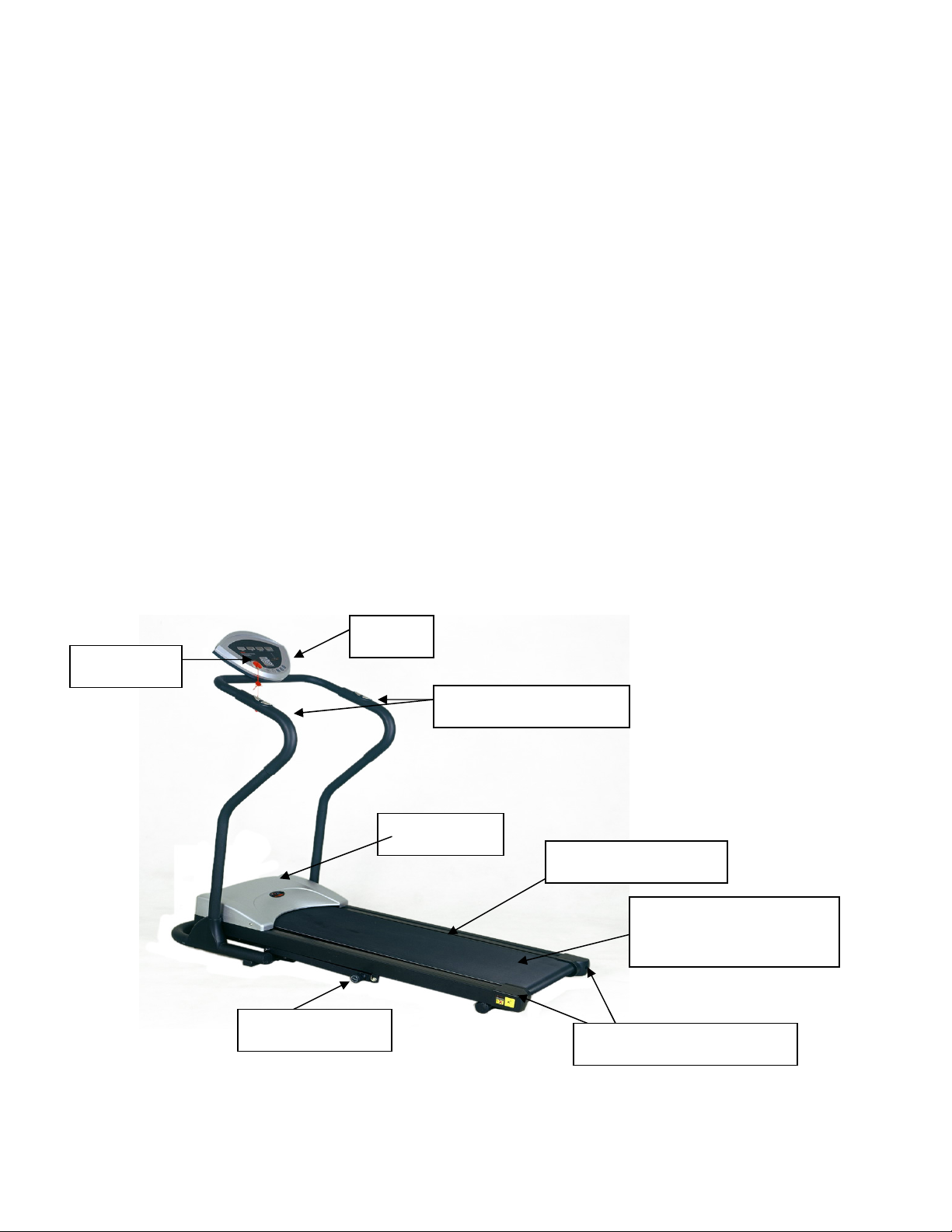

1.3 KEY COMPONANTS OF TREADMILL

Folding Knob Belt tracking adjustments

Motor Cover

Running Mat

Deck; located under the

running mat.

Safety Key

Hand Pulse Sensors

Display

LIFESPAN BOOMER Page 5

2 ASSEMBLY INSTRUCTIONS

The Exploded View of installation parts

number Part name Quantity

1 Main Frame 1

2 Folding Device 1

3 Under Frame 1

4 Left and Right Vertical Frames +

Grips

Each

5 Meter Frame 1

6 Electronic Meter + wires 1

Installation steps (refer to the installation diagram)

1. Mount the left and right vertical frame onto the under frame using 4 M10×15 bolts, and

four 10mm washes.

2. Tighten the main Frame onto the left and right vertical frame with bolts provided; fix

the folding device on the under frame with 2 M8×45 bolts, four 8mm flat washes and

2M8 locking nuts; plug the seven-wire plug in the right vertical frame pipe with the

seven-wire plug from the main Frame.

3. Connect the seven-wire and pulse wire in the meter frame with the seven-wire and

pulse wire of the vertical frame and then insert the meter frame into the left and right

vertical frames. Tighten the meter frame on the handle of the left and right vertical

frame with 2M5×15 half-round head Philips bolts.

4. Install the electronic meter: plug the inner wire in the pipe of the meter frame into the

electronic meter socket, then mount the electronic meter on the meter frame tightly,

using 3M5×20pan head Phillips bolts.

LIFESPAN BOOMER Page 6

CAUTION:

1. DO NOT PLUG IN POWER CORD UNTIL FINAL ASSEMBLY IS COMPLETED AND

MOTOR COVER IS INSTALLED.

2. Do not attempt to assemble the treadmill until the assembly instructions are

followed and the uprights are attached to the treadmill. Failure to follow this can

result in damage to the treadmill.

3. Your treadmill is a very heavy piece of exercise equipment and should be handled

with caution.

4. Children should not be allowed to play on the treadmill or move the treadmill

deck up and down.

WE RECOMMEND YOU HAVE SOMEONE TO ASSIST YOU IN LIFTING AND ASSEMBLING

YOUR LIFESPAN TREADMILL. FOLLOW THESE INSTRUCTIONS CAREFULLY AND IT WILL

MAKE IT EASIER TO ASSEMBLE YOUR LIFESPAN TREADMILL

Ensure all fixings are tightly secured and the treadmill is well constructed.

3 DISPLAY PANEL OPERATIONS

3.1 Display layout

Window for TIME: display time (setting time in the time descending mode)

Window for DISTANCE: display distance (setting distance in the distance descending mode)

Window for CALORIES: display calorie (setting calorie in the calorie descending mode)

Window for SPEED: display speed

Window for PULSE: display pulse

LIFESPAN BOOMER Page 7

3.2 Basic Characters

1. Time Range 0:00-99:59

2. Speed Range 0.8-12.0km/h

3. Distance Range 0.00-99.99km

4. Calorie Range 0.00-99.99KCAL

5. Speed, Distance, Calorie and Time are adjustable, and when Distance, Calorie and

Time are not set as zero, it counts down.

6. Start the machine with 3 seconds of time delay

7. Alarm function

8. Pulse measure and display

9. Safe Protection Function

a. Automatically stop if speed measuring information is not available within 5

seconds

b. Safe loose device stops the machine instantly if it detects there is a loose wire.

c. Automatically stop if it runs rapidly

d. Double fuse

10. Five buttons

a. START/STOP

b. SELECT

c. RESET

d. SPEED+

e. SPEED-

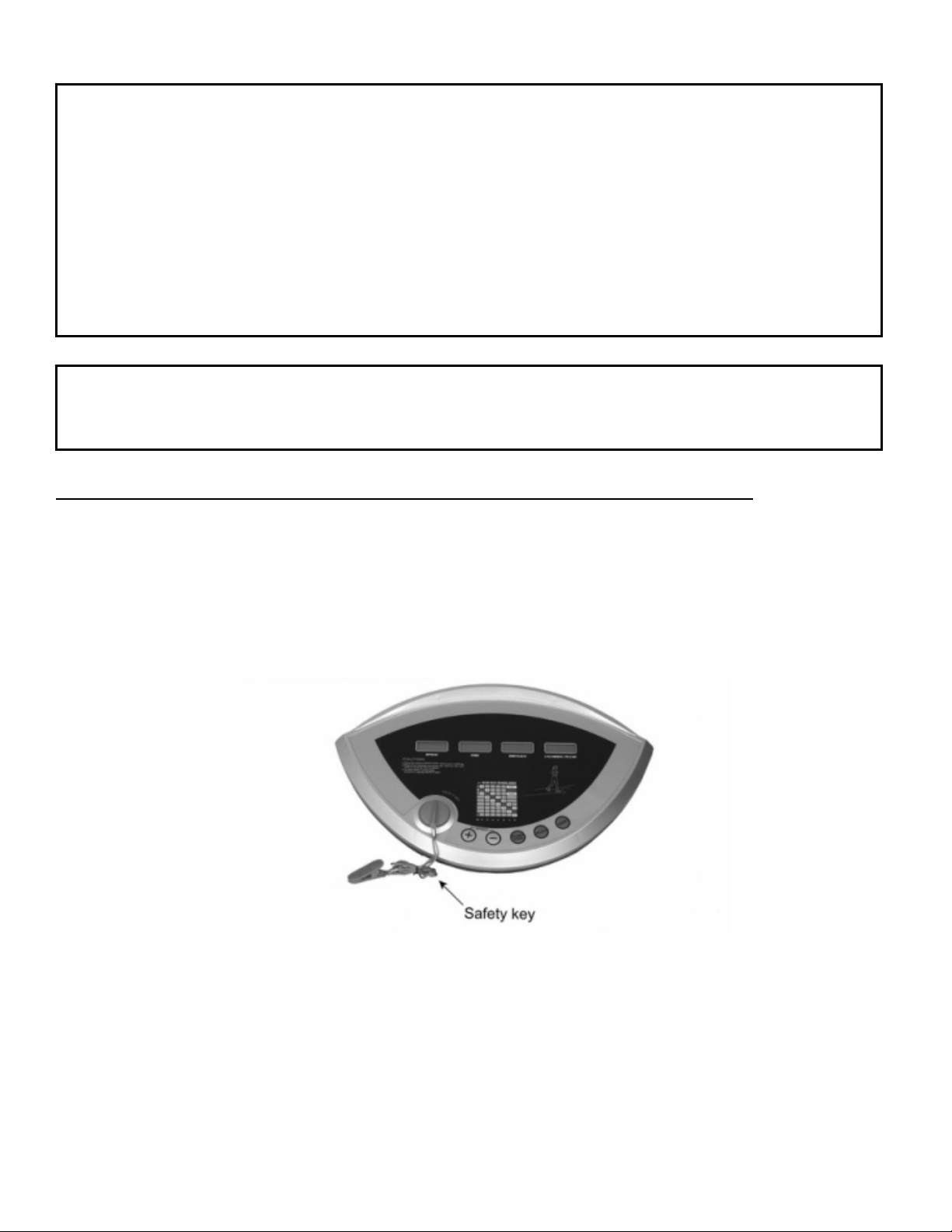

3.3 Safety Key

IMPORTANT: The treadmill will not operate if the safety key is not in place.

Before starting the treadmill, attach the magnetic key to the display panel, and then attach

the clip on the other end to your clothing (above the waist). If the safety key is removed

whilst you are operation the treadmill, the machine will turn itself off.

When the treadmill is not in use, you should remove the safety key.

Store the safety key in a safe place OUT OF REACH OF CHILDREN.

LIFESPAN BOOMER Page 8

3.4 Display Operation

(1) START/STOP, press this button to start or stop the machine

a. When the operation panel is in standby, press START/STOP button, the treadmill will

start after 3 seconds, and the time window counts down for 3 seconds. The

Treadmill will start operating at the lowest speed---0.1km/h, press the start/stop

button again to stop the machine.

b. After the window values are set, press START/STOP button to start the machine and

run at set speed or mode.

c. After starting the machine, if there’s Pulse signal input. Calorie/Pulse window

displays pulse.

(2) Reset

a. When setting, if one window is incorrect or the setting is modified, please reset the

window by pressing Reset button.

b. Reset key is not available after starting the machine

(3) Speed + /Speed

a. After starting the machine, press Speed+ to increase the speed from 0.8km/h to

12.0km/h press Speed+/Speed- once, the speed increases/decreases 0.1km/h;

When the SPEED increases to 12km/h, Speed+ key is unavailable. When SPEED

decreases to 0.1km/h, Speed – key is unavailable. Hold Speed+/Speed- for over 0.5

seconds, the speed will change rapidly.

b. In Select mode, press Speed+/Speed- to adjust the value of different windows

under flash state.

c. After starting the treadmill, press Speed+/Speed- to change the speed value and

the Speed window won’t flash.

d. In Set mode, hold Speed+/Speed- for over 0.5 seconds, the speed will change

rapidly.

(4) Select

a. Before starting the machine, press Select key to select Speed. Time, Distance,

Calorie window, the selected window SET flashes. It will stop flashing if there isn’t

input within 6 seconds.

LIFESPAN BOOMER Page 9

3.5 Getting Started

Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the

power switch located at the front of the treadmill below the motor shield. Ensure that the

safety key is installed, as the treadmill will not power on without it.

When the power is turned on, all the lights on the display will light for a short time.

3.6 Pulse Grip Feature:

If the computer detects a pulse signal, the PULSE window will show your heart rate beat

per minute instead of “P”. You must use both stainless steel sensors to display your pulse.

Pulse value displays anytime the upper display is receiving a Grip Pulse signal.

3.7 Calorie Display:

Displays the cumulative calories burned at any given time during your workout.

Note: This is only a rough guide used for comparison of different exercise

sessions, which cannot be used for medical purposes.

3.8 Programmable Operations

When is standby status, press the SELECT button to choose automatic program (from P1

to P9). You can not adjust the speed when pause training.

Preset programs P1~P9 will be displayed in the SPEED window. You may only need to

preset the time. The default time for each program is 30 minutes. You may choose to

change the program time from the default period of 30 minutes. This is done by simply

using the speed up and speed down keys. Each program has 16 intervals with each

interval representing 1/16 of the program time. (Refer to program table and graphs). For

example, if you were to set a program time of 16 minutes, then each interval would be 1

minute. If you were to set a program time of 32 minutes, then each interval would be 2

minutes and so on.

Inhaltsverzeichnis

Andere Life Span Tretmühle Handbücher

Life Span

Life Span Focus Bedienungsanleitung

Life Span

Life Span LS Series Bedienungsanleitung

Life Span

Life Span Pursuit Max Treadmill Bedienungsanleitung

Life Span

Life Span BALANCE Bedienungsanleitung

Life Span

Life Span PRO 1 Bedienungsanleitung

Life Span

Life Span LFT 05 WalkingPad M2 Bedienungsanleitung

Life Span

Life Span CORSAIR FREERUN 200 Bedienungsanleitung

Life Span

Life Span ARROW Bedienungsanleitung

Life Span

Life Span Jazz Bedienungsanleitung

Life Span

Life Span Workplace DT-3 Bedienungsanleitung

Life Span

Life Span Viper M4 Bedienungsanleitung

Life Span

Life Span TURBO PLUS Bedienungsanleitung

Life Span

Life Span BOOM Bedienungsanleitung

Life Span

Life Span CORSAIR FREERUN 100 Bedienungsanleitung

Life Span

Life Span supreme Bedienungsanleitung

Life Span

Life Span TR-1000SL Bedienungsanleitung

Life Span

Life Span TR2000e Bedienungsanleitung

Life Span

Life Span BOOST Bedienungsanleitung

Life Span

Life Span TR650 Slim Bedienungsanleitung

Life Span

Life Span GOLD 2.0 Bedienungsanleitung

Life Span

Life Span TR800 Bedienungsanleitung

Life Span

Life Span TR2000-HRC Bedienungsanleitung

Life Span

Life Span TR800B Bedienungsanleitung

Life Span

Life Span TR7000i Bedienungsanleitung

Beliebte Tretmühle Handbücher anderer Marken

Treadly

Treadly TREADLY 2 Bedienungsanleitung

HEALTH ONE

HEALTH ONE Walk Ro Bedienungsanleitung

NordicTrack

NordicTrack NTL12941 Bedienungsanleitung

NordicTrack

NordicTrack T7.5 S Bedienungsanleitung

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Bedienungsanleitung

Merax

Merax MS282992 Bedienungsanleitung

FYTTER

FYTTER RU-2SX Bedienungsanleitung

Precor

Precor 903 Bedienungsanleitung

FitLogic

FitLogic freewill d225 Bedienungsanleitung

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Bedienungsanleitung

Horizon Fitness

Horizon Fitness Adventure 5 Plus Bedienungsanleitung

Stamia

Stamia InMotion II Bedienungsanleitung

Smooth Fitness

Smooth Fitness EVO 3i Bedienungsanleitung

NordicTrack

NordicTrack NETL81810.0 Bedienungsanleitung

Schwinn

Schwinn 830/Journey 8.0 Bedienungsanleitung

Keys Fitness

Keys Fitness HealthTrainer HT-740T Bedienungsanleitung

Spirit

Spirit XT8 Bedienungsanleitung

NordicTrack

NordicTrack T 14.0 Treadmill Bedienungsanleitung
