Life Span WALKSTATION ML Bedienungsanleitung

NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au

Product may vary slightly from the item pictured due to model upgrades

Read all instructions carefully before using this product. Retain this owner’s manual for

future reference.

WALKSTATION ML

OWNER’S MANUAL

WALKSTATION ML

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS 3

2. IMPORTANT ELECTRICAL INFORMATION 4

3. IMPORTANT OPERATING INSTRUCTIONS 5

4. ASSEMBLY INSTRUCTIONS 6

5. FOLDING INSTRUCTIONS 10

6. OPERATION GUIDE 11

7. EXERCISE GUIDE 15

8. MAINTENANCE INSTRUCTIONS 17

9. EXPLODED DIAGRAM 25

10. PARTS LIST 26

11. TROUBLE SHOOTING GUIDE 27

12. WARRANTY 28

WALKSTATION ML

1. IMPORTANT SAFETY INSTRUCTIONS

WARNING - Read all instructions before using this treadmill.

It is important your treadmill receives regular maintenance to prolong its useful life. Failing to

regularly maintain your treadmill may void your warranty.

Danger –To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to

cleaning and/or service work.

DO NOT USE AN EXTENSION CORD: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY

USING IMPROPER ADAPTERS OR IN ANY WAY MODIFY THE CORD SET.

Install the treadmill on a flat level surface with access to a 220-240 volt (50/60Hz), grounded outlet.

Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and

treadmill may result.

Do not block the rear of the treadmill. Provide a minimum of 1 metre clearance between the rear of

the treadmill and any fixed object.

Place your unit on a solid, level surface when in use

When running, make sure the plastic clip is fastened on your clothing. It is for your safety, should

you fall or move too far back on the treadmill.

Keep hands away from all moving parts.

Never operate the treadmill if it has a damaged power cord or plug. When damaged, these must be

replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a

hazard.

Keep the cord away from heated surfaces.

Do not operate where aerosol spray products are being used or where oxygen is being

administered. Sparks from the motor may ignite a highly gaseous environment.

Never drop or insert any object into any openings.

WALKSTATION ML

The treadmill is intended for in-home use only and not suitable for long term running.

To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug

from the outlet.

The pulse sensors are not medical devices. Various factors, including the user’s movement, may

affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in

determining heart rate trends in general.

Use the handrails provided; they are for your safety.

Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your

treadmill. Quality athletic shoes are recommended to avoid leg fatigue.

Before undertaking any type of exercise program, it is recommended that you consult a doctor.

Injuries to health may result from incorrect or excessive training.

This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.

WARNING heat rate monitoring systems may be inaccurate. If you feel faint stop exercising

immediately.

Children should not be allowed on or around the equipment, even when not in use.

Children should be supervised to ensure that they do not play with this machine

Loose-fitting clothing or jewellery that could become an entanglement hazard should not be worn.

Training shoes should be worn when using the equipment.

Equipment must be used on a level and stable surface.

All fixings should be checked before the equipment is used.

All literature relating to the use of the equipment should be retained for future reference.

Allowed operating temperature: 5-40°C

Remove the safety key after use to prevent unauthorized treadmill operation.

WALKSTATION ML

2. IMPORTANT ELECTRICAL INFORMATION

WARNING!

Route the power cord away from any moving part of the treadmill including the elevation mechanism

and transport wheels.

NEVER remove any cover without first disconnecting AC power.

NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors,

near a pool, or in any other high humidity environment.

This is a high-power item; please do not share the same outlet with other high power machines such

as, fridges, air conditioning etc. Please choose an outlet exclusively for the machine and make sure

the fuse is 10A.

3. IMPORTANT OPERATING INSTRUCTIONS

Understand that changes in speed and incline do not occur immediately. Set your desired speed on

the computer console and release the adjustment key. The computer will obey the command

gradually.

Use caution while participating in other activities while walking on your treadmill, such as watching

television, reading, etc. These distractions may cause you to lose balance or stray from walking in

the centre of the belt; which may result in serious injury.

In order to prevent losing balance and suffering unexpected injury, never mount or dismount the

treadmill while the belt is moving. This unit starts with at a very low speed. Simply standing on the

belt during slow acceleration is proper after you have learned to operate this machine.

Always hold on to handrail while making control changes.

A safety key is provided with this machine. Remove the safety key will stop the walking belt

immediately; the treadmill will shut off automatically. Inserting the safety key will reset the display.

Do not use excessive pressure on console control keys. They are precision set to function properly

with little finger pressure.

WALKSTATION ML

Replace any defective components immediately. The machine must be kept out of use until

repaired.

4. ASSEMBLY INSTRUCTIONS

PARTS LIST

NO.

Description

Specification

Nos.

NO.

Description

Specification

Nos.

Main Frame

Right Adjustable Tube

bracket

5# Allen Wrench

5mm

Oil Bottle

Bolt

M8*16

Desk Board

Upright

Safety Key

Lock Washer

Bolt

M6*16

Left Adjustable Tube bracket

6# Allen Wrench

6mm

Allen Wrench

S=13, 14, 15

ASSEMBLY TOOLS:

5# Allen Wrench 5mm: 1pcs

WALKSTATION ML

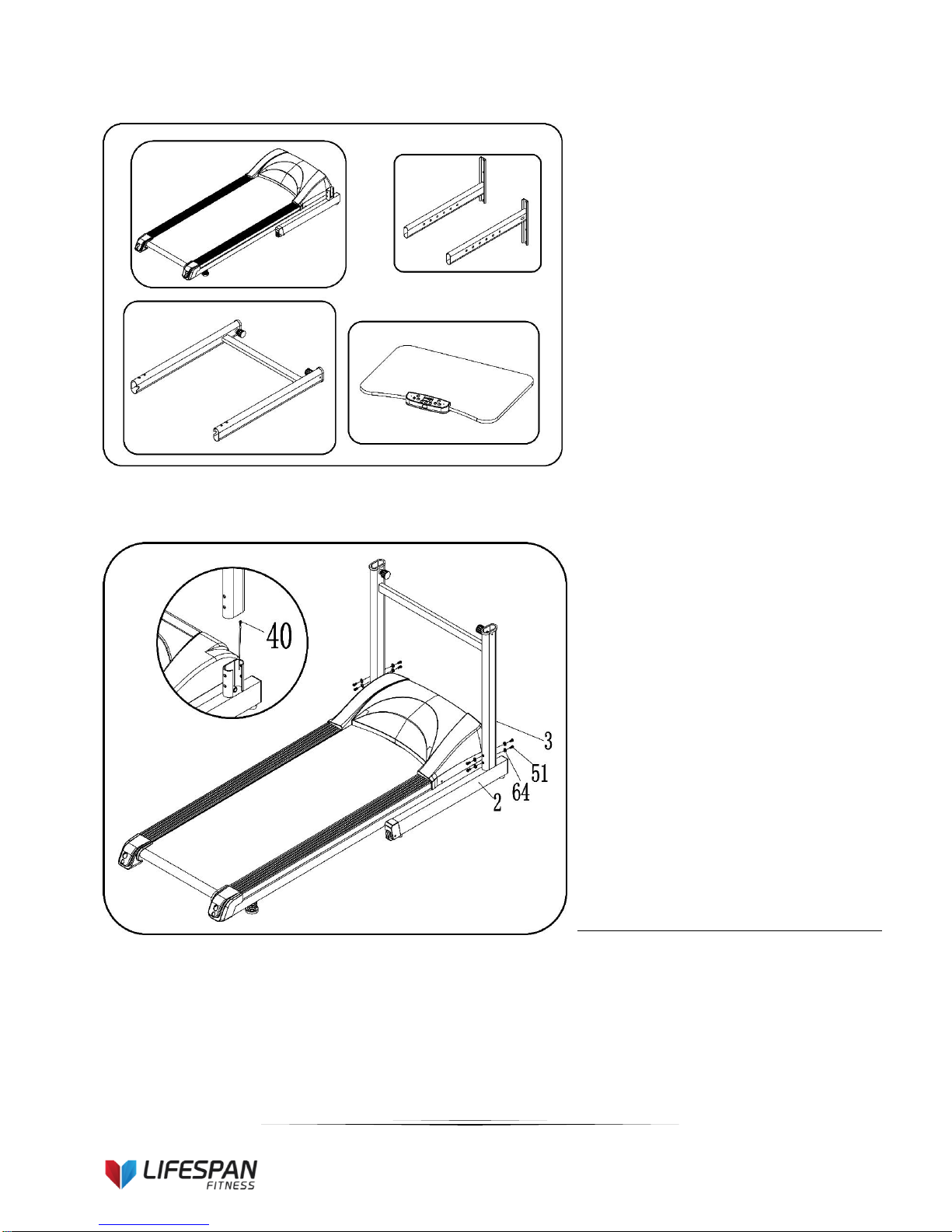

STEP 1:

STEP 2:

1. Open the carton. Place the Main

Frame and other components onto

level ground.

1. Connect the computer bottom wire

(40) to the computer middle wire (39)

located inside the upright bracket (3).

2. Use 5# Allen Wrench (12), M8*16 (51)

and Lock washer (64) to secure the

upright (3) to the base frame (2).

Repeat this step for the opposite side

of the upright bracket

WALKSTATION ML

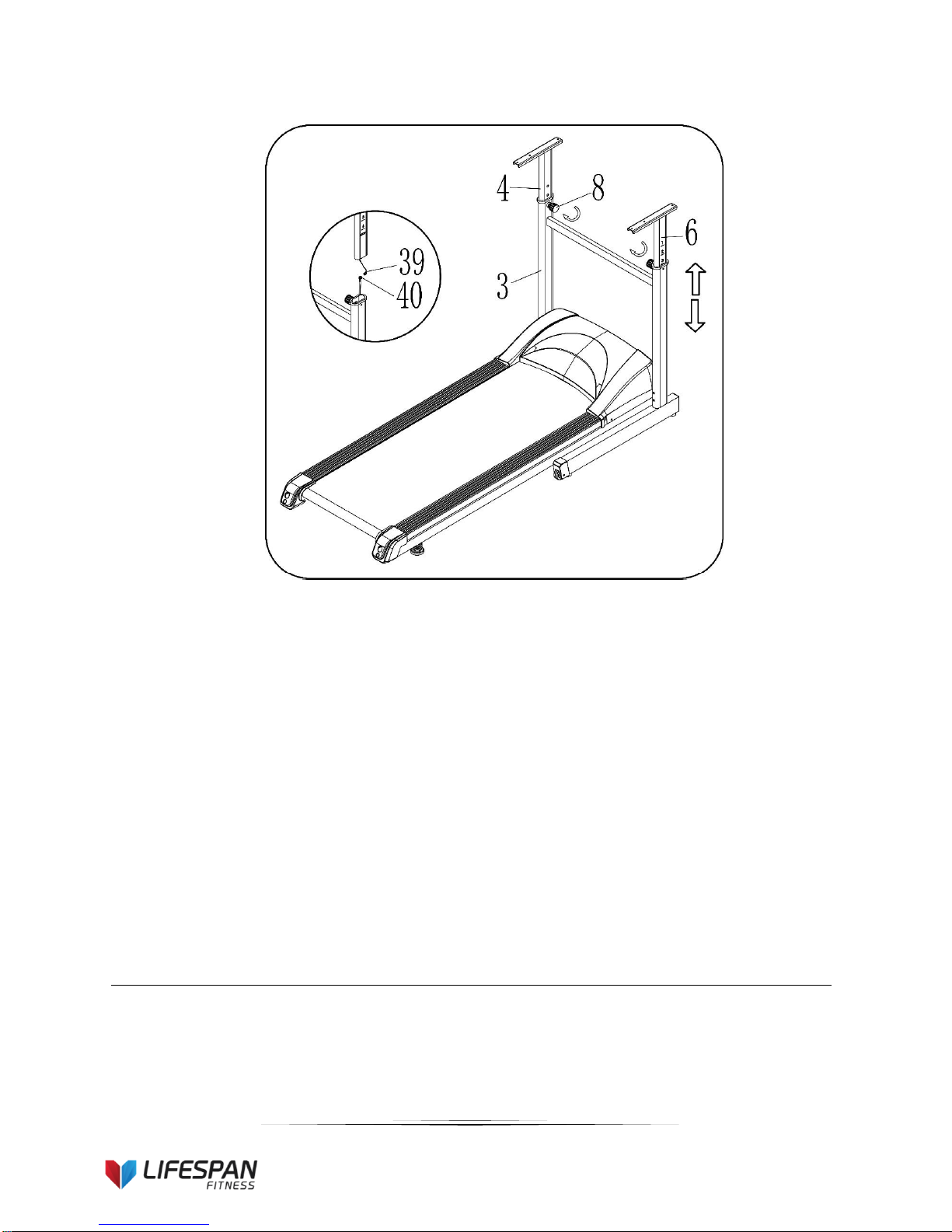

STEP 3:

1. Insert the Left Adjustable Tube bracket (4) into the left upright column in the direction shown. Pull

the left column elastic stopper pin (8) outwards to allow the column to slide down. Screw in the

elastic stopper pin (8) clockwise to tighten.

2. Connect the Right Adjustable Tube bracket (6) with pin of middle wire (39) and bottom wire (40).

3. Insert the Right Adjustable Tube bracket (6) into the left upright column in the direction shown.

Repeat the procedure from step 1.

Gear Adjustment: The table top can be adjusted to 6 different heights. The maximum height is denoted by

the word "STOP" printed on the columns. Do not exceed this adjustment height.

WALKSTATION ML

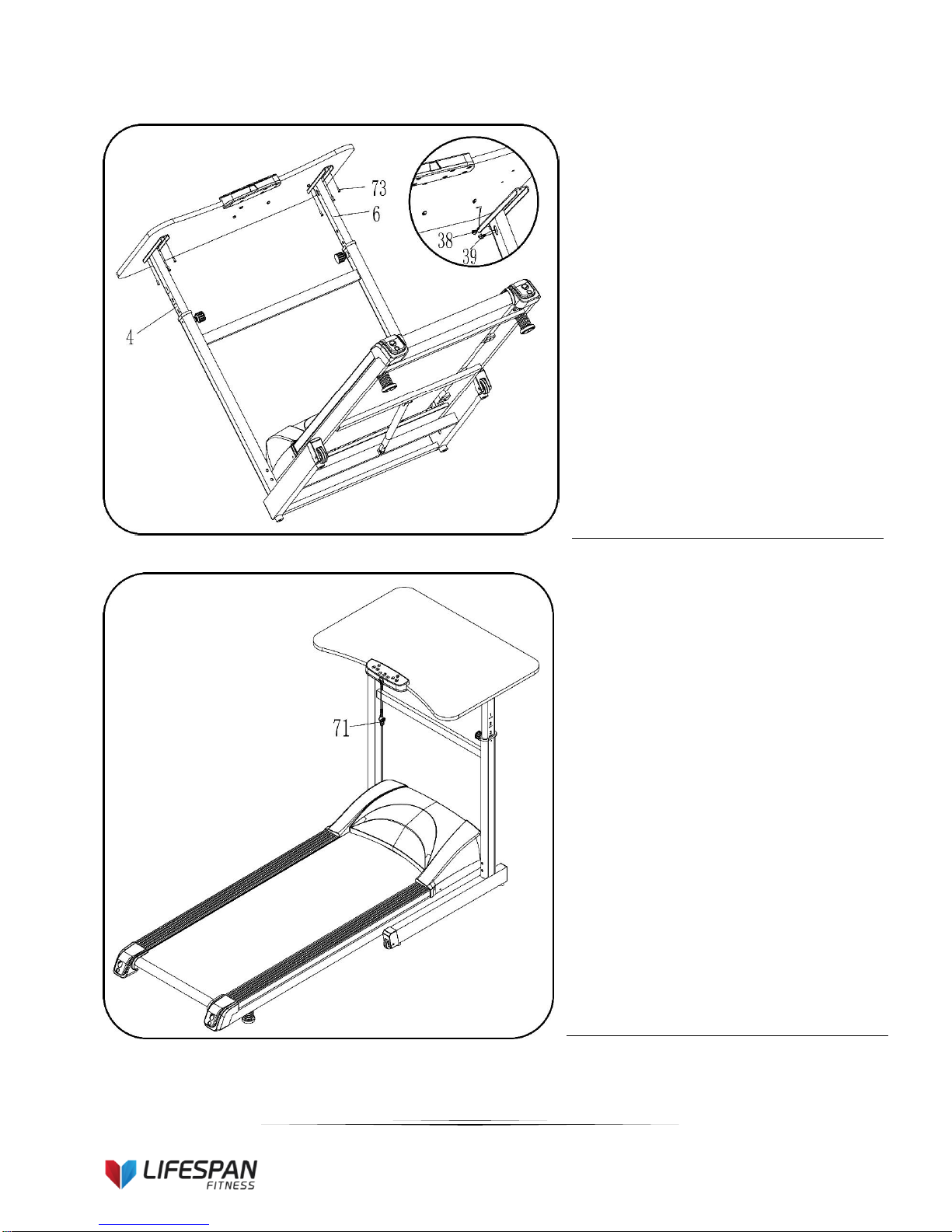

STEP 4:

1. Connect the computer upper wire (38)

with the computer middle wire (39)

inside the Right Adjustable Tube

bracket (6).

2. Align the predrilled holes underneath

the desk board with the left and right

tube brackets.

3. Use the Allen Wrench (61) and Bolt

M6*16 (73) to secure the Desk board

(33) to the Left and Right Adjustable

Tube bracket (4 and 6).

1. Place the safety key in place and turn on

power switch.

WALKSTATION ML

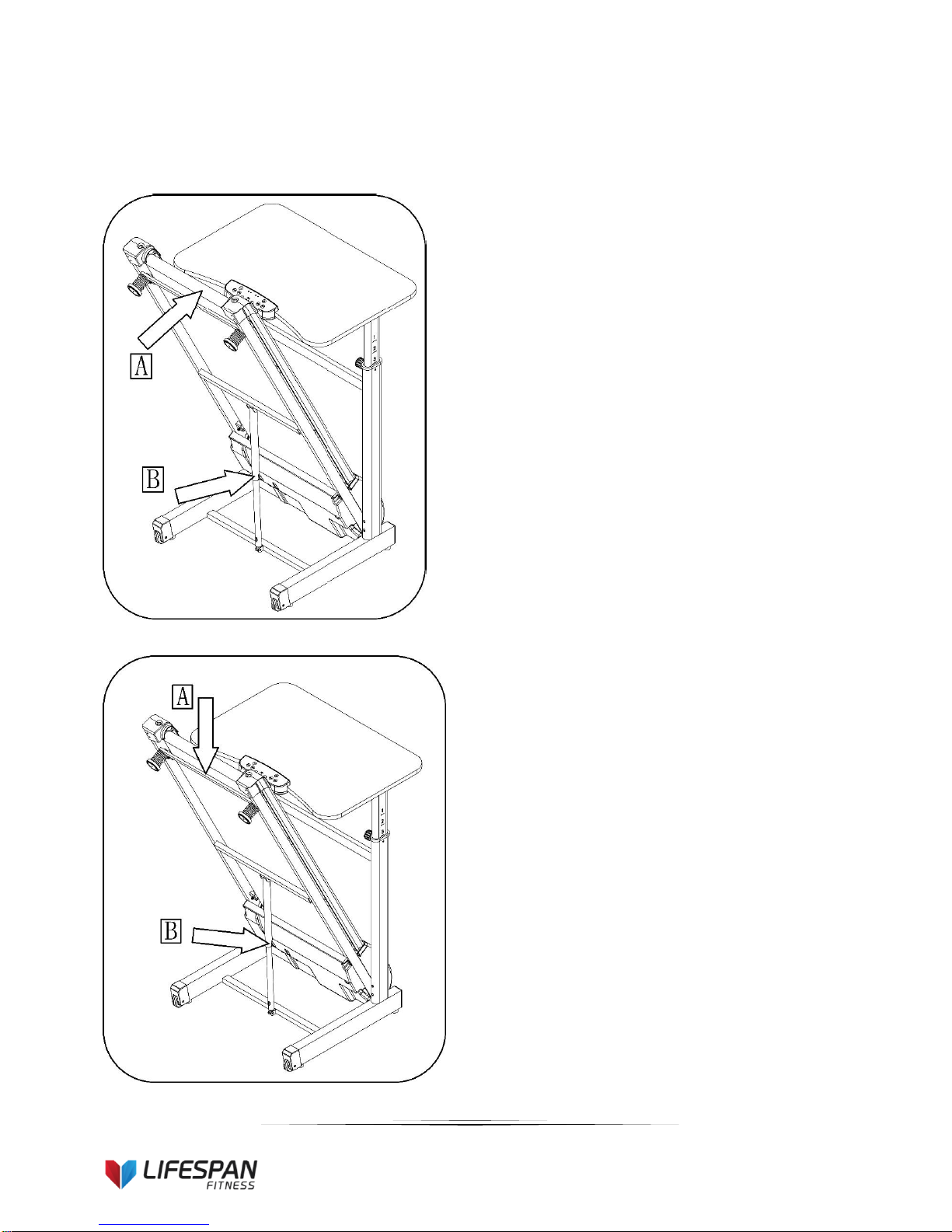

5. FOLDING INSTRUCTIONS

Folding:

Unfolding:

Place your hand on position (A), then pull

up the base frame until you hear the click

sound emitted when the air pressure bar

(B) is locked into the round tube.

Whilst supporting position A with our

hand, gently push the marked area on the

air pressure bar with your foot.

The base frame will descend

automatically. (Please keep people and

any pets away the machine during

descent)

Video Tutorial Available at:

http://youtu.be/cP9NtFHfWlc

Lifespan Fitness Channel:

http://www.youtube.com/user/treadmillsvideos
