Lightolier Lytespan 6450 Bedienungsanleitung

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytespan Track Lighting System 6450

Page 1 of 4 Suspension Beam System

Features

1. General Description: Suspension Beam is a system of extruded aluminum

housings which enclose Basic or Advent Lytespan track (see Specification

Sheets 6000 and 6101). The 4'Housing is used with a 4' Individual Track, the

8' with an 8' individual or Joiner Track. End plates, couplers, splines and

mounting clips are furnished with the housings. The housings may be installed

individually, in continuous runs or in a variety of patterns and may be field-cut

(at right angles).

2. Mounting: Suspension Beam Housing can be suspended on cables or stems,

which may be spaced up to 8' apart.

3. Finish: Matte White or Black.

Ordering Information

4' Housing 8' Housing

Catalog No. Finish Catalog No. Finish

6450

6450BK

Matte White

Black

6451

6451BK

Matte White

Black

6450

6454

7458

7469

7586

6451

7459

7680

6467

7582

7681

7468

7584

7683

Labels

U. L.; I. B.E.W

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan Track Lighting System 6450

Page 2 of 4 Suspension Beam System

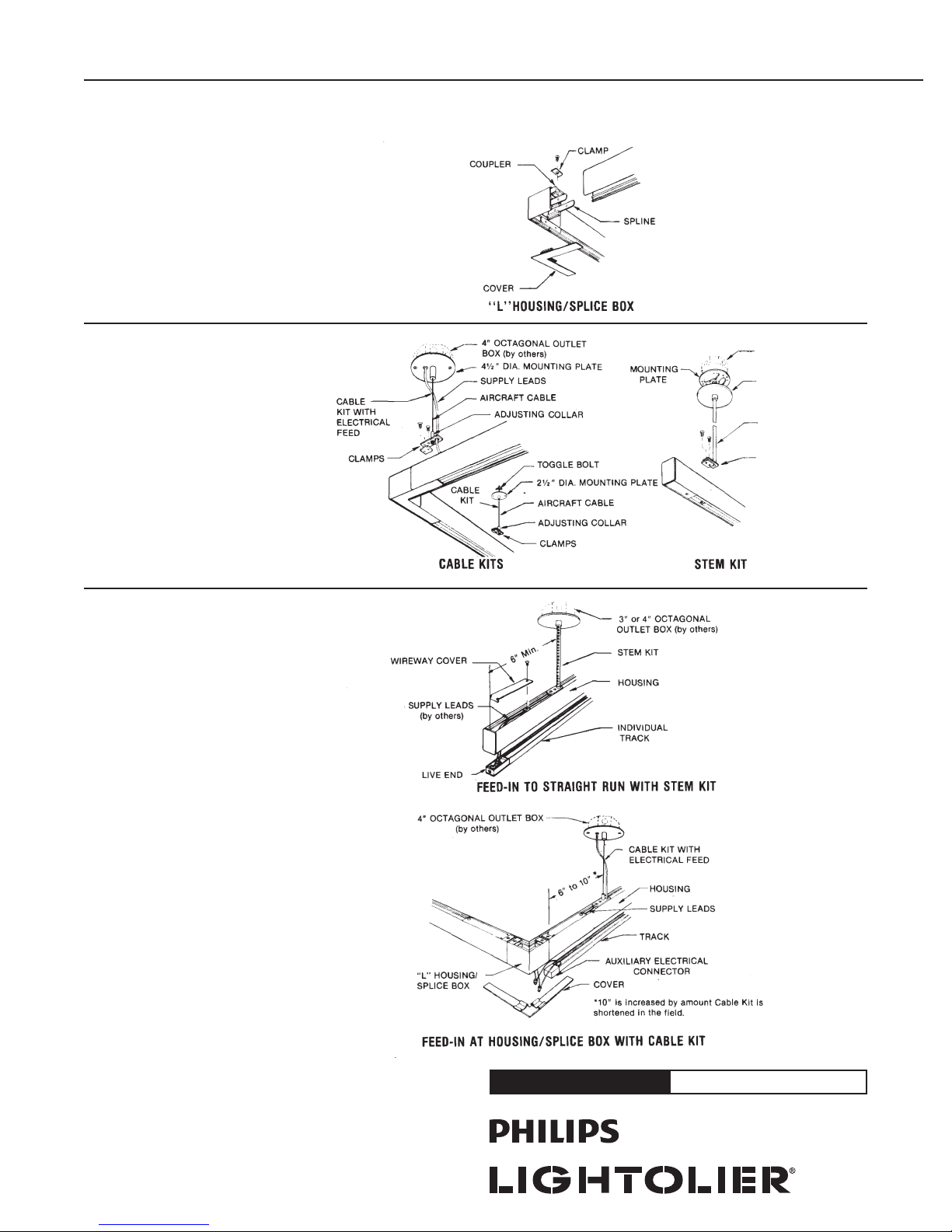

INTERCEPTS:

L", Housing/Splice Box is used to form patterns

with Suspension Beam Housings. They include

bottom covers which snap in without tools.

In patterns, each straight run of track is started

with an Individual and continued with Joiners.

CABLE OR STEM

Stems are recommended for housings in

straight runs or patterns and cables for housings

in patterns only. Both attach to the housings at

any point (except at top wireway covers), may be

spaced up to 8' apart and may be shortened in

the field. The cables have an adjusting collar to

facilitate leveling. Stem length may be increased

48" with the Stem Extension Kit. A special coupler

is included to strengthen the joint between

housings.

POWER FEED AND POWER CONTINUITY

Power is fed into the end of a straight run

of housings with a Stem Kit. Power is fed

into a pattern of housings at the Housing

Splice Boxes with a Stem Kit or a Cable Kit

with electrical feed. Power is also continued

from one track run to another through the

Housing/Splice Boxes. Auxiliary Electrical

Connectors, which are ordered in sets with

Housing/Splice Boxes, are required for power

feed or power continuity at Housing/Splice Boxes.

3" OR 4" OCTAGONAL

OUTLET (by others)

4 1/2" DIAMETER

CANOPY

1/2" O.D. STEM

CLAMPS

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan Track Lighting System 6450

Page 3 of 4 Suspension Beam System

CABLE OR STEM

Stems are recommended for housings in straight runs or patterns and cables for

housings in patterns only. Both attach to the housings at any point (except at top

wireway covers), may be spaced up to 8' apart and may be shortened in the

field. The cables have an adjusting collar to facilitate leveling. Stem length may

be increased 48" with the Stem Extension Kit. A special coupler is included to

strengthen the joint between housings.

POWER FEED AND POWER CONTINUITY

Power is fed into the end of a straight run of housings with a Stem Kit. Power is fed into a pattern of housings

at the Housing Splice Boxes with a Stem Kit or a Cable Kit with electrical feed. Power is also continued from

one track run to another through the Housing/Splice Boxes. Auxiliary Electrical Connectors, which are ordered

in sets with Housing/Splice Boxes, are required for power feed or power continuity at Housing/Splice Boxes.

3" OR 4" OCTAGONAL

OUTLET (by others)

LEADS (by others)

Continued from page 2.

COMPONENTS

STEM EXTENSION KIT

Matte White Fittings

Matte White Fittings and

Black Electrical Feed.

7459NWH 7469NWH

7458NWH 7468NWH

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan Track Lighting System 6450

Page 4 of 4 Suspension Beam System

4' Housing 8' Housing

4' Individual Track 8' Individual Track or

Joiner Track

"L"-Housing Splice Box

COMPONENTS

Layouts of Stems and Cabels

Locate cables or stems uniformly along housings

not exceeding 8' spacing. In a straight run or open

pattern, locate first and last supports approximately

1' from the ends.

Position stem for power feed at least 6" from

the end of the housing (or housing/splice box)

to which power is to be fed.

Position cable for power feed 6" to 10"from the

housing/splice box to which power is to be fed.

The 10" distance may be increased by the amount

the cable is shortened on the job.

(1) 4’ Housing, (1) 4’lnd. Track

(1) 8’ Housing, (1) 8’ Joiner Track

Recommended Support: Stem or Wall Mounting Kit

(4) 4’ Housings, (4) 4’ Ind, Tracks

(2) 8’ Housings, (2) 8’ Joiner Tracks

(4) “L” Housing/Splice Boxes

(4) Sets of 2 Aux. Elect. Connectors

Recommended Support: Stem or Cable

(2) 4’ Housings, (2) 4’ Ind. Tracks

(1) 8’ Housing, (1) 8’ Joiner Track

(1) “L” Housing/Splice Box

(1) Set of 2 Aux. Elect. Connectors

Recommended Support: Stem or Cable

NOTE: Dimensions shown do not include End Plates.

SUSPENSION BEAM MOUNTING MAXIMUM LOAD*

Cables or Stems, spaced 8 Ft. apart 5 lb. Lytespots on 1 Ft. Spacing
