Lightolier Calculite C3LV Bedienungsanleitung

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

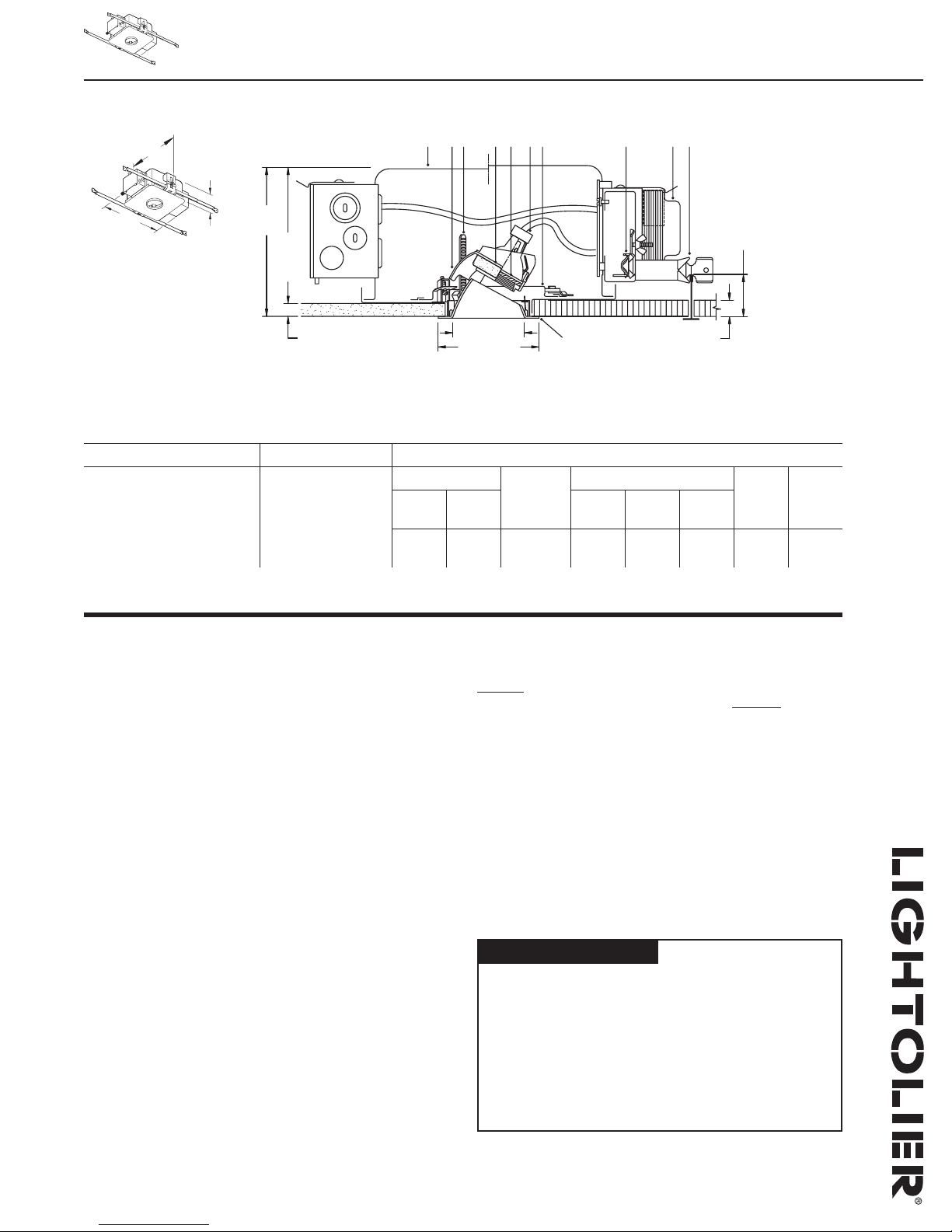

Calculite® Evolution Non-IC Frame-In Kit C3LV

Page 1 of 1 3" Aperture, MR16 (12V)

Features

1. Housing: Drawn, 0.036" (20 Ga.) steel. Matte black finish.

2. Mounting Frame: Die-formed, 0.036" (20 Ga.) steel, matte black finish.

1/2" deep integral lip. Four slots are positioned 90° apart to simplify

alignment.

3. Trim Kit Horizontal Adjustment Mechanism: Die-formed steel ring,

matte black finish. Provides 362° horizontal stop, lockable with Philips

screwdriver.

4. Thick Ceiling Vertical Adjustment Mechanism: Adjustable trim kit

vertically to accommodate up to 2" thick ceiling, toolless and lockable.

5. Frame Vertical Adjustment Mechanism: Accommodates mounting

to virtually any ceiling system using pre-installed mounting bars, or 1/2"

EMT tubing (by others). Single locking features secures all adjustments.

Alignment holes and markings allow fixture to be pre-set prior to

installation. Final adjustment can be made from below inside fixtures.

6. Mounting Bars (C3LV): Galvanized steel, 0.048"; pre-installed

telescoping bars extend from 20" to 30" long and lock securely into

position. Built-in locking tabs provide positive attachment to common

T-bar systems. Self-centering feature simplified installation in 24" O.C.

grid systems. Attaches to steel or wood joists without accessories.

7. Lampholder: Procelain bi-pin socket. Pre-wired with No.18 AWG

Teflon leads.

8. Junction Box: 3-1/2" X 4-3/4" X 2-3/8" deep; 0.063" (#14 ga.) galvanized

steel. UL listed for maximum of (8) No. 12 AWG 90° C through branch

circuit conductors. Accessible from inside and outside of luminaire.

Outside J-Box door is hinged for maximum opening.

9. Thermal Protector: Meets NEC and UL requirements. Insulation must

be kept 3" away from any parts of the luminaire and must not be placed

above luminaire in a manner which will entrap heat.

10.Trim Kit: Order Separately. See individual trim kit specification sheets for

information.

Electrical

Transformer: Replaceable from below; Transformer door rotates into fixture,

positioning transformer directly over aperture to allow one-handed removal

Magnetic: 120V/277V 60 Hz. dual-voltage, core & coil. (Note: Magnetic not

recommended for residential or noise sensitive areas.) Electronic: 120V or

277V 50/60 Hz., regulated lamp volage, HPF, EMI and circuit protections, ther-

mal auto-reset, quiet operation.

Dimming Controls: Use only dimmers specifically designed for use with

magneic or electronic transformers. Consult Lightolier Controls for informa-

tion. Low voltage luminaires may produce audible sound when used with dim-

mers, which may be objectionable in acoustically critical areas.

Labels

U.L. (Suitable For Damp Locations), I.B.E.W.

Options and Accessories

Plaster Trim Ring (use with flangeless trim kit): CA3FMR

Chicago Plenum: Consult Factory

5 1/2"

(140mm)

(127mm)

Plus Ceiling

Thk.

1/2"

(13mm)

2" (59mm) Max.

Ceiling Thk.

2 7/8" (73mm) Dia.

4" (102mm) Dia.

Vertical Adjustment

1" (25mm) to

2 3/4" (70mm)

3 3/8" (86mm) Dia.

Flangeless Trim with

Plaster Ring Accessory

C3LV

9 1/2"

(242mm)

(229mm)

1/2" (13mm) C3AICLV

11 26

47385109

5" (127mm)

12 5/8"

(321mm)

14 3/8"

(365mm)

C3LV

Ceiling Cutout: 3 1/2" (89 mm) Dia.

For Complete Fixture Order: Trim Kit + Frame-In Kit. Each Sold Separately.

Frame-In Kit Lamp* Trim Kit (See individual Trim Kit Specification Sheets)

C3LV

C3LVE1

C3LVE2

Magnetic 120V/277V

Electronic 120V

Electronic 277V

42W-65W MR16 (12V)

20W-65W MR16 (12V)

Downlight Wall Washer

Downlight

(Wet Loc.)

Adjustable Accent Glasslite

Downlight

(Wet Loc.)

Glasslite

Adjustable

(Wet Loc.)

Open

Reflector

1 1/4"

Pinhole

Cone Cone

(Wet Loc.)

1 1/4"

(Wet Loc.)

C3MRD

Series

C3MRPD

Series

C3MRL

Series

C3MRA

Series

C3MRW

Series

C3MRPA

Series

C3MRGD

Series

C3MRGA

Series

* Lamp wattage restriction: 65W for up to 1" thick ceiling, 50W for ceiling thickness greater than 1" (up to 2")

Note: Magnetic not recommended for residential or noise sensitive areas.
