HX Series

Hazardous Location Combination LED Exit Sign

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

Features

Illumination: Illumination

of the exit stencil face is

accomplished with long lasting,

high output LEDs, producing

an average illumination level

in excess of 25 fl (85.7 cd/m2)

at the end of the 90 minute

emergency run time. A variety

of optional lamp heads provide

design flexibility for egress

lighting.

Housing: Constructed of

impact-resistant, fiberglass-

reinforced polyester. Housing

color is gray with corrosion-

resistant hardware and clear

polycarbonate cover. The HX

Series is UL listed for Class I,

Division 2, Groups A, B, C &

D; Class I, Zone 2, Groups IIA,

IIB (+ H2) & IIC; and Class II,

Division 2, Groups F & G. The

housing includes a one-piece

formed gasket and corrosion-

resistant hardware. Standard

internal or external mounting

feet provides installation

flexibility.

Operating Temperature

Range: Standard location

65°F (19°C) to 85°F (30°C)

Diagnostic Electronics

(standard): 120/277 VAC

dual voltage input with surge

protection is standard on all

models. Charging system is

microprocessor driven with

software embedded diagnostic

routine and temperature

compensation. 120/277 VAC

input, surge protection,

brownout, AC lockout and low

voltage disconnect features are

standard.

Self-Testing Diagnostics

(optional): The diagnostic/

charging platform with self-

testing mode automatically

runs a one-minute self-test

every 30 days and a 30-minute

test on the sixth and twelfth

month. A one-minute or

90-minute test may be initiated

via the push to test switch on

the unit or by activating the

appropriate test command on

the optional IR test device.

Electrical Specifications:

6 V 18 W Red or Green:

120 VAC, 0.133 A, PF 0.80

277 VAC, 0.058 A, PF 0.80

6 V 36 W Red or Green:

120 VAC, 0.122 A, PF 0.70

277 VAC, 0.053 A, PF 0.70

6 V 72 W Red or Green:

120 VAC, 0.129 A, PF 0.80

277 VAC, 00.56 A, PF 0.80

Code Compliance

UL 924 and 844 listed. NFPA

101, NEC, BOCA, OSHA and

IBC illumination standards.

Temperature Rating (T-Rating)

160° (T3C). Class I, Zone 2

T-Rating 200° (T3). IEC

61951-1 Life Testing (batteries).

Warranty

Five year full electronics

warranty. One year full plus

four year prorated battery

warranty.

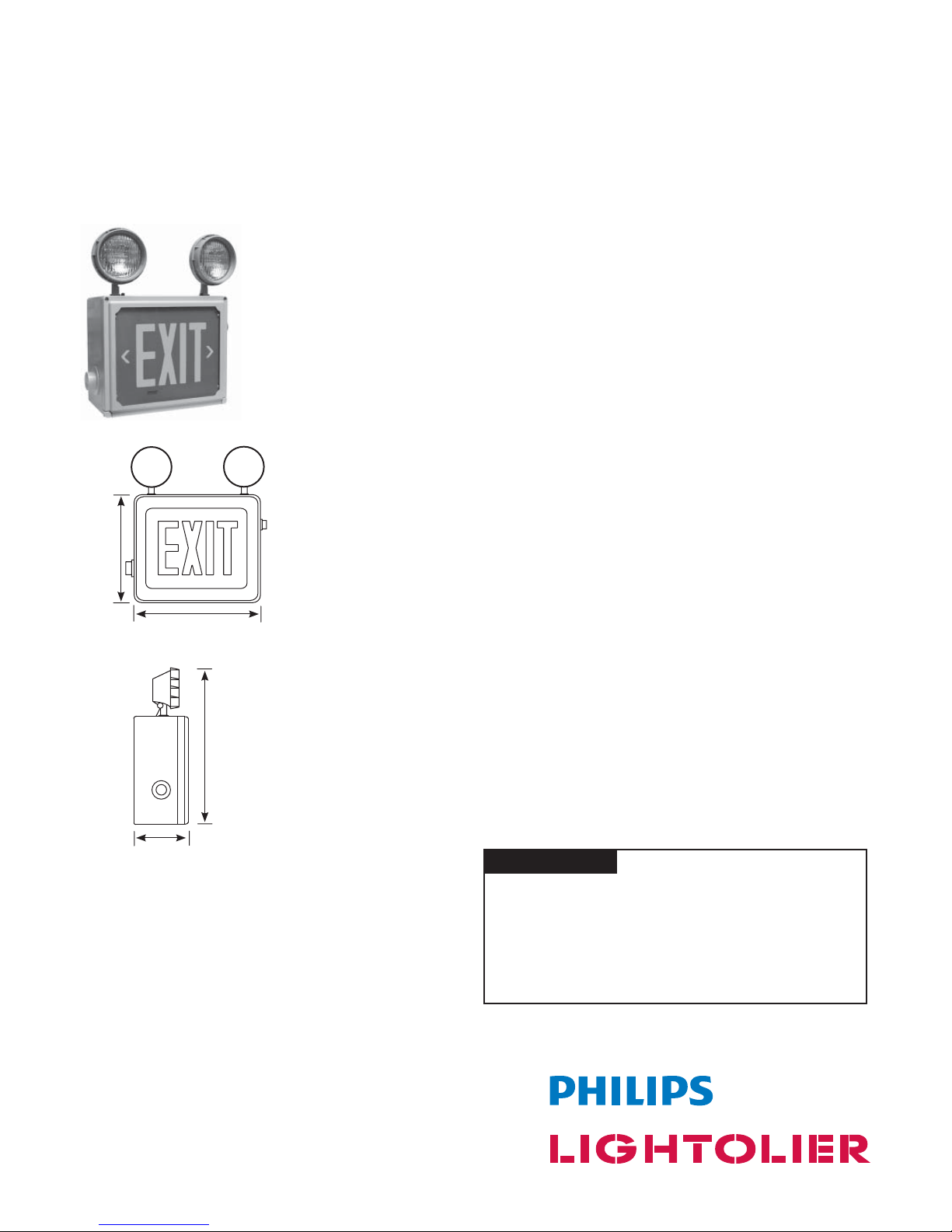

13.2"

(33.5 cm)

11.2"

(28.4 cm)

HX636R2HT18SD2

6.6"

(16.8 cm)

17.5"

(44.5 cm)

HX Series

Hazardous Location Combination LED Exit Sign

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

HX Series - Combo May 22, 2012

Specifications are subject to change without notice.

Job Information Type:

Ordering Information

Series

HX =

Hazardous

Location

Combination

Exit

Lead Calcium

18 = 18 Watt Unit

36 = 36 Watt Unit

72 = 72 Watt Unit

Battery/Wattage3Letter Color

R= Red

G= Green

SD2 = Diagnostic

Electronics

Model Designator1

Note

1) For self-testing models refer to options.

2) Some option combinations may impact UL listing.

Consult factory for specifics.

3) Battery capacity to support local/remote load.

SD2

BF = Buzzer/Flasher

BZ = Buzzer

EX = Special Input Transformer

(specify voltage & frequency)

FL = Flasher (self-powered models

only)

S= Shatterproof Lamp Head Lens

T= Self-Testing Diagnostics

(non-audible)

TA = Audible Self-Testing Diagnostics

TD = Time Delay

Factory Installed Options2

Accessories (order as a separate item)

SDREMOTE = Infrared Remote Test Device

WG5 = Wire Guard

Optics

Wall mounted 7.5' AFF, ‘IH’ 6 Volt 12 Watt Halogen Lamps Represented

1 FC Average

7.5 ft.

24 ft. 10 ft.

Average initial footcandles at floor = 1.05

Maximum initial footcandles at floor = 3.3

Minimum initial footcandles at floor = 0.1

Maximum to minimum ratio = 33.00

* The optics layout shown is intended to be used as reference only. Standard reflectances used were 80/50/20. Lightolier is not responsible for site specific conditions that

may alter the results.

6= 6 VDC

System Voltage

# of Heads

Blank = No

Lamp Heads

1= One Lamp

Head

2= Two Lamp

Heads

Lamp Heads

Tungsten

HT8 = 8 Watts

HT18 = 18 Watts

HT25 = 25 Watts

Halogen

HH6 = 6 Watts

HH8 = 8 Watts

HH12 = 12 Watts

0.1

0.2

0.1

0.2

0.5

0.6

0.4

0.2

0.1

0.6

1.4

1.9

1.1

0.4

0.2

0.1

1.0

2.5

3.2

1.9

0.6

0.2

0.1

1.0

2.2

2.7

1.5

0.5

0.2

0.8

1.1

1.2

0.8

0.4

0.2

0.8

0.5

0.3

0.2

0.1

0.8

0.5

0.3

0.2

0.1

0.9

1.3

1.2

0.7

0.3

0.2

1.1

2.3

2.7

1.4

0.4

0.2

1.0

2.5

3.2

1.9

0.6

0.2

0.1

0.5

1.3

1.9

1.2

0.5

0.2

0.1

0.4

0.6

0.4

0.3

0.1

0.2

0.1
