Lightolier Lytespan DRL35 Bedienungsanleitung

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

8292WE

0400

Lytespan® Track Lighting System DRL35

Page 1 of 2 Director®Metal Halide 39W T6

Ordering Information

Catalog No. Finishes Track Mounting Lamp Reflectors

DR2LS35WH White Compatible with Lytespan Basic, Radius T6 Single Ended, G12 Base Use one of:

DR2LS35BK Black and Advent Track Systems; and all Ceramic Metal Halide 39W DRT6RS

DR2LS35SL Silver Multipoint and Monopoints. DRT6RM

DO NOT USE with Extension Wands, DRT6RF

Sloped Ceiling Adapter or ProSpec Track. SOLD SEPARATELY

Description

Remote controlled spotlight that can be mounted anywhere along the track

and remotely aimed through the use of a hand-held controller. Can not be

dimmed. Can not turn on/off using hand-held controller.

Features

1. Full remote control of pan and tilt movement to aim at any object below

the luminaire.

2. Positions can be recorded for future use.

3. Continuous movement and sequencing option.

4. Interchangeable Click-On™ reflectors to achieve desired beam spread.

REFLECTORS SOLD SEPARATELY.

5. Die-cast aluminum housing.

Electrical

Electronic Ballast

Input Voltage: 120V, 60 Hz

Power Factor: >95%

Input Power: 44W

Max. Input Current: .37A

Total Harmonic Distortion: <10%

ANSI Code: M130

Do not use on a dimming circuit.

Labels

cULus Classified

( ) Denotes dimensions in mm

12 13/16”

(325)

5 1/4”

(133)

2 13/32”

(61)

7 1/2”

(190)

7”

(177)

Requires Laser

Remote Control

for Operation

8292WE

0400

Lytespan® Track Lighting System DRL35

Page 1 of 2 Director®Metal Halide 39W T6

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

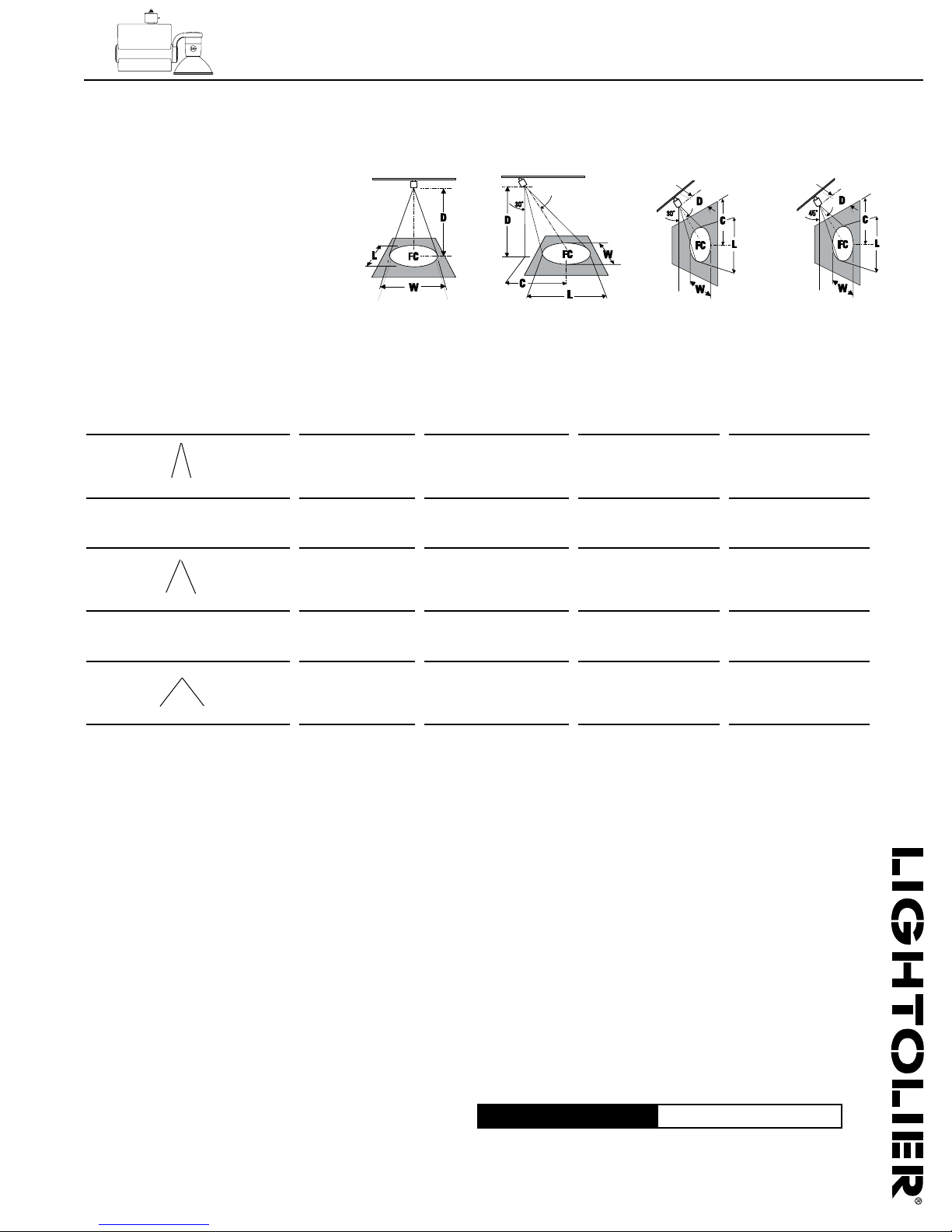

AIMING ANGLE

L Beam Length

W Beam Width

CDistance to center beam

D Distance

A Aiming Angle

FC Footcandles

Land Ware the outer points where the candle power

drops to 50% of the maximum. FC are the initial footcandles

at the center of the beam.

Lamp data shown is typical. Consult lamp manufacturers

for availability and performance.

Lamp Information:

39W T6 Clear Ceramic Metal Halide

Initial Lumens: 3300

CRI: 81

Rated Avg. Life: 9,000 to 12,000 hrs.

0˚ 30˚ Horizontal 30˚ Vertical 45˚ Vertical

8' 174 2.2' 2.2' 8' 4.6' 113 3.0' 2.6' 2' 3.5' 347 2.4' 1.1' 3' 3.0' 436 1.7' 1.2'

10' 111 2.8' 2.8' 10' 5.8' 72 3.8' 3.2' 3' 5.2' 154 3.6' 1.7' 4' 4.0' 245 2.3' 1.6'

12' 77 3.4' 3.4' 12' 6.9' 50 4.5' 3.9' 4' 6.9' 87 4.8' 2.2' 5' 5.0' 157 2.9' 2.0'

14' 57 3.9' 3.9' 14' 8.1' 37 5.3' 4.5' 5' 8.7' 56 6.0' 2.8' 6' 6.0' 109 3.4' 2.4'

AIMING ANGLE: 0˚ Horizontal Aiming 30˚ Horizontal Aiming 30˚ Vertical Aiming 45˚ Vertical Aiming

D FC L W D C FC L W D C FC L W D C FC L W

Beam Spread

(To 50% CBCP) CBCP

D FC L W D C FC L W D C FC L W D C FC L W

Beam Spread

(To 50% CBCP) CBCP

DRT6RS Spot

Reflector 11,108

6' 214 2.6' 2.6' 6' 3.5' 139 3.5' 2.9' 2' 3.5' 241 3.9' 1.7' 3' 3.0' 306 2.7' 1.8'

8' 121 3.4' 3.4' 8' 4.6' 78 4.6' 3.9' 3' 5.2' 107 5.9' 2.6' 4' 4.0' 172 3.6' 2.4'

10' 77 4.3' 4.3' 10' 5.8' 50 5.8' 4.9' 4' 6.9' 60 7.9' 3.4' 5' 5.0' 110 4.5' 3.0'

12' 54 5.1' 5.1' 12' 6.9' 35 6.9' 5.9' 5' 8.7' 39 9.8' 4.3' 6' 6.0' 76 5.3 3.6'

DRT6RM Med

Flood Reflector 7,712

16° x 16°

24° x 24°

D FC L W D C FC L W D C FC L W D C FC L W

Beam Spread

(To 50% CBCP) CBCP

6' 216 3.9' 3.9' 8' 4.6' 79 7.2' 6.0' 2' 3.5' 243 7.6' 2.6' 3' 3.0' 306 4.4' 2.8'

8' 122 5.2' 5.2' 10' 5.8' 51 9.0' 7.5' 3' 5.2' 108 11.4' 3.9' 4' 4.0' 172 5.8' 3.7'

10' 78 6.5' 6.5' 12' 6.9' 35 10.8' 9.0' 4' 6.9' 61 15.2' 5.2' 5' 5.0' 110 7.3' 4.6'

12' 54 7.8' 7.8' 14' 8.1' 26 12.6' 10.5' 5' 8.7' 39 19.0' 6.5' 6' 6.0' 76 8.7' 5.5'

DRT6RF Flood

Reflector 7,779

38° x 38°
