ProSpec™Track Lighting 26030W

Page 1 of 2 Wall Wash Cylinder PAR30

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Track attachment fitting: die-cast aluminum with separate mechanical and

electrical functions. Fitting cannot be engaged or disengaged while fixture is

powered. Polarity is not a concern with ProSpec track because of its sym-

metrical positioning of circuits within the track, adapters are reversed to

access one or the other circuits.

2. Stem: 5/8" O.D. .049" wall, stainless steel.

3. Locking feature: die-cast aluminum mechanism permits the locking of the

horizontal and vertical positions simultaneously by clamping jaws. When the

stainless steel braking lever is released, the horizontal and vertical functions

remain fully tensioned to hold aiming positions. Adjustment range is:

Horizontal 0-340°; Vertical 0° (NADIR) - 90°.

4. Housing: 20 ga. (.036) steel.

5. Lamp and accessory support: .032 steel, flared for easy entry of accesso-

ry cartridge, matte black finish.

6. Lampholder: porcelain, medium base, nickel plated screw shell, #18 ga.

braided SF-1 leads..

7. Kick reflector assembly: holds one accessory behind the spread lens;

example: color filter, UV filter, Heat filter. Assembly is removable from front

using a twist and lock motion.

8. Kick Reflector: embossed texture anodized aluminum; reflects light

towards upper portion of wall and ceiling line

9. Lever: Energizes fixture electrically by 90° rotation.

10. Clamping tabs: expands or releases gripper springs from track ledge; grip-

per springs hold attachment fitting securely within track.

Ordering Information

Catalog No. Finishes Mountings Lamps

26030W WH Matte White ProSpec™Track System PAR30 75W Max..

26030W BK Matte Black

Finish

All painted finishes are powder coated baked enamel.

Options & Accessories

Accessories: 3 3/4"dia. series. Filters, lenses, screens and louvers.

Electrical

Electrical components: Polycarbonate moldings.

Contacts: Heavy gauge 1/2 hard brass developed for Lightolier's "U"

shaped track conductors.

Labels

UL, I.B.E.W.

Fixture MOL = 11-1/8"

345

910

2 1/4"

Stem

4 3/4" Dia.

ProSpec Track System

6 3/4"

8 1/8"

3 1/4"

ProSpec™Track Lighting 26030W

Page 2 of 2 Wall Wash Cylinder PAR30

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

1' 14 8 15

2' 28 13 28

3' 36 21 36

4' 31 21 31

5' 28 14 28

6' 13 9 13

7' 9 7 9

8' 7 5 7

9' 5 4 5

1' 8 4 8

2' 19 18 19

3' 36 17 37

4' 38 15 38

5' 18 18 18

6' 11 7 11

7' 7 5 7

8' 4 3 4

9' 3 2 3

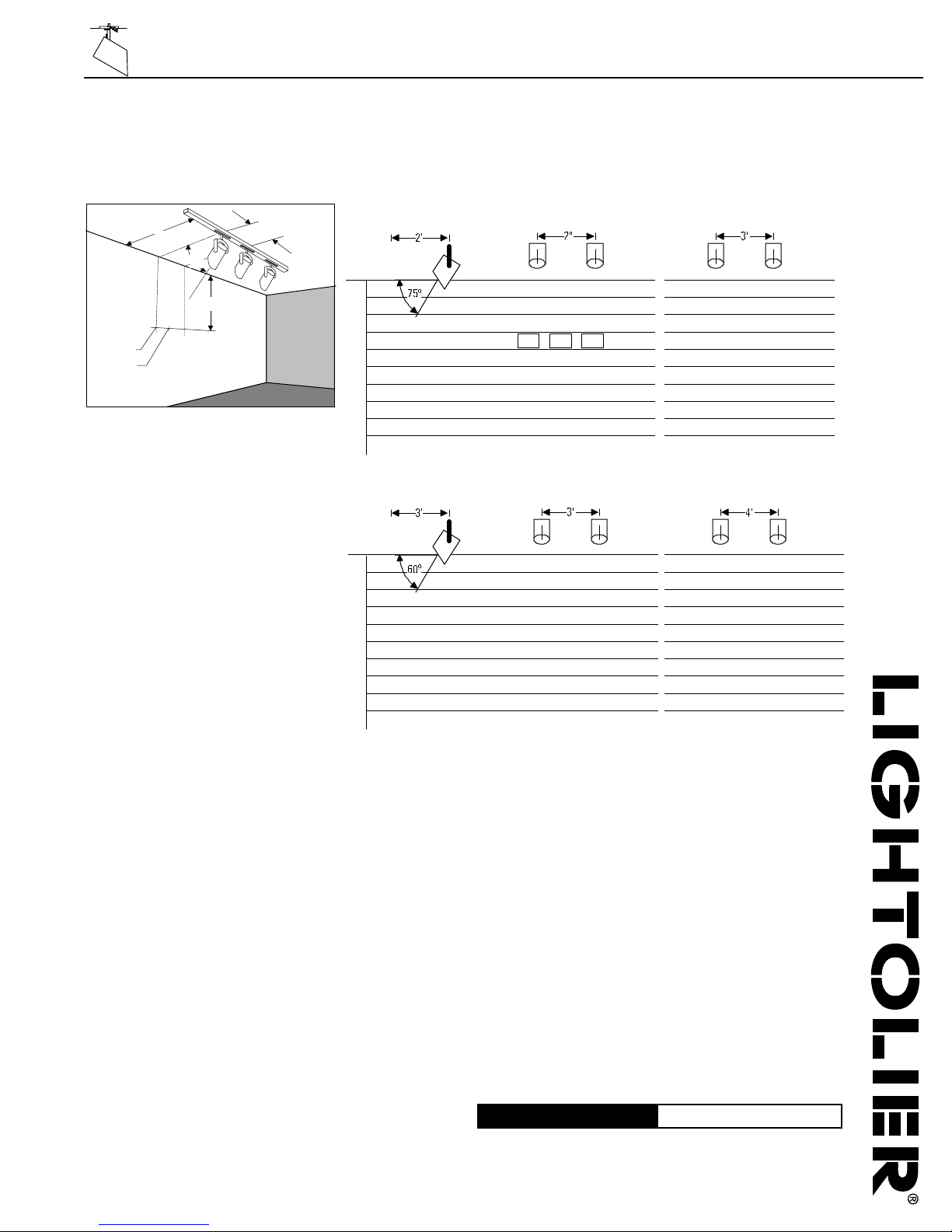

Lighting Data

FOOTCANDLES ON WALL: Multiple Units 75W PAR 30 FL

EXAMPLE: With track located 2' from wall and

multiple units spaced 2' on center and aimed

75°from horizontal, the illumination on wall 3'

from ceiling will be 36 f.c. beneath units and

21 f.c. between units.

2"2"

36 f.c.

21 f.c.

75°

Track 2' from Wall-- 2' and 3' On Center

Track Dist.

from Wall

1' 12 4 12

2' 18 7 18

3' 31 12 31

4' 25 12 25

5' 16 9 16

6' 11 7 11

7' 7 5 7

8' 5 3 5

9' 4 3 4

Track 3' from Wall-- 3' and 4' On Center

1' 7 2 7

2' 18 6 18

3' 34 11 34

4' 27 18 27

5' 16 7 16

6' 18 5 18

7' 6 3 6

8' 4 2 4

9' 2 2 2

Footcandles are average and rounded off and are based on

a minimum of five units.

For 50W PAR 30 FL, multiply footcandles by 0.55.

Distance From Ceiling in Feet

Track Dist.

from Wall

Distance From Ceiling in Feet
