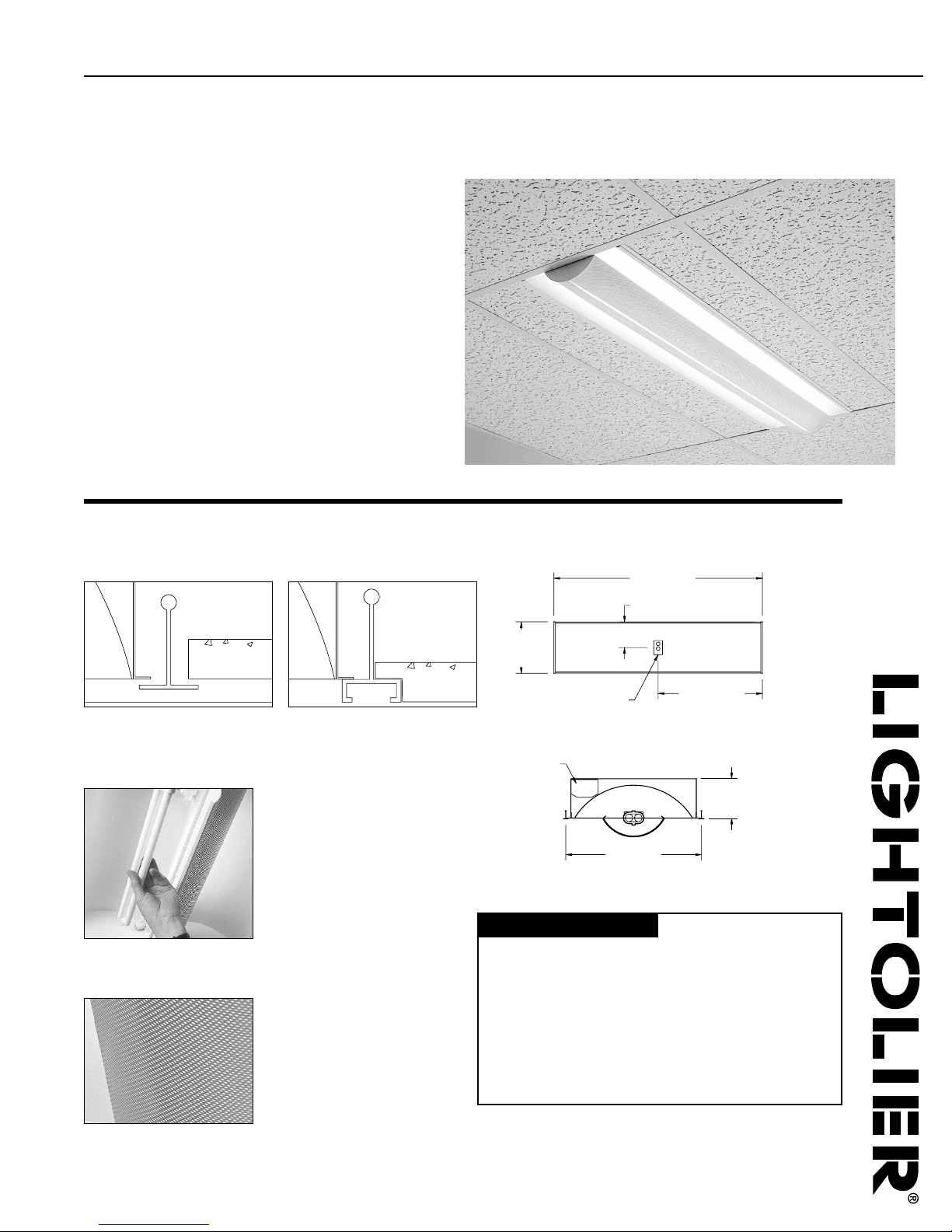

Lightolier QVH1GPFOS2FT Bedienungsanleitung

Mounting MethodS / Features Dimensions

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Section 5 / Folio L85-15

Features

• Efficiency 47.5%.

• Shallow plenum depth.

• Swing down microperforated lamp shields for easy relamping and

maintenance.

• Alter soft white film on inside of mesh conceals lamp image and

provide balance between reflected light and direct light.

• 95% Reflective Alter soft white paint finish.

• One piece body for easy installation.

• Easy access to ballast through lamp compartment.

• Fits standard T-Grid ceilings.

12"

(305mm)

3-9/16"

(90mm)

ACCESS PLATE

(2) 7/8" K.O.'S

5-15/16"

(150mm)

23-15/16"

(608mm)

47-13/16"

(1215mm)

11-13/16"

(300mm)

BALLAST

ALTER SOFT LIGHTS QVH1GPFOS2FT 2X40W

Page 1 of 2 1'x4' SLIM SEMI-RECESSED DIRECT/INDIRECT FLUORESCENT, 2 LAMP, TT5 BI-TUBE

3 9/16’’ RECESSED DEPTH CEILING, MICROPERFORATED MESH LAMP SHIELD, STATIC

Ceiling compatibility

Microperforated mesh

lamp shields

Swing down optical system for

easy relamping and maintenance

Suited to standard exposed

T-grid ceilings

Suited to standard exposed

Slot T-grid ceilings

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 •Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Section 5 / Folio L85-15

Job Information Type:

Specifications

MATERIALS: One piece chassis constructed from die formed 20 gauge cold

rolled steel. Reflectors - 95% reflectance baked white acrylic matte paint finish.

Soft white acrylic film on inside of lamp shield conceals lamp image.

FINISH: Chassis exterior - phosphate undercoating, baked white acrylic matte

high reflectance paint finish.

ELECTRICAL: Rapid start HPF, thermally protected class “P”ballast (Bi-tube

type). If K.Os are within 3”of ballast use wire suitable for at least 90C.

LABELS: Listed by

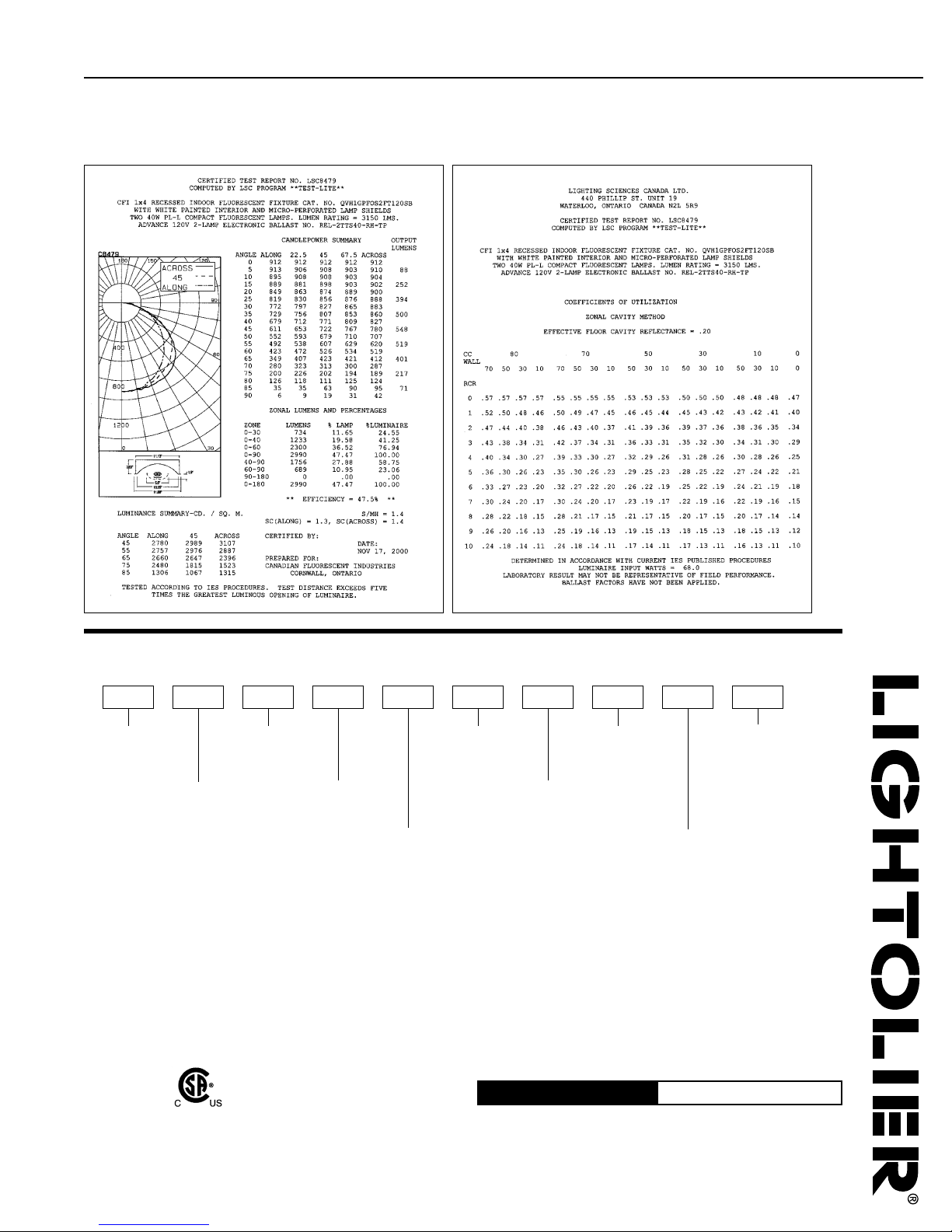

Photometry

Ordering Information

Explanation of Catalog Number. Example: QVH1GPFOS2FT120SB

ALTER SOFT LIGHTS QVH1GPFOS2FT 2X40W

Page 2 of 2 1'x4' SLIM SEMI-RECESSED DIRECT/INDIRECT FLUORESCENT, 2 LAMP, TT5 BI-TUBE

3 9/16’’ RECESSED DEPTH CEILING, MICROPERFORATED MESH LAMP SHIELD, STATIC

QUALITY

VISUAL

STATIC

QVH- Slim Semi-Recessed

FIXTURE

WIDTH:

1’

CEILING TYPE:

G=Standard exposed

T-grid ceilings

LAMP SHIELD:

PF = Microperforated

LAMP

QUANTITY

LAMP/FIXTURE

LENGTH:

(NOMINAL 24”)

FT = TT5

Bi-Tube

VOLTAGE:

120V

277V

347V

BALLAST:

BE = 50W Electronic TT5 RS

BR = 40W Electronic TT5 RS

BX = 40W Magnetic TT5 RS

PB = 40W TT5 PowerSpec Dimming*

PC = 50/55W TT5 PowerSpec Dimming*

SB = 40W Generic Electronic TT5

*Not available in 347V.

OPTIONS:

F = Internal Fusing (consult

factory)

N = Emergency lighting

System (for U.S.)

O = Emergency Lighting System

(for Canada)

R = Radio Interference Flter

QVH 1 G PF OS 2FT

SHIELD DETAILING:

OS = Open slot (no acrylic)
