Lightolier SS 2 LAMP Bedienungsanleitung

SS Staggered Strip Surface Fluorescent SS 2 LAMP

Page 1 of 2 4-1/4" Wide, 1-5/8" Deep, 27", 39", 51", 75", 99" Length, Individual or Tandem,

2 Lamp T8 or T12

Features

• Full 3" overlap eliminates shadows caused by lampholders or lamp

ends.

• Housing is only 1-5/8" deep.

• Safe-handling metal edges.

• Fully enclosed wireway.

• Excellent for perimeter cove lighting or other applications where

continuous even illumination is required.

Dimensions

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 •Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Section 3A/Folio H130-12

(76mm)

1-1/8"

(29mm)

6-1/2"

(165mm)

(76mm)

4-1/4"

(108mm)

19-15/32"

(494mm)

6-1/2"

(165mm)

6-1/2"

(165mm)

4-1/4" (110mm)

3" (76mm)

6-1/2"

(165mm)

3" (76mm)

6-1/2"

(165mm)

25-1/2" (648mm)

19-15/32"

(494mm)

(76mm)

3" (76mm)

4-1/4" (108mm)

98-15/16" (2513mm)

50-15/16" (1294mm)

38-15/16" (989mm)

2" dia. K.O.

6-1/2"

(165mm)

(76mm)

4-1/4"

(108mm) 74-15/16" (1903mm)

1-1/8"

(29mm)

3" (76mm)

19-15/32"

(494mm)

6-1/2"

(165mm)

12-15/16"

(329mm)

19-15/32"

(494mm)

1-1/8"

(29mm) 43-1/2"

(1099mm)

19-15/32"

(494mm)

1-1/8"

(29mm)

12-15/16"

(329mm)

12-15/16"

(329mm)

6-1/2"

(165mm)

25-15/16" (659mm)

3" (76mm)

6-1/2" (165mm)

3" (76mm)

4-1/4" (110mm)

1-1/8"

(29mm)

4-1/4"

(110mm)

1-5/8"

(41mm)

3-3/4" (T12)

(95mm)

3-1/2" (T8)

(89mm)

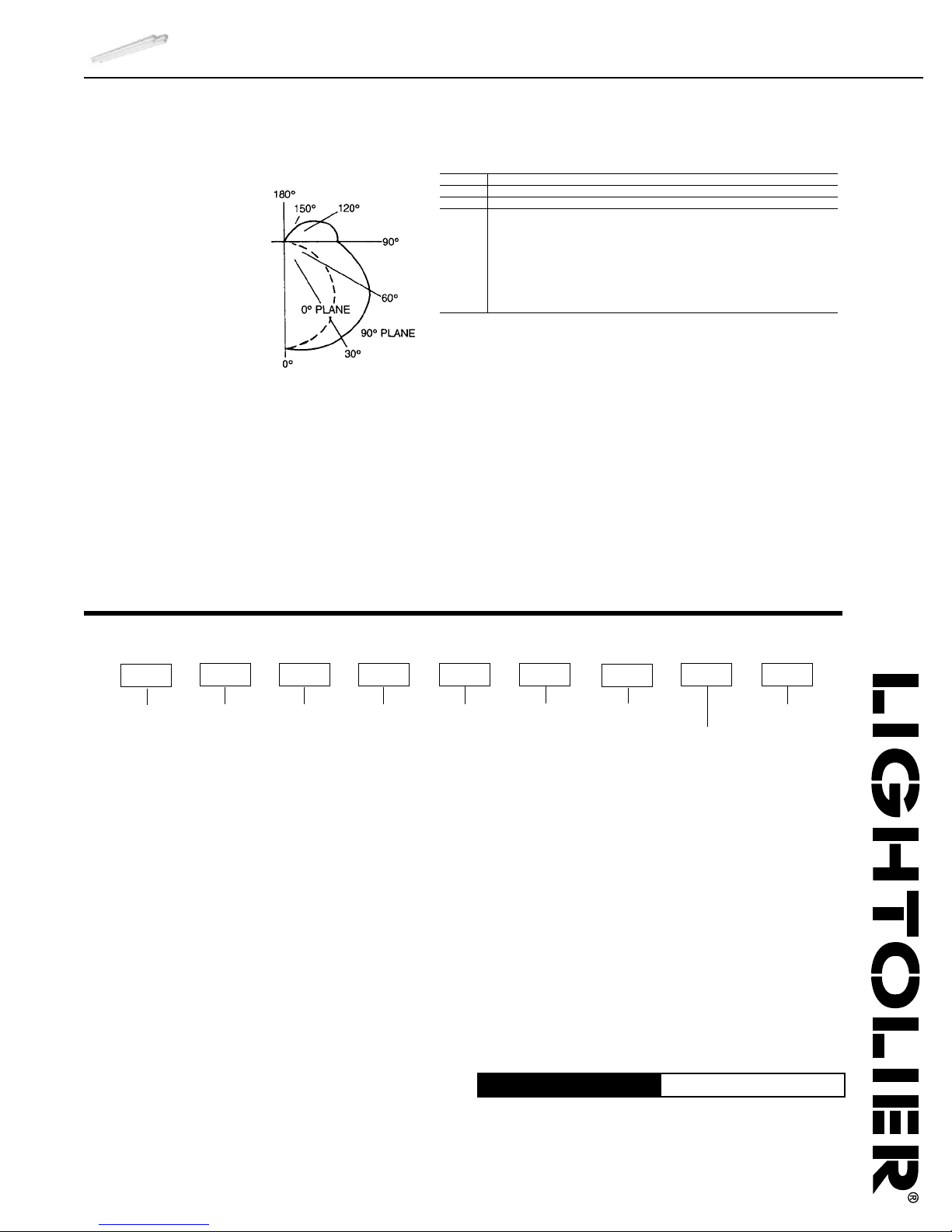

SS Staggered Strip Surface Fluorescent SS 2 LAMP

Page 2 of 2 4-1/4" Wide, 1-5/8" Deep, 27", 39", 51", 75", 99" Length, Individual or Tandem,

2 Lamp T8 or T12

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 •Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Section3A/Folio H130-12

Job Information Type:

Ordering Information

Explanation of Catalog Number. Example: SS4S232HPF120SOGLR†

Options/Accessories

Fusing: Internal fast-blow fusing. Suffix: GLR.

Internal slow-blow fusing. Suffix: GMF.

Electrical Wiring Options: Consult factory.

Radio Interference Filter: 120 or 277 volt, 50 or 60 Hz. One per fixture.

Suffix: R. One per ballast. Suffix: B.

Stem and Canopy Sets: Suspends fixture 6', 12', 18' or 24' from surface.

Catalog Number: ASC6 CSP (6"), ASC12 CSP (12"), ASC18 CSP (18"),

ASC24 CSP (24").

Specifications

Materials: Chassis parts are die formed heavy duty code gauge cold

rolled steel.

Ballast cover–code gauge cold rolled steel, secured by plated quarter-turn

latches.

Finish: Chassis exterior–baked white polyester enamel, minimum

reflectance 86%.

Electrical: Thermally protected class “P”ballast C.B.M. approved, non PCB. If

K.O. is within 3" of ballast, use wire suitable for at least 90°.

Labels: I.B.E.W./UL and ULc Listed.

Photometry Model No. SS4S232HPF120SO

Other dimming options. Consult factory.

Staggered Strip:

4-1/4" wide

channel

Fixture Length:

=27"

3=39"

4=51"

6=75"

8=99"

Lamp Quantity

Lamp Configuration:

=Standard

T= 3' or 4' Lamps

in Tandem

(for 6' or 8' Units)

Lamps:

(By Others)

17= 17 watt (T8)

20= 20 watt (T12)

(Nominal 24")

25= 25 watt (T8)

30= 30 watt (T12)

(Nominal 36")

32= 32 watt (T8)

34= 40 watt (T12)

(Nominal 48")

(Two lamps in tandem

for 75" and 99" fixtures)

HPF

Ballast Type:

HPF

=High Power

Factor

Voltage:

120 or 277

Ballast:

1-2 Lamp Mag. T12

Standard Electro-

Magnetic (20 or

30 watts only) P

<20THD <10THD

1-2 Lamp Elec. (T8)

SO* HI*

1-4 Lamp Elec. (T8)

O4* H4*

LOL Dimming (T8)

PS –

*Instant Start Standard

Options:

Add appropriate

suffix to catalog

no., ie: (GLR)

†No Product Change. New Catalog Number Designation.

REPORT NO: G89007

CATALOG NO: SS4S232HPF120SO

LAMP TYPE: 2F32 T8

LUMENS PER LAMP: 2850 TOTAL

EFFICIENCY: 89.5%

CIE TYPE: Semi-Direct

SPACING CRITERIA: 1.6

SHIELDING ANGLE: 180

coefficients of utilization —zonal cavity method (effective floor cavity reflectance 0.20)

RF 20 20 20

RC 80 50 30

RW 70 50 30 50 30 10 50 30 10

1898479 716864 646158

2807164 605551 545046

3726253 524641 474238

4655445 463934 413631

5594739 403428 363026

6544233 362924 322622

7503729 322521 292319

8463325 292218 262016

9433022 262015 231814

10 40 27 20 24 18 13 21 16 12

room cavity ratio

LER = FP - 38.7 IW - 58.0 BF - 0.87

Comparative yearly lighting energy cost per 1000 lumens = $6.20
