Lightolier Lytespan 8707E Bedienungsanleitung

1 1/16”

ø 3/4”

3 9/16”

4 3/4”

5 3/16”

5 5/16”

3 3/16”

2 9/16”

6 3/8”

7/16”

2 3/16”

3 1/2”

4 7/16”

2 1/4”

ø 1 1/8”

2 3/4”

7 13/16”

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan®Track Lighting 8707E

Page 1 of 2 MetallicsTM Metal Halide (Electronic) 100W PAR38 Adapter

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Features

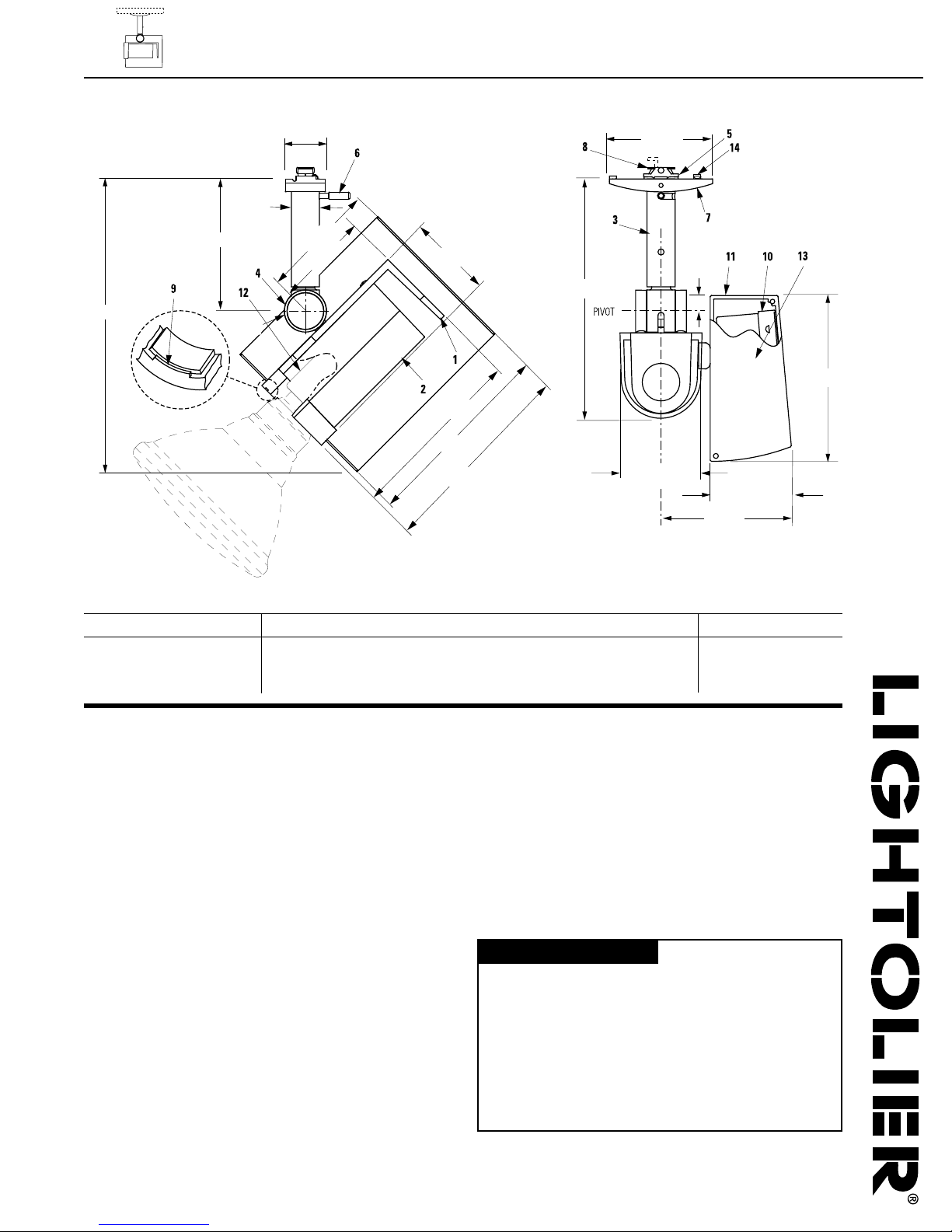

1. Arm: Die-cast aluminum, brushed and clear coated finish.

2. Socket Cover: Injection-molded thermoplastic.

3. Stem: Stainless steel, brushed and clear coated finish, with a permanently

tensioned horizontal rotation stop (315°Rotation).

4. Stem Base: Die-cast aluminum, brushed and clear coated finish with

a permanently tensioned 90°vertical rotation stop (0°to 90°).

5. Contact Holder: High temperature thermoplastic. Secures fixture

mechanically and makes electrical contact with track.

6. Locking Lever: Nickel-plated steel. For mechanical/electrical connection

into track.

7. Track Adapter: Die-cast aluminum, brushed and clear coated finish;

attaches to track.

8. Moveable Brass Contact: Extends for 2nd circuit in two circuit Lytespan

track systems.

9. Embossed Keyway: For attachment of optional shades.

10. Ballast: UL Listed. High power factor Electronic Metal Halide ballast.

11. Ballast Housing: Aluminum-extrusion.

12. Socket: 5KV pulse rated ceramic body; leads encased in silicone coated

fiberglass sleeving.

13. Ballast Housing End Plates: Stamped steel.

14. Ground Spring: Grounds fixture to track.

ELECTRICAL

Electronic Ballast

Input Voltage: 120V, 60Hz

Power Factor: >95%

Input Power: 113W

Input Current: 1.0 amp

Harmonic Distortion: <10%

Do not use on a dimming circuit.

Options and Accessories

Accepts Metallics PAR38 Dome Shade (8747), Metallics PAR38 Barndoor Shade

(8745), & Metallics Par-Tech®PAR38 Ring Shade (8248).

Finish

Feature numbers 2, 11, & 13 painted in White or Titanium. Other external

components, brushed metal with protective clear coat.

Labels

UL, I.B.E.W.

Ordering Information

Catalog No. Finishes Track Mountings Lamps

8707E WH Matte White All Lytespan Track Systems, Multipoint, Monopoint, Monopoint Pin Up, Monopoint Weighted 100W PAR38 Metal Halide

8707E TM Dark Titanium Base, Clamp On Monopoint, Extension Wands, & Sloped Ceiling Adapter. (DOES NOT MOUNT

ON PROSPEC®TRACK). Note: Do not install on stem mounted Radius®track.

DFC L W DC FC L W DC FC L W DC FC L W

LAMP 0° Horizontal 30° Horizontal 30° Vertical 45° Vertical

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

15’311 3.9’3.9’

20’175 5.3’5.3’

25’112 6.6’6.6’

30’78 7.9’7.9’

10’5.8’455 3.5’3.0’

15’8.7’202 5.3’4.6’

20’11.5’114 7.1’6.1’

25’14.4’73 8.8’7.6’’

5’8.7’350 5.6’2.6’

8’13.9’137 8.9’4.2’

11’19.1’72 12.2’5.8’

14’24.2 45 15.6’7.4’

8’8.0’387 4.3’3.0’

12’12.0’172 6.4’4.5’

16’16.0’97 8.6’6.0’

20’20.0’62 10.7’7.4’

10’250 4.4 4.4’

15’111 6.7 6.7’

20’63 8.9’8.9’

25’40 11.1’11.1’

8’4.6’254 4.8’4.1’

12’6.9’113 7.2’6.1’

16’9.2’63 9.6’8.2’

20’11.5’41 12.0’10.2

4’6.9’195 8.3’3.5’

6’10.4’87 12.5’5.3’

8’13.9’49 16.6’7.1’

10’17.3’31 20.8’8.9’

6’6.0’246 5.6’3.8’

9’9.0’109 8.4’5.6’

12’12.0’61 11.2 7.5’

15’15.0’39 14.0’9.4’

6’194 6.9’6.9’

8’109 9.2’9.2’

10’70 11.5’11.5’

12’49 13.9’13.9’

5’2.9 182 8.7’6.7’

7’4.0 93 12.1’9.3’

9’5.2’56 15.6’12.0’

11’6.4’38 19.1’14.7’

2’3.5’219 N/A 4.6’

3’5.2’97 N/A 6.9’

4’6.9’55 N/A 9.2’

5’8.7’35 N/A 11.5’

3’3.0’275 10.4’4.9’

5’5.0’99 17.3’8.2‘

7’7.0 51 24.2’11.4’

9’9.0’31 31.2 14.7

Lytespan®Track Lighting 8707E

Page 2 of 2 MetallicsTM Metal Halide (Electronic) 100W PAR38 Adapter

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

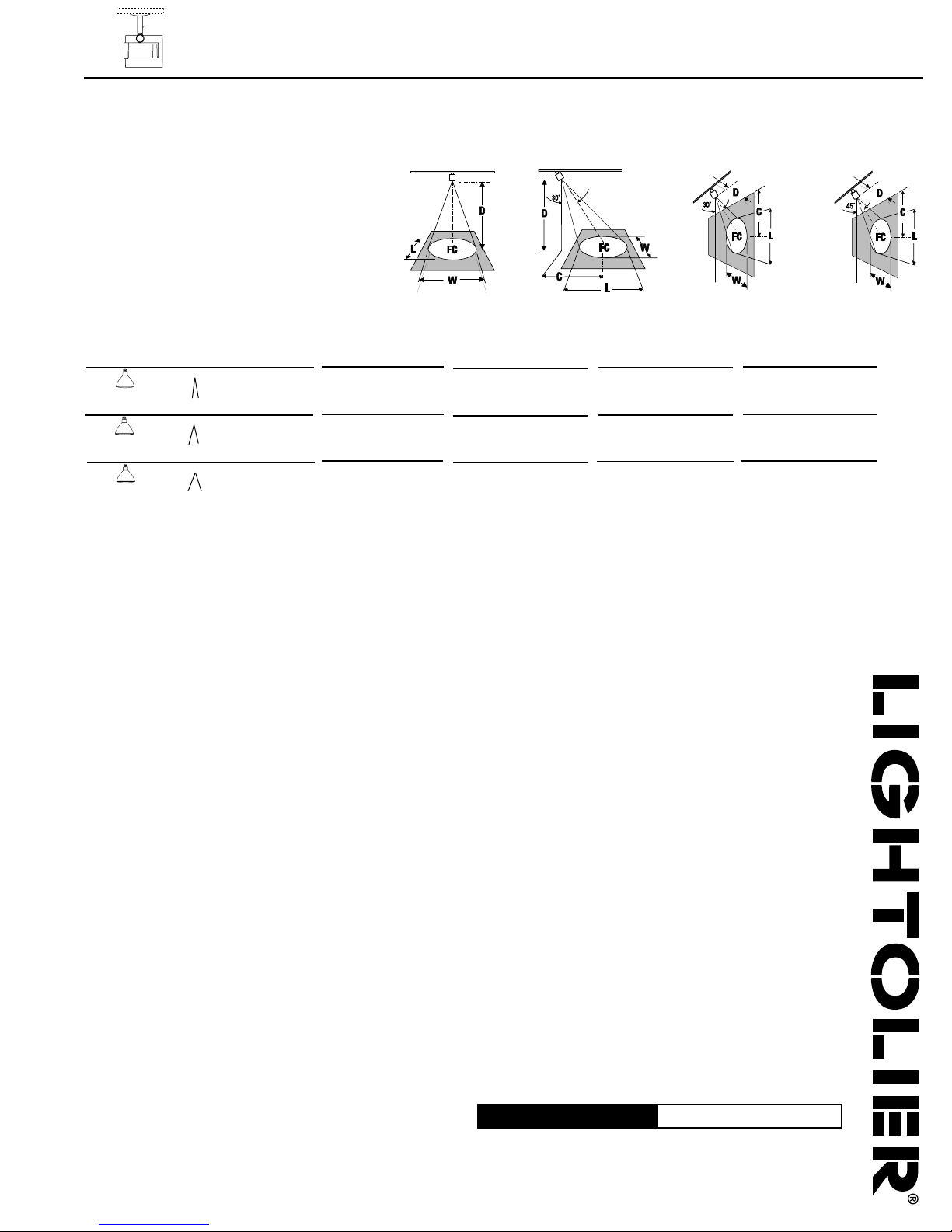

AIMING ANGLE: 0°30°Horizontal 30°Vertical 45°Vertical

L Beam Length D Distance

W Beam Width A Aiming Angle

CDistance to center beam FC Footcandles

Land Ware the outer points where the candle power drops

to 50% of the maximum. FC are the initial footcandles at the

center of the beam.

Lamp data shown is typical. Consult lamp manufacturers for

availability and performance.

70,000 10,000

100W PAR38

(MC/MH) SP 15˚

25,000 10,000

100W PAR38

(MC/MH) FL 25˚

7,000 10,000

100W PAR38

(MC/MH) WFL 60˚
