Lightolier TX Series Bedienungsanleitung

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

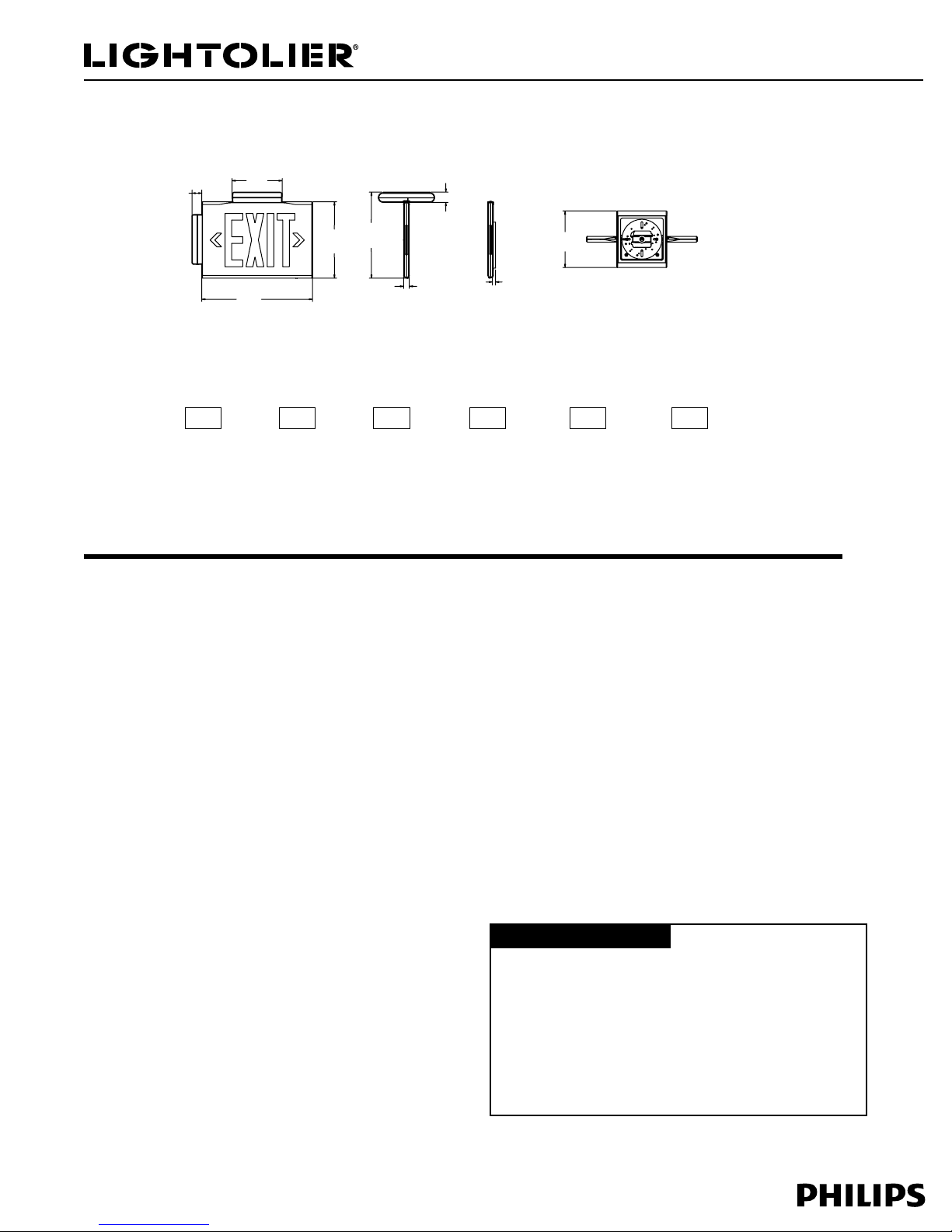

TX Series LED Exit Sign TX

Page 1 of 1 AC Only or Emergency Operation Thermoplastic Housing

Lightolier is a Philips group brand

Complete fixture consists of base exit sign. Select options below.

The TX Series is an upscale thermoplastic LED exit which offers a thin profile design while providing technologically advanced characteristics.

This premium exit integrates performance with aesthetics to meet unique requirements of architects and lighting designers.

(2.92cm)

(24.61cm)

(21.84cm)

(14.32cm)

(31.49cm)

(1.65cm)

(16.17cm)

(.88cm)

(2.76cm)

5.64"

1.09"

8.60" 9.69"

12.48"

.65"

1.15"

.35"

6.37"

(2.92cm)

(24.61cm)

(21.84cm)

(14.32cm)

(31.49cm)

(1.65cm)

(16.17cm)

(.88cm)

(2.76cm)

5.64"

1.09"

8.60" 9.69"

12.48"

.65"

1.15"

.35"

6.37"

How to Specify:

Model

Series

Number of

Faces

Letter

Color

R = Red

G = Green

Mounting

C = Ceiling/End

W = Wall

Enclosure Color

W= White

B= Black

Battery

N= NiMH

Blank= AC Only

Features

1. Illumination: Illumination is accomplished with either AllnGaP(Red) or

InGaN(Green) high output Light Emitting Diodes. LEDs and supporting elec-

tronics have an expected life of 25 years. Proprietary internal molded-acrylic

panel (thickness: 0.45”) for even illumination.

2. Housing: Impact resistant, injection molded UL 94-5VA flame retardant

thermoplastic housing. UV-stabilized to resist discoloration. White finish is

standard, black is optional. NFPA-type field selectable chevrons.

3. Mounting: For ceiling and end mounting applications a canopy, which utilizes

a quick connect locking system for secure installations, is provided. Also

available in a wall mount version for direct surface mounting.

4. Standard Self-Testing/Self-Diagnostics: Unit runs an internal test every

five seconds for secondary voltage, charge current, battery voltage, and LED

illumination. Performs automatic 1 minute discharge test every 30 days and

30 minute discharge test every 180 days meeting and exceeding UL 924 and

NFPA 101 requirements. The Infrared Option allows a remote control to initi-

ate a 5 second and 30 minute self-test in addition to the standard 1 minute

and 90 minute manual test capability.

5. Electronics: 120/277 VAC dual voltage input. Microprocessor controlled

charge, transfer and monitoring system.Charging system is complete with

low voltage disconnect, AC lockout, and brownout protection. Self powered

units include an AC indicator/systems status lamp and manual test switch.

6. Battery: Maintenance free, sealed nickel metal hydride battery with 10 year

life and an operating temperature between 14°F (-10°C) and 113°F (45°C).

NiMH battery is a non-toxic, environmentally friendly product which is recy-

clable.

7. Input Power Requirements: AC Only - Red: 1.29W; Green: 2.20W

Emergency Operation - Red: 3.16W; Green: 3.00W.

Warranty

Electronics: 3 years, Battery: 5 years full, 5 years pro-rata.

Code Compliance

U.L. 924 listed, NFPA 101

Options

I= Infrared Remote Sensor1

F = Flashing Emergency

Z = Audible Emergency

FA = 24 VDC Fire Alarm Interface

6V = 6 VDC Input2

12V = 12 VDC Input2

Notes:

1. For use with remote control which is ordered separately. Item number: IRemote

2. For use with AC only models.

Accessories

IRemote - Infrared remote Control
