©2005 Lindhaus USA All Rights Reserved.
Visit us on-line at www.lindhaus.com

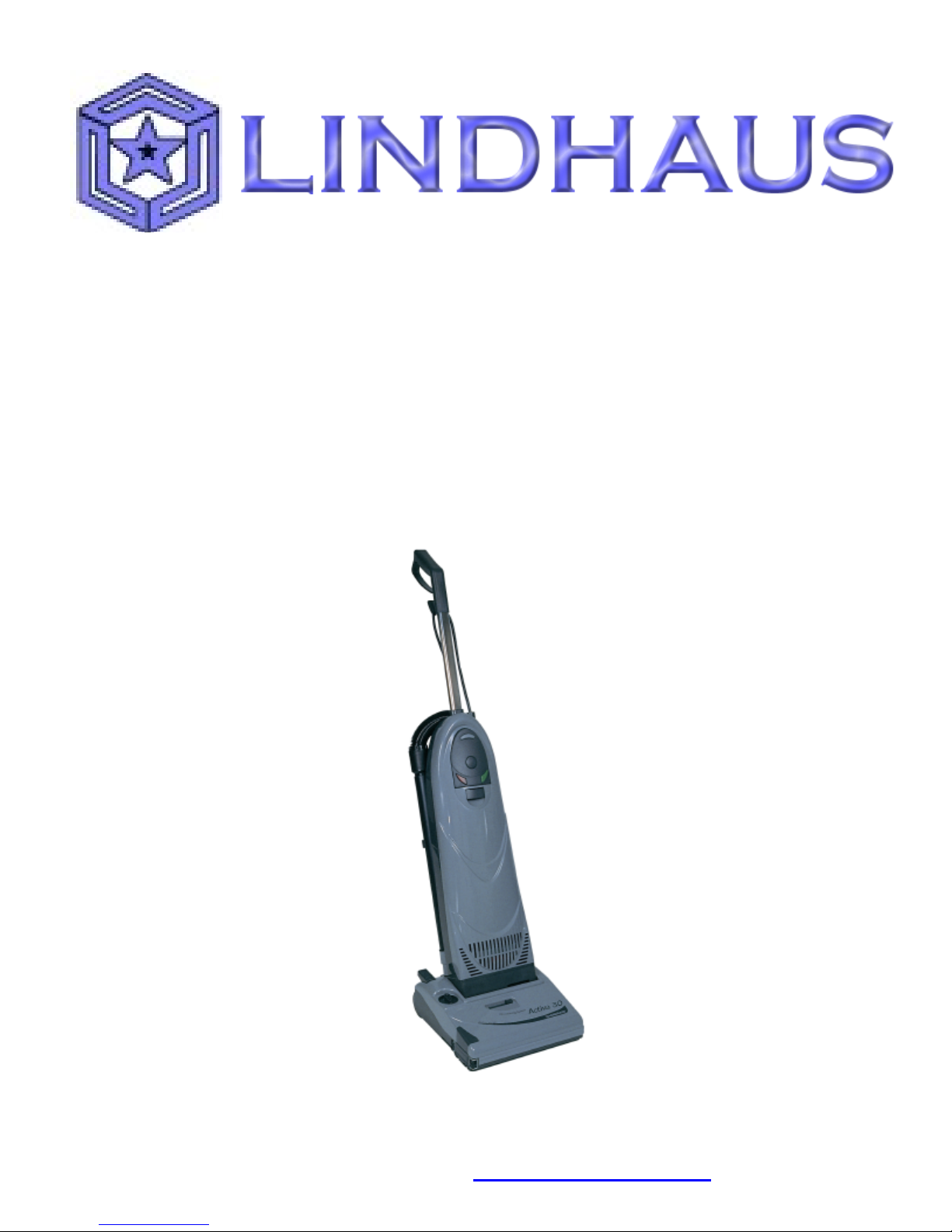

PARTS MAP FOR
Activa
LINDHAUS USA
Spare Parts List
Activa
120V
MAP NO.
PART NO.
DESCRIPTION
A02 011760315 BAG DOOR GASKET
A03 004491201 BAG DOOR LATCH
A04 012370009 BAG DOOR SPRING
A05 004451201 BAG HOUSING DARK GREY
A06 085620000 BAG HOUSING GASKET
A07 004581304 EXHAUST GRILL HOOK
A08 004571304 BAG SAFETY SUPPORT
A09 085450081 STRAIN RELIEF KIT 2 PCS.
A10 022170028 INTERNAL CORD 2 WIRES
A10 022220028 INTERNAL CORD 3 WIRES
A11 012350009 ANTISTATIC SPRING
A12 004540104 HOSE SUPPORT
A13 001880105 LOWER CORD HOOK MEDIUM GREY
A14 004560104 TRANSPORT HANDLE
A15 004550104 ACCESSORY CLIP
A16 003360100 EXHAUST GRILL
A17 085350081 MICROFILTER 12 PACK
A18 012330316 MOTOR PROTECTION FILTER
A19 012540016 FOAM FILTER
A20 010910016 MOTOR FILTER
A21 004511201 ELECTRIC PANEL HOUSING
A22 004501201 ELECTRIC PANEL COVER
A23 022150000 VACUUM SENSOR WITH LIGHT
A24 004610835 RED LENS
A25 022140000 MAIN SWITCH
A26 004601701 SWITCH BUTTON
A27 012360009 HANDLE SPRING
A28 004520101 HANDLE BUTTON
A29 020800000 CIRCUIT BOARD - VARIABLE SPEED
A30 004530101 POWER ADJUSTING KNOB
A31 020040400 TERMINAL BLOCK 2 POLES
A31 020340400 TERMINAL BLOCK 3 POLES
A31 020790400 TERMINAL BLOCK 4 POLES
A32 000070305 CORD CLAMP
A33 020410320 CORD 3X18, 3 PRONG, BLACK
A33 021950320 CORD 2x17 THIN, 2 PRONG, 2 WIRE
A33 022480020 CORD 3X18, 3 PRONG, YELLOW
A34 085461281 HANDLE GRIP (ONLY)
A35 085520081 CROMATE TUBE + HANDLE BUTTON
A36 084520081 BUTTON+SUPPORT+SPRING 2 POSITION
A37 031120300 EXTENSION HOSE WITH SLEEVE
A37 086640381 EXTENSION HOSE WITH HANDLE GRIP
A38 030550300 TELESCOPIC WAND
A39 030060310 CREVICE TOOL
A40 030740300 UPHOLSTERY TOOL - CENTER STRIP ONLY
A41 030820300 UPHOLSTERY TOOL WITH CENTER STRIP
A42 022440000 CIRCUIT BOARD - 3 WIRE
A42 022990000 CIRCUIT BOARD - 4 WIRE
A43 050920080 VACUUM MOTOR V120/60
A43 051020080 VACUUM MOTOR V120/60 -WITH PTC
A44 005100308 MOTOR GASKET
A45 086630381 BRUSH HOLDER GASKET
A46 086430081 DOUBLE PULLEY WITH BALL BEARINGS
LINDHAUS USA
Spare Parts List
Activa
120V
MAP NO.
PART NO.
DESCRIPTION
A47 012410029 DOUBLE SUPPORT
A48 012440300 TIMING BELT 6mm
A49 012480307 O-RING
A50 004410201 THROAT TUBE
A52 012580315 GASKET, THROAT
A53 030720100 HEPA FILTER
A53 030650000 CARBON ACTIVE FILTER
A54 004440036 BUSHING
A55 004360304 RIGHT SUPPORT
A56 004370304 LEFT SUPPORT
A58 086410181 BASE HOUSING COVER A30 DARK GREY WITH LENS
A58 086410281 BASE HOUSING COVER A30 LIGHT GREY WITH LENS
A58 086412681 BASE HOUSING COVER A30 PLATINUM WITH LENS
A58 086413081 BASE HOUSING COVER A30 RED WITH LENS
A58 086420181 BASE HOUSING COVER A38 DARK GREY WITH LENS
A58 086420281 BASE HOUSING COVER A38 LIGHT GREY WITH LENS
A59 086791281 MOTOR HOUSING KIT, DARK GREY
A60 086300081 CENTRAL TRANSMISSION SUPPORT WITH BELTS
A61 005171304 DCS CONVERTER
A62 086160381 BRUSH PULLEY WITH METAL INSERT
A64 087570301 BRUSH ROLLER 30
A64 087580301 BRUSH ROLLER 38
A65 004341205 FOOT PEDAL
A66 012380009 FOOT PEDAL SPRING
A67 012400029 BASE LIFT LEVER
A68 086311281 BASE HOUSING 30 DARK GREY
A68 086321281 BASE HOUSING 38 DARK GREY
A69 085490081 REAR WHEEL ASSEMBLY
A70 003751204 ADJUSTING KNOB DARK GREY
A71 000990305 BRUSH HEIGHT ADJUSTER
A72 004251204 SIDE COVER
A73 085650081 ROLLER SUPPORT
A74 011360307 O-RING
A75 081940081 WHEEL SUPPORT
A76 004271304 ROLLER COVER CLIP
A77 002260000 FRONT WHEEL RUBBER
A77 003090304 FRONT WHEEL NYLON
A78 012390029 FRONT AXLE
A79 004241204 CHANNEL COVER
A80 004220333 ROLLER COVER 30
A80 004230333 ROLLER COVER 38
A80 085780381 ROLLER COVER 30 WITH FELT
A80 085790381 ROLLER COVER 38 WITH FELT
A80 085800381 ROLLER COVER 30 WITH RUBBER STRIP
A80 085810381 ROLLER COVER 38 WITH RUBBER STRIP
A81 004310112 REAR BUMPER 38
A82 004290112 FRONT BUMPER 30
A82 004300112 FRONT BUMPER 38
A83 030900300 UPHOLSTERY TOOL - NATURAL BRISTLE BRUSH ONLY
A84 085510000 RUBBER TUBE
A85 004641201 ELECTRIC PANEL CAP
A86 085920081 TRANSMISSION SUPPORT COMPLETE WITH SENSOR
A87 085440081 GRILL COMPLETE
LINDHAUS USA
Spare Parts List
Activa
120V
MAP NO.
PART NO.
DESCRIPTION
A88 085201280 ELECTRICAL PANEL V.120 2 WIRES
A88 085211280 ELECTRICAL PANEL, VARIABLE SPEED V.120 2 WIRES
A88 085221280 ELECTRICAL PANEL V.120 3 WIRES
A89 085251281 HANDLE TUBE ASSEMBLY
A90 085330101 BAG HOUSING COVER DARK GREY
A90 085330201 BAG HOUSING COVER LIGHT GREY
A90 085332601 BAG HOUSING COVER PLATINUM
A90 085333001 BAG HOUSING COVER RED
A91 085530009 SCREW 2.9 X 19 PACK OF 20
A92 085540009 SCREW 3.5 X 9.5 TG PACK OF 20
A93 085550009 SCREW 3.5 X 25 PACK OF 20
A94 085560009 SCREW 3.9 X 16 PACK OF 20
A95 085640009 SCREW 4.8 X 13 TG PACK OF 20
A96 085570009 SCREW 3.5 X 32 PACK OF 20
A97 085580009 SCREW 3.9 X 19 PACK OF 20
A98 085590009 SCREW 3.9 X 13 PACK OF 20
A99 085420000 DRIVE JOINT CLUTCH KIT
A100 085600009 SCREW 3.9 X 25 PACK OF 20
A101 085610009 SCREW 2.9 X 16 PACK OF 20
A102 085960009 SHAFT 5 X 28 PACK OF 20
A103 022490000 SPEED SENSOR
A104 022400028 CORD 3 WIRES
A104 022630028 CORD 4 WIRES
A105 083010000 LENS SET RED & GREEN
A106 005030004 SPACER CORD HOOK
A107 086440009 SCREW 3.5 X 19 PACK OF 20
A108 086450009 SCREW 3.9 X 13 TG PACK OF 20
A109 086460009 WASHER PACK 0F 20
A110 086290081 KIT MOTOR GASKET
A112 005090000 BUSHING (MOTOR GASKET)
A113 022280000 THERMAL PROTECTOR V.120 (OLD MOTOR)
A113 022640028 CORD WITH THERMAL PROTECT (NEW MOTOR)
022300000 CARBON BRUSH (CERAMIC), SET OF TWO
031100019 A4 BAGS (8 BAGS + 2 MICROFILTERS)
