Linear LINEARCOM3000 Bedienungsanleitung

Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne

Tél: +33 (0)4 77 81 49 49 • Fax: +33 (0)4 77 81 49 40 • www.lineartech.fr

FIXED TRANSMITTER LC3.VGTS

Operation manual

TABLE OF CONTENTS

1. Buttons name and function

2. Operation instructions

3. Speciﬁ cations

Page 3

Page 4

Page 5

1. Power switch (on/oﬀ )

2. MIC/VOL (Wired mic volume control)

3. MIC/TX (When the light is on, the wired mic signal will be transmitted through EJ-770T)

4. AUX input/VOL (Volume control)

5. AUX/TX

6. Transmitting indicator (for UHF transmitter module)

7. LCD (Showing the transmitting channel)

8. AF transmitting indicator/AF volume level indicator

9. Frequency set

10. Channel selector

11. UHF transmitting module/Power & Volume

12. Earphone volume

13. 6.3 mm stereo phone jack (32 ohm)

14. Antenna hole

15. AUX output

16. AUX input

17. Balanced mic input jack

18. Condenser mic power supply (5 V)

19. Unbalanced 6.3 mm mic Input jack

20. DC out (can connect with maximum one EJ-770T)

21. DC in

1. BUTTONS NAME AND FUNCTION

1. Turn on Power Switch (1)

2. Adjust and set preferred UHF transmitting module’s channel.

• Ajust : Turn (F) clockwise (you will hear a “click”), then LCD will turn on and show

the channel number, it means transmitting module is on. You can adjust the volume by

keeping turning (F) clockwise. (Vice versa, turn counterclockwise till you hear a click and

then LCD will show , after 2 to 3 seconds LCD will turn oﬀ . )

• Set : Turn on transmitting module, LCD will show channel number such as . To adjust

channel number please hold on “SET” (D) for one second, then channel number in LCD

will start ﬂ ashing like , press “channel selector” (E) button and adjust to the channel

number you want (1~16 or 1~96). Press “SET” (D) to ﬁ nish your setting.

3. Wired microphone signal being transmitted via TX module

Press “MIC TX (3)” ﬁ rst, if the red light underneath is on that means wired mic’s

signal is successfully transmitted.

4. AUX IN signal being transmitted via TX module.

Press AUX TX (5) ﬁ rst, if the red light underneath is on that means AUX IN signal is

successfully transmitted.

5. Stereo phone jack

Insert 6.3 mm earphone into earphone jack (13), adjust volume (12) and then you can

monitor AUX IN (16) signals.

2. OPERATION INSTRUCTIONS

A. LCD (showing channel/frequency)

B. TX transmitting indicator

C. AF transmitting indicator / AF volume level indicator

D. Frequency set

E. Channel selector

F. EJ-770T UHF transmitting module / Power & Volume

3. SPECIFICATIONS

RF OUTPUT : 10 - 30 mW

JACK AUX INPUTS : Ø 6.35mm for micro, XLR for

micro, RCA AUX input

AUX INPUT : 700mV

AUX OUTPUT : 1V

MICRO INPUT : Balanced/Unbalanced 10mV

HEADSET OUTPUT : 0.5W / 32 ohm

CHANNELS : 1 - 96 channels

pOWER SUPPLY : 100 - 240V AC / 12V 1A

DIMENSIONS : 214x187x43mm

WEIGHT : 1.3Kg

RECEIVER FREQUENCY RANGE :

Group 1 : 640 - 664 MHz (96 ch)

Group 2 : 740 -752 MHz (96 ch)

Group 3 : 794 - 806 MHz (96 ch)

Group 4 : 863 - 865 MHz (16 ch)

FREQUENCY WIDTH : Maxi 24 MHz

DYNAMIC : > 80 dB

THD : < 1%

PRE / DE-ACCENTUATION : < 50 μS

Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne

Tél: +33 (0)4 77 81 49 49 • Fax: +33 (0)4 77 81 49 40 • www.lineartech.fr

Andere Linear Sender Handbücher

Linear

Linear LMT-1 Bedienungsanleitung

Linear

Linear ADVANCED AT7200 Bedienungsanleitung

Linear

Linear MDT Bedienungsanleitung

Linear

Linear MegaCode MCT-3 Bedienungsanleitung

Linear

Linear Multi-code 4140 Bedienungsanleitung

Linear

Linear DOOR/WINDOW TRANSMITTER DXT-31 Bedienungsanleitung

Linear

Linear DXS-64 Bedienungsanleitung

Linear

Linear MegaCode ACT-21 Bedienungsanleitung

Linear

Linear Delta-3 Series Administratorhandbuch

Linear

Linear DT-2A Administratorhandbuch

Linear

Linear MVP Bedienungsanleitung

Linear

Linear 1094 Bedienungsanleitung

Linear

Linear XT-4 Bedienungsanleitung

Linear

Linear miniTransmitter Delta-3 Series Administratorhandbuch

Linear

Linear ET-2 Gebrauchsanweisung

Linear

Linear 2 GIG 2GIG-Z-BRDG-433 Konfigurationshandbuch

Linear

Linear D-22B Administratorhandbuch

Linear

Linear Multi-Code 3089 Bedienungsanleitung

Linear

Linear DX DXS-65 Bedienungsanleitung

Linear

Linear Multi-Code 3022 Bedienungsanleitung

Linear

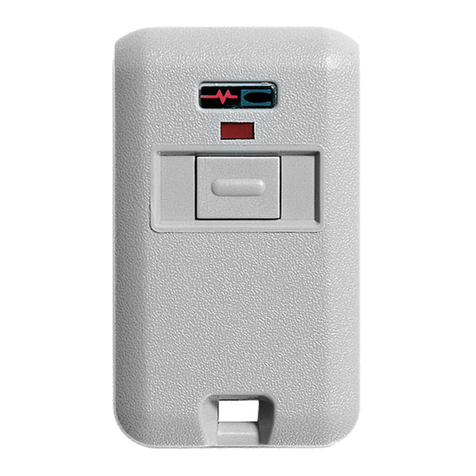

Linear Mini-Code 3060 Bedienungsanleitung

Linear

Linear MULTI-CODE 4140 Bedienungsanleitung

Linear

Linear Multi-Code 3089 Bedienungsanleitung

Linear

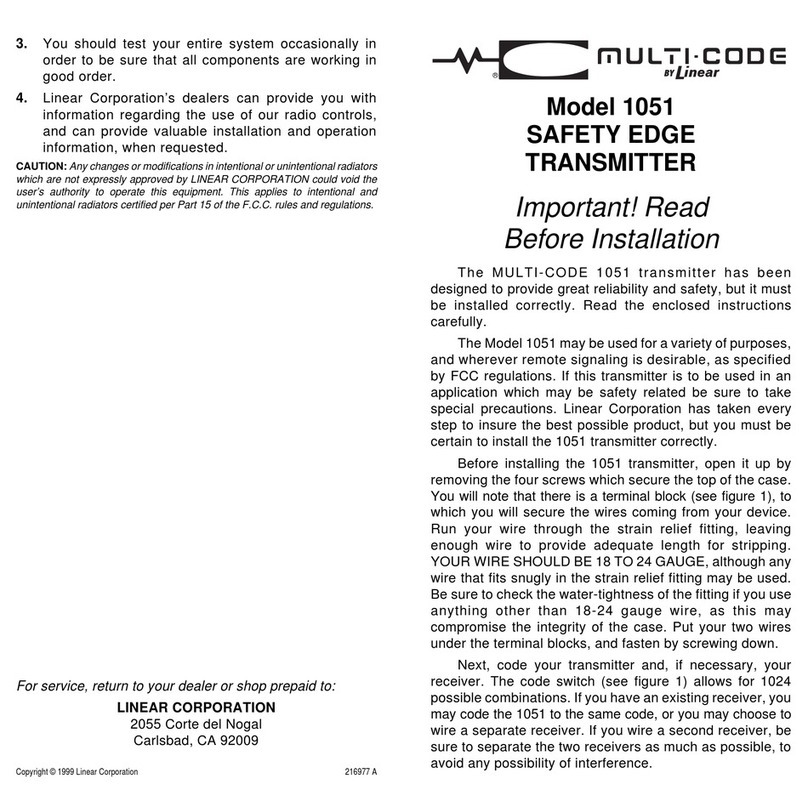

Linear Multi-Code 1051 Bedienungsanleitung
