LINK-MI LM-TV04M Bedienungsanleitung

Video Wall Controller

LM-TV04M

Operating Manual

Contents

Chapter 1.Preface...................................................3

Chapter 2.Notices...................................................3

Chapter 3.Product Introduction..............................4

Chapter 4.System Parameters.................................5

Chapter 5.Topological graph..................................6

Chapter 6.Port and Key..........................................7

1.Port specification..............................................................7

2.Key specification..............................................................7

3.Remote Control Button Specification...............................8

Chapter 7.Function Description .............................9

1.2X2 Installation Instructions.............................................9

2.Main Menu Description....................................................11

3.Splicing Wall Setting up...................................................13

4.Parameter Description......................................................13

5.Frame Blanking Description............................................13

6.Screen Flipping Description.............................................13

7.LED Setting Description..................................................13

8.Flying Subtitle Description..............................................16

Chapter 8.Common Problem and solution............17

Chapter 9.Guarantee Description..........................18

Chapter 1.Preface

Welcome to choose our products, thank you for the support of our

products ! For the safety both of yourself and the equipment , please

read the instruction manual carefully before using this equipment.

Products are covered with a fragile label, pleasee preserve it carefully

which will serve as the warranty certificate.

This product does not support lighting the screenn directly, the output is

connected to the HDMI port.

Please read this guide first when you have anyy problems；The text has

a detailed description of the device operation.If you still have questions,

please contact us and we will give you a satisfactory answer as soon as

possible.

• If this manual has a version changes, we will not inform you specially,

thank you for your understanding and cooperation!

Chapter 2.Notices

Please use DC 12V - 3A power supply and ensure thatt the entire work

Using the same protection system.

Can not be in power lines, signal lines, communication lines and other

cables on the pressure.The cable should be avoided to be trampled or

pressed to prevent leakage short circuit, etc...

When the device is inserted and pulled out, thee equipment needs to be

cut off to avoid from damage;Damage caused by live plug is not within

the scope of warranty.

The outer surface of the equipment may have ann opening for heat

dissipation.To prevent damage to equipment or fire caused by heat

accumulation DANGER.

The working environment of Equipment should payy attention to dust,

moisture, especially to prevent Liquid immersion and splashing inside.

The use of relative humidity : ≤ 80%,storage. temperature: -10℃--

+60℃,Operating temperature:0 ℃- +50℃.

Pay attention to anti static treatment at the whole assembly and

transport process.

The whole assembly can download or side loading, and loading without

hard pressure.

The connection line between the product and thee supporting module

board can not be too long,Otherwise it may affect performance and

image quality.

Chapter 3.Product Introduction

This product is a special LCD TV, ultra narrow LCD screen projection

HD screen splicing processor, single support 4 to 16 HDMI,The utility

model relates to a signal output, which is connected with a LCD

television or other display devices,User can customize a variety of

splicing mode..

Products can be cascaded to achieve maximum 255 signal output..

The product uses the high definition processing chip, supports the

1080P signal input and the output..

The product is designed with infrared remote control and front panel

buttons Remote control of the connector for a key shortcut control and

full function control, Can also transport through the RS-232 control, a

more diverse work can be expanded..

Suitable for supporting 1 way VGA, 1 way DVI , 1 way USB, 1 wayy

HDMI input,All input signals can be switched to the screen for splicing

display.

Suitable for audio input and output, and support audio and videoo

synchronization output.

Supporting any splicing screen to 180 degree flip..

Built in flying subtitle function, you can use the control software

through RS-232 communication interface to the subtitles rolling

position, scroll speed, font size,Text color and background color

settings..

Built in image zoom function, you can use the control softwaree or

remote control menu on the screen to enlarge, shrink, cut the image, etc..

Support border blanking technology, with out this technologyy blanking,

the image will be the image appears on the visual pull; the image that

has been processed by the border blanking Deformation, stretching,

visual more natural.

Support USB access, insert the U disk can be directly decoded

video,pictures, MP3, documents, etc.; no need to configure other front-

end equipment, simple and practical..

Remote control support, infrared remote control can be completedd on

the processor the function of setting, switching and adjusting of the

remote control system,the distance is up to 7 to 10 meters.

Chapter 4.System Parameters

Appellation

Specifications

Input Signal

VGA

HD15 interface；Support 640x480/85HZ to

1920x1200/60HZ；

HDMI

HDMI1.4 (HDCP1.3) DVI1.0, HDMI embedded

audio;

DVI

DVI-I interface (24+5), maximum resolution

support 1920x1080/60HZ;

USB

The standard USB2.0 interface, can be connected

with the U disk and other storage devices; with video,

audio and image decoding, support TXT document

playback support; round robin play, pause, fast

forward, program list and other functions;

Output Signal

HDMI Output

4 HDMI output, support 2*2, 1*4, 4*1 splicing

mode; single maximum support for the 16 HDMI

signal output; maximum resolution support

1920x1080/60HZ;

Audio Output

Output

3.5 audio interface, support stereo, audio and video

signal synchronization switch;

Others

Control Mode

Remote Control、Front panel buttons、RS-232

Power Supply

DC12V-3A

Splicing Scale

Simple four splicing

Power Dissipation

50W

Chassis Specification

Specification

Size

210mm(length)*160mm(width)*45mm(height)

Weight

1.2Kg

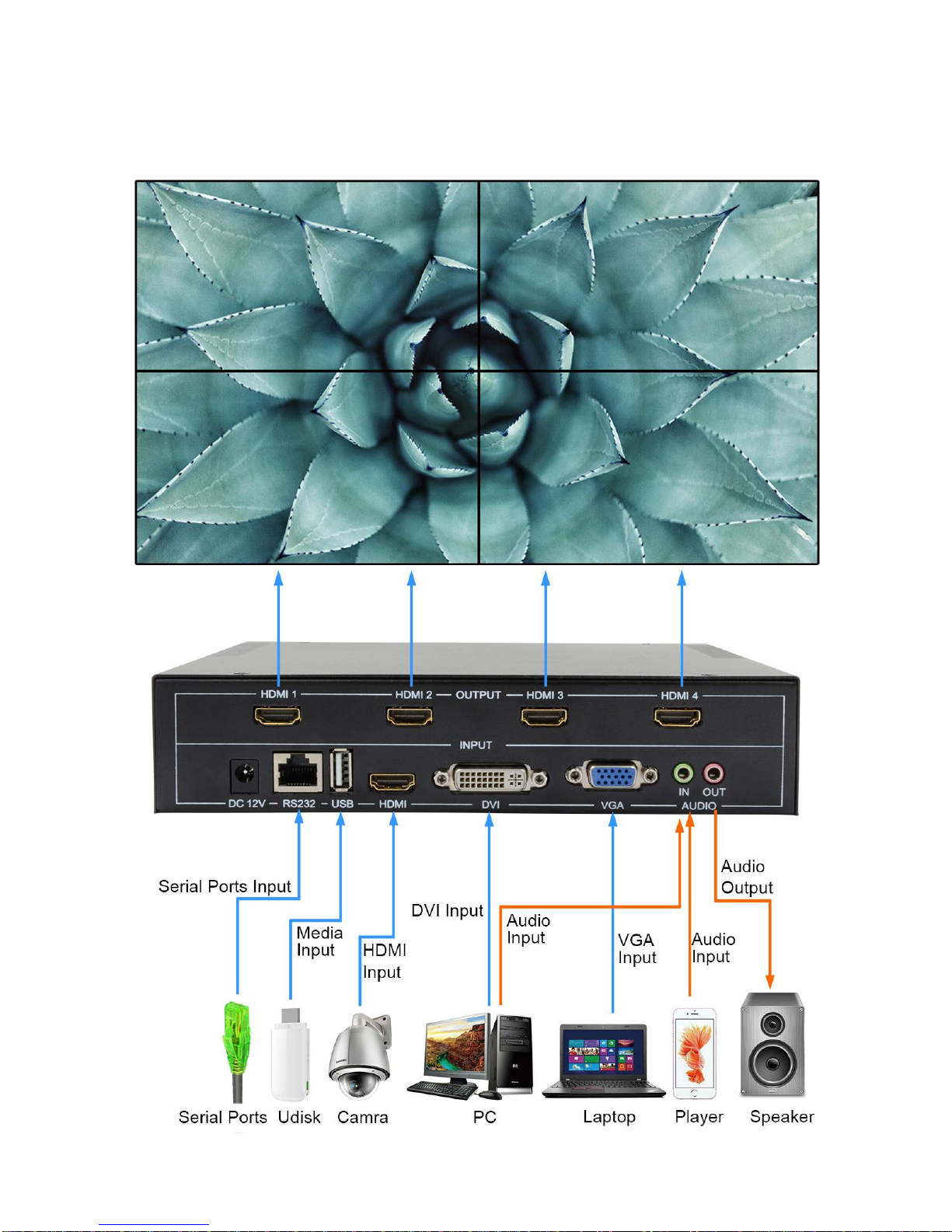

Chapter 5.Topological Graph

Chapter 6.Ports and Keys

1.Port Specification

Input Output

• DC12V：12V Power In • HDMI 1：HDMI 1 Output

• RS232：RS232 In • HDMI 2：HDMI 2 Output

• USB：USB Input • HDMI 3：HDMI 3 Output

• HDMI：HDMI Input • HDMI 4：HDMI 4 Output

• DVI：DVI Input

• VGA：VGA Input

• AUDIO-IN：Audio Input

• AUDIO-OUT: Audio Output

2.Front Panel Button Specification

•POWER:Power Light

• SUBTITLE:Caption ON/OFF

• SPLICING：Splicing/Single

• VGA：VGA Interface

• UP：Up Button

• LEFT：Left Button

• IR:Remote Control Light

• MENU：MENU button

• USB：Multi Media

• HDMI/DVI：HDMI/DVI

Interface

• DOWN：Down Button

3.Remote Control Button Specification

Packing Contents

1. 1 set ear mount

2. 1pcs 12v adapter

3. 1pcs CD Disk

4. 1pcs Remote Controller

5. 1pcs User Manual

6. 1pcs Rs232 adapter

OFF

Power OFF

Power ON

PC-RGB Signal

HDMI

HDMI Signal

DVI

DVI Signal

Volume Up

Subtitle ON/OFF

Volume Down

SW/SP

Splicing/Single

INPUT

Signal Source Menu

←

Left

→

Right

↑

↓

Down

EXIT

MUTE

UPGRADE

Chapter 7. Function Description

1. 2×2 Splicing Mode Setting Up Description

• Put the input signal（HDMI,DVI,VGA）into the input port of the

splicing box.

• Put the HDMI output of the splice box is connected to the screen (no

need to be in a certain order Connection).

• Through the controller in the packing box or the button on the front panel

of the equipment"MENU" call up the stitching menu, select "left" and

"right"Position the menu to the stitching menu (press "up" and

"down")The corresponding options, through the "left" and "right" to adjust

the parameters.

Select the switching mode settings as "2 x 2", As picture 1:

picture 1

Select the HDMI port and the corresponding splice location, according

to the upper left corner Tips too adjust (for example: 2X2 mode, lower

right corner) Unit HDMI ID is 1, the stitching position is 2, then the

splicing Position adjustment is 4, corresponding to the curtain wall

address.As picture 2:

picture 2

After the adjustment, turn this splicing switcher att "open" that is the

end of splicing
