LINK-MI LM-TV04P Bedienungsanleitung
User Manual
Model No.: LM-TV04P
4K 2x2 Video Wall Controller
Catalogue
1st Introduction...............................................................................................................2
2nd Feature......................................................................................................................2
3rd Technical Parameters................................................................................................3
4th Package Content....................................................................................................... 4
5th Panel Description......................................................................................................4
6th Connection................................................................................................................6
7th Installation................................................................................................................ 7
8th Roaming Window settings..................................................................................... 10
9th Video mode.............................................................................................................11
10th Main Menu instructions....................................................................................... 14
11th Trouble shooting.................................................................................................17
1
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please
read these instructions carefully before connecting, operating or adjusting this
product. Please keep this manual for future reference.
♦ Make sure that all devices you will be connecting up are properly grounded.
♦ Make sure that the power to all the devices you will be connecting up has been
turned off.
♦ Do not place other objects on the cable.
♦ Risk of electrical shock, do not open.
♦ To avoid damaging the product, do not dismantle it by yourself, the device should
be repaired and maintained by the professional and qualified personnel in the
designated service center.
♦ Do not place any object into the opening of the casing, otherwise, it might cause
voltage or short circuit incident.
♦ The installation site must be well ventilated. Ensure that air vents on the equipment
are not blocked.
2
1st Introduction
This 2x2 video wall controller support 1x HDMI 2.0 in, 1x HDMI 1.4 in and 1x
DP 1.2 in, max resolution support 4K@60Hz 4:4:4 HDCP 2.2. It allows any of there
inputs routed to the four HDMI outputs. Users can choose different video mode via
remote like 2x2 video wall mode, PIP (picture in picture) mode etc to meet their
needs .
This 4K video wall controller offers solution for home, office, digital entertainment,
center, conference room, school and other digital TV use environments.
2nd Feature
2x2 video wall controller 1x HDMI 2.0 in, 1x HDMI 1.4 in and 1x DP in.
Max resolution up to 4K@60Hz 4:4:4, HDCP 2.2, DP 1.2 max 4K@60Hz.
Easy to set-up and control,support control via front buttons and remote.
Support image rotation 90°, 180°, 270° and Mirror left and right, flip up and
down.
Support 3.5mm analog audio out.
Support automatically adjust border function and crop image function,Display
without black edges.
Support roaming window and support input of the splicer can be resize and
positioned at any position .
Supports intelligent temperature control protection technology, making the
3
product's heat dissipation performance more stable, reliable and durable.
Silent smart fan, no noise at work.
3rd Technical Parameters
Name
Specification (LM-TV04P)
Input Signal
HDMI 1
HDMI 1.4, resolution support 640x480 to 3840x2160@30Hz
HDMI 2
HDMI 2.0, resolution support 640x480 to 3840x2160@60Hz
DP
DP 1.2, resolution support 640x480 to 3840x2160@60Hz
Output Signal
HDMI 1
Support 2x2, 1x4, 4x1 video wall mode, max resolution support
1920x1080@60Hz
HDMI 2
Support 2x2, 1x4, 4x1 video wall mode, max resolution support
1920x1080@60Hz
HDMI 3
Support 2x2, 1x4, 4x1 video wall mode, max resolution support
1920x1080@60Hz
HDMI 4
Support 2x2, 1x4, 4x1 video wall mode, max resolution support
1920x1080@60Hz
Audio
3.5mm audio interface
Other
Stitching Mode
Simple four stitching
Control
IR remote, front buttons
Rotation
90°, 180°, 270°
Supply Voltage
DC 12V 3A
Power Consumption
30W
Chassis Specification
Product Size (mm)
210x160x45 mm (LxWxH)
Product Size (kg)
1.2 kg
4
4th Package Content
1) 1x Main Unit (4K 2x2 Video Wall Controller)
2) 1x Power Adapter
3) 1x Remote
4) 1x User Manual
5th Panel Description

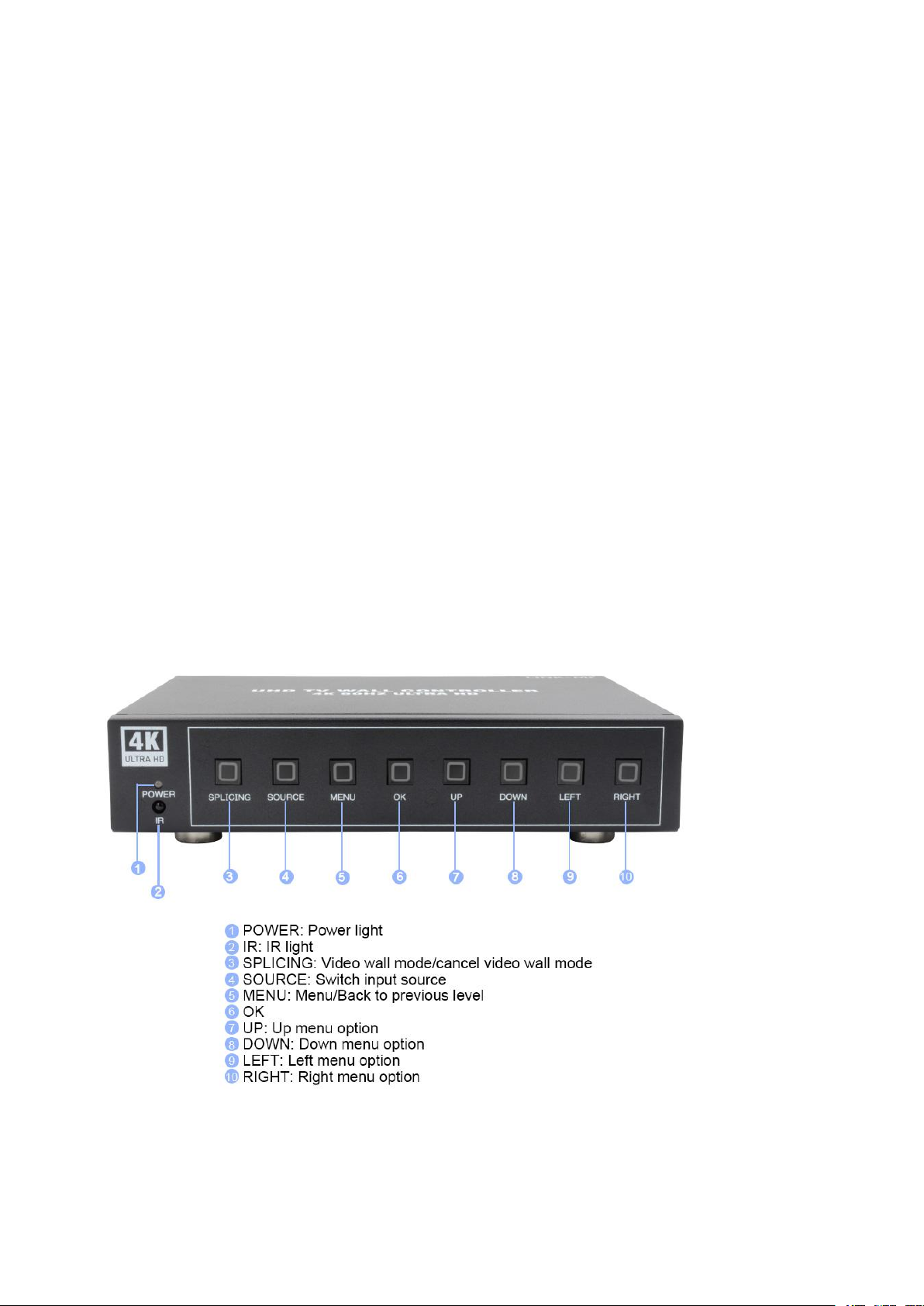

1. Front Panel
5
2. Rear Panel
3. Remote Description
6
6th Connection
7
7th Installation
1. Connect the input source(HDMI1/HDMI2/DP) to the video wall controller.
2. 4 output ports connect 4 TV.
8

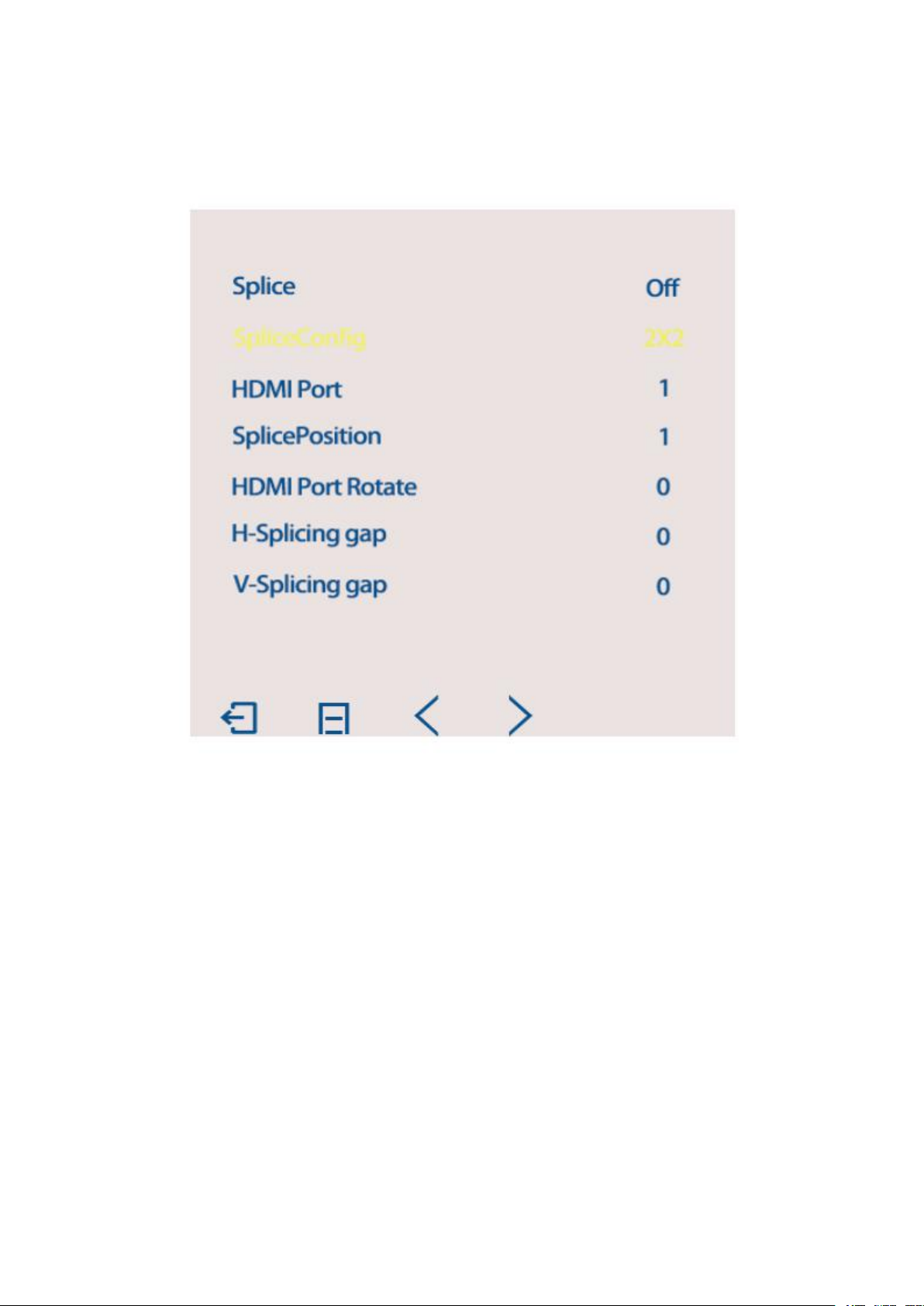

3. Use remote or press front button MENU to select splicing menu,(User can use
LEFT, RIGHT, UP and DOWN choose splicing mode), set mode to 2x2.
4. Select HDMI port NO. And splicing NO. And adjust according to the prompts in
the upper left corner of the screen (for example: 2x2 mode, set the first screen HDMI
port to 1 and the Splice Position number is 1 ,and the upper left corner will show :
Splice Mode 2x2, HDMI port 1 and Splicelnder 1)
