Link CAN Gauge Bedienungsanleitung

CAN GAuGe

USER MANUAL

Part No. 101-0226

Box CoNteNts

• 1 x Link 52mm CAN Gauge

• 1 x Mounting bracket with thumb screws

• 1 x 5’ (152cm) Connection Cable Terminated to DTM-4

• 1 x DTM-4 Mating Connector Kit

• 2 x Link Stickers

tABle of CoNteNts

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Requirements & Gauge Mounting . . . . . . . . . . . . . . . 2

Link CAN Bus Connection . . . . . . . . . . . . . . . . . . . . . . 3

Terminating Resistor Conﬁguration . . . . . . . . . . . 3-4

Illumination Signal Wiring . . . . . . . . . . . . . . . . . . . . . . 5

Connect to gaugeART CAN Gauge App . . . . . . . . . 5

Create Conﬁguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Save & Send Conﬁguration . . . . . . . . . . . . . . . . . . . . . . 7

Load Conﬁguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

PC Link CAN Stream Conﬁguration . . . . . . . . . . . . . 8

For extended channels . . . . . . . . . . . . . . . . . . . . . . 9-10

Troubleshooting & Support Contact . . . . . . . . . . . . 10

INtro to the 52mm CAN GAuGe

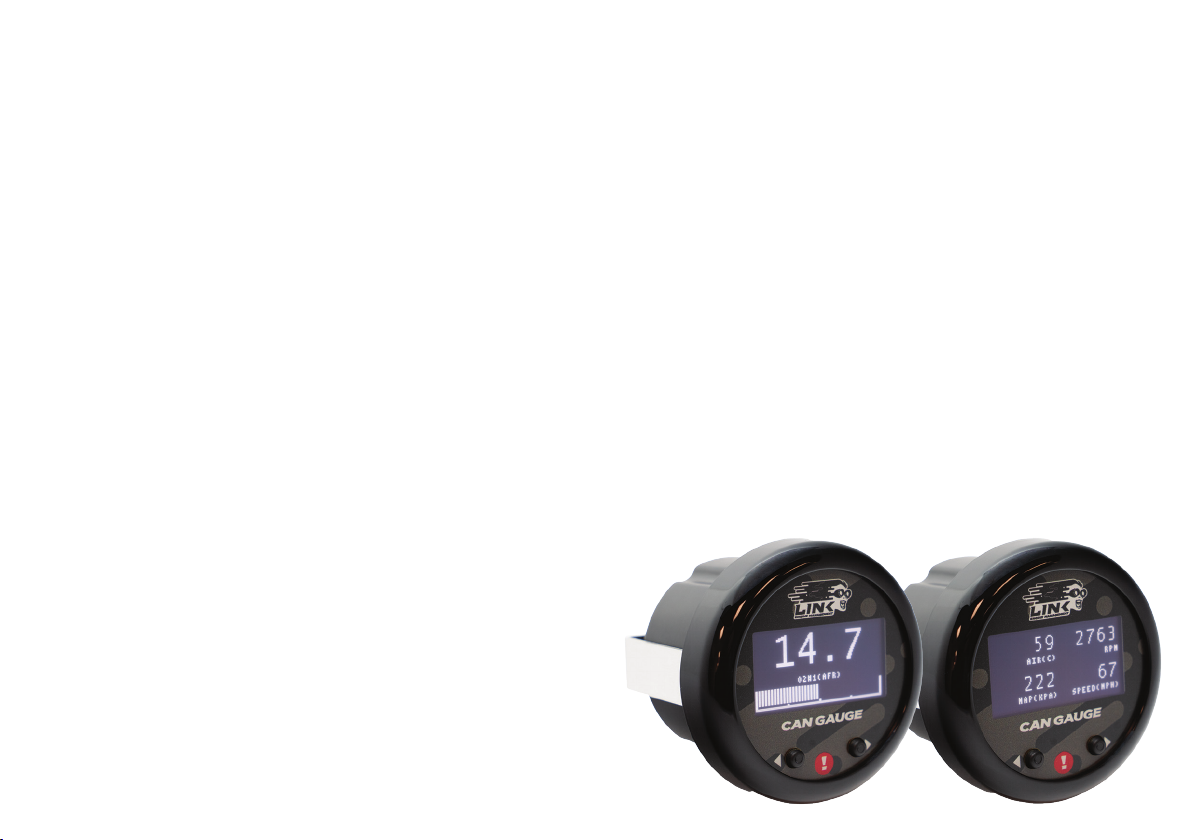

The Link CAN Gauge is a compact 52mm OLED gauge that connects

to Link G4+/G4X ECUs* to display real-time data from CAN broadcasts.

No sensors are added to the gauge – all gauge data is sent from the

ECU over the CAN network. The gauge is wirelessly conﬁgurable using

an Android or Apple iOS mobile device through Wiﬁ. Gauge channels,

bar graphs, warning points, and custom gauge labels can be conﬁgured

using the CAN Gauge App.

* Works with any CAN enabled Link ECU. Check with Link Tech Support

team if you are unsure of compatibility.

requIremeNts

• Smartphone or Tablet: Smartphone or tablet with Apple iOS or

Android v4.4 or later.

• CAN Enabled Link ECU (G4+ onwards).

GAuGe mouNtING & CABle

INstAllAtIoN:

• Remove the supplied mounting bracket from the rear of the gauge by

unscrewing the two thumb screws from the rear of the gauge.

• The gauge is sized for a 2-1/16” or 52mm mounting hole. Use the

mounting bracket to secure the gauge in place.

• Plug in the supplied cable to the rear of the gauge. Either one of the

two connectors may be used.

• If using more than one Link CAN Gauge, join the two gauges using the

optional daisy chain cable (part no. 101-0227). The last gauge in the

chain will only be connected with the daisy chain cable.

1 2

lINk CAN Bus CoNNeCtIoN

The Link CAN Gauge includes a CAN connection cable that is

pre-terminated to a DTM-4 connector. There is also a mating

DTM-4 connector kit included in the box. Use this connector kit to wire

into your vehicles CAN bus Pin out is shown below.

DTM-4 Mating

Connector Kit Pinout CAN Gauge Side

DTM-4

2233

4411

2233

Pin Number Colour Typical Application

Pin 1 Red Ignition switched +12v (5 amp fused)

Pin 2 Black Chassis Ground

Pin 3 Green CAN Low

Pin 4 White CAN High

Flying Lead Orange +12V Illumination Power

termINAtING resIstor

CoNfIGurAtIoN:

• The Link CAN Gauge includes a user-conﬁgurable 120 ohm

terminating resistor jumper. The resistor is enabled when the jumper is

in place.

Rear of Gauge

Terminator

• CAN networks require a 120 ohm resistor on the ends of the network

– one at the ECU, and one on the last device in the network (see

image below for an example). Leave the terminating resistor jumper in

place if the CAN Gauge is the last device in the chain of CAN devices.

Remove the jumper if there are already two terminating resistors at the

ends of the network (see below for an example).

• All Link G4+/G4X ECU’s have a 120 ohm terminating resistor ﬁtted

• Having too many or not enough resistors can cause the gauge or other

devices to malfunction.

CAN GAuGe

120 ohm Resistor

ECU with built in

120 ohm Resistor

CAN GAuGe CAN GAuGe

ECU with built in

120 ohm Resistor

Example of two CAN networks – 120 ohm resistor must be on the last

device in the chain. 43

CreAte CoNfIGurAtIoN:

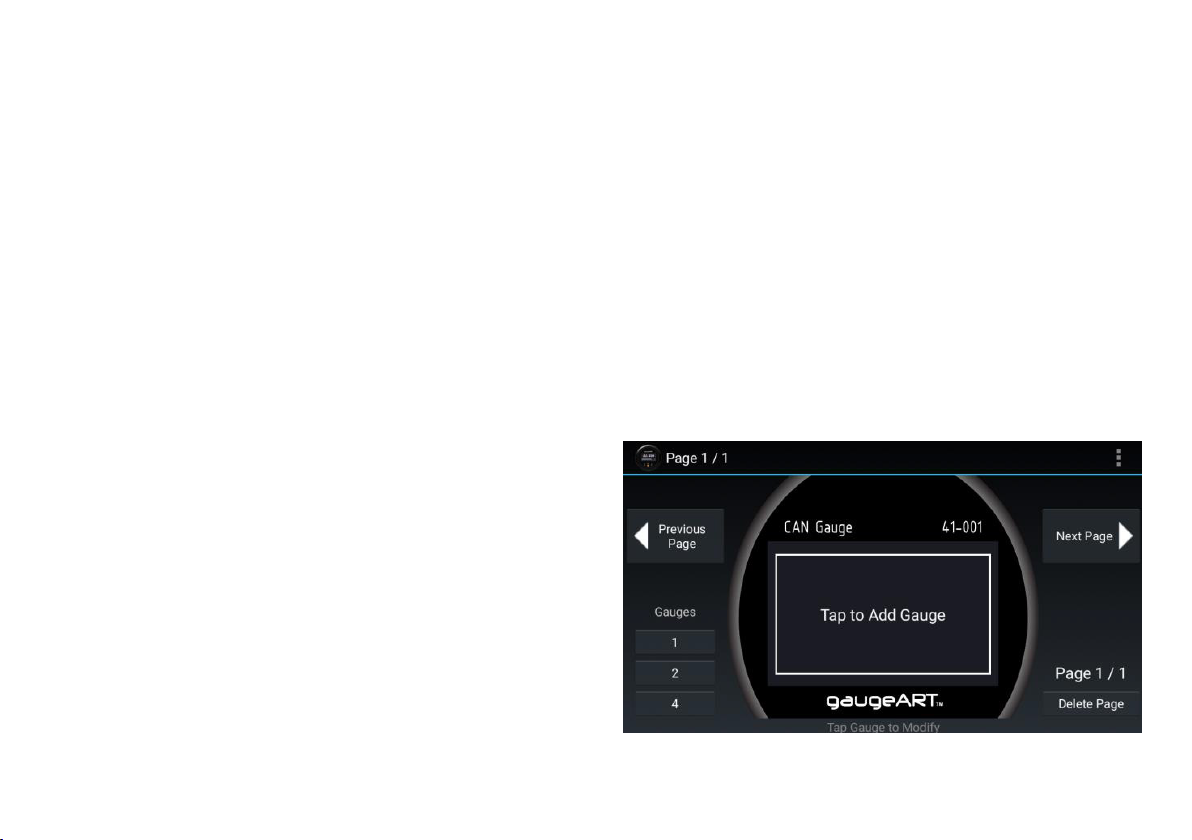

• Tap Create Conﬁguration. Select ECU type and tap Next.

• The gaugeART CAN Gauge allows you to create up to 10 pages

of gauge layouts in 1, 2, or 4 gauge layouts. Tap the center of the

screen for Gauge Screen Setup. On this screen, select a channel,

conﬁgure graph range, update speed, warnings, and gauge labels

(e.g. rename “MAP” to “BOOST”).

• Tap Previous Page to return.

• Tap the left side to change the conﬁguration between 1, 2, or 4

gauge layout.

• Tap Next Page to add a new page or delete to remove a page.

IllumINAtIoN sIGNAl WIrING:

• The Link CAN Gauge can dim illumination during night when the

parking lights are on. Using the factory service manual, ﬁnd a wire in

the interior that switches to +12V power when the parking lights are on.

Verify with a voltmeter or test light that the wire receives +12V when

the parking lights are turned on.

• The connection cable provides a separate orange unterminated wire

for +12V illumination power

• Note that some vehicles, including many Hondas, have an illumination

switched connector in the interior fuse box.

• Depending on access to the wire – use a wire tap or splice the factory

wire to connect the gaugeART CAN Gauge orange wire.

CoNNeCt to CAN GAuGe App:

• Search “gaugeART” and download the gaugeART CAN Gauge App

from your device’s app store.

• If you have two Link CAN Gauges, they can be programmed

separately.

• Turn on your ignition to turn on Link CAN Gauge. The welcome screen

will be shown.

• Connect to the gauge via Wi-Fi by tapping on settings > Wi-Fi.

• Tap on gaugeART and enter the default password “12345678”. Allow

the gauge to connect. If prompted with a message that internet is not

available with this device, tap ok.

• You may now open the gaugeART CAN Gauge App.

5 6

sAve & seNd CoNfIGurAtIoN:

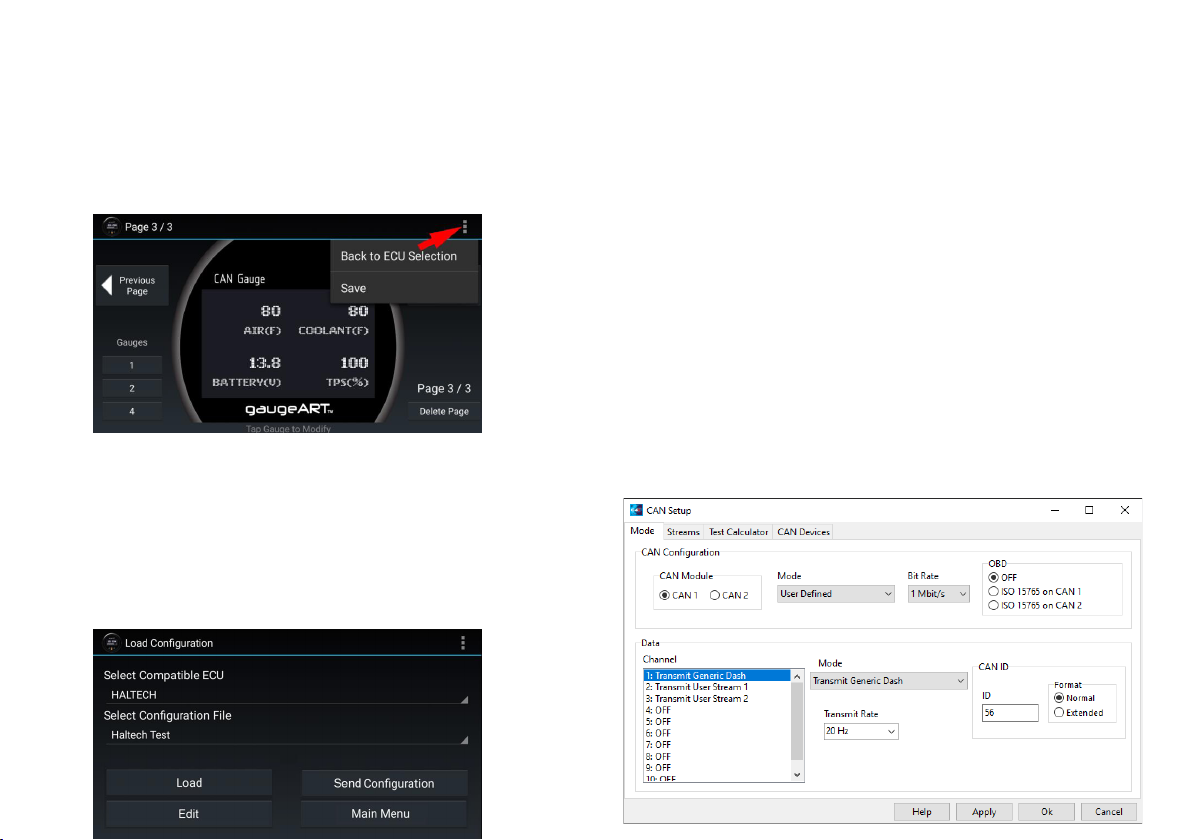

• Tap the icon in the top right and tap Save.

• Enter a name under “Enter Save File Name” and tap Save.

• To program, tap Send Conﬁguration. The gauge will be programmed

and will show your conﬁguration. Programming takes anywhere from

10-60 seconds and will update the gauge’s ﬁrmware automatically if

an update is available.

loAd CoNfIGurAtIoN:

• Select the ECU you are working with.

• Previously saved ﬁles will be shown in the second drop down. Click

load to open the ﬁle.

• To Edit your saved conﬁguration, tap edit once loaded.

• To program, tap Send Conﬁguration.

pClINk CAN streAm

CoNfIGurAtIoN:

• Open PCLink

• Open the CAN Setup window > ECU Controls > CAN Setup).

• Select the CAN module to be used.

• Set the Mode to ‘User Deﬁned’.

• Conﬁgure the Bit Rate to 1 Mbit/s

• Select a spare CAN channel.

• Select ‘Transmit Generic Dash’ from the Mode drop-down menu.

• Set the CAN ID to 56.

• Set the Transmit Rate to 20Hz.

• Set the Format to Normal.

• Click Apply and then OK.

• Make sure a Store (F4) is performed.

7 8

for exteNded ChANNels:

• Select another spare CAN channel.

• Set Mode to “Transmit User Stream X” (Where X is the next unused

transmit or receive user stream number).

• Set CAN ID to 50.

• Set Transmit Rate to 20Hz.

• Set Format to Normal.

• Change to the Streams tab of the CAN Setup window.

• Select Stream X and then click Load Stream.

• Select ‘GaugeART_CAN_Gauge_Extra_ID50.lcs’ and click the Open

button (ﬁnd this in the CAN folder of your PCLink install).

• Change back to the Mode tab, select the next spare CAN channel.

• Repeat steps1-7 for the ‘GaugeART_CAN_Gauge_Extra_ID51.lcs’ ﬁle,

this time using the CAN ID 51.

• Click Apply and then OK.

• Make sure a Store (F4) is performed.

PCLink Extended CAN Channels 1

PCLink Extended CAN Channels 2

trouBleshootING:

• App says gauge is not connected: connect gauge in Wi-Fi settings

before opening app. Make sure Wi-Fi is connected (a checkmark

appears when connected). Make sure to give app permission to use

Wi-Fi if prompted.

• Gauge stays in Programming Mode: the gauge will stay in

programming mode until a conﬁguration is sent.

• info@gaugeART.com

• [email protected]

9 10
