Model No.
Quick Installation Guide
A Division of Cisco Systems, Inc.
®
WIRED
BEFSR41 (EU/LA/UK)
with 4-Port Switch
Package Contents
• Cable/DSL Router
• Setup CD-ROM with User Guide
• Power Adapter
• Category 5 Ethernet Network Cable
• Quick Installation
EtherFast®
Cable/DSL Router
2
1
Follow these instructions for quick
installation.
ABefore you begin, make sure
that all of your hardware is
powered off, including the
Router, PCs, hubs, switches,
and cable or DSL modem.
BConnect one end of an
Ethernet network cable to one
of the numbered ports on the
back of the Router. Connect
the other end to an Ethernet
port on a network device, e.g.,
a PC, print server, hub, or
switch.
Repeat this step to connect
more PCs or other network
devices to the Router.
CConnect your cable or DSL
modem’s Ethernet cable to the
Router’s Internet port.
DPower on the cable or DSL
modem.
EConnect the included power
adapter to the Router’s Power
port, and then plug the power
adapter into an electrical
outlet.
The Power LED on the front
panel will light up as soon as
the power adapter is
connected properly.
Power on the Router, PCs, hubs,
and switches.
E
C
B
Connect the Router
3
In Step 2, you will need the setup
instructions provided by your Internet
Service Provider (ISP). If you do not
have this information, then contact
your ISP before proceeding.
The instructions from your ISP tell you
how to set up your PC for Internet
access. Because you are now using
the Router to share Internet access
among several computers, you will
use the setup information to
configure the Router instead of your
PC.
AOpen your PC’s web browser.
Enter http://192.168.1.1 (the
Router’s default local IP
address) in the web browser’s
Address field. Then press the
Enter key.
BA screen will appear and ask
you for a User Name and
Password. Leave the User
Name field empty, and enter
admin (the default) in the
Password field. Then click the
OK button.
CThe Router’s Web-based Utility
will appear with the Basic
Setup screen showing.
2
B
A
NOTE:: Make sure your PC’s Ethernet
adapter is set to obtain an IP address
automatically. For more information,
refer to Windows Help.
Configure the Router
4

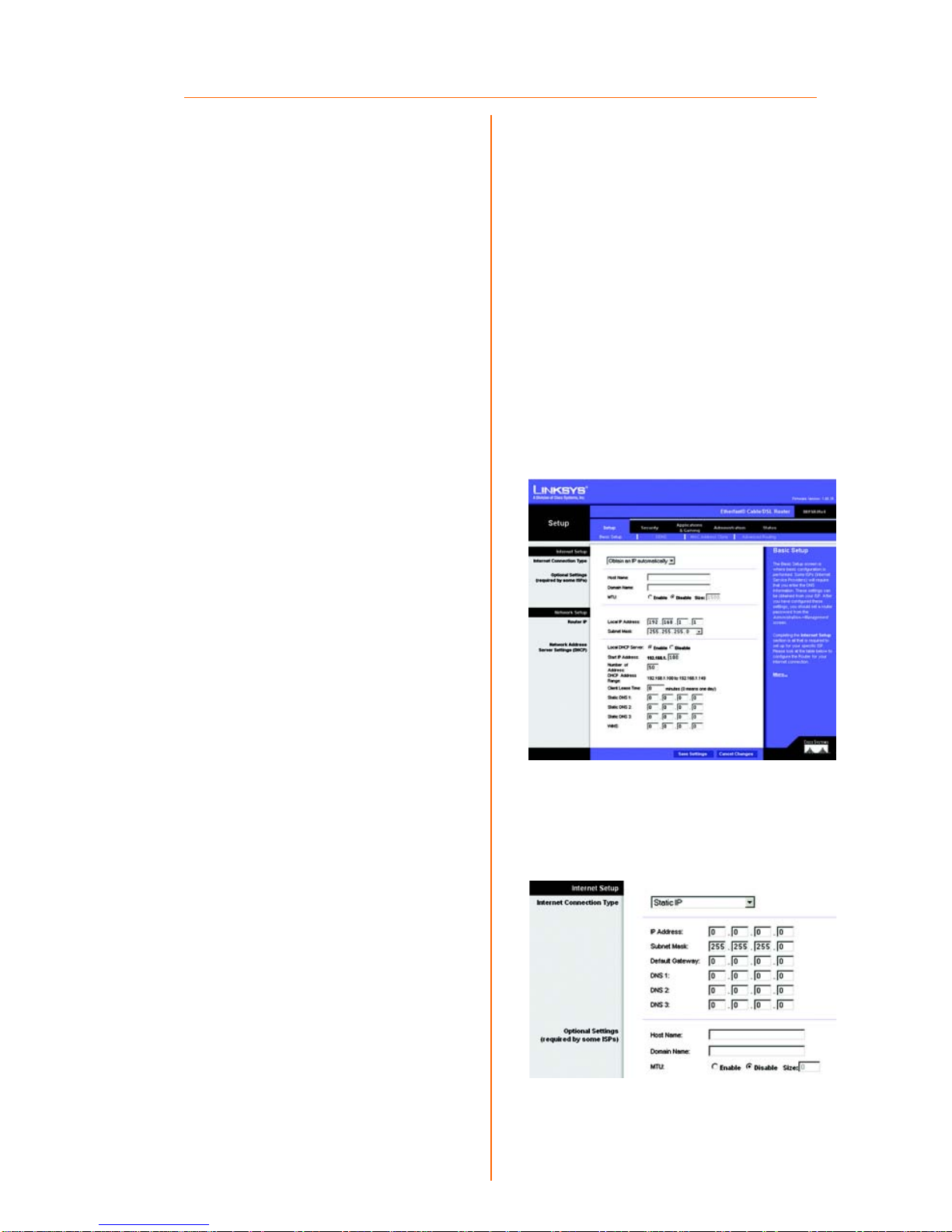

DIn its drop-down menu, the
Internet Connection Type
setting features seven Internet
connection types: obtain an IP
automatically (DHCP), Static IP,
PPPoE, PPTP, RAS, Heart Beat
Signal, and L2TP. Depending on
which connection type you
select, the features available
on the Basic Setup screen will
differ. Proceed to the
instructions for the connection
type you are using.
1 Obtain an IP Automatically
(DHCP)
aIf your ISP says that you are
connecting through DHCP or a
dynamic IP address from your
ISP, then select Obtain an IP
automatically as the Internet
Connection Type.
bClick the Save Settings button,
and go to Step E.
2 Static IP
aIf your ISP says that you are
connecting through a static or
fixed IP address from your ISP,
then select Static IP as the
Internet Connection Type.
bEnter the IP Address, Subnet
Mask, and Gateway Address
provided by your ISP.
D1
D2
5
cIn the Primary and Secondary
DNS fields, enter the DNS
address(es) provided by your
ISP. You need to enter at least
one DNS address.
dClick the Save Settings button,
and go to Step E.

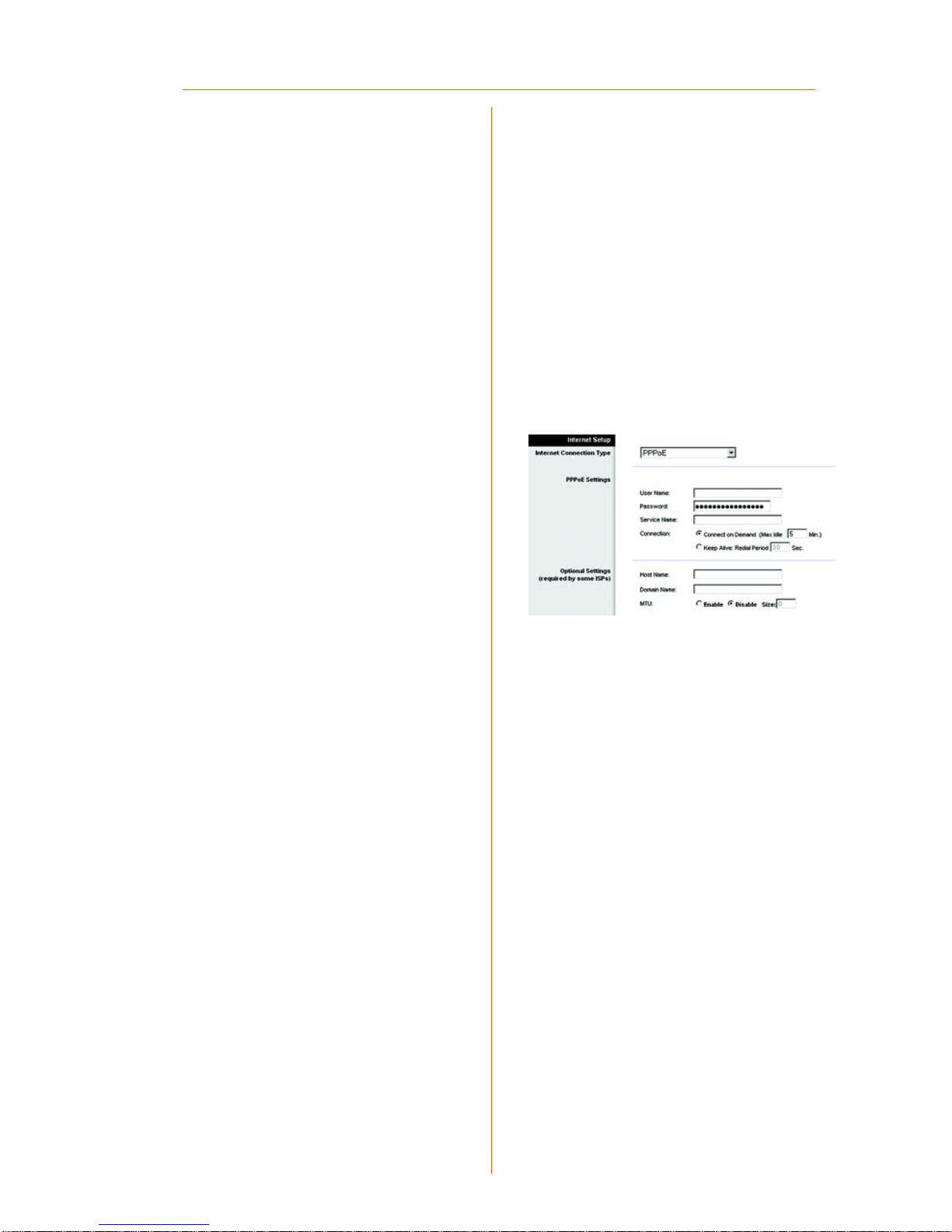

3 PPPoE
aIf your ISP says that you are
connecting through PPPoE or if
you normally enter a user
name and password to access
the Internet, then select PPPoE
as the Internet Connection
Type.
bEnter the User Name and
Password provided by your ISP.
(Also enter the Service Name, if
required.)
cSelect Keep Alive if you always
want to be connected to your
ISP, or select Connect on
Demand if you are charged
for the time that you are
connected to your ISP.
dClick the Save Settings button.
eClick the Status tab, and then
click the Connect button to
start the connection.
fGo to Step E.
Model No.
D3
6
4 PPTP
aPPTP is a service used in
Europe and Israel only. If you
are using a PPTP connection,
then select PPTP as the Internet
Connection Type.
bEnter the IP Address, Subnet
Mask, and Gateway Address
provided by your ISP.
cThen enter the User Name and
Password provided by your ISP.
dSelect Keep Alive if you always
want to be connected to your
ISP, or select Connect on
Demand if you are charged
for the time that you are
connected to your ISP.
eClick the Save Settings button.
fClick the Status tab, and then
click the Connect button to
start the connection.
gGo to Step E.
5RAS
RAS is a service used in Singapore
only. If you are using a RAS
connection, check with your ISP for
the necessary setup information.
When you are finished, go to Step E.
D5
D4
7

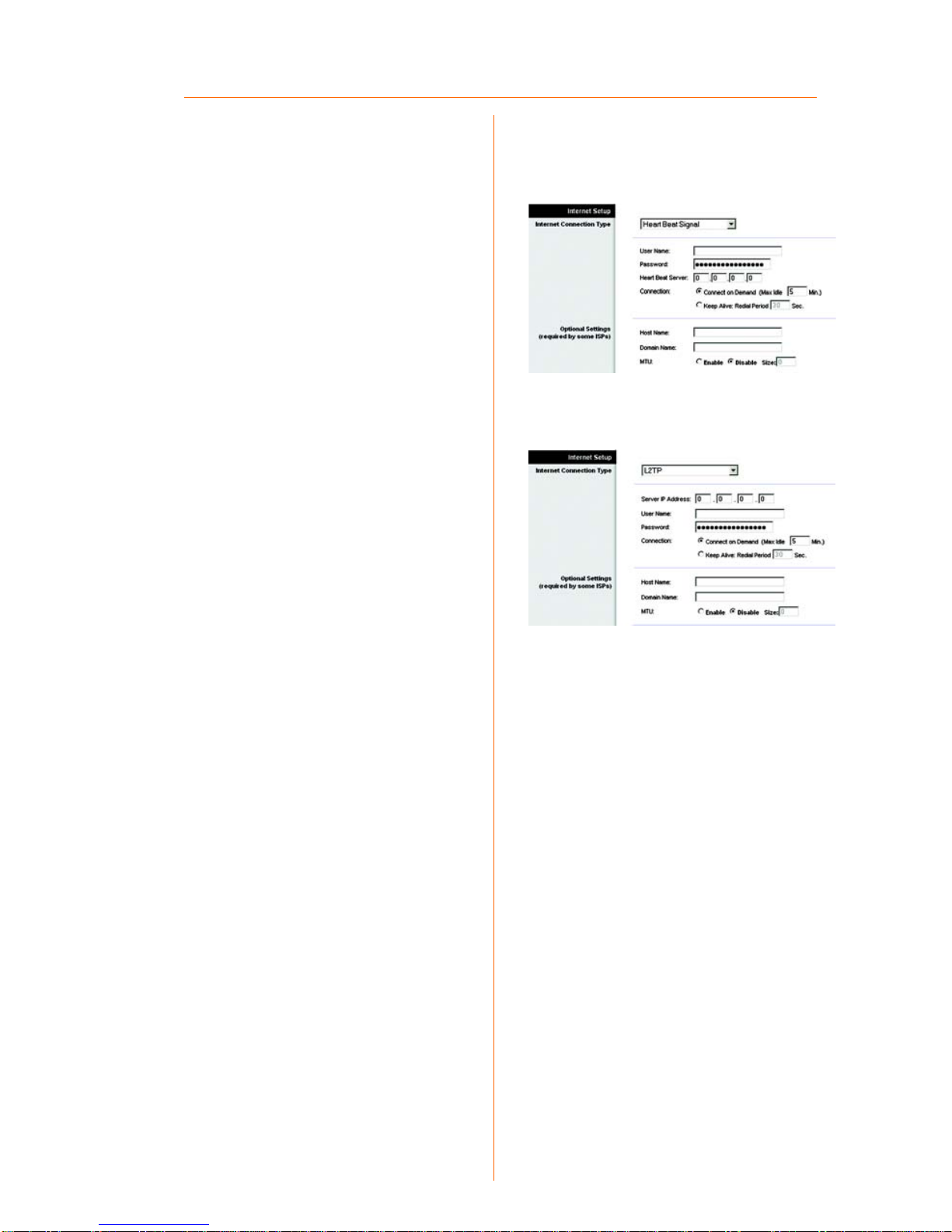

6 Heart Beat Signal
Heart Beat Signal is a service used in
Australia only. If you are using a Heart
Beat Signal connection, check with
your ISP for the necessary setup
information. When you are finished,
go to Step E.
7 L2TP
Use L2TP as a service only if
requested by your ISP. Check with
your ISP for the necessary setup
information. When you are finished,
go to Step E.
EDepending on the setup
information from your ISP, you
may need to provide a host
name and domain name for
the Router. The Host Name and
Domain Name fields are
usually left blank. If requested
by your ISP (usually cable ISPs),
complete these two fields.
FIf you haven’t already done so,
click the Save Settings button.
Then close the web browser.
GPower your cable or DSL
modem off and back on
again.
HRestart or power on your PCs so
they can obtain the Router’s
new settings.
D6
D7
8
ITo test the Router’s settings,
open your web browser from
any computer. In the browser’s
Address field, enter
www.linksys.com/registration
and press the Enter key.
Congratulations! The installation of
the Router is complete.
BEFSR41-EU-LA-UK_V4-QIG-50127NC JL
For additional information or troubleshooting
help, refer to the User Guide on the CD-ROM
or the Technical Support Insert. You can also
e-mail for further support.
Website
http://www.linksys.com/international
Registration
http://www.linksys.com/registration
Linksys is a registered trademark or trademark of
Cisco Systems, Inc. and/or its affiliates in the U.S.
and certain other countries. Copyright © 2005
Cisco Systems, Inc. All rights reserved.
I
Modelnr.
Installationsvejledning
A Division of Cisco Systems, Inc.
®
WIRED
BEFSR41 (DK)
med 4-ports switch
kabel/DSL-router
Pakkens indhold
• Kabel/DSL-router
• Installations-cd-rom med
brugervejledning
• Strømforsyning
• Kategori 5-Ethernet-kabel
• Installationsvejledning
EtherFast®
2
1
Følg denne installationsvejledning.
AFør du begynder, skal du sørge for,
at al hardware er slukket, herunder
routeren, pc'er, hubs, switches og
kabel- eller DSL-modem.
BTilslut den ene ende af et
Ethernet-kabel til en af de
nummererede porte bag på
routeren. Tilslut den anden ende
til en Ethernet-port på en
netværksenhed, f.eks. en pc, en
printserver, en hub eller en switch.
Gentag dette trin for at tilslutte
yderligere pc'er eller andre
netværksenheder til routeren.
CTilslut Ethernet-kablet fra kabel-
eller DSL-modemmet til routerens
internetport.
DTænd kabel- eller DSL-
modemmet.
ETilslut den medfølgende
strømforsyning til routerens
strømstik, og tilslut derefter
strømforsyningen til en stikkontakt.
Lysdioden Power på frontpanelet
lyser, så snart strømforsyningen er
tilsluttet korrekt.
Tænd routeren, pc'er, hubs og
switches.
E
C
B
Tilslutning af routeren
