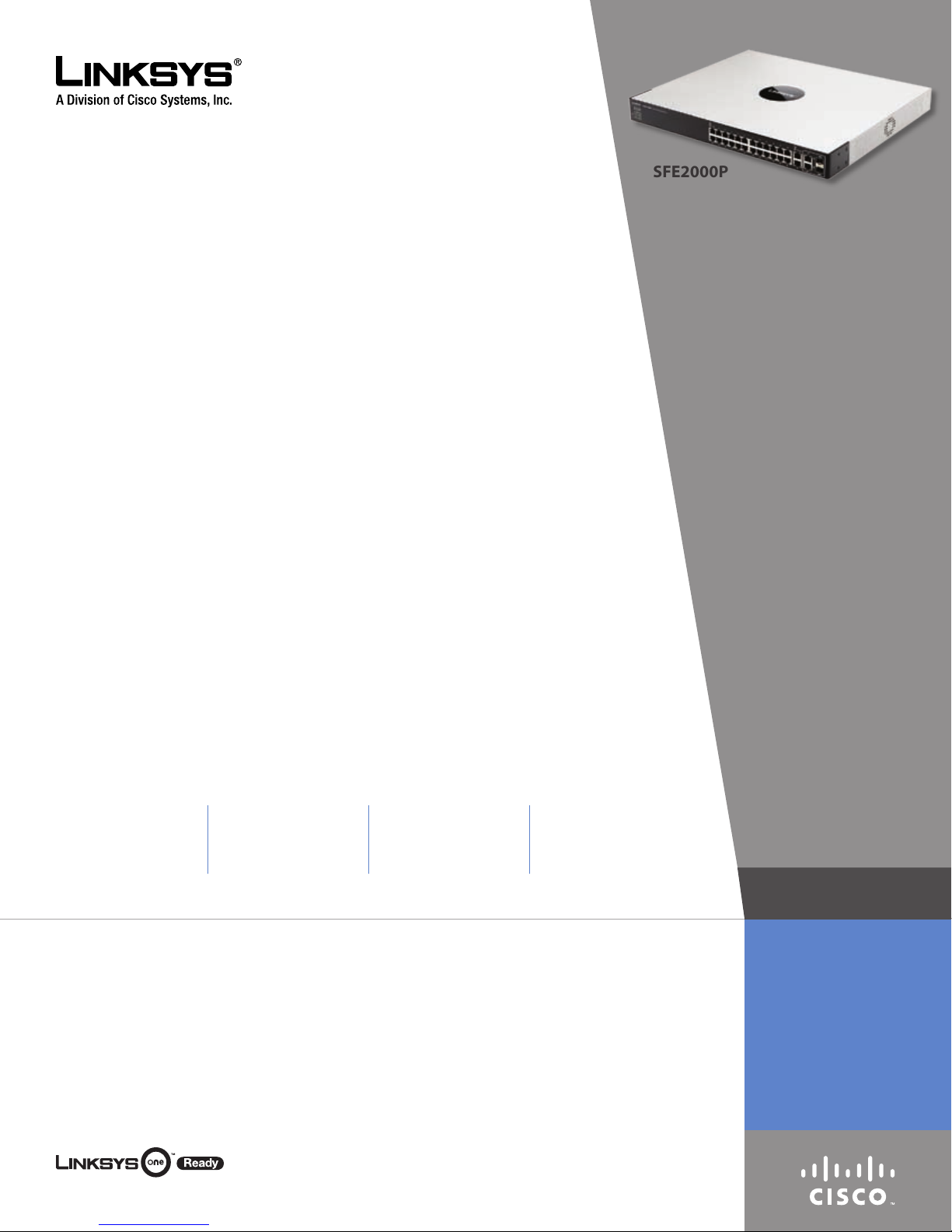

BUSINESS SERIES

PRODUCT DATA

24-Port 10/100 Ethernet

Switch with PoE

Model: SFE2000P

Ethernet Switch with 24-port 10/100,

4 10/100/1000 ports, PoE and stacking

SFE2000P is optimized for maximizing the system availability with fully redundant

Stacking, Redundant Power options, and Dual Images for resilient firmware upgrades.

The SFE2000P is able to secure the network through IEEE 802.1Q VLANs, IEEE 802.1X

port authentication, Access Control Lists (ACL), DOS Prevention, and MAC-based

filtering. The enhanced QoS and traffic management features ensure clear and reliable

voice and video communications

For Wireless or VoIP deployments, the SFE2000P supports the IEEE802.3af standard for

Power over Ethernet (PoE). With automatic load sensing, the power control circuitry

automatically detects PoE on the end-device before providing power. For safety, each port

has independent overload and short-circuit protection, along with LED indicators for power

status. A maximum of 15.4W is available on the FE ports for powering PoE enabled wireless

AP or VoIP handsets, with a maximum per device PoE delivery of 185 Watts available for all

ports.

The SFE2000P includes an intuitive, secure management interface enabling you to better

utilize the comprehensive feature-set of the SFE2000P, resulting in a better optimized, more

secure network.

Linksys Business Series SFE and SGE Stackable Switch products are Linksys One Ready. That

means they include the necessary firmware to be seamlessly integrated into a Linksys One data

or data/voice network. Once connected, a Linksys One Service Router will discover the SFE/SGE

device, automatically configure it and make it available to other users on the network. Linksys

One technology is automatic and self-configuring. When Linksys One Voice Gateways, IP Phones

and other Linksys One peripherals are connected to a Linksys One Ready Ethernet Switch’s ports,

small businesses are ready to communicate in a matter of minutes.

Fully resilient stacking

provides optimized

growth with simplified

management

Provides IEEE 802.3af

PoE power to IP phones,

cameras, or APs

Maximum security and

control of traffic with

policing, shaping, ACLs,

and QoS

Linksys One Ready - simple,

automated installation

with Linksys One Services

Routers present

SFE2000P

PRODUCT DATA

BUSINESS SERIES

Features

24 10/100 Ethernet ports + 4

10/100/100 Copper ports

2 SFP slots (shared with

2 copper ports) for Fiber

Gigabit Ethernet expansion

IEEE 802.3af PoE on

delivered over any of the 24

10/100 ports

A maximum of 15.4W is

available on the FE ports

for powering PoE enabled

wireless AP or VoIP handsets,

with a maximum per switch

PoE delivery of 185 Watt

available for all ports

Dual images for resilient

firmware upgrades

12.8 Gbps, Non-blocking,

Store-and-Forward

switching capacity

Simplified QoS management

using 802.1p, Diffserv or

ToS traffic prioritization

specifications

Power redundancy when

used with Linksys Business

Series Redundant Power

Supply unit (RPS1000)

Fully resilient stacking

provides optimized growth

with simplified management

Access Control Lists (ACL) for

granular security and QoS

implementation

Management enables

configuration and

monitoring from a standard

web browser

Secure remote management

of the switch via SSH and

SSL encryption

•

24-Port 10/100 Ethernet Switch with PoE

Specifications

Model SFE2000P 24-port 10/ 100 Ethernet Switch with PoE

Ports 24 RJ-45 connectors for 10BASE-T/100BASE-TX +

4 10BASE-T/100BASE-TX/1000Base-T with 2 Gigabit Combo Ports

Shared Between MiniGBIC Ports

Console Port

Auto MDI/MDI-X

Autonegotiate/Manual Setting

RPS Port for Connecting to Redundant Power Supply Unit

Buttons Reset Button

Cabling Type UTP CAT 5 or better for 10BASE-T/100BASE-TX,

UTP CAT 5e or better for 1000BASE-T

LEDs PWR, Fan, Link/Act, PoE, Speed, RPS, Master, Stack ID 1 - 8

POE

IEEE 802.3af PoE on Delivered Over Any of the 24 10/100 Ports

Power Budget Allows for Max Power of 15.4W on

up to 12 Ports Simultaneously

Performance

Switching Capacity Up to 12.8 Gbps, Non-Blocking

Forwarding Rate

(Based on 64-Byte Packets) Up to 9.5Mpps

Stacking

Stack Operation Up to 8 units in a stack (192 ports)

Hot Insertion and Removal

Ring and Chain Stacking Options

Master and Backup master for Resilient Stack Control

Auto-numbering or Manual Configuration of Units in Stack

Layer 2

MAC table size 8K

Number of VLANs 256 Active VLANs (4096 Range)

VLAN Port-based and 802.1Q Tag-based VLANs

Protocol-Based VLAN

Management VLAN

Private VLAN Edge (PVE)

GVRP

HOL Blocking Head of Line Blocking Prevention

Layer 3

Layer 3 options Static Routing

CIDR (Classless Interdomain Routing)

128 Static Routes

IPv4

Forwarding in Silicon - Wirespeed Forwarding of Layer 3 Traffic

Management

Web User Interface Built-in Web UI for easy browser-based configuration (HTTP/HTTPS)

SNMP SNMP version 1, 2c, 3 with support for traps

SNMP MIBs RFC1213 MIB-2, RFC2863 Interface MIB, RFC2665 Ether-like MIB,

RFC1493 Bridge MIB, RFC2674 Extended Bridge MIB (P-bridge, Q-bridge),

RFC2819 RMON MIB (groups 1,2,3,9 only), RFC2737 Entity MIB,

RFC 2618 RADIUS Client MIB RFC 1215 Traps

RMON Embedded Remote Monitoring (RMON) software agent supports

four RMON groups (history, statistics, alarms, and events) for enhanced

traffic management, monitoring, and analysis

Firmware Upgrade Web Browser upgrade (HTTP) and TFTP

Dual images for resilient firmware upgrades

Port Mirroring Traffic on a Port can be Mirrored to Another Port for Analysis

with a Network Analyzer or RMON Probe

PRODUCT DATA

BUSINESS SERIES

802.1Q based VLANs enable

segmentation of networks

for improved performance

and security

Private VLAN Edge for

simplified network isolation

for guest connections or

autonomous networks

Automatic configuration

of VLANs across multiple

switches through

GVRP/GARP

User/Network port

level security via 802.1x

authentication and

MAC-based filtering

Increased bandwidth and

added link redundancy with

Link Aggregation

Enhanced rate limiting

capabilities, including back

pressure, multicast, and

broadcast flood control

Port Mirroring for

non-invasive monitoring of

switch traffic

Mini Jumbo frame support

(1600 bytes)

SNMP v1, v2c, v3 and RMON

support

Fully rack-mountable using

the included rack-mounting

hardware

Linksys One Ready - Simple,

one-step automated

installation and initial

configuration

•

Other Management Traceroute

Single IP Management

Secure Socket Layer (SSL) security for Web UI

Secure Shell (SSH)

RADIUS

Port mirroring

TFTP upgrade

DHCP client

BootP

SNTP

Xmodem Upgrade

Cable Diagnostics

PING

Syslog

Telnet client (SSH Secure Support)

Security

IEEE 802.1x 802.1x - RADIUS Authentication. MD5 Hash

Guest VLAN

Single/Multiple Host Mode

Access Control ACLs - Drop or Rate Limit Based on:

Source and Destination MAC-based

Source and Destination IP address

Protocol

Port

VLAN

DSCP/IP Precedence

TCP/UDP Source and Destination Ports

802.1p Priority

Ethernet Type

ICMP Packets

IGMP Packets

Up to 1018 Rules

Availability

Link Aggregation Link Aggregation using IEEE 802.3ad LACP

Up to 8 Ports in up to 8 Groups

Storm Control Broadcast and Multicast Storm Protection

DOS prevention DOS Attack Prevention

Spanning Tree IEEE 802.1D Spanning Tree, IEEE 802.1w Rapid Spanning Tree,

IEEE 802.1s Multiple Spanning Tree, Fast Linkover

IGMP Snooping IGMP (v1/v2) Snooping Limits Bandwidth-Intensive Video Traffic to

only the Requestors. Supports 256 Multicast Groups

Power Redundancy Connection to RPSU for Power Redundancy

QoS

Priority levels 4 Hardware Queues

Scheduling Priority Queuing and Weighted Round Robin (WRR)

Class of Service Port-Based

802.1p VLAN Priority Based

IPv4/v6 IP Precedence/TOS/DSCP Based

Diffserv

Classification and Remarking ACLs

Rate Limiting Ingress Policer

Egress Rate Control

Standards

802.3 10BASE-T Ethernet, 802.3u 100BASE-TX Fast Ethernet,

802.3ab 1000BASE-T Gigabit Ethernet, 802.3z Gigabit Ethernet,

802.3x Flow Control, 802.3 ad LACP,802.3af POE, 802.1d STP,

802.1Q/p VLAN, 802.1w Rapid STP, 802.1s Multiple STP,

802.1x Port Access Authentication

PRODUCT DATA

BUSINESS SERIES

Linksys

A Division of Cisco Systems, Inc.

121 Theory

Irvine, CA 92617 USA

E-mail: [email protected]

[email protected]

Web: http://www.linksys.com

Linksys products are available in more

than 50 countries, supported by

12 Linksys Regional Offices throughout

the world. For a complete list of local

Linksys Sales and Technical Support

contacts, visit our Worldwide Web Site

at www.linksys.com.

Check the product package and contents for specific features supported. Specifications are subject to change without notice. Linksys is a registered trademark or

and product names are trademarks or registered trademarks of their respective holders.

7041110A-RR Model: SFE2000P

Environmental

Dimensions 17.32" x 14.70" x 1.73"

W x H x D (440 x 375 x 44 mm)

Unit Weight 10.89 lb (4.94 kg)

Certification UL (UL 60950), CSA (CSA 22.2), CE Mark, FCC Part 15 (CFR 47) Class A

Operating Temp. 32 to 104ºF (0 to 40ºC)

Storage Temp. -4 to 158ºF (-20 to 70ºC)

Operating Humidity 10 to 90% Relative Humidity, Noncondensing

Storage Humidity 10 to 95% Relative Humidity, Noncondensing

Number of Fans 2

Acoustic Noise 50dB Max.

Power 100-240VAC, 50-60Hz, Internal, Universal; Also Equipped with Redundant

Power Supply Connector for External Power Supply 48VDC

Power Consumption No PoE Supplied: 12V@4A (48W)

12 Ports Half-Power (7.5W): 138W

12 Ports Full-Power (15 W): 225W

24 Ports Half-Power (7.5W): 225W

Package Contents

SFE2000P Ethernet Switch

Console Cable

AC Power Cord

Rackmount Kit

Quick-Start Installation Guide

Minimum Requirements

Web-Based Utility: Web Browser (Mozilla Firefox 1.5 or Later, IE 5.5 or Later, Netscape 7.01 or Later)

Cat5 Ethernet Network Cables

Operating System: Windows 2000, XP or Above

Provider Support for CPE (Software Version 1.2 or Above)

•

Andere Handbücher für SFE2000P - Managed Ethernet Switch

Inhaltsverzeichnis

Andere Linksys Netzwerk-Router Handbücher

Linksys

Linksys QuickVPN - PC Bedienungsanleitung

Linksys

Linksys SRW2008 Bedienungsanleitung

Linksys

Linksys MR8300 Bedienungsanleitung

Linksys

Linksys AC5400 Bedienungsanleitung

Linksys

Linksys MAX-STREAM EA8300 Bedienungsanleitung

Linksys

Linksys E900 Bedienungsanleitung

Linksys

Linksys SFE2000P - Managed Ethernet Switch Bedienungsanleitung

Linksys

Linksys WET610N - Wireless-N EN Bridge Bedienungsanleitung

Linksys

Linksys BEFSR41 - EtherFast Cable/DSL Router Bedienungsanleitung

Linksys

Linksys BEFSR11 - EtherFast Cable/DSL Router Bedienungsanleitung

Linksys

Linksys BEFSX41 - Instant Broadband EtherFast Cable/DSL Firewall... Bedienungsanleitung

Linksys

Linksys PC22604 - ProConnect II 2604 Switch Bedienungsanleitung

Linksys

Linksys BEFN2PS4 - EtherFast Cable/DSL And Voice... Bedienungsanleitung

Linksys

Linksys WET54GS5 - Wireless-G EN Bridge Original Betriebsanleitung

Linksys

Linksys RVS4000 Bedienungsanleitung

Linksys

Linksys RangePlus WRT110 Bedienungsanleitung

Linksys

Linksys PC22224 - ProConnect II 2224 Ethernet Switch Bedienungsanleitung

Linksys

Linksys PC22224 - ProConnect II 2224 Ethernet Switch Bedienungsanleitung

Linksys

Linksys BEFSR81 - EtherFast Cable/DSL Router Bedienungsanleitung

Linksys

Linksys BEFVP41 - EtherFast Cable/DSL VPN Router Bedienungsanleitung

Linksys

Linksys Velop WHW01 Bedienungsanleitung

Linksys

Linksys LRT224 Bedienungsanleitung

Linksys

Linksys EG0801SK - EtherFast Network Starter Bedienungsanleitung

Linksys

Linksys EA8500-EU Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
