Linksys RVS4000 Gebrauchsanweisung

Model No.

QUICK INSTALLATION

BUSINESS SERIES

4-Port Gigabit

Package Contents

•UserGuideonCD-ROM

•NetworkCable

• Power Adapter

•Stands

•RegistrationCard

• Quick Install Guide

NOTE: Before setting up the

Router, make sure your PCs are

configured to obtain an IP (or

TCP/IP) address automatically

from the Router.

ABefore you begin, make sure

that you have the setup

information for your specific

type of Internet connection.

The installation technician

from your ISP should have left

this information with you after

installing your broadband

connection. If not, you can call

your ISP to request the

settings.

BMake sure that all of your

network’s hardware is

powered off, including the

Router, PCs, and cable or DSL

modem.

CConnect one end of an

Ethernet network cable to one

of the LAN ports (labeled 1-4)

on the back of the Router, and

the other end to an Ethernet

port on a PC.

DRepeat step C to connect

more PCs, a switch, or other

network devices to the Router.

EConnect a different Ethernet

network cable from your

cable or DSL modem to the

Internet port on the Router’s

back panel.

FPower on the cable or DSL

modem.

GConnect the power adapter to

the Router’s Power port, and

then plug the other end into

an electrical outlet.

HThe Power and Internet LEDs

on the front panel will light up

green as soon as the power

adapter is connected

properly.

IPower on the PCs.

JThe Router’s hardware

installation is now complete.

Connect the Router

Model No. RVS4000

Security Router

WIRED

with VPN

EFor the Connection Type

setting, six connection types

are offered through the

drop-down menu. Each Setup

screen and available features

will vary depending on which

connection type you select.

Internet Connection Type

Automatic Configuration -

DHCP: If you are connecting

through DHCP or a dynamic IP

address from your ISP, keep

this default setting.

Static IP: If your ISP assigns

you a static IP address, select

Static IP from the drop-down

menu. Complete the Internet

IP Address, Subnet Mask,

Default Gateway, and DNS

fields. You need to enter at

least one DNS address.

PPPoE: If you are connecting

through PPPoE, select PPPoE

from the drop-down menu.

Complete the User Name and

Password fields.

PPTP: PPTP is a service used in

Europe only. If you are using a

PPTP connection, check with

your ISP for the necessary

setup information.

Heartbeat Signal. Heartbeat

Signal is used primarily in

Australia. Check with your ISP

for the necessary setup

information.

L2TP. L2TP is used mostly in

Europe. Check with your ISP

for the necessary setup

information.

FWhen you are finished

entering your Internet

connection settings, click the

Save Settings button to save

your changes.

GRestart or power on your PCs

so they can obtain the router's

new settings.

HTest the setup by opening

your web browser from any

computer and entering

http://www.linksys.com/

registration.

Congratulations! The installation

of the Router is complete.

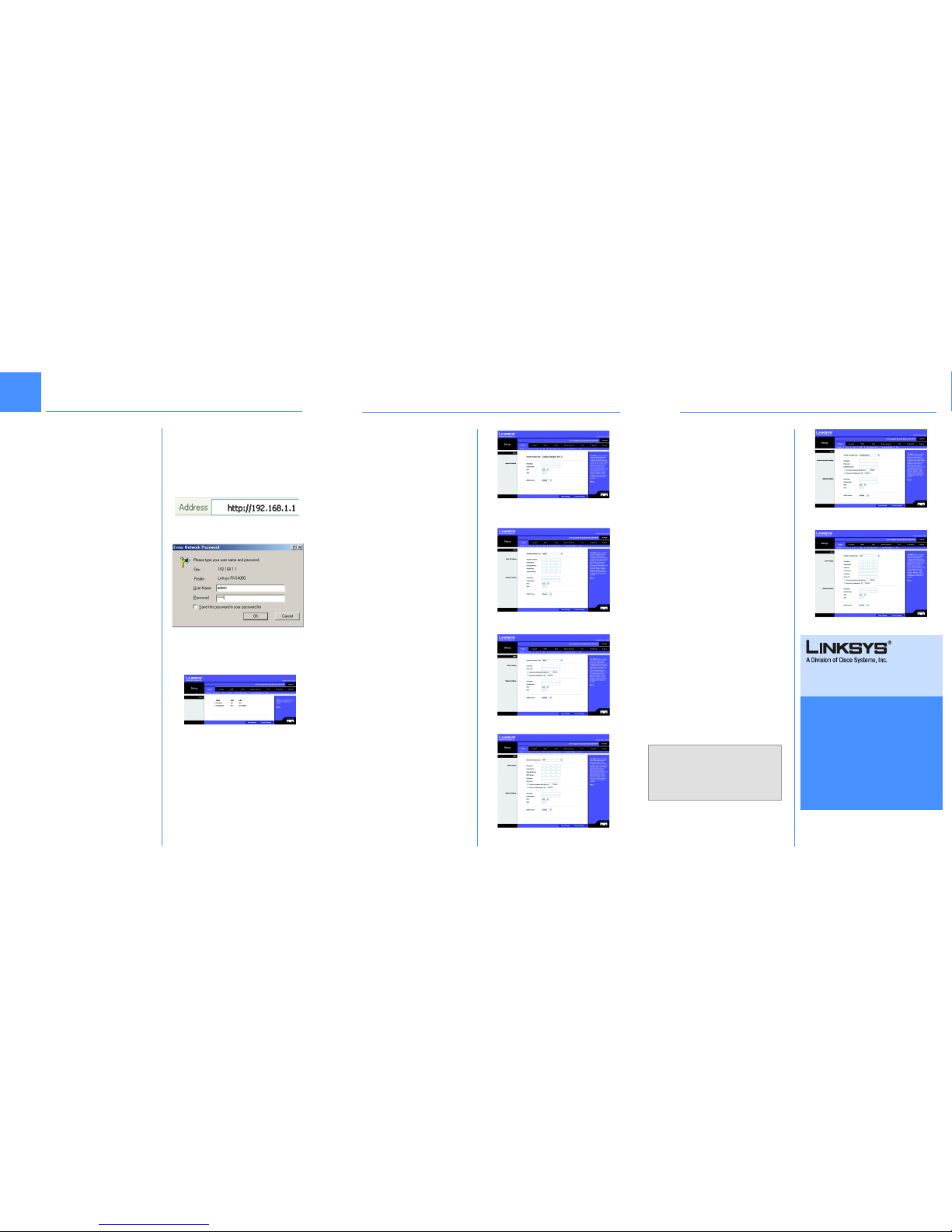

These instructions will show you

how to configure the Router. You

only need to configure the Router

once using any computer you have

set up.

AOpen your web browser. Enter

http://192.168.1.1 in its

Address field. Press the Enter

key.

BA password request screen

will appear. Enter the default

user name and password,

admin, in lowercase letters in

the User Name and Password

fields. (For added security, you

should later set a new

password, using the

Administration tab’s

Management screen of the

web-based utility). Then click

the OK button.

CThe web-based utility will

appear with the Setup tab and

IP Mode selected. Click on the

WAN option under the Setup

tab.

DIf requested by your ISP

(usually cable ISPs), complete

the Host Name and Domain

Name fields, and the MTU and

MTU Size fields. Otherwise,

leave the defaults.

Linksys is a registered trademark or trademark of

Cisco Systems, Inc. and/or its affiliates in the U.S.

RVS4000-QI-60524NC RR

For additional information or troubleshooting help,

refer to the User Guide on the CD-ROM. You can

also call or e-mail for further support.

24-hour Technical Support

800-326-7114

(toll-free from US or Canada)

E-mail Support

[email protected]

Website

http://www.linksys.com or

http://support.linksys.com

RMA (Return Merchandise Authorization)

http://www.linksys.com/support

FTP Site

ftp://ftp.linksys.com

Sales Information

800-546-5797 (800-LINKSYS)

2Configure the Router

Automatic - DHCP

Static IP

PPPoE

PPTP

NOTE: For more advanced

settings and security options,

refer to the User Guide on the

RVS4000 CD-ROM.

Heartbeat Signal

L2TP
