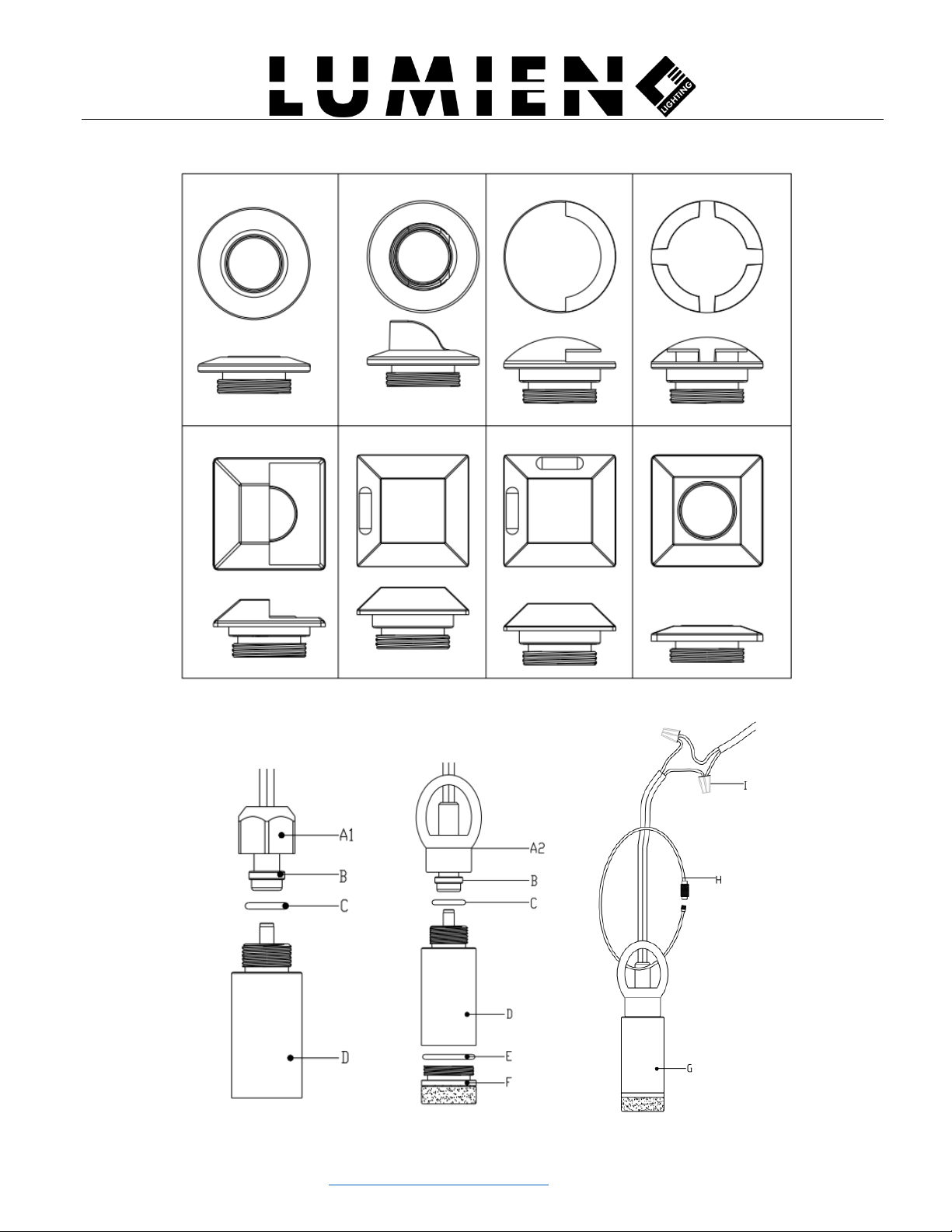

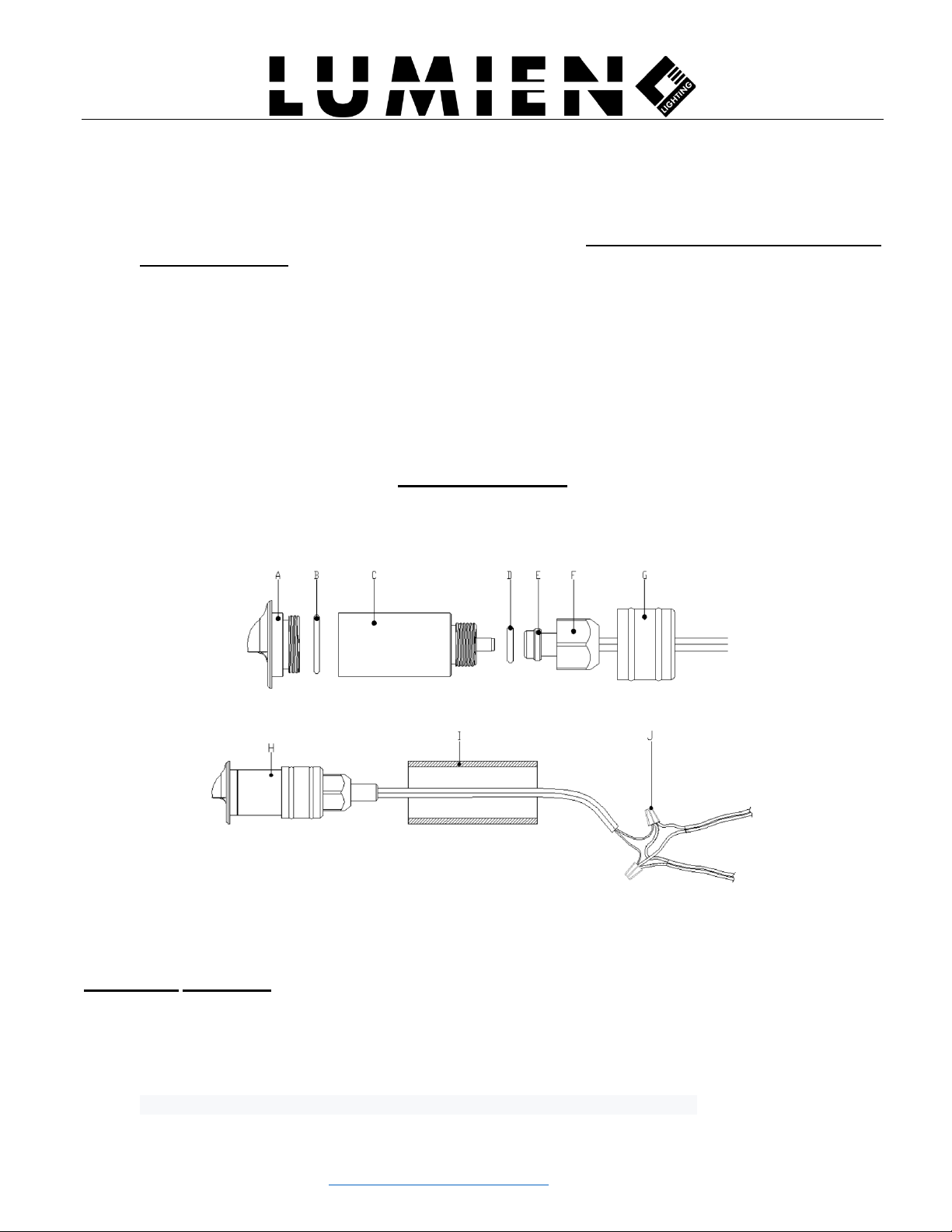

Installation Procedure:
•Before installation, unscrew the lock nut (A1) counterclockwise from the LED module (D), and remove the female
wire (B) and O-Ring (C).
•Assemble D, E, F into fixture according to the diagram (G).
•Pass the female cable (B) out of the quick-connect plastic spike (A2), put on the O-Ring (C), and then connect
the assembled 360°glass bollard fixture (G) to the quick-connect plastic spike.
•Prepare a hole in the installation location. Make sure the hole is not larger than the ground spike.
•Install the fixture in the ground and connect fixture wires to main low voltage wire using outdoor rated
waterproof wire nuts.
•If the assembled fixture needs to be heightened, you can choose different lengths of quick-connect extension
rods (H).
•For PRO modules, follow the instruction on our LumienPRO’s remote control.
90°Glass Bollard Installation
A1- Lock Nut A2- Quick Connect Spike B - Female Connector C- O-Ring D- LED Module
E- O-Ring F- 90°Glass Bollard Component G- Assembled Single-Sided 90°Opening Fixture
H- hexagonal screw I -S ingle-Sided 90°Opening Cover J- Quick Connect Riser K- Waterproof Wire Nuts
Installation Procedure:
•Before installation, unscrew the lock nut (A1) counterclockwise from the LED module (D), and remove the
female wire (B) and O-Ring (C).
•Assemble D, E, F into fixture according to the diagram (G).
•Pass the female wire (B) out of the quick-connect plastic spike (A2), put on the O-Ring (C), and then connect
the one-sided 90°assembled fixture (G) with the quick-connect plastic spike (A2) by turning the fixture
clockwise.
•Insert the single-Sided 90°Opening Cover (I) into Assembled Single-Sided 90°Opening Fixture (g), adjust it to
the light-emitting direction you want, and fasten it with the hexagonal screw (H)
•Prepare a hole in the installation location. Make sure the hole is not larger than the ground spike.
•Install the fixture in the ground and connect fixture wires to main low voltage wire using outdoor rated
waterproof wire nuts.
•If the assembled fixture needs to be heightened, you can choose different lengths of quick-connect extension
rods (J).
•For PRO modules, follow the instruction on our LumienPRO’s remote control.
