LZR P220 Bedienungsanleitung

LZR®-P220

DIN 18650

SAFETY SENSOR

FOR SECURING THE CLOSING EDGE

ON REVOLVING DOORS

User’s Guide for software version 0300 and more

(refer to tracking label on product)

This user’s guide is an informative document and

can not be seen as a commitment of result.

1 2 3 4

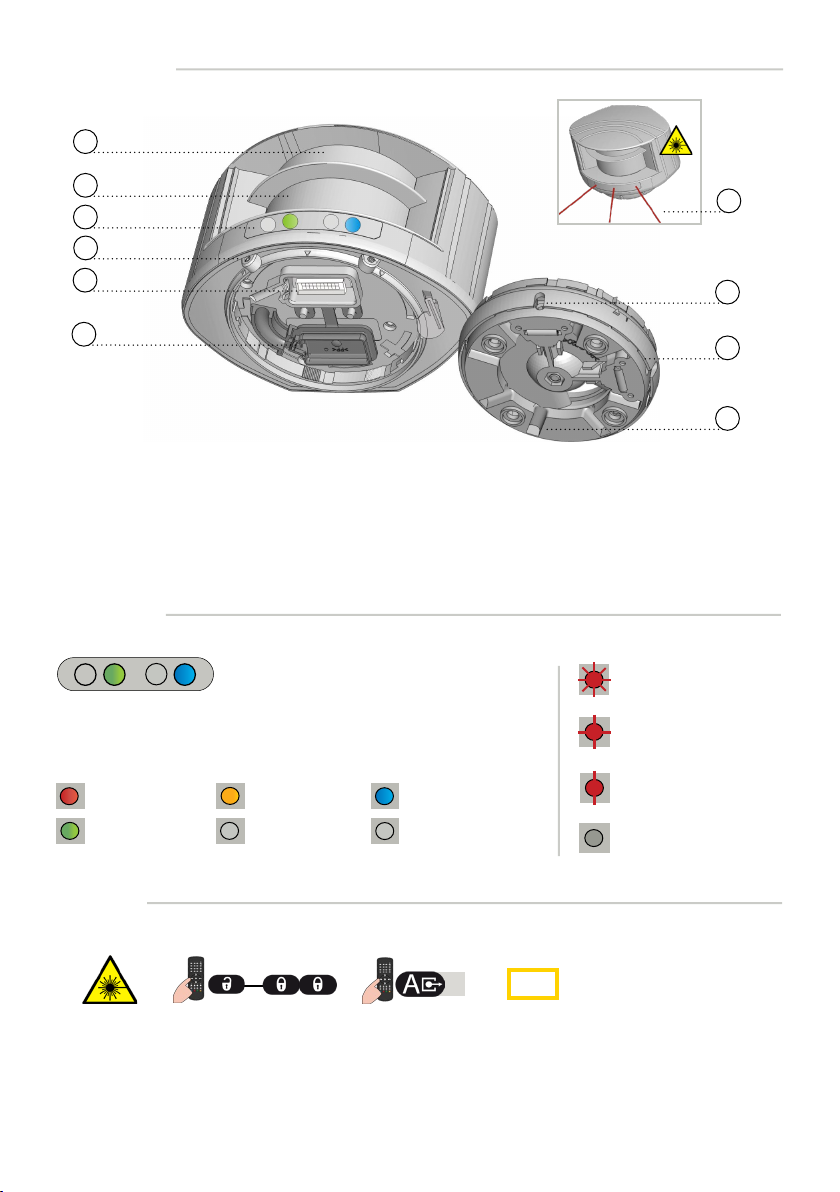

DESCRIPTION

SYMBOLS

LED-SIGNAL

DETECTION LED

no detection

ERROR LED POWER LED

detection

no error

error

no power

power

Caution!

Laser radiation

LED ﬂashes quickly

LED ﬂashes

LED is off

1. laser sweep emission

2. laser sweep reception

3. LED-signal (4)

4. screw for position lock (2)

5. connector

6. protection cover

7. visible laser beam (3)

8. notch for tilt angle adjustment (2)

9. adjustable bracket

10. cable conduit (4)

1. Not used

2. Detection LED: safety ﬁeld

3. Error LED

4. Power LED

Remote control

sequence Possible

remote control

adjustments

Factory

values

LED ﬂashes slowly

Avoid extreme

vibrations.

Do not cover

the front screens. Avoid moving objects

and light sources in

the detection ﬁeld.

Avoid condensation.

Avoid the presence

of smoke and fog in

the detection ﬁeld.

Avoid exposure to

sudden and extreme

temperature changes.

Keep the sensor

permanently powered

in environments where

the temperature can

descend below 0°C.

Wipe the front

screens regularly

with a clean and

damp cloth.

Do not use aggressive

products to clean

the front screens.

Avoid direct exposure

to high pressure

cleaning.

SAFETY

INSTALLATION AND MAINTENANCE

Do not stare into the

visible red laser beams.

The warranty is void if

unauthorized repairs are

made or attempted by

unauthorized personnel.

Only trained and qualiﬁed

personnel may install and

adjust the sensor.

The manufacturer of the door system is responsible for carrying out a risk assessment and installing the sensor and the

door system in compliance with applicable national and international regulations and standards on door safety. Other

use of the device is outside the permitted purpose and can not be guaranteed by the manufacturer. The manufacturer

cannot be held responsible for incorrect installations or inappropriate adjustments of the sensor.

Test the good functioning

of the installation before

leaving the premises.

The device emits invisible (IR) and visible laser radiation.

IR laser: wavelength 905 nm; output power <0.10 mW

(Class 1 according to IEC 60825-1)

Visible laser: wavelength 635 nm; output power <1 mW

(Class 2 according to IEC 60825-1)

The visible laser beams are inactive during normal functioning.

The installer can activate the visible lasers if needed.

Do not stare into visible laser beams.

CAUTION!

Use of controls, adjustments or performance of procedures other than those speciﬁed herein

may result in hazardous radiation exposure.

123

456

Use the adhesive mounting

template to position the sensor

correctly. The grey area indicates

the detection range.

Drill 4 holes as indicated on the

mounting template. Make a hole

for the cable if possible.

Pass the cable +/- 10 cm though

the cable opening. If drilling an

opening is not possible, use the

cable conduits on the back side of

the bracket.

Position the bracket and fasten

the 4 screws ﬁrmly in order to

avoid vibrations.

Close the protection cover and

fasten it ﬁrmly.

Turn the sensor until the two

triangles are face to face.

Position the housing on the

bracket.

MOUNTING

Open the protection cover, plug

the connector and position the

cable in the slit.

The curtain should be positioned alongside

the closing edge. The LBA can be used to mount

the sensor to the ceiling.

GREEN

BROWN

WHITE

YELLOW

RED

BLUE

Door control without test: connect red and blue wires to power supply without polarity

(excludes conformity with DIN 18650 and EN 16005).

POWER SUPPLY +

POWER SUPPLY -

SAFETY FIELD

TEST +

TEST -

GREEN

BROWN

PINK

VIOLET

RED

BLUE

POWER SUPPLY +

POWER SUPPLY -

SAFETY FIELD

TEST +

TEST -

IRIS ON C RETROFIT

If replacing an IRIS ON C sensor, use the retroﬁt cable kit (sold as accessory) to connect the LZR®-P220

to the IRIS ON C cable.

Depending on the polarity, you need to choose the black or grey cable:

NEW INSTALLATION - NC NEW INSTALLATION - NO

POWER SUPPLY +

POWER SUPPLY -

DOOR CONTROLLER IRIS CABLE ADAPTER CABLE LZR®-P220

WIRING

POWER SUPPLY +

POWER SUPPLY -

123

Adjust the lateral position of

the detection ﬁeld.

Adjust the tilt angle of the

detection ﬁeld with the hex

key.

Lock the position of the

mounting bracket to avoid

malfunctioning in case of

extreme vibrations.

Unlock the sensor and activate the visible laser beams.

The visible laser beams indicate approximately the postion of the ﬁrst

curtain and limit the angle of the detection ﬁeld.

The visible laser beams stay activated for 15 minutes or can be turned off

the same way they were activated.

POSITIONING

Avoid reﬂections of the visible

laser beam on the pole.

bumper bumper

polepole

visible laser beam visible laser beam

3 s max. 10 s

Wait for the sensor to learn its environment.

TEACH-IN

Launch a teach-in to end the installation procedure, after changing the sensor position or when new

objects are added to or changed in the detection zone.

IMPORTANT: Test the good functioning of the installation before leaving the premises.

The detection ﬁeld should be free of snow buildups, heavy rain, snowfall, fog or other moving objects.

During teach-in, the sensor learns its surroundings and adapts the detection ﬁeld shape to these.

Objects in the detection ﬁeld will be cut out.

At the end of the installation, enter an access code

to avoid vandalism.

7912 15

10 cm 100 cm 25 cm

10 cm 500 cm 400 cm

3 cm 6 cm

6 cm 9 cm 12 cm 15 cm

9 cm 13 cm 17 cm 21 cm

A-B

A-C

A-D

2 m 3 m 4 m 5 m

REMOTE CONTROL ADJUSTMENTS (OPTIONAL)

FACTORY VALUES

IMMUNITY FILTER

UNCOVERED ZONE

IMPORTANT!

Always launch a teach-in after any remote control adjustment.

Field width and height are limited by the ﬁeld dimensions dertermined by the teach-in.

NO CONFORMITY TO

EN 16005 / DIN 18650

FIELD WIDTH

FIELD HEIGHT

MOUNTING POSITION

VALUE

BACKGROUND TRACKING

CHOICE OF CURTAIN

7.5 cm

The visible laser beams ( ) indicate approximately the

position of the ﬁrst curtain (A). The distances between

the curtains depend on the mounting height (see tabel

with estimated values measured from spot centre to

spot centre and mounted on the right side). Locate the

exact position of the curtain by testing the detection

behaviour.

Increase in case of snow, dead leaves, etc.

indoor outdoor

low

outdoor

med*

outdoor

high

left right left right

with background without background

*at max. 3 m mounting heigth (EN 16005 / DIN 18650)

off on

no safety ﬁeld

< 20 cm does not allow conformity with EN 16005 / DIN 18650

> 400 cm does not allow conformity with EN 16005 / DIN 18650

4.5 cm

421

HOW TO USE THE REMOTE CONTROL

ADJUSTING ONE OR MORE PARAMETERS

CHECKING A VALUE

RESTORING TO FACTORY VALUES

SAVING AN ACCESS CODE

DELETING AN ACCESS CODE

The access code is recommended for sensors installed close to each other.

After unlocking, the red

LED ﬂashes and the sensor

can be adjusted by remote

control.

If the red LED ﬂashes quickly after unlocking, you

need to enter an access code from 1 to 4 digits.

X = NUMBER OF FLASHES = VALUE OF THE PARAMETER

= ﬁeld width: 4.2 m

= ﬁeld width is deﬁned by teach-in

To end an adjustment session,

always lock the sensor.

Enter the existing code

TROUBLESHOOTING

No blue LED

Only the blue LED

is on.

The detection LED

remains green.

The orange LED is

ﬂashing and the

detection LEDs are

red.

The detection LED

remains red.

The orange LED

is on.

The sensor does

not respond to the

remote control.

The sensor does not

unlock.

There is no power.

The test input is not

connected.

The detection ﬁeld is too

small or deactivated.

Someone or something is

in the detection ﬁeld.

The ﬁeld is touching the

ﬂoor, the wall or the door,

which leads to detection.

No background (reference

point) is found.

The sensor is masked.

The power supply voltage

is exceeding the acceptable

limits.

The sensor exceeds its

temperature limits.

Internal error

The batteries in the remote

control are not installed

properly or dead.

The remote control is badly

pointed.

A reﬂective object is in close

proximity to the sensor.

You have to enter an access

code or the wrong code was

entered.

The object size is too small.

The polarity of the power

supply is inverted.

Check cable and connexion.

Check wiring.

The RED and BLUE cable have to be connected

to the test input or the power supply.

Check the size of the ﬁelds.

Launch a teach-in.

Step out of the ﬁeld and/or remove the any

object(s) from the ﬁeld.

Activate the 3 red beams and check if the

position of the sensor is correct.

If not, adjust the hex screws.

Verify the ﬁeld size.

Launch a teach-in.

Check the position of the sensor.

Check the mounting side setting.

If there is no background, set the mounting side

to value 3 to 4.

Launch a new teach-in.

Verify and clean the front screens

with a damp cloth.

Check the power supply voltage.

Verify the outside temperature where the sensor

is installed. Eventually protect the sensor from

sunlight using a cover.

Wait a few seconds.

If the LED remains ON, reset the power supply.

If the LED turns on again, replace the sensor.

Verify or replace the batteries.

Point the remote control towards the sensor,

but with a slight angle. The RC should not be

pointed in a right angle in front of the sensor.

Avoid highly reﬂective material in proximity to

the sensor.

Cut and restore power supply.

No code is required to unlock during the ﬁrst

minute after powering.

Check the polarity of the power supply.

Decrease the min. object size.
