INSTRUCTION MANUAL

PNP TRANSISTOR OUTPUT MODULE, 16 points

(LONWORKS)MODEL

R7L-DC16B

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■PACKAGE INCLUDES:

Transistor output module ..................................................(1)

NeuronID label ...................................................................(2)

■MODEL NO.

Conﬁrm Model No. marking on the product is exactly what

you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

LNS Plug-in Software (model: R7LPLG) is usable to set up

Functional Blocks. For detailed information, refer to the

R7PLG Users Manual. The R7LPLG is downloadable at M-

System’s web site: http://www.m-system.co.jp

POINTS OF CAUTION

■POWER INPUT RATING & OPERATIONAL RANGE

• Locate the power input rating marked on the product and

conﬁrm its operational range as indicated below:

24V AC rating: 24V ±10%, 50/60 Hz, approx. 80mA

24V DC rating: 24V ±10%, approx. 50mA

■GENERAL PRECAUTIONS

• Before you remove the unit or mount it, turn off the power

supply and output signal for safety.

■ENVIRONMENT

• Indoor use.

• When heavy dust or metal particles are present in the

air, install the unit inside proper housing with sufﬁcient

ventilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -10 to +55°C

(14 to 131°F) with relative humidity within 30 to 90% RH

in order to ensure adequate life span and operation.

■WIRING

• Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

■RESTRICTIONS WHEN USING LonMaker3.0 or 3.1

• Operating Environment

Please use LonMaker3.0 under the Environment of LNS3

Service Pack 8 and use LonMaker3.1 under the Environ-

ment of LonMaker3.1 Service Pack 3 or later.

Please use resource ﬁles of LonMark Resource File Ver12

or later.

• LNS Plug-in Software is not usable.

• The network variable of nvoCNTOut (fbCNT) is only

SNVT_count_f.

• When registering a Device on LonMaker, please don’t use

the following items.

External Interface Deﬁnition / Upload From Device

Specify Device Channel / Auto-Detect

■AND ....

• The unit is designed to function as soon as power is sup-

plied, however, a warm up for 10 minutes is required for

satisfying complete performance described in the data

sheet.

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7L-DC16B

EM-7804-H Rev.7 P. 2 / 19

COMPONENT IDENTIFICATION

Discrete Output Status Indicator LED

ERR SVCE

ONLINETX/RX

PWR

0123456789ABCDEF

4567

123

10 11 12 13

2341

15 16 17 18

7896

Reset SW Factory Configuration Port

Service SW

Status Indicator LED

LONWORKS, Power Supply

Terminals Output Terminals

■STATUS INDICATOR LED

ID COLOR STAT E MEANING

PWR Green ON Internal 5V is normal

OFF Internal 5V is abnormal.

ONLINE Green

ON Online

Blink

approx.

0.5 Hz

Ofﬂine

Sending/receiving of Net-

work

Variables has stopped.

Blink

approx.

2 Hz

Receiving Wink Message

OFF Abnormal state

ERR Red

ON Writing in the non-volatile

memory

Blink Abnormal state

OFF Normal state

TX/RX Green ON Sending/receiving Network

Variables

OFF Communication is lost.

SVCE Green

ON No network information

Blink

approx.

0.5 Hz

Ofﬂine

Sending/receiving of Net-

work

Variables has stopped.

OFF Normal state

■DISCRETE OUTPUT STATUS INDICATOR LED

Used to show discrete output signal status.

ON : LED ON

OFF : LED OFF

■SERVICE SWITCH

Used to identify the node in LONWORKS network conﬁgura-

tion.

■RESET SWITCH

Used to reset the Neuron Chip. Press the switch behind the

front cover to reset.

Control functions are halted while completing resetting and

restarting. Conﬁrm no danger before conducting resetting.

■POWER SUPPLY, LONWORKS TERMINAL ASSIGNMENT

NET1

NET2

U (+)

NET1

NET2

V (

–

)

NO. ID FUNCTION, NOTES

1 NET1 LONWORKS communication 1

2 NET2 LONWORKS communication 2

3 FG FG

4 NET1 LONWORKS communication 1

5 NET2 LONWORKS communication 2

6 U (+) Power input

7 V (–) Power input

Note: LONWORKS wiring must be paired between NET1 termi-

nals and/or NET2 terminals.

■OUTPUT TERMINAL ASSIGNMENT

+24V

NO.

ID FUNCTION

NO.

ID FUNCTION

1 0V 0V 10 +24V

24V DC (common)

2 Y0 Output 0 11 Y1 Output 1

3 Y2 Output 2 12 Y3 Output 3

4 Y4 Output 4 13 Y5 Output 5

5 Y6 Output 6 14 Y7 Output 7

6 Y8 Output 8 15 Y9 Output 9

7YA Output 10 16 YB Output 11

8 YC Output 12 17 YD Output 13

9 YE Output 14 18 YF Output 15

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7L-DC16B

EM-7804-H Rev.7 P. 3 / 19

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.

■EXTERNAL DIMENSIONS unit: mm (inch)

30 (1.18) [5 (.20)]

DIN RAIL

35mm wide

54 (2.13)

17 (.66)

4567

123

10 11 12 13

2341

15 16 17 18

789

3 (.12)5.5 (.22) 50 (1.97) 18.5 (.73)

115 (4.53)

7–M3 SCREW

TERMINALS

for LONWORKS, POWER

18–M3 SCREW

TERMINALS for OUTPUT

6 (.24) 6 (.24)

■CONNECTION DIAGRAM

V (–)

U (+)

NET2

NET1

■

Output Connection Example

9YE

8YC

7YA

6Y8

5Y6

4Y4

3Y2

+24V

+24V –

LONWORKS

EXTENSION CONNECTOR

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7L-DC16B

EM-7804-H Rev.7 P. 4 / 19

COMMUNICATION CABLE CONNECTIONS

■HOST PC CONNECTION

HOST PC

LONWORKS

R7L

LONWORKS

R7L

LONWORKS

Terminator

WIRING INSTRUCTIONS

■SCREW TERMINAL

Torque: 0.5 N·m

■SOLDERLESS TERMINAL

Refer to the drawing below for recommended ring tongue

terminal size. Spade tongue type is also applicable.

Applicable wire size: 0.25 to 1.65 mm2(AWG 22 to 16)

Recommended manufacturer: Japan Solderless Terminal

MFG. Co., Ltd, Nichifu Co., Ltd

6 (.24) max

3.3 (.13) max

mm (inch)

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7L-DC16B

EM-7804-H Rev.7 P. 5 / 19

DEVICE INTERFACE FILE

Device Interface File (XIF) is used to deﬁne a LONWORKS device when programmed on LonMaker.

For this module, the following ﬁle is used:

R7L-DC16v113.XIF

The XIF ﬁles are downloadable at M-System’s web site: http://www.m-system.co.jp

FUNCTIONAL BLOCKS

■NodeObject

NodeObject (Object ID : 0)

nv 0 nviRequest

SNVT_obj_request nv 1 nvoStatus

SNVT_obj_status

nv 2 nvoFileDirectory

SNVT_address

nv 3 nvoABNLCond

SNVT_state

SCPTdirection

SCPTmaxSendTime[ ]

SCPTminSendTime[ ]

SCPTlocation

SCPToemType

SCPTserialNumber

Extension module setting

Maximum sending time (per fb)

Minimum sending time (per fb)

Set Tag No. (name)

Indicate Model No. and Version

Indicate Serial No.

NodeObject :

Network Variables

Configuration Properties

• Network Variables

NETWORK

VARIABLE

TYPE

{ Range }

{ Default }

EXPLANATIONS

nviRequest {SNVT_obj_request} For use with LonMaker and other tools.

nvoStatus {SNVT_obj_status} For use with LonMaker and other tools.

nvoFileDirectory {SNVT_address} For use with LonMaker and other tools.

Required to get access to Conﬁguration Properties.

nvoABNLCond {SNVT_state}

Shows the device status (All 0s in normal conditions).

Bit 0 through Bit 9 : Invalid

Bit 10 : E2PROM Conﬁguration Property check sum error

Bit 11 : E2PROM Count data check sum error

(Bit 10 and Bit 11 can be reset to 0 by RQ_CLEAR_STATUS against NodeObject.)

Bit 12 through Bit 15 : Invalid

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7L-DC16B

EM-7804-H Rev.7 P. 6 / 19

• Conguration Properties

CONFIGURATION

PROPERTY

NETWORK

VARIABLE

TYPE

{ Range }

{ Default }

EXPLANATIONS

SCPTdirection ----

{SNVT_state}

{0 or 1}

{0,0,0,0,0,0,0,0,

0,0,0,0,0,0,0,0}

Bit 0, Bit 1: Setting the extension module (Power supply

must be reset when this conﬁguration property is changed.)

0,0 : Without extension module

1,0 : Discrete input (fb and other settings assigned to the 9th

and following points are invalid with 8-point input module.)

0,1 : Discrete output (fb and other settings assigned to the

9th and following points are invalid with 8-point output

module.)

Set this property before an extension module is connected.

Bit 2 through Bit 15 : Invalid

SCPTmaxSendTime

[Number of fb] ----

{SNVT_time_sec}

{0.0,10.0...3600.0}

{0.0}

Maximum time interval to send network variables (per fb).

(Power supply must be reset when this conﬁguration prop-

erty is changed.)

Network variables are sent out in the speciﬁed intervals

even when there is no change in the value.

No sending when a value less than 10.0 is set.

Invalid property when the assigned fb has no network vari-

ables to be sent to the network.

SCPTminSendTime

[Number of fb] ----

{SNVT_time_sec}

{0.0,0.2...3600.0}

{1.0}

Minimum time interval to send network variables (per fb).

(Power supply must be reset when this conﬁguration prop-

erty is changed.)

Network variables are sent out in the speciﬁed intervals

even when there are changes in the value faster than the

interval.

No sending when a value less than 0.2 is set.

Invalid property when the assigned fb has no network vari-

ables to be sent to the network.

SCPTlocation ----

{SNVT_str_asc}

{30-character string}

{“”}

Used to write Tag No. (name)

SCPToemType ---- {SNVT_str_asc}

{

e.g. “R7L-DC16B_VER:0.10”

}Used to indicate Model No. and Version

SCPTserialNumber ---- {SNVT_str_asc}

{e.g. “ZZ123456”} Used to indicate Serial No.

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7L-DC16B

EM-7804-H Rev.7 P. 7 / 19

■FUNCTIONAL BLOCK: fbCNT[0...7]

fbCNT[0...7] (Object ID : 17...24)

nv 36

...nv 43

nviCNTIn

SNVT_switch

nv 44

...nv 51

nviCNTCtrl

SNVT_switch

nv 52

...nv 59

nvoCNTOut

SNVT_count_32

SNVT_count_f

Set the initial value at nviCNTCtrl at the startup

Set count logic (ON or OFF)

Set operating mode

Set network variable type nvoCNTOut

Set the maximum count

Set the value when fbCNT[ ] is reset

fbCNT[ ] :

SCPTdirection

nviCNTIn :

SCPTinvrtOut

nviCNTCtrl :

SCPTpwrUpState

nvoCNTOut :

SCPTnvType

SCPTmaxRnge

SCPTsetpoint

Network Variables

Configuration Properties

• Network Variables

NETWORK

VARIABLE

TYPE

{ Range }

{ Default }

EXPLANATIONS

nviCNTIn

{SNVT_switch}

{0.0 0}, {100.0 1}, {Invalid}

{0.0 0}

Counted object

nviCNTCtrl

{SNVT_switch}

{0.0 0}, {100.0 1}, {Invalid}

{0.0 0}

Controls operation of fbCNT

0.0 0 : Stop counting

100.0 1 : Start counting

Invalid : Reset count value

nvoCNTOut

{SNVT_count_32}

{0...999 999 999}

{0}

{SNVT_count_f}

{0...999 999}

{0}

Number of ON counts or accumulated time of ON status at nviCNTIn or

the input terminal

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7L-DC16B

EM-7804-H Rev.7 P. 8 / 19

• Conguration Properties

CONFIGURATION

PROPERTY

NETWORK

VARIABLE

TYPE

{ Range }

{ Default }

EXPLANATIONS

SCPTdirection ----

{SNVT_state}

{0 or 1}

{0,0,0,0,0,0,0,0,

0,0,0,0,0,0,0,0}

Bit 0 through 4: Counted object

0,0,0,0,0 : nviCNTIn

1,0,0,0,0 : ExX0

0,1,0,0,0 : ExX1

1,1,0,0,0 : ExX2

0,0,1,0,0 : ExX3

1,0,1,0,0 : ExX4

0,1,1,0,0 : ExX5

1,1,1,0,0 : ExX6

0,0,0,1,0 : ExX7

1,0,0,1,0 : ExX8

0,1,0,1,0 : ExX9

1,1,0,1,0 : ExXA

0,0,1,1,0 : ExXB

1,0,1,1,0 : ExXC

0,1,1,1,0 : ExXD

1,1,1,1,0 : ExXE

0,0,0,0,1 : ExXF

ExX0 through ExXF: Extension discrete input

Bit 6: Count function

0 : Number of status changes from OFF to ON

1 : Accumulated time of ON status

Bit 7: Memory storage at the non-volatile memory

0 : Count retained in the memory and preset at the startup

1 : Count always reset to 0

Bit 5, 8 through 15 : Invalid

Minimum input pulse width 500 ms for nviCNTIn, 50 ms

for the input terminals.

DO NOT connect a network variable to nviCNTIn when one

of the input terminals (other than nviCNTIn) is assigned as

the counted object.

ON time per 1 second increments.

SCPTinvrtOut nviCNTIn

{SNVT_lev_disc}

{ST_OFF, ST_ON}

{ST_OFF}

Count logic at nviCNTIn.

ST_OFF : Count with nvoCNTIn = ON

ST_ON : Count with nvoCNTIn = OFF

SCPTpwrUpState nviCNTCtrl

{SNVT_switch}

{0.0 0}, {100.0 1}, {Invalid}

{100.0 1}

Set value applied at nviCNTCtrl when the power supply is

turned on.

0.0 0 : Stop counting

100.0 1 : Start counting

Invalid : Reset count value

SCPTnvType nvoCNTOut

{SNVT_nv_type}

{}

{SNVT_count_f}

Indicates nvoCNTOut type.

For use with LonMaker and other tools.

SCPTmaxRnge nvoCNTOut

Same as nvoCNTOut.

Default = Max. range value

available for the type

Maximum count for nvoCNTOut. Count reset to 0 and

restarted at overﬂow.

SCPTsetpoint nvoCNTOut

Same as nvoCNTOut.

Default = Max. range value

available for the type

Set value applied at nvoCNTOut when fbCNT[ ] is Over-

Ride.

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7L-DC16B

EM-7804-H Rev.7 P. 9 / 19

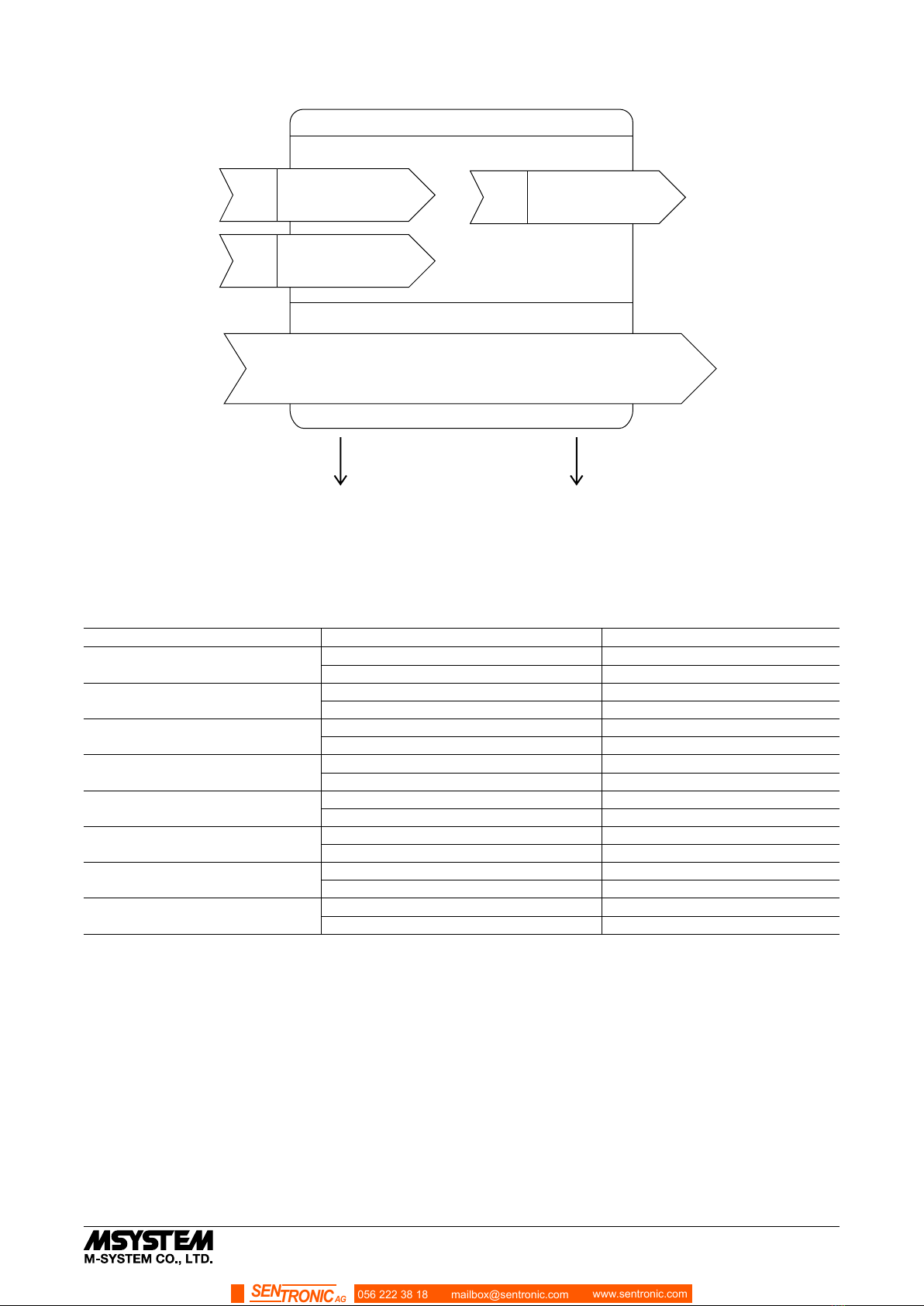

■FUNCTIONAL BLOCK: fbDO[0...7]

fbDO [0...7] (Object ID : 25...32)

nvoDOStat

SNVT_switch

fbDO [ ] :

SCPTdirection

SCPTtimeout

Set operating mode

Pulse output ON time in Momentary Mode

Network Variables

Configuration Properties

Discrete output Y0, Y2, Y4, Y6,

Y8, YA, YC, YE

Y1, Y3, Y5, Y7,

Y9, YB, YD, YF

State Mode Output nviDO status Output nviDOOvr status

Momentary Mode 1 or 2 One-shot output at ON

(nviDO or nviDOOvr at ON)

One-shot output at OFF

(nviDO or nviDOOvr at OFF)

nviDO

SNVT_switch

nviDOOvr

SNVT_switch

nv 68

...nv 75

nv 60

...nv 67

nv 76

...nv 83

• Output Terminal v.s. fbDO Network Variables (nviDO, nviDOOvr) Assignments

FUNCTIONAL BLOCK NETWORK VARIABLE OUTPUT TERMINAL

fbDO[0] nviDO Y0

nviDOOvr Y1

fbDO[1] nviDO Y2

nviDOOvr Y3

fbDO[2] nviDO Y4

nviDOOvr Y5

fbDO[3] nviDO Y6

nviDOOvr Y7

fbDO[4] nviDO Y8

nviDOOvr Y9

fbDO[5] nviDO YA

nviDOOvr YB

fbDO[6] nviDO YC

nviDOOvr YD

fbDO[7] nviDO YE

nviDOOvr YF

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7L-DC16B

EM-7804-H Rev.7 P. 10 / 19

■FUNCTIONAL BLOCK: fbDO[0...7]

• Network Properties

State Mode

NETWORK

VARIABLE

TYPE

{ Range }

{ Default }

EXPLANATIONS

nviDO

{SNVT_switch}

{0.0 0}, {100.0 1}, {Invalid}

{0.0 0}

Turns on or off Y0, Y2, Y4, Y6, Y8, YA, YC, YE depending upon this input.

nviDOOvr

{SNVT_switch}

{0.0 0}, {100.0 1}, {Invalid}

{0.0 0}

Turns on or off Y1, Y3, Y5, Y7, Y9, YB, YD, YF depending upon this input.

nvoDOStat

{SNVT_switch}

{0.0 0}, {100.0 1}, {Invalid}

{0.0 0}

Invalid

Momentary Mode 1 or 2

NETWORK

VARIABLE

TYPE

{ Range }

{ Default }

EXPLANATIONS

nviDO

{SNVT_switch}

{0.0 0}, {100.0 1}, {Invalid}

{0.0 0} Y0, Y2, Y4, Y6, Y8, YA, YC, YE : One-shot output when the input is ON.

Y1, Y3, Y5, Y7, Y9, YB, YD, YF : One-shot output when the input is OFF.

nviDO status is invalid when nviDOOvr is other than ‘Invalid.’ One-shot

output is provided at either Y0 or Y1 depending upon nviDOOvr value.

nviDOOvr

{SNVT_switch}

{0.0 0}, {100.0 1}, {Invalid}

{0.0 0}

nvoDOStat

{SNVT_switch}

{0.0 0}, {100.0 1}, {Invalid}

{0.0 0}

Outputs last one-shot output status.

• Conguration Properties

Common

CONFIGURATION

PROPERTY

NETWORK

VARIABLE

TYPE

{ Range }

{ Default }

EXPLANATIONS

SCPTdirection ----

{SNVT_state}

{0 or 1}

{0,0,0,0,0,0,0,0,

0,0,0,0,0,0,0,0}

Bit 0 and 2: fbDO operating mode

0 and 0: State mode

1 and 0: Momentary mode 1

1 and 1: Momentary mode 2

Bit 1: Output held or not at power off in State mode

0 : OFF at the power startup

1 : Outputs the held status at the power startup

Bit 3 through 15 : Invalid

Momentary Mode 1 or 2

CONFIGURATION

PROPERTY

NETWORK

VARIABLE

TYPE

{ Range }

{ Default }

EXPLANATIONS

SCPTtimeout ----

{SNVT_time_sec}

{0.1...60.0}

{0.5}

Speciﬁes ON time for the one-shot output

• Difference between Momentary Mode 1 and 2

Y0, Y2, Y4 and Y6

Y1, Y3, Y5 and Y7

Momentary Mode 1

nviDO or nviDOOvr OFF ON ON OFF OFF

Y0, Y2, Y4 and Y6

Y1, Y3, Y5 and Y7

Momentary Mode 2

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere M-system E/A-System Handbücher

M-system

M-system R7D-YS2A Bedienungsanleitung

M-system

M-system R7L-EA16 Bedienungsanleitung

M-system

M-system R7C-DA16 Bedienungsanleitung

M-system

M-system R7G4FML3-6-DA16 Bedienungsanleitung

M-system

M-system R7L-DC16B Bedienungsanleitung

M-system

M-system R8-YS2 Bedienungsanleitung

M-system

M-system R7D-YV2/UL Bedienungsanleitung

M-system

M-system R5 Series Bedienungsanleitung

M-system

M-system R7D-YS2 Bedienungsanleitung

M-system

M-system R3-SV8A Bedienungsanleitung

M-system

M-system R3-DC64A Bedienungsanleitung

M-system

M-system R3-SV4A Bedienungsanleitung

M-system

M-system R7C-YV2 Bedienungsanleitung

M-system

M-system R3Y-DC16 Bedienungsanleitung

M-system

M-system R1M-GH2T Series Bedienungsanleitung

M-system

M-system R7F4DC-DAC16D-H Bedienungsanleitung

M-system

M-system R7L-DC16A Bedienungsanleitung

M-system

M-system R7L-SV4 Bedienungsanleitung

M-system

M-system R10M-CT4E Bedienungsanleitung

M-system

M-system R7E-EC8A Bedienungsanleitung

M-system

M-system R5-SS Bedienungsanleitung

M-system

M-system R7F4DC-DA16A-H Bedienungsanleitung

M-system

M-system R7I4DML3-DAC32C Bedienungsanleitung

M-system

M-system R7M-DC8C Bedienungsanleitung

Beliebte E/A-System Handbücher anderer Marken

WAGO

WAGO 750-344 Bedienungsanleitung

Teknim

Teknim TWM-1887 Bedienungsanleitung

Intelligent Appliance

Intelligent Appliance IA-2662-E Bedienungsanleitung

BERGHOF

BERGHOF ECC DIO 16/16 Bedienungsanleitung

Advantech

Advantech PCM-27J3AU Installations- und Betriebshandbuch

Festo

Festo CP-E08-M12-CL Bedienungsanleitung

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Bedienungsanleitung

Hitachi

Hitachi HX-RIO3 Series Bedienungsanleitung

NUUO

NUUO SCB-A08 Bedienungsanleitung

jablotron

jablotron JB-110N Bedienungsanleitung

Omron

Omron SYSMAC C200H Bedienungsanleitung

DOLD

DOLD SAFEMASTER M Bedienungsanleitung

ABB

ABB OPT-MF-001 Bedienungsanleitung

Omron

Omron SYSMAC C2000H Bedienungsanleitung

Helmholz

Helmholz TB20 Bedienungsanleitung

ICP DAS USA

ICP DAS USA tM-AD2 Bedienungsanleitung

Automationdirect.com

Automationdirect.com DL305 Bedienungsanleitung

WAGO

WAGO I/O-SYSTEM 750 Bedienungsanleitung
