FEATURES

The 40M3FS is a full sized 40 meter Yagi designed for the various interests and band segments. We provide

you the dimensions to optimize the antenna just for your needs. The result is a powerful package of clean mechani-

cal design, quality materials, and outstanding performance that will deliver years of enjoyment on the 40 meter band.

Note the pattern and gain of 10 dBd when the antenna is only 50 feet above ground! Gain increases with height

above ground and can approach 6 dB more than the free space gain of 6 dBd.

The rugged aluminum boom is 3-1/2 O.D. .23” wall in the middle with 3” x .125 wall tips. Elements diameters

start at 2-1/2” x .125 wall 6061-T6 are and are mounted to the boom using machined saddles and stainless hard-

ware. All three elements are supported by a phillystran overhead guy system. The element sections have been

computer optimized for at least 100 MPH winds. An overhead guy system is supplied for the boom as well. All

hardware except for the U-Bolts is stainless steel. A hairpin type match couples the 5 kW 1:1 balun to the feedline.

The antenna is completely DC grounded. Compare performance, construction and durability....you’ll agree that this

40 meter Yagi is tops in its class!

M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722

Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com

Rev.01

Model ....................................40M3FS

Frequency..............................7.0-7.3(200 kHz BW)

Gain.......................................8.1 dBi

Front to back..........................20 dBd Typical

Front to side...........................30 TO 45 dB x height

Beamwidth, AZ ....................60°

Feed type...............................SO-239 (‘N’ Opt.)

Feed Impedance....................50 Ohms Unbalanced

VSWR....................................1.3:1 typ. 2:1 Max

Power Handling .....................3 kW Others avl.

Boom Length / Dia.................47’ 6” / 3-1/2”

Element Dia...........................2-1/2” to 1/2”

Turning Radius: .....................44” Ft

Stacking Distance..................98’ opt.

Mast Size...............................2” to 3 ” Nom.

Wind area / Survival ..............17.5 Sq. Ft./100 MPH

Weight / Ship Wt....................180Lbs. / 190Lbs.

M2 Antenna Systems, Inc.

Model No: 40M3FS

SPECIFICATIONS:

*Subtract 2.14 from dBi for dBd / FS = Free Space

Tool required: 7/16”, 1/2 and 9/16” end wrenches or sockets, #2 Phillip screwdriver and

11/32 nut driver or equivalent.

THE FOLLOWING ARE SIMPLIFIED INSTRUCTIONS. YOU WILL NEED THIS WRITTEN

SECTION TO HELP SET THE ORDER OF ASSEMBLY AND TO COVER THE MOST IM-

PORTANT POINTS.

We have provided Penetrox (zinc paste / anti seize compound) that you should put on the

tubes at every joint prior to assembly. It also serves as an antiseize lubricant for all the

hardware. Also put just a tiny dab on every thread just before assembly and you should

have no trouble with sections binding or bolts seizing during assembly.

1. IF SPACE IS A PROBLEM, we suggest you build just the tips of the elements first. Start

with the 1-1/2” sections. If the 1-3/8 sleeves are separate, insert them into the butt of each 1-

1/2 inch section, align the holes and insert an eyebolt and nut loosely just to keep things

aligned. Now add the 1-1/4” section and its sleeve. Bolt and screw sizes are noted on the

element assembly sheet. Continue adding sections until you get the 1/2 inch sections. The

REFLECTOR element requires slightly more length so 3/8” diameter tips are required.

2. It may be convenient at this time to determine just what part of the band you want to opti-

mize. NOTE the DIMENSION SHEET has 4 choices of tip dimensions. These match up

with 3 choices of spacing which will come later in the assembly. Adjust EXPOSED TIP

LENGTH (SEE COMPRESSION CLAMP DETAIL SHEET) for your band segment choice.

This will allow for band change later, should you find it desirable.

3. Build the center sections of the REFLECTOR AND DIRECTOR next. Mark the center of

the 2-1/2” x 158 inch sections and attach the elements to the 8 x 1/4” plate using 2-1/2 sad-

dles and 3/8-16 x 4” bolts and locknuts. Align the element holes perpendicular to the plate

and tighten. Add the 3” saddle clamps that connect the plates to the antenna boom. Leave

the nuts finger tight as this will allow the element to just slide on over the end of the boom.

You can also install the welded vertical riser element supports at this time using 1/4-20 x 1”

bolts and locknuts, put the bolts in from the bottom of the assembly and tighten securely.

4. Now assemble the DRIVEN ELEMENT center section. Mount the 2” X 36” FIBERGLASS

center insulator on the remaining 8 x 8 x 1/4” element mounting plate using two sets of 2”

saddles. Use 3/8-16 bolts and locknuts. Center the insulator, rotate the insulator so the ele-

ment mounting holes are perpendicular to the plate and tighten the hardware. Install the

welded vertical riser element support at this time using 1/4-20 x 1” bolts and locknuts. Put

the bolts in from the bottom of the assembly and tighten securely. Slide each MARKED ele-

ment half over the insulator, align the holes and add the bolts as shown on the element as-

sembly sheet.

5. Next add the 5/16” TURNBUCKLES to the top plates of the risers. Add the black Philis-

tran HTPG 1200 x 19 ft. cords at this time. Use a 3/6” thimble and two wire clips (small u-

bolts to secure cable).

40M3FS ASSEMBLY MANUAL

6. Assemble the boom using 3/8-16 x 4” bolts, lock washers and nuts. Install the eyebolts

with the 1/8” wire rope attached. Using the correct spacing mark the driven element posi-

tion. Mount the 12 x 12 x 3/8” boom to mast plate on the DIRECTOR end loosely using 3-

1/2” saddles.

7. If a temporary 2” mast can be installed at this time, you can set up the overhead turn-

buckle plate with two (2) 2” u-bolts and , two (2) 3/8” forged turnbuckles. Install 4 heavy du-

ty 2” u-bolts on the plate and add the mast. Place the turnbuckle plate 6 to 7 feet above the

boom and loosely install the overhead cable.

8. Mount the inner sections of each element on the boom and align elements perpendicular

with the plane of the 3/8” forged eyebolts. You can determine the CENTER OF BALANCE

at this point since the element tips are very close to the same weight. Mount the BOOM TO

MAST (BMP) at this point using 3-1/2” saddles and 3/8-16 x 5” bolts and locknuts. Align the

plate and tighten. Then the cables can be final tensioned and the temporary mast re-

moved, readying the antenna for final installation

9. Attach the 1-1/2” and smaller element tips. Note the rear hole is enlarged so a 1/4”

u-bolt can be installed at this joint. Also install the 8-32 x 1-3/4” screw and locknut and

tighten securely. Align the eyebolt in the plane of the element and tighten securely.

10. With the antenna laying on flat ground, connect the outer end of each of the element

support cables using a 3/16” thimble or cable eye and two clips (small cable u-bolts). re-

move all the slack and tighten the clips. Final tensioning can be done from the center with

the other eyebolts and locknuts.

Before installing the antenna on a tower, go over all the hardware connections and be sure

each has been tightened. No movement should be detected in the element joints. Be care-

ful during installation and be sure you are clear of all power lines and other high obstruc-

tions. C U on 40! 73, Mike, K6MYC

CAREFULLY DESIGNED AND MANUFACTURED BY:

M2 ANTENNA SYSTEMS INC.

4402 N. Selland Ave.

Fresno, CA 93722

www.m2inc.com [email protected]

40M3FS ASSEMBLY MANUAL

40M3FS DIMENSION SHEET

40M3FS ELEMENT ASSEMBLIES

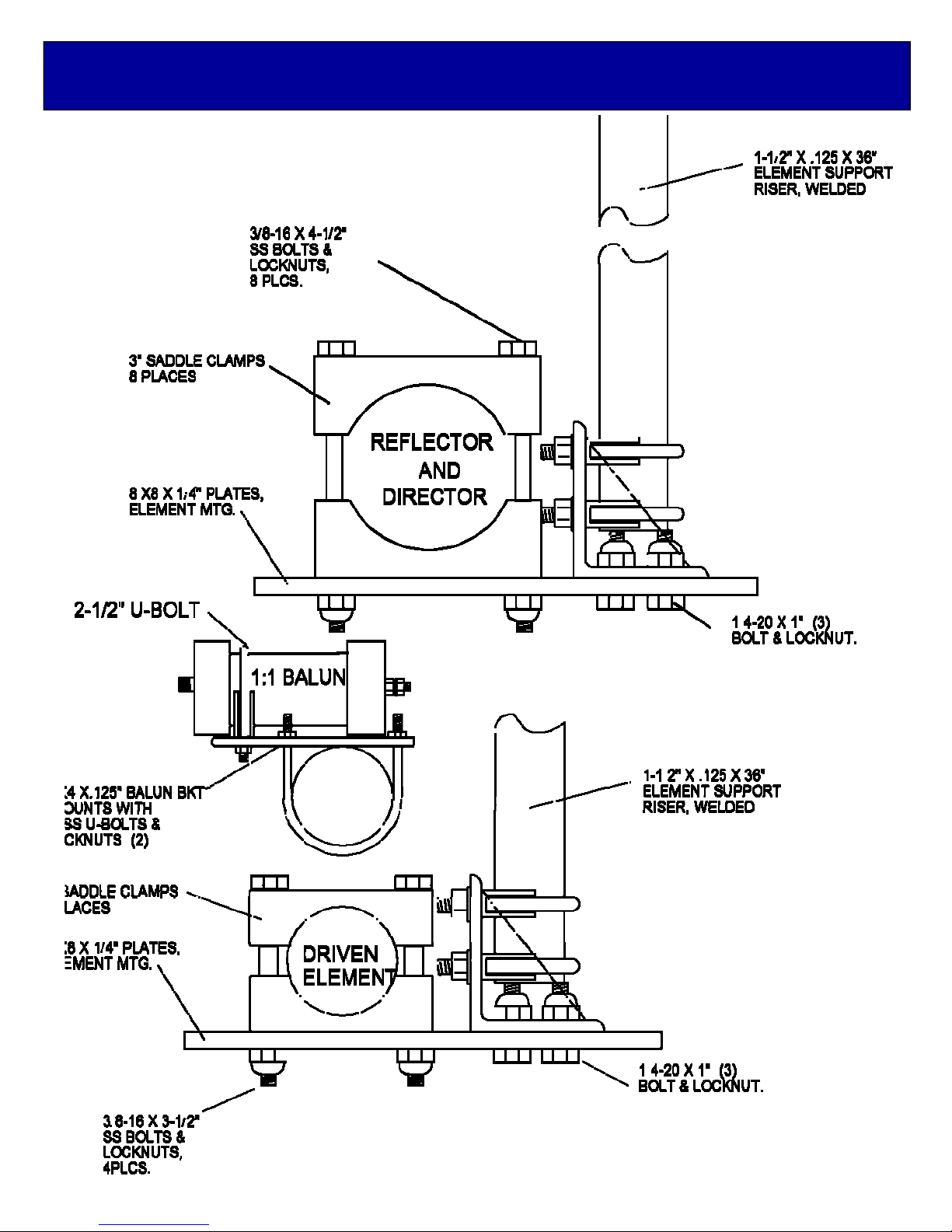

ELEMENT MOUNTING PLATE ASSEMBLY
