PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR

REFRIGERATOR AND KEEP IT FOR FUTURE REFERENCE.

Model MCBR350W2/ MCBR350B2/ MCBR350S2

3.5Cu. Ft.

Compact Refrigerator

User's Manual

Product Registration

Thank you for purchasing a Magic Chef®product. The first step to protect your new product is to complete the product registration on our website:

www.mcappliance.com/register. The benefits of registering your product include the following:

1. Registering your product will allow us to contact you regarding a safety notification or product update.

2. Registering your product will allow for more efficient warranty service processing when warranty service is required.

3. Registering your product could act as your proof of purchase in the event of insurance loss.

Once again, thank you for purchasing a Magic Chef®product.

TABLE OF CONTENTS

NAMES OF THE PARTS……………………………………………………… 3

SPECIFICATIONS…………………………………………………………….. 3

IMPORTANT SAFETY INSTRUCTIONS………………………….………… 4

INSTALLATION INSTRUCTION

BEFORE USING YOUR REFRIGERATOR ………………………... 5

INSTALLING YOUR REFRIGERATOR ………………………..…… 5

ELECTRICAL CONNECTION………………………………………… 6

OPERATING YOUR REFRIGERATOR

TEMPERATURE CONTROL………………………………………….. 7

ICE TRAY…………………………………………..…………………… 7

THE CHILLER COMPARTMENT……………………………..………. 7

HOW TO DEFROST ……………………………………………..……. 7

HOW TO CHANGE THE INTERIOR LIGHT…...…………………… 8

CARE AND MAINTENANCE

CLEANING YOUR REFRIGERATOR………………………………… 10

VACATION TIME…………………………………………….…………. 10

MOVING YOUR REFRIGERATOR…………………………………… 10

ENERGY SAVING TIPS…………………………………….………….. 10

TROUBLESHOOTING GUIDE……………………………….………….… 11-12

REFRIGERATOR WARRANTY……………………….…………….………… 13

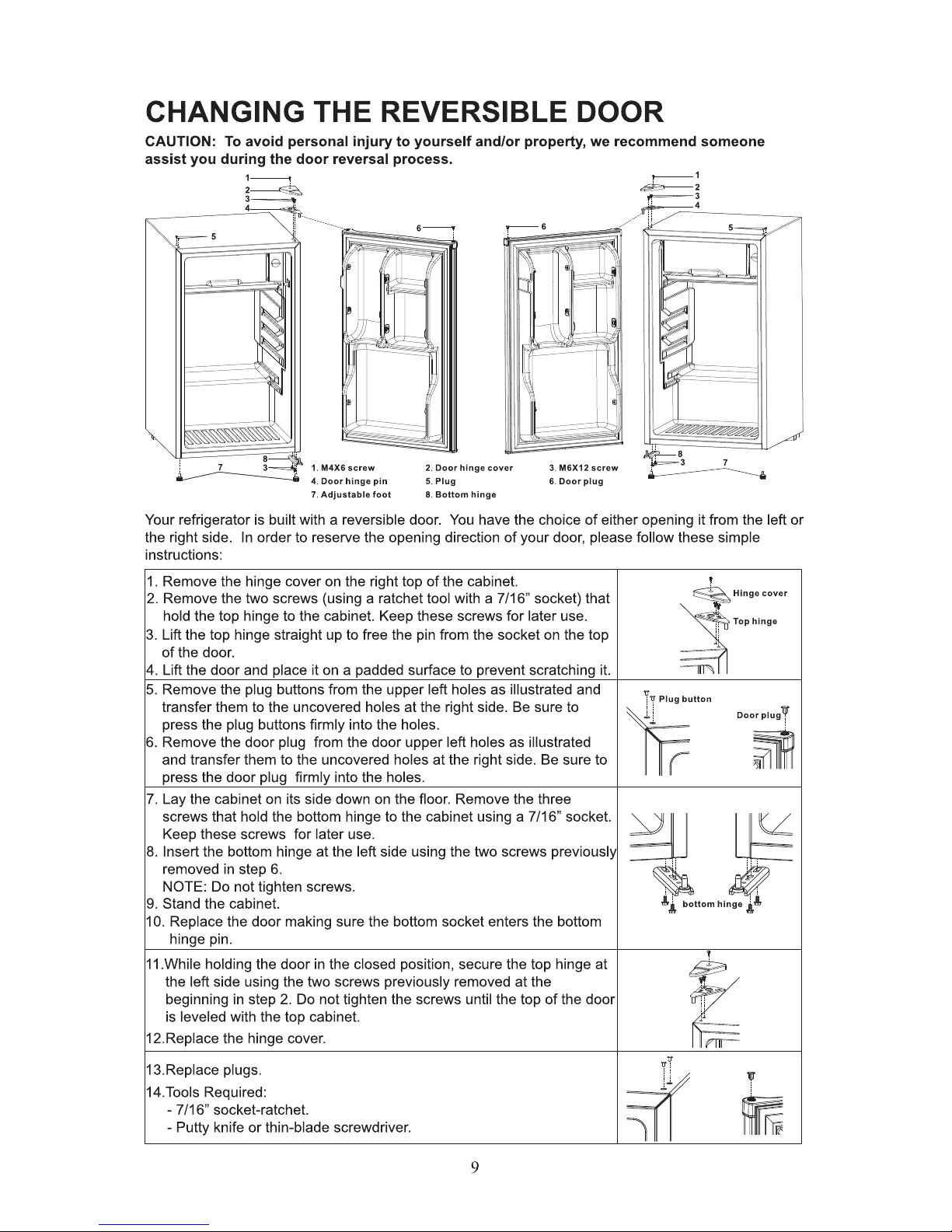

CHANGING THE REVERSIBLE DOOR …...………………………………... 9

NAMES OF THE PARTS

MODEL NO. MCBR350W2/ MCBR350B2/ MCBR350S2

(1) Drain Pan

(2) Shelf

(3) Freezer Compartment

(4) Ice Tray

(5) Temperature Control Box

(6) Temperature Control Dial

(7) Interior Light Switch

(8) Can Dispenser

(9) Rack

(10) Bottle Rack

(11) Door Liner

WARNING: Never touch the interior of the Freezer Chamber or frozen foods in the

compartment with wet hands as this could result in frost bite.

SPECIFICATIONS

Model # MCBR350W2/MCBR350B2/MCBR350S2

Product Description

Magic Chef Refrigerator

Model No.

MCBR350W2 /MCBR350B2 /MCBR350S2

Capacity

3.5 Cu. Ft.

Unit Dimensions

( inches )

Width Height Depth

18.5” 32.5” 19.4”

Net Weight ( lbs)

50.9 ( lbs )

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electrical shock, or

injury follow these basic precautions when

using your refrigerator.

1) WARNING----Keep ventilation openings, in the appliance enclosure or in the built-in

structure, clear of obstruction.

2) WARNING----Do not use mechanical devices or other means to accelerate the

defrosting process, other than those recommended by the manufacturer.

3) WARNING----Do not damage the refrigerant tubing to increase the risk of a leak when

handle, move and use of refrigerator.

4) WARNING----Do not use electrical appliances inside the food storage compartments of

the appliances, unless they are of the type recommended by the manufacturer.

5) WARNING----DANGER: Never allow children to play with, operate, or crawl inside the

refrigerator. Risk of child entrapment. Before you throw away your old refrigerator or

freezer:

•Take off the doors

•Leave the shelves in place so that children may not easily climb inside.

6) The appliance has to be unplugged before carrying out user maintenance on the

appliance.

7) This appliance can be used by children age 8 years and above and persons with

reduced physical sensory or mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning use of the appliance in a safe

way and understand the hazards involved. Children should not play with the appliance.

Cleaning and maintenance should not be made by children without supervision.

8) If the component part is damaged, it must be replaced by the manufacturer, its service

agent or similar qualiﬁed persons in order to avoid a hazard.

9) Please abandon the refrigerator according to local regulations as the unit contains ﬂam

mable blowing gas and refrigerant.

10) Follow local regulations regarding disposal of the appliance due to ﬂammable refrigerant

and blowing gas. All refrigeration products contain refrigerants, which under the

guidelines of federal law must be removed before disposal. It is the consumer's

responsibility to comply with federal and local regulations when disposing of this product.

11) This appliance is intended to be used in household and similar environments; such as:

•staff kitchen areas in shops, oﬃces and other working environments;

•farm houses and by clients in hotels, motels and other residential type environments;

•bed and breakfast type environments;

•catering and similar non-retail applications.

12) Do not store or use gasoline or any inﬂammable liquors and liquids inside or in the

vicinity of refrigerator.

13) Do not use an extension cord with this appliance. If the power cord is too short, have a

qualiﬁed electrician install an outlet near the appliance. Use of an extension can

negatively affect the unit”s performance.

IMPORTANT SAFETY INSTRUCTIONS



WARNING



To reduce the risk of fire, electrical shock,

or injury when using your refrigerator,

follow these basic precautions:

•Read all instructions before using the refrigerator.

•DANGER or WARNING: Risk of child entrapment.

•To avoid the possibility of child entrapment, please take the following precautions

before throwing out the refrigerator.

- Remove all doors from the unit.

- Leave the shelves in place so that children may not easily climb inside.

•Never allow children to operate, play with, or crawl inside the refrigerator.

•Refrigerants: All refrigeration products contain refrigerants, which under the

guidelines of federal law must be removed before disposal of product. It is the

consumer’s responsibility to comply with federal and local regulations when

disposing of this product.

•Never clean refrigerator parts with flammable fluids. The fumes can create a fire

hazard or explosion.

•Do not store or use gasoline or any other flammable vapors and liquids in the vicinity

of this or any other refrigerator. The fumes can create a fire hazard or an explosion.

-Save these instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Refrigerator

•Remove the exterior and interior packing.

•Before connecting the refrigerator to the power source, let it stand upright for approximately 4

hours. This will reduce the possibility of a malfunction in the cooling system from improper

handling during transportation.

•Clean the interior surface with lukewarm water using a soft cloth. (Cleaning instruction on page10)

Installing Your Refrigerator

•This appliance is designed to be free standing only, and should not be recessed or built-in.

•Place your refrigerator on a floor that is strong enough to support the refrigerator when it is fully

loaded.

•Allow 5 inches of space between the back and sides of the refrigerator, which allows the proper

air ventilation. Adjust the feet to keep the refrigerator level.

•Locate the refrigerator away from direct sunlight and sources of heat (stove, heater, radiator, etc.).

Direct sunlight may affect the acrylic coating and heat sources may increase electrical

consumption. Ambient temperature below 50°F (10°C) or above 85°F (29.4°C) will hinder the

performance of this appliance. This unit is not designed for use in a garage or any other

outside installation.

•Avoid locating the refrigerator in moist areas.

•Plug the refrigerator into dedicated, properly installed-grounded wall outlet. Do not under any

circumstances cut or remove the third (ground) prong from the power cord. Any questions

concerning power and/or grounding should be directed toward a certified electrician or an

authorized service center. This unit is not designed to be installed in an RV or used with an

inverter.

•After plugging the appliance into a wall outlet, turn the unit on and allow the unit to cool down for

2~3 hours under before placing food in the refrigerator or freezer compartment.

Electrical Connection

This refrigerator should be properly grounded for your safety. The power cord of this refrigerator is

equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the

possibility of electrical shock.

Do not, under any circumstances, cut or remove the third ground prong from the power cord supplied.

This refrigerator requires a standard 115/120 Volt A.C. ~/60Hz electrical outlet with three-prong

ground.

This refrigerator is not designed to be used with an inverter.

The cord should be secured behind the refrigerator and n ot left exposed or dangling to prevent

accidental injury.

Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull straight

out from the receptacle.

Do not use an extension cord with this appliance. If the power cord is too short, have a qu alified

electrician or service technician install an outlet near the appliance. Use of an extension cord can

negatively affect the performance of the unit.

If any problems with the appliance persist, please contact our Customer Service Dept. to consult with

a representative at 888 775-0202 or visit our website to request warranty service at

www.mcappliance.com.

Do not attempt to repair or replace any part of your refrigerator unless it is specifically recommended

in this manual. All other servicing should be referred to a qualified technician, so as to minimize the

risk of possible ignition due to incorrect parts or improper service.



WARNING



Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is

damaged, have it replaced by an authorized service center.

OPERATING YOUR REFRIGERATOR

Temperature Control

•Your refrigerator has one control for regulating the temperature. The

temperature control is located on t he upper right hand corner of the

interior compartment.

•The first time you turn the unit on, adjust the temperature control knob

to “7” and run for at least 2 hours before putting foods inside. This will

ensure the cabinet is thoroughly chilled before food is put in.

•The range of the refrigerator temperature control is from position "1"

the cold to "7" the coldest. Adjust the temperature control to the

setting that best suits your needs. The setting of “4” should be

appropriate for home or office refrigerator use.

•Turning the temperature control knob to “0” position stops the cooling

cycle but does not shut off the power to the unit.

•NOTE;

•If the unit is unplugged, loses power; you must wait 3 to 5 minutes before restarting the

unit. If you attempt to restart before this time delay, the refrigerator will not start.

•Large amounts of food will lower the cooling efficiency of the appliance.

•Do not place the foods on the air outlet, and leave spaces for airflow.

•If you choose to change the thermostat setting, adjust thermostat control by one

increment at a time. Allow several hours for temperature to stabilize between

adjustments.

Ice Tray

•Recommended temperature control setting for ice making is “7”.

•Fill the ice cube tray (2/3 capacity) with cold water and place the tray on the

bottom of the chiller compartment to freeze properly.

•To eject the ice cubes from the tray, place over the ice bucket and t wist

slightly.

•Re-set the temperature control to setting “4”.

The Chiller Compartment

•This compartment is designed for the ice making and s hort-term storage of some commercially

frozen foods.

•The temperature of the chiller compartment may not reach temperature low enough to store

frozen foods safely and works well when the food is already frozen prior to storage.

•Place frozen food into the freezer as quickly as possible after purchase. If there are instructions

on the packet, carefully follow these instructions regarding storage times.

How To Defrost

Defrost the freezer compartment when the ice / frost is approximately ¼” thick. Set the thermostat

dial to “0” to defrost. Remove all contents from the freezer compartment. Leave the freezer door

open to allow accumulated ice / frost to melt. Remove large pieces of ice as needed. Do not use hot

water or other electric heating devices to melt the accumulated ice. After defrosting, remove

accumulated ice / water and wipe the freezer compartment dry with a soft cloth. Restart the unit per

starting instructions.

How To Change the interior light

NOTE:All parts removed must be saved to do the reinstallation of the light bulb. Before removing the

light bulb, unplug the appliance from the power supply. Failure to do so could result in electrical shock

or personal injury.

1. Remove the drip tray under chiller compartment

2. Remove the thermostat control box by unscrewing

3. Unscrew old bulb from the lower hole at the thermostat control box

4. Replace the new bulb of the same voltage and screw size.

5. Re-install the thermostat control box by screwing

6. Re-install the drip tray

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Magic Chef Kühlschrank Handbücher

Magic Chef

Magic Chef 440YW-2 Bedienungsanleitung

Magic Chef

Magic Chef HMAR33WE Bedienungsanleitung

Magic Chef

Magic Chef MCBR1000B Betriebsanleitung

Magic Chef

Magic Chef MCBM920W Bedienungsanleitung

Magic Chef

Magic Chef MCBR980W Bedienungsanleitung

Magic Chef

Magic Chef CTB1821VRW01 Bedienungsanleitung

Magic Chef

Magic Chef MCBR1020W Bedienungsanleitung

Magic Chef

Magic Chef MCBR265WEF Bedienungsanleitung

Magic Chef

Magic Chef HMBR350WE1 Bedienungsanleitung

Magic Chef

Magic Chef MCR1010WEF Bedienungsanleitung

Magic Chef

Magic Chef MCDR450WEF Bedienungsanleitung

Magic Chef

Magic Chef HMBR350WEF Bedienungsanleitung

Magic Chef

Magic Chef MCBR1010S Bedienungsanleitung

Magic Chef

Magic Chef HMAR45HCWE Bedienungsanleitung

Magic Chef

Magic Chef MCKC490B Bedienungsanleitung

Magic Chef

Magic Chef MCBR270B Bedienungsanleitung

Magic Chef

Magic Chef MCBR445B1 Bedienungsanleitung

Magic Chef

Magic Chef MCAR240B Bedienungsanleitung

Magic Chef

Magic Chef HMR330WE Bedienungsanleitung

Magic Chef

Magic Chef HMCR440WE Bedienungsanleitung

Magic Chef

Magic Chef MCBR240W1 Bedienungsanleitung

Magic Chef

Magic Chef MCBR170B Bedienungsanleitung

Magic Chef

Magic Chef MCBR445B2 Bedienungsanleitung

Magic Chef

Magic Chef MCBR170B Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
