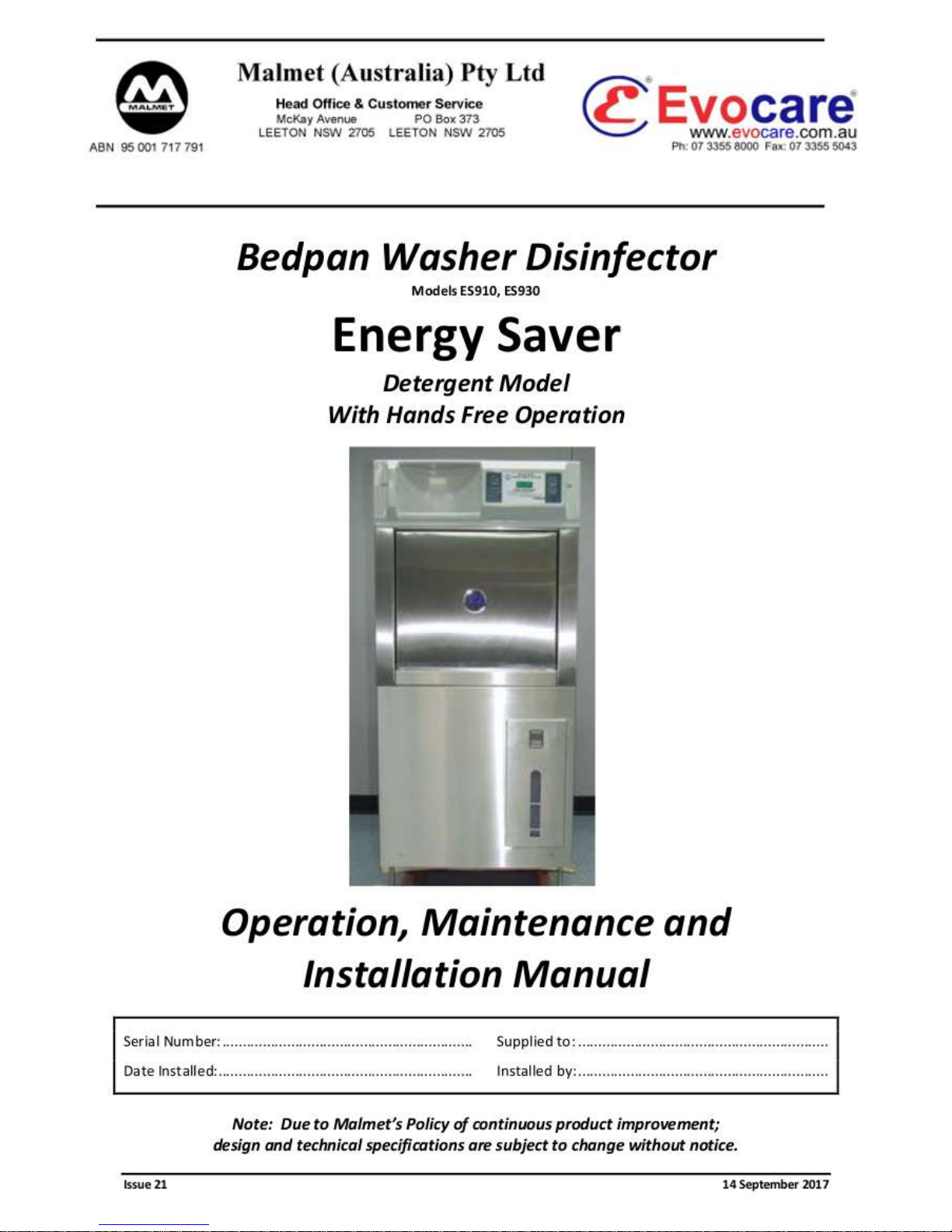

Bedpan Washer Disinfector - Energy Saver

Detergent Model With Hands Free Operation

Operation, Maintenance and Installation Manual

Issue 21 Page 2 14 September 2017

Table of Contents

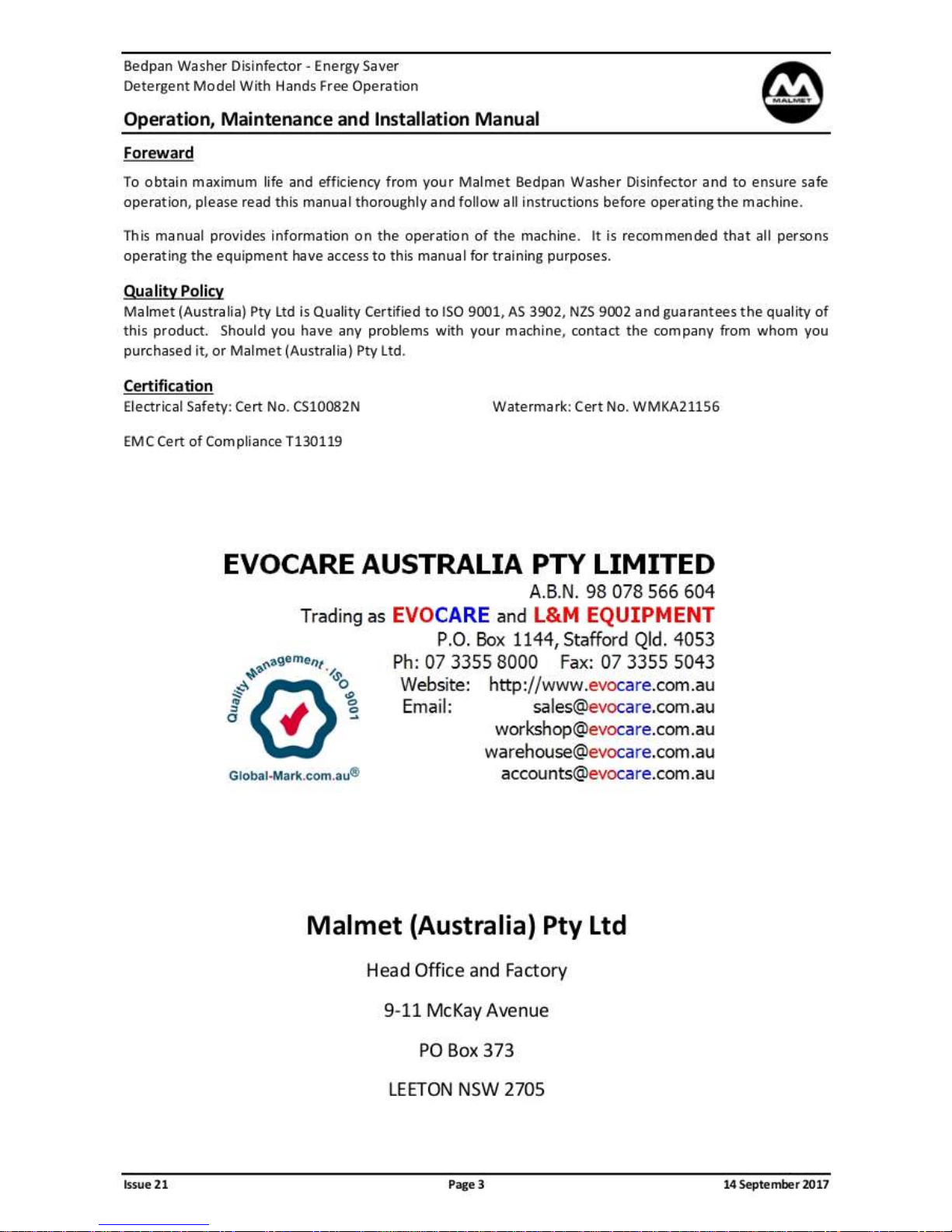

Foreward .............................................................................................................................................. 3

Quality Policy........................................................................................................................................ 3

Certification .......................................................................................................................................... 3

Safety Instructions ................................................................................................................................ 4

Design Parameters ............................................................................................................................... 5

Section A – Unit Operation ................................................................................................................... 6

Hands Free Operation .......................................................................................................................... 6

Cycle of Operation .............................................................................................................................. 11

Sequence of Operation ....................................................................................................................... 12

Section B – Unit Maintenance ............................................................................................................ 18

Preventative Maintenance Schedule ................................................................................................. 18

Fault Finding Guide ............................................................................................................................ 20

Appendix A – Faults ............................................................................................................................ 21

Appendix B – Additional Faults not detected by controller ............................................................... 23

Electrical Diagram – Energy Saver Detergent 20 Amp Models – ES910 ............................................ 25

Electrical Diagram – Energy Saver Detergent 10 Amp Models– ES930 ............................................. 26

Section C – Unit Installation ............................................................................................................... 27

Dimensions and Service Entry Points ................................................................................................. 28

Electrical ............................................................................................................................................. 29

Post Installation Precautions ............................................................................................................. 29

Positioning of Bedpan Washer Disinfector ........................................................................................ 30

Installation and Service Connection Layout Details ........................................................................... 32

Plumbing ............................................................................................................................................ 33

Technical Specifications ..................................................................................................................... 33

Unit Specifications .............................................................................................................................. 34

Warranty Statement – Australia Only ............................................................................................... 35

Bedpan Washer Disinfector - Energy Saver

Detergent Model With Hands Free Operation

Operation, Maintenance and Installation Manual

Issue 21 Page 4 14 September 2017

Safety Instructions

WARNINGS

Be aware of 240V Voltage

Disconnect power when servicing

Mains power ISO switch must be in an accessible position so devise can be isolated from mains power

during service

Be aware of steam discharge

Goods and racks are hot to handle

Safety Gloves and Goggles must be worn when changing detergent

Safety Clothing with reflective tape can activate the hands free sensor when device is in standby mode

Be aware of hot pipes and hoses from Steam and hot water

Install temperature probes and Element over temperature protection thermal cut-outs correctly

Bedpan Washer Disinfector - Energy Saver

Detergent Model With Hands Free Operation

Operation, Maintenance and Installation Manual

Issue 21 Page 5 14 September 2017

Design Parameters

The Malmet Bedpan Washer Disinfector has been designed within the following parameters:

a) A single bedpan with lid and two urine bottles can be emptied, cleaned and disinfected during each

automatic cycle.

The utensils that can be cleaned in the machine are:-

i) Standard size bed pans

ii) Standard commode bowl

iii) Standard male and female urine bottles

iv) Most plastic urine bottles including male non-spill and female cervec

v) Small slipper pan

vi) Large slipper pan

b) The cradle is designed to ensure that utensils are not dislodged during the cleaning cycle; the

contents are emptied during door closure.

c) The chamber and door are self-cleaning and do not permit water or soil to remain after a properly

completed cycle. Steam disinfection and detergent ensures all internal surfaces are totally clean

and safe.

d) The flush and clean stage:

i) Removes the soil

ii) Clears the trap

e) A complete cycle is completed in approximately four (4) minutes for the 20 Amp Bedpan Washer

Disinfector and six (6) minutes and thirty (30) seconds for the 10 Amp Bedpan Washer Disinfector

Note: Dependant on ambient air temperature.

Note: The first cycle will take longer as the machine has to reach the operating water

temperature to 90°C.

f) Malmet Door Obstruction Feature

This is factory set to 12Nm ±10%; causing the door to re-open when an obstruction is detected.

This is designed to protect the integrity of the machine and the articles within.

Disconnect power when servicing

Bedpan Washer Disinfector - Energy Saver

Detergent Model With Hands Free Operation

Operation, Maintenance and Installation Manual

Issue 21 Page 6 14 September 2017

Section A – Unit Operation

Hands Free Operation

Zero Contamination – Totally Hands Free

The Malmet “Energy Saver” is fully automatic.

Door open, door close and cycle start can be activated without touching the machine.

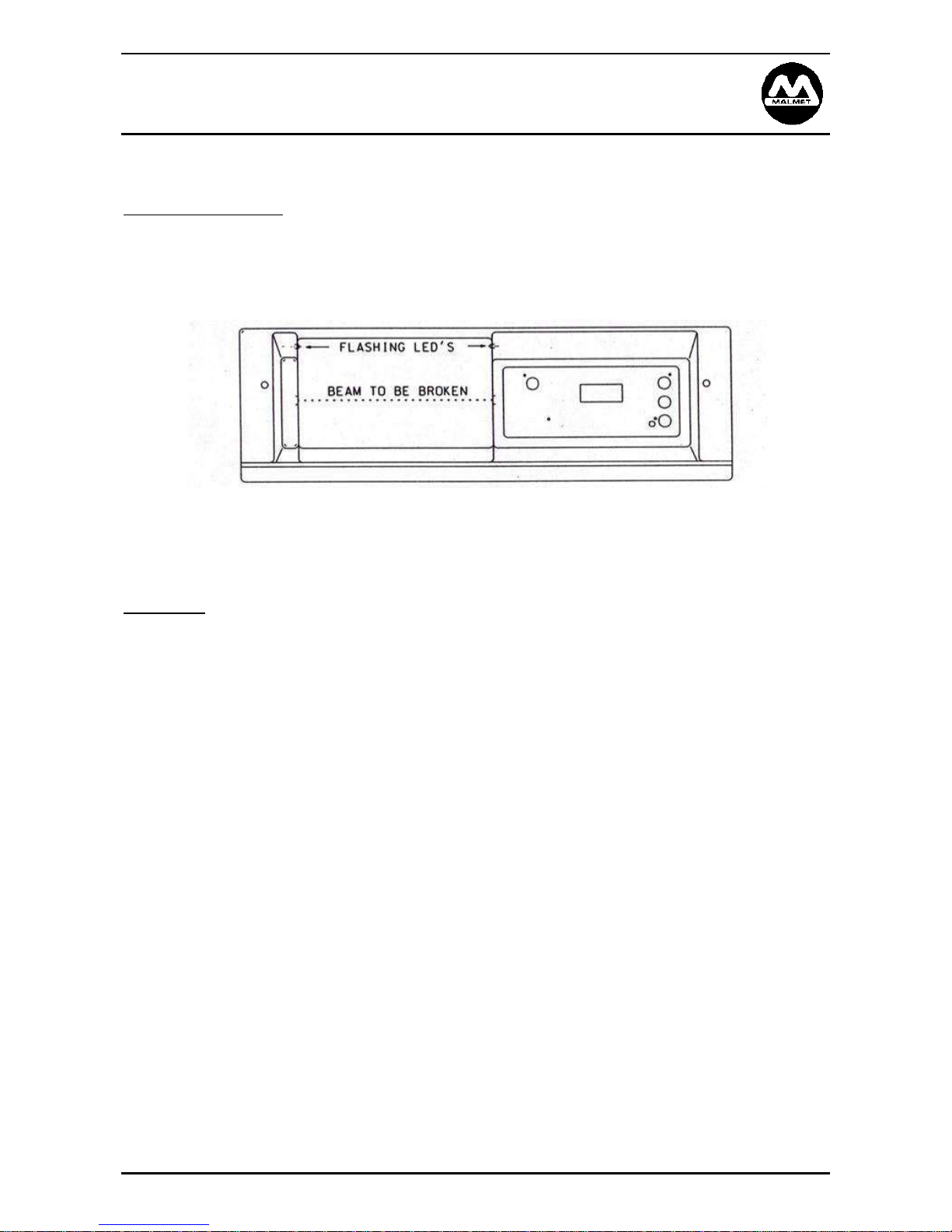

Front View

Manual operation of the door and a manual start button are available.

To Operate

To Open Door – Break Sensor Beam

To Close Door – Break Sensor Beam

To Start Cycle – Break Sensor Beam once when green LED’s flash within 8 seconds after door

closure.

Note: If door is opened then closed and cycle has not commenced the beam must be broken twice.

Bedpan Washer Disinfector - Energy Saver

Detergent Model With Hands Free Operation

Operation, Maintenance and Installation Manual

Issue 21 Page 7 14 September 2017

Detergent

A detergent system is available that delivers 30ml of concentrated detergent in the initial wash.

Current Safety Data Sheet for Malmet Machine Detergent is available in pdf format from Malmet’s website.

www.malmet.com.au

Should the cold water tank overflow into the soil line the water overflow YELLOW LED will

illuminate.

Detergent Out Condition

To avoid the detergent out condition check the low level mark on detergent door, replace detergent when

the detergent level reaches this mark.

Low Level mark, replace detergent.

Bedpan Washer Disinfector - Energy Saver

Detergent Model With Hands Free Operation

Operation, Maintenance and Installation Manual

Issue 21 Page 8 14 September 2017

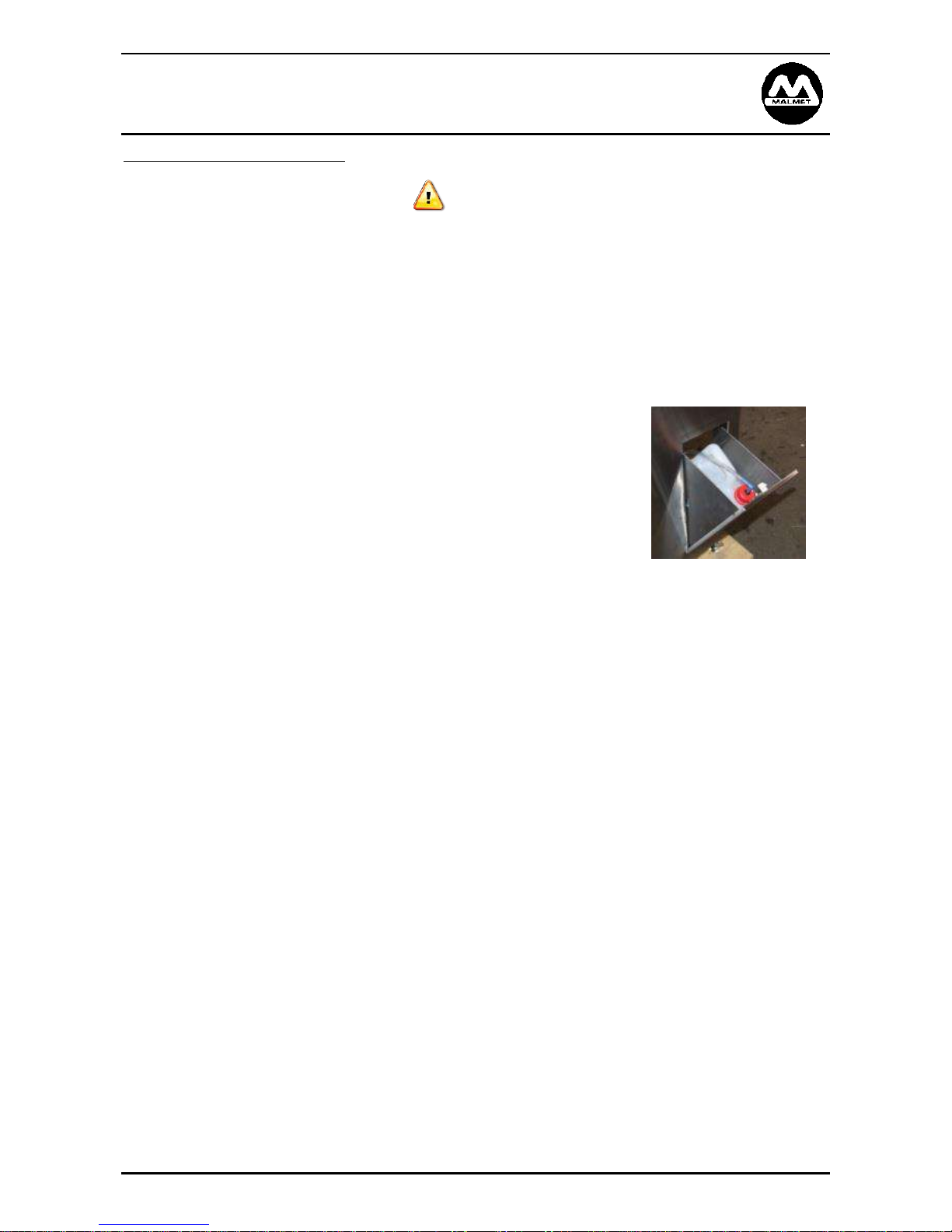

Changing the Detergent Bottle

WARNING

SAFETY GLOVES AND GOGGLES MUST BE WORN WHEN CHANGING DETERGENT

Current Safety Data Sheet for Malmet Machine Detergent is available in pdf format from Malmet’s

website. www.malmet.com.au

1. Pull latch on detergent door and open.

2. Unscrew cap and pull out with suction hose. (Let hose hang on detergent chamber.)

3. Remove empty bottle and replace with full bottle.

Note: Leave cap on new bottle until in position.

4. Remove cap on new bottle and fit existing hose and cap.

5. Close detergent door.

6. Restart machine operation as normal.

Bedpan Washer Disinfector - Energy Saver

Detergent Model With Hands Free Operation

Operation, Maintenance and Installation Manual

Issue 21 Page 9 14 September 2017

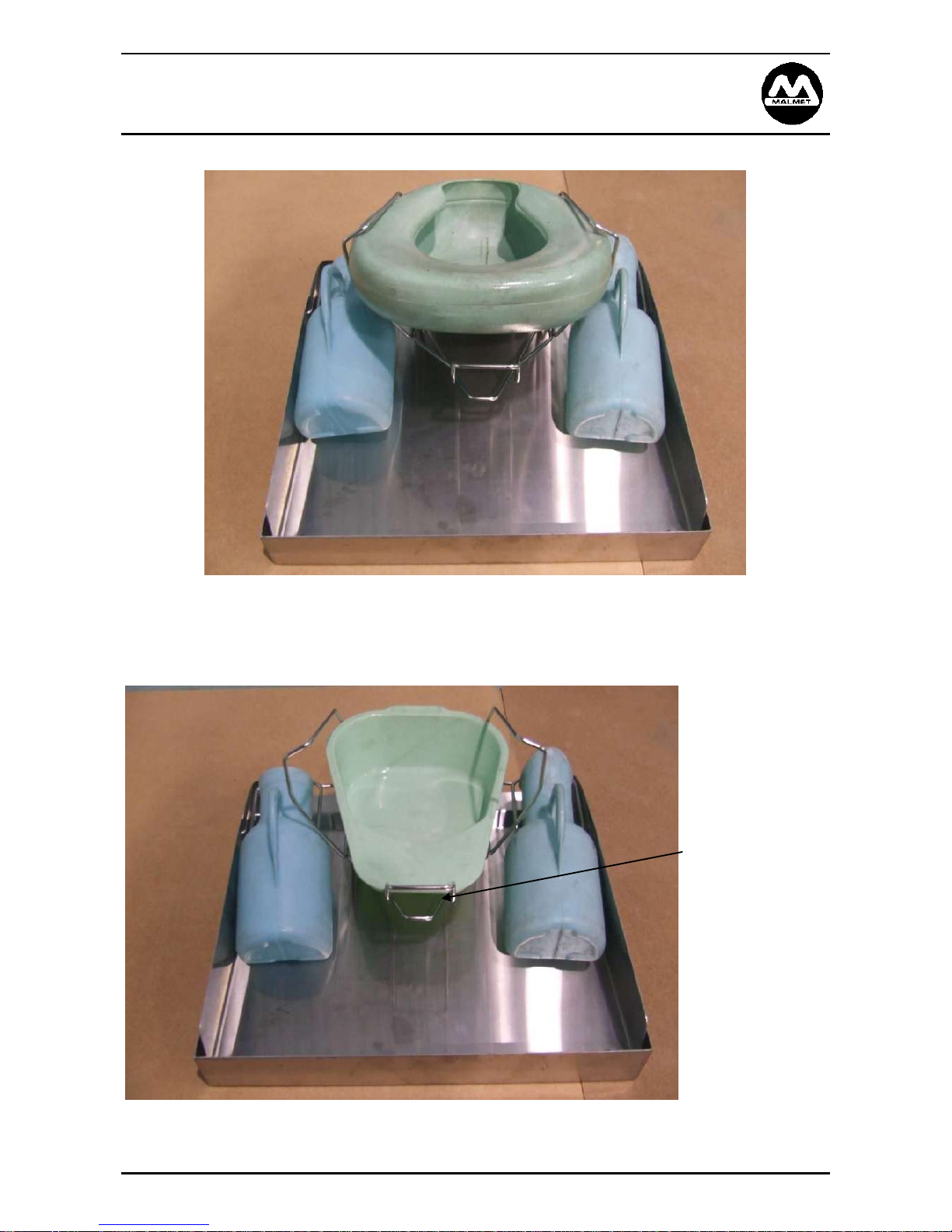

Bed Pan + Urinal Bottles

Slipper Pan + Urinal Bottles

Push down Slipper

Pan until it locks into

position

Bedpan Washer Disinfector - Energy Saver

Detergent Model With Hands Free Operation

Operation, Maintenance and Installation Manual

Issue 21 Page 10 14 September 2017

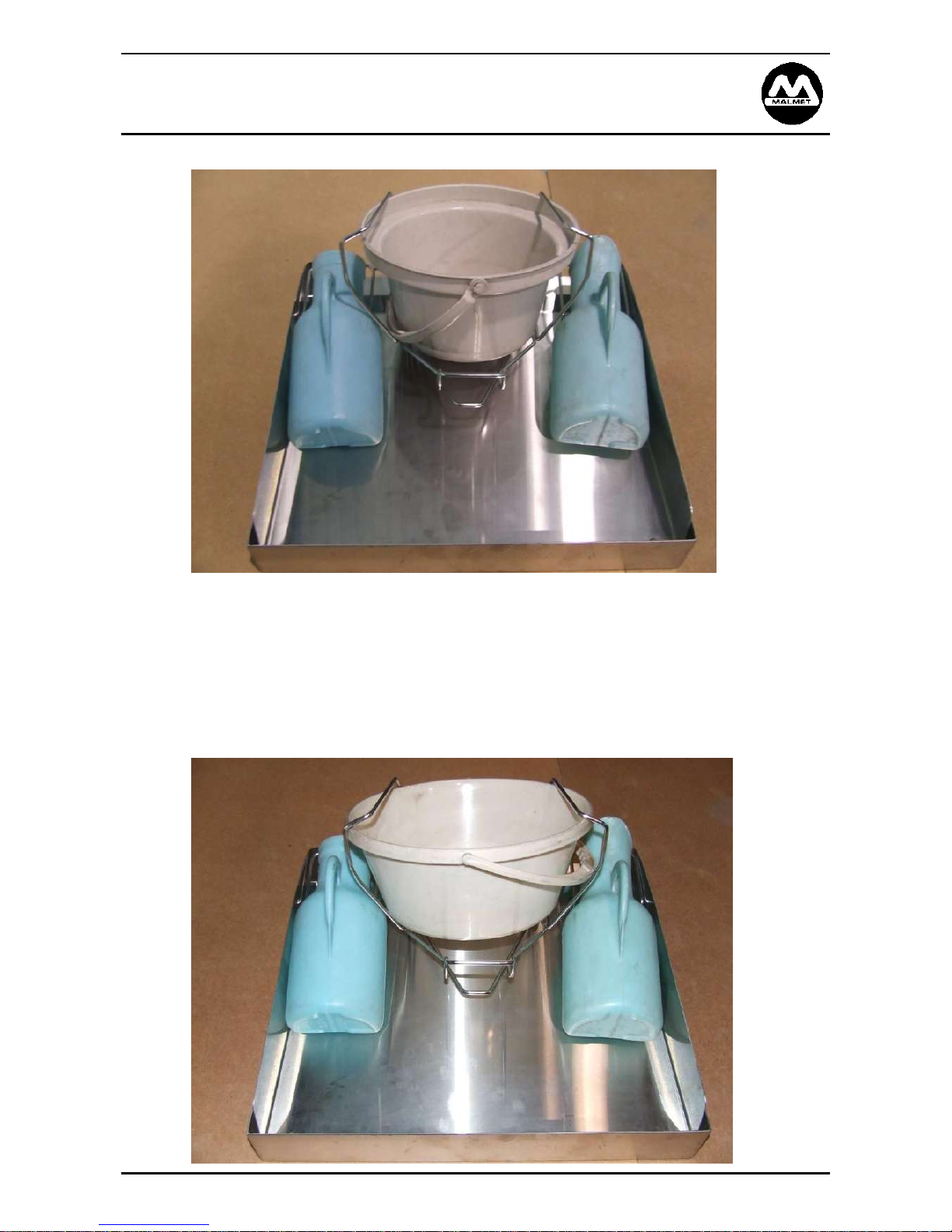

Standard Commode Bowl + Urinal Bottles

Large Commode Bowl + Urinal Bottles
