MasterChef G49201 Bedienungsanleitung

DISCOVER 4-BURNER

PROPANE BARBECUE

Assembly Manual

085-0204-4 / G49201

1 YEAR LIMITED WARRANTY

CSA/ANSI Z21.58-2022 / CSA 1.6-2022

CSA/ANSI Z21.58-2022 / CSA 1.6-2022 CSA/ANSI Z21.58-2022 / CSA 1.6-2022

CSA/ANSI Z21.58-2022 / CSA 1.6-2022

READ AND SAVE MANUAL FOR FUTURE REFERENCE.

Assemble your grill immediately.

Missing or damaged parts claims must be submitted within 30 days of purchase date.

For product inquiries, parts, warranty and troubleshooting support,

please call 1-855-453-2150.

Manual Revision #: 2023.11.03 MK

Master No. 211648

DANGER

1. If you smell gas:

a. Shut o gas to the appliance.

b. Extinguish any open ame.

c. Open lid.

d. If odour continues, keep

away from the appliance and

immediately call your gas

supplier or your re department.

2. Requires two people to complete

the assembly process.

3. Beware of sharp edges.

WARNING

Failure to follow all of the

manufacturer’ s instructions could result

in hazardous res, explosions, property

damage, serious personal injury or even

death.

Follow all leak check procedures carefully

prior to operation of barbecue, even if grill

was dealer assembled. Do not try to light

this barbecue without reading the Lighting

Instructions section of this manual.

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES.

CAUTION

Read and follow all safety statements,

assembly instructions, use and care

directions before attempting to

assemble and cook.

WARNING

1. Do not store or use gasoline

or other ammable liquids or

vapours in the vicinity of this or

any other appliance.

2. An LP cylinder not connected

for use must not be stored in

the vicinity of this or any other

appliance.

WARNING

IN DIRECT SUNLIGHT, AND IN

OPERATION, YOUR BARBECUE’S

STAINLESS STEEL AND PAINTED STEEL

PARTS CAN BECOME VERY HOT.

CAUTION

Sharp edges. Wear gloves when assembling

your grill.

THIS BARBECUE IS FOR OUTDOOR USE ONLY.

CONTACT CALL CENTRE IF ANY PARTS ARE MISSING.

1-855-453-2150

INSTALLER OR ASSEMBLER/CONSUMER

This manual should be kept with the

barbecue at all times.

HEAVY ARTICLE: NEEDS 2 TO LIFT

To order non-warranty replacement parts or accessories, or to register your warranty,

please visit us at

www.masterchefbbqs.com

HARDWARE PACK

1/4” X 18 Screw Assembly

X 2

1/4” - 20UNC X 13 Screw

X 38

NO.5 - 40 UNC X 10 Screw

X 3

φ6.5 Aluminum Washer

X 6

NO.10 - 24UNC X 13 Screw

X 6

Hitch Pin

X 2

ST4.2 X 8 Tapping Screw

X 12

Washer (Wheel)

X 2

1 3

5 6

KEY # DESCRIPTION PART NUMBER QUANTITY

1 1/4” x 18 Screw Assembly G560-3900-9091 2

2 φ6.5 Aluminum Washer G466-0042-9000 6

3 1/4 " - 20UNC X 13 Screw 20120-13013-036 38

4 NO.10 - 24UNC X 13 Screw 20124-10013-036 6

5 ST4.2 X 8 Tapping screw 24200-42008-136 12

6 NO.10 - 24UNC X 23 Screw 20124-10023-036 2

7 NO.10 - 20UNC Nut 31224-10000-036 2

8 Axle Spacer G426-0008-9088 2

9 Hitch Pin G306-0005-9088 2

10 Washer (Wheel) 40300-08000-036 2

11 NO.5 - 40 UNC X 10 Screw 20124-05010-036 3

TOOLS NEEDED FOR ASSEMBLY

• #2 Star-head screwdriver (long and short)

• ¼” Slotted screwdriver (long and short)

• Adjustable wrench

• Pliers

Caution:

Sheet metal can cause injury. Wear gloves when installing the grill.

BEFORE ASSEMBLING THIS BARBECUE, READ THE INSTRUCTIONS CAREFULLY.

Assemble the barbecue on a flat, clean surface. The grill is heavy; two people are

recommended to complete assembly.

Axle Spacer

X 2

10 11

NO.10 - 24UNC X 23 Screw

X 2

NO.10 - 20UNC Nut

X 2

PARTS LIST (PROPANE) FOR 085-0204-4 / G49201

KEY # QUANTITY DESCRIPTION PART NO.

AA 1 Top lid assembly G492-0700-01

AB 1 Thermometer G492-0013-01

AC 1 Top lid handle G492-0012-01

AD 2 Top lid handle bezel G492-0015-01

AE 4 Lid bumpers G527-0002-01

AF 2 Top lid screws G425-0006-01

BA 1 Burner box assembly G492-0300-01

BB 4 Main burner G492-0401-01

BC 1 Electrode set, main burner G492-0008-01

BD 3 Carryover assembly G428-5102-01

BE 4 Flame tamer G492-0011-01

BF 3 Cooking grate G425-0001-01

BG 1 Warming rack G425-0002-01

BH 1 Heat shield G425-5607-01

BI 1 Grease cup G430-0033-01

BJ 1 Grease cup hook G305-0043-01

CA 1 Control panel G492-0500-01

CB 4 Control knob G492-0010-01

CC 1 Ignitor G451-000D-01

CD 1 Manifold assembly G492-3300-01

CE 1 Regulator G425-5702-01

DA 1 Side shelf table, right G492-1500-01

DB 1 Side shelf support brace, right G425-5201-01

DC 1 Side shelf table, left G492-1400-01

DD 1 Side shelf support brace, left G425-5301-01

DE 3 Tool hook G429-0007-01

EA 1 Front cart leg with end cap, right G492-0003-01

EB 1 Rear cart leg with end cap, right G492-0004-01

EC 1 Lower brace, right G492-1800-01

ED 1 Tank exclusion wire, right G492-0018-01

EE 1 Front cart leg with end cap, left G492-0001-01

EF 1 Rear cart leg with end cap, left G492-0002-01

EG 1 Lower brace, left G492-1700-01

EH 2 Upper brace G492-1600-01

EI 1 Match holder G401-0079-01

EJ 1 Gas tank support G492-0017-01

EK 1 Upper back brace G492-0200-01

EL 1 Lower back brace G492-0100-01

EM 1 Upper front panel G492-0006-01

EN 1 Lower front panel G492-0005-01

EO 1 Tank exclusion wire G492-0019-01

EP 1 Bottle opener G492-0014-01

FA 2 Wheel G437-0037-01

FB 2 Wheel axle G426-0007-01

FC 2 Feet G492-0007-01

G1 1 Hardware pack G492-B001-01

G2 1 Assembly instructions G492-M001-01

G3 1 Safe use and care manual G492-M001-02

EXPLODED DIAGRAM (PROPANE) FOR 085-0204-4 / G49201

HARDWARE

PACK

G2 G3

ASSEMBLY

MANUAL

SAFETY

AND CARE

MANUAL

EE EK

EH ED

CDCE

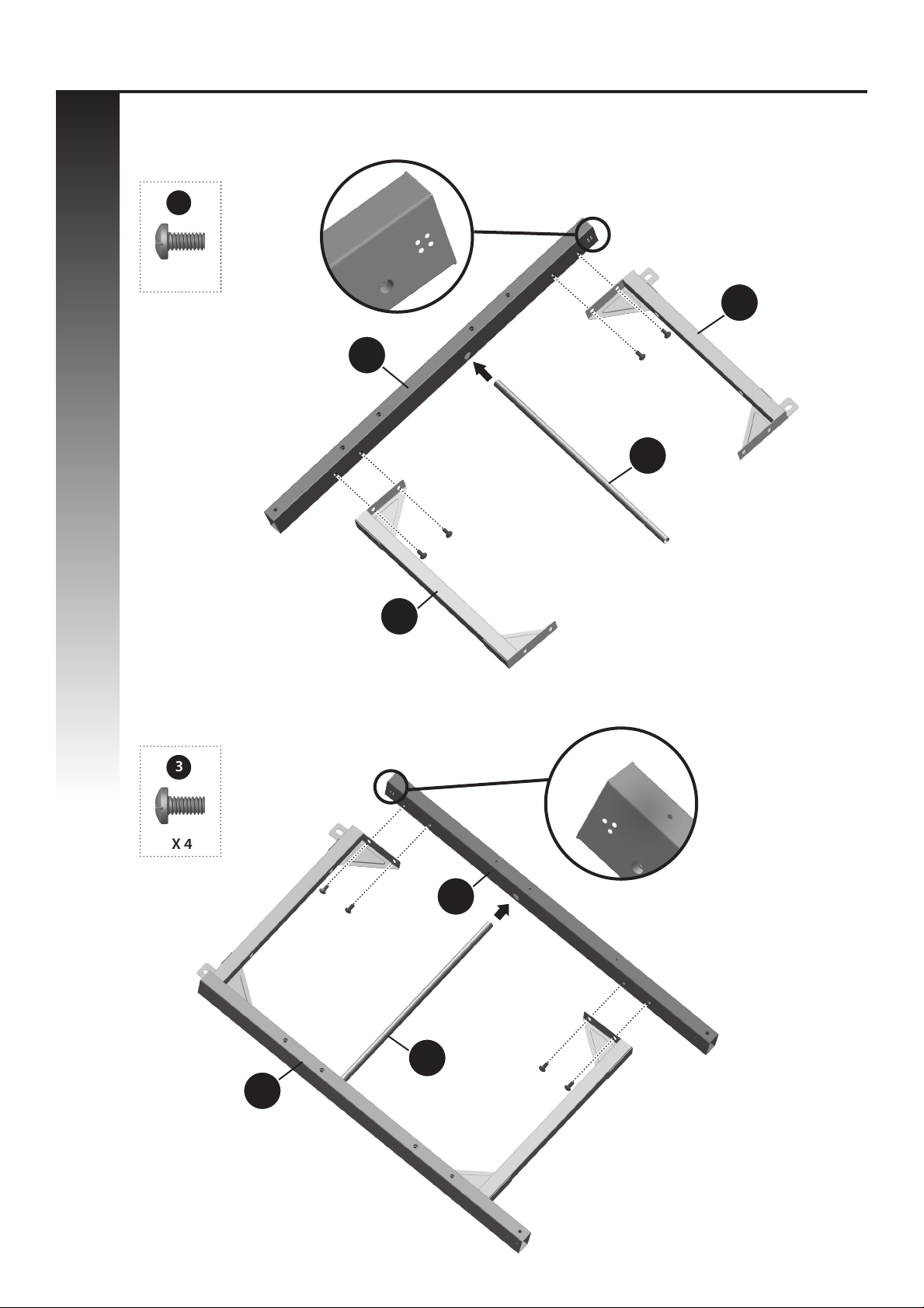

ASSEMBLY INSTRUCTIONS

YOU WILL NEED:

X 4

ATTENTION:

Part EG is used for installing

the propane tank in step 21.

YOU WILL NEED:

X 4

ASSEMBLY INSTRUCTIONS

3YOU WILL NEED:

X 8

✔✖

ASSEMBLY INSTRUCTIONS

ATTENTION: DO NOT TIGHTEN SCREWS.

EA EE

ATTENTION: TIGHTEN ALL SCREWS.

ASSEMBLY INSTRUCTIONS

YOU WILL NEED:

X 4

ATTENTION: TIGHTEN ALL SCREWS.
