Maytag MBL1956KES5 Fehlerbehebungshandbuch

CABINET PARTS

For Models: MBL1956KES5, MBR1956KES5

(Stainless−LH) (Stainless−RH)

10−09 Litho In U.S.A. (mat)(bay) Part No. W10300584 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: MBL1956KES5, MBR1956KES5

(Stainless−LH) (Stainless−RH)

W10300584

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10175446

Use & Care Guide

W10183293

Energy Guide

W10279329

Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Plug, Button (3)

M0310731 Black

4 B5759655 Gasket

W10208592

Guard, Water Valve

W10141622

Foot, Brake

7 10351006 Pin, Center Hinge

W10216614

Sweep, Water Valve

9 12992602 Screw

10 Cover, Hinge

12477601B

Black

11 12990101 Screw

12 12990521 Screw

13 12726003 Cover, Water Line

14 12992403 Screw (3)

15 Hinge, Center

12607104ED

Black

12566604ED

Hinge, Top

17 Cover, Corner

12587703B

Black

19 Roller Assembly

W10275850

Left

W10275849

Right

20 12991302 Screw (4)

W10210978

Cover, Unit

22 Grille, Toe

W10236650

Black

M0114003SP

Clip, Speed

W10210987

Tube, Drain

25 12990511 Screw

26 12820505 Fiber, Acoustic

10463203SP

Elbow, Fill Tube

30 12990504 Screw

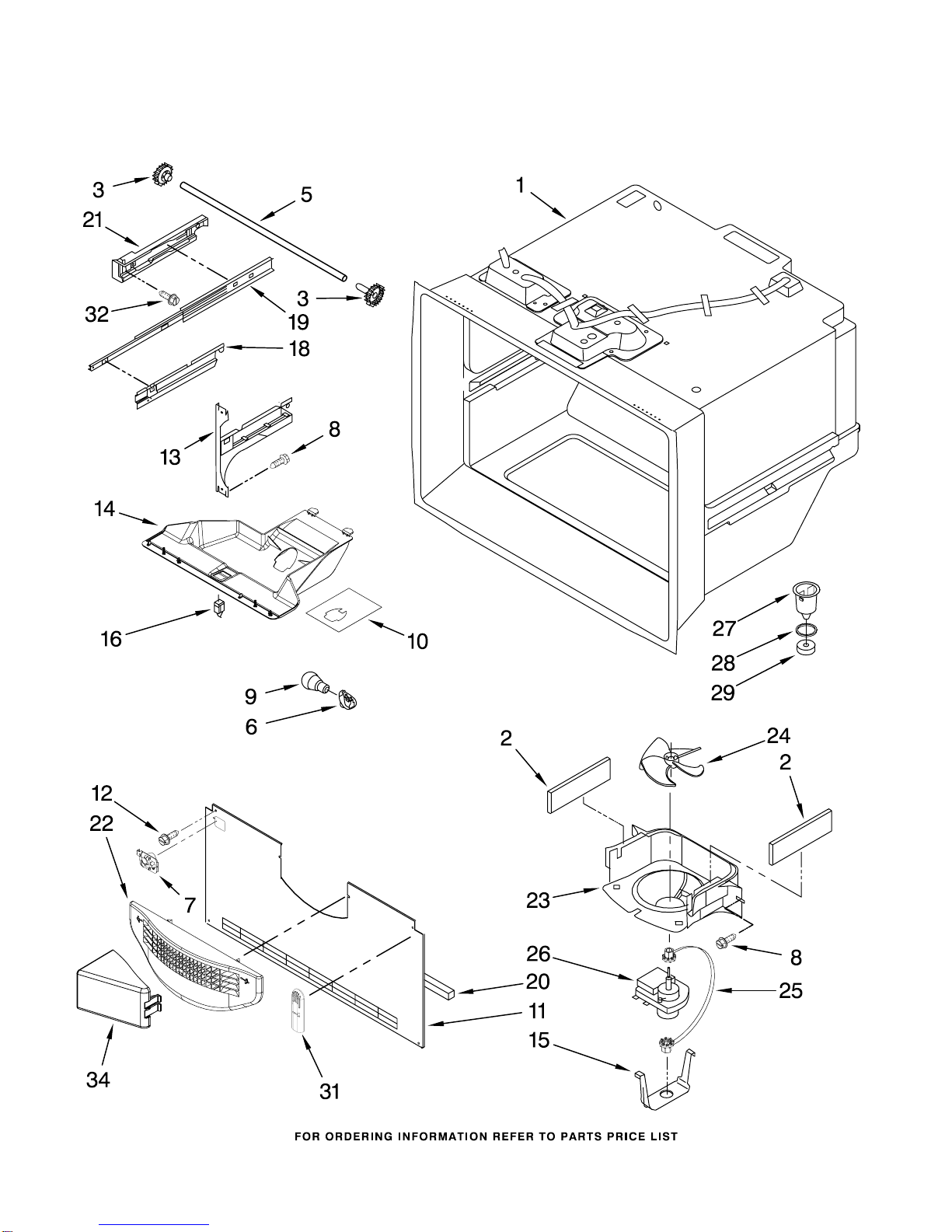

FREEZER LINER PARTS

For Models: MBL1956KES5, MBR1956KES5

(Stainless−LH) (Stainless−RH)

W10300584

FREEZER LINER PARTS

For Models: MBL1956KES5, MBR1956KES5

(Stainless−LH) (Stainless−RH)

W10300584

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 A3189392 Gasket, Foam (2)

3 12002497 Gear (2)

(Includes RH & LH)

12812901WD

Shaft

12570701V

Socket, Light

7 12932103 Guide−Fill Tube

8 12990521 Screw (8)

W10194422V

Bulb, Light

W10277466

Housing, Frz. Light

11 12226110 Cover, Evaporator

12 12990101 Screw (7)

13 Bracket, Door

W10122147

Left

W10122148

Right

W10277025

Housing, Lighting

15 13058002 Clip, Evap. Motor

16 12466105 Switch, Light

18 Cradle, Basket

W10280608

Left

W10280613

Right

W10120018

Slide, Drawer (2)

20 A3189397 Gasket, Bottom

21 Adapter, Slide

W10284680

Left

W10284681

Right

22 13024803 Cover, Fan Shroud

23 13057901 Shroud, Evap.Fan

24 2169142 Fan, Evaporator

W10121318

Grommet (2)

W10128551

Motor, Evaporator

27 D7753903 Funnel, Drain

(Incl. # 28 & 29)

28 M0500703 Seal

29 B8381501 Gasket

31 12815301 Cover, Thermistor

32 12990501 Screw (6)

W10157765

Diverter, Air

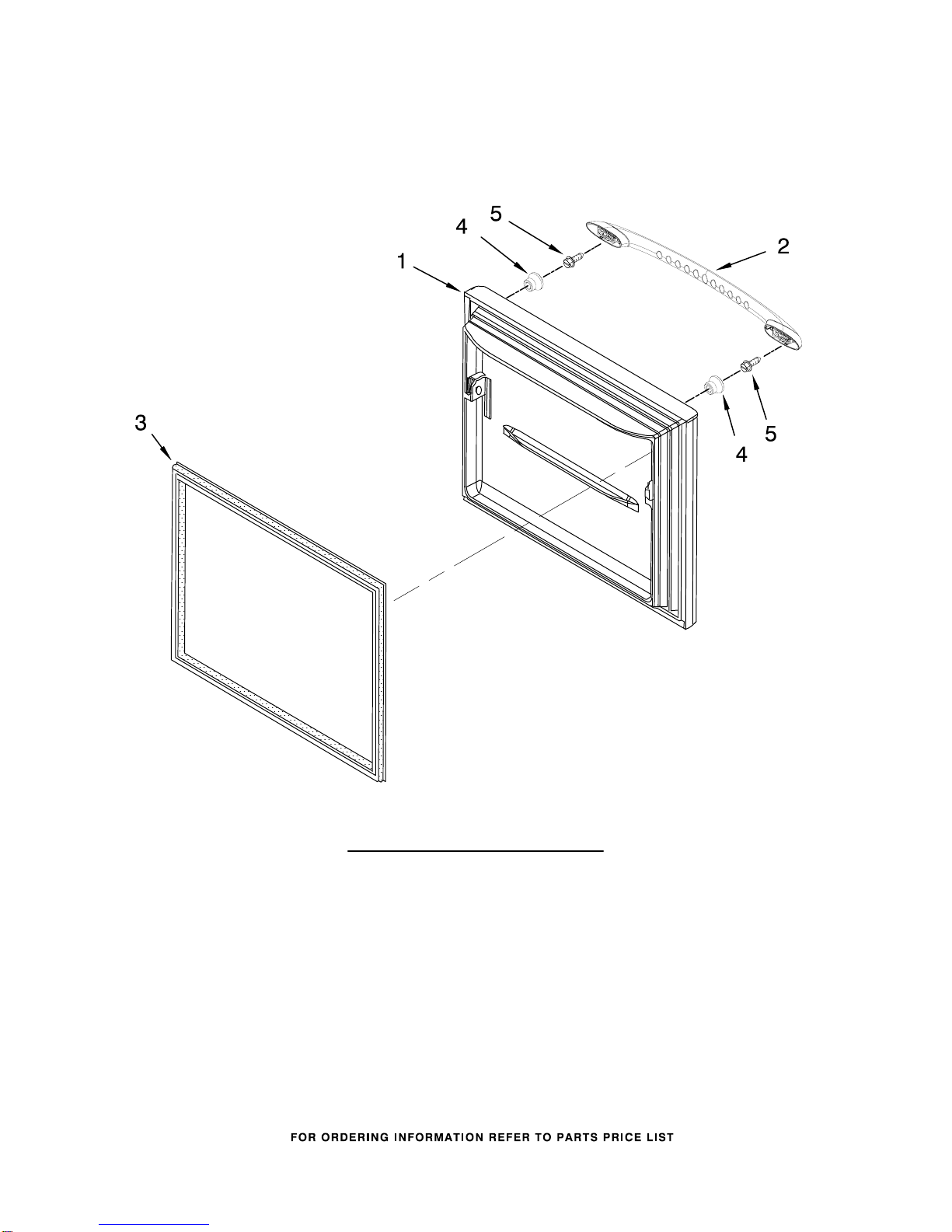

FREEZER DOOR PARTS

For Models: MBL1956KES5, MBR1956KES5

(Stainless−LH) (Stainless−RH)

W10300584

Illus. Part

No. No. DESCRIPTION

1 Door, Freezer

13092260SQ

Stainless Steel

2 Handle, Door

W10291144

Stainless

3 Gasket, Door

W10164033

Black

4 13001201 Handle−Mount−(2)

5 12991703 Screw−Flat−(2)

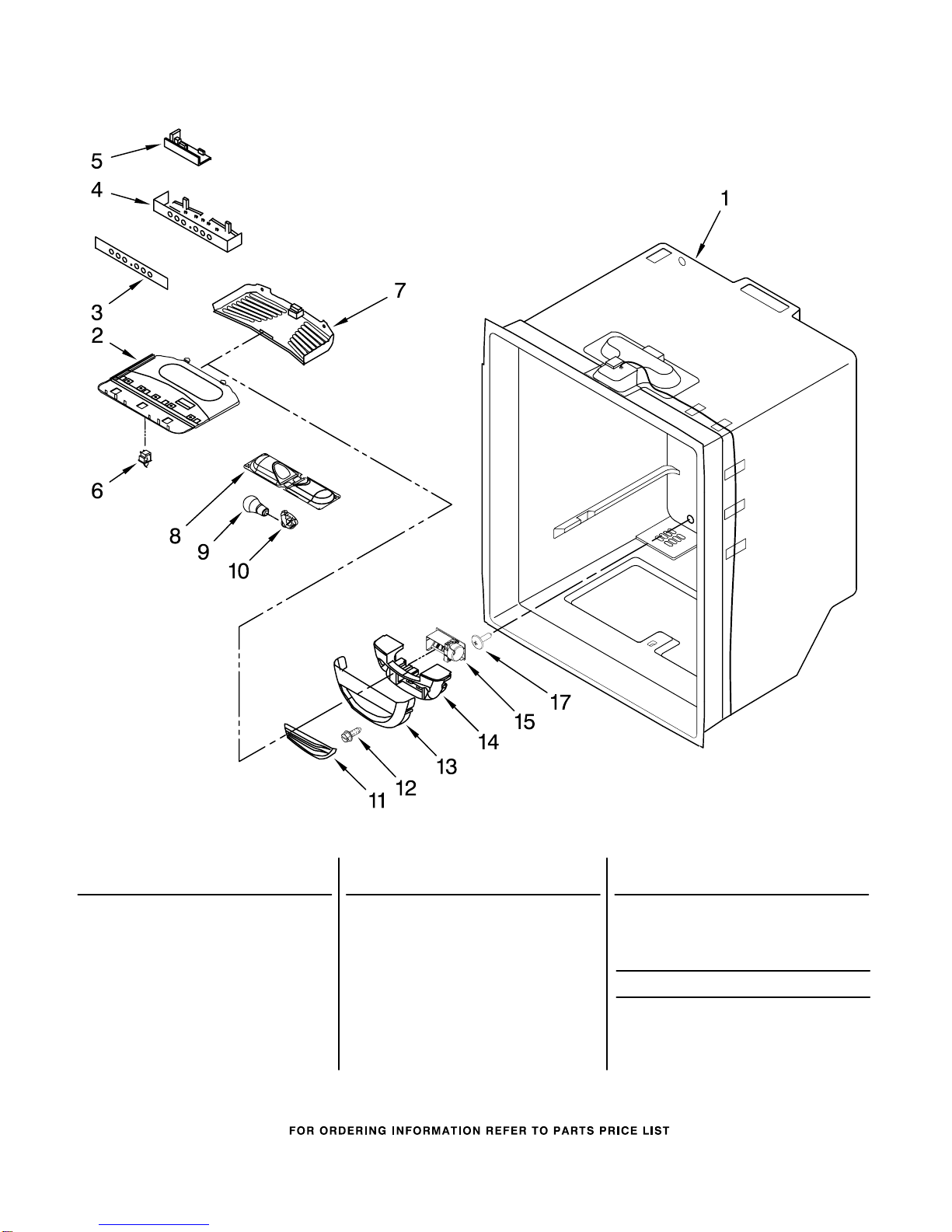

REFRIGERATOR LINER PARTS

For Models: MBL1956KES5, MBR1956KES5

(Stainless−LH) (Stainless−RH)

W10300584

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 12806301 Bracket, Control

and Lights

3 12816502 Overlay

4 12806406 Housing,

Electronic Control

5 12868513 Board, Control

C3680310V

Switch, Light

7 12806501 Cover, Light

12806601V

Housing, Light

W10194422V

Bulb, Light (2)

12570701V

Socket, Light (2)

11 12806801 Insert,

Damper Cover

12 12990604 Screw (2)

13 12806701 Cover, Damper

14 13012402 Insulation

W10196393

Control, Damper

17 M0310343 Plug Button

Following Parts Not Illustrated

12868701 Harness, Controls

(Refrigerator)

(Includes

Thermistor)

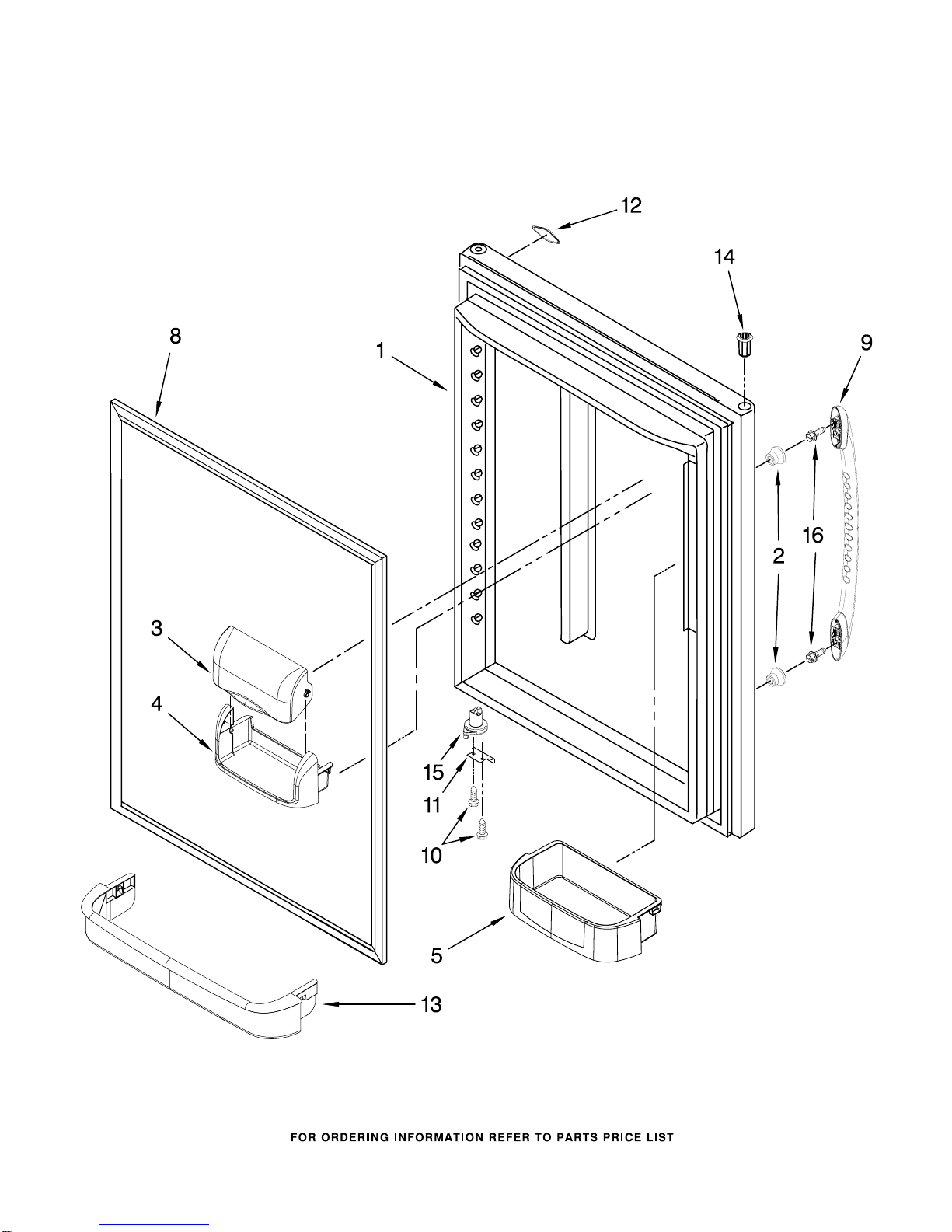

REFRIGERATOR DOOR PARTS

For Models: MBL1956KES5, MBR1956KES5

(Stainless−LH) (Stainless−RH)

W10300584

REFRIGERATOR DOOR PARTS

For Models: MBL1956KES5, MBR1956KES5

(Stainless−LH) (Stainless−RH)

W10300584

Illus. Part

No. No. DESCRIPTION

1 Door, Refrigerator

13023887SQ

Stainless Steel−LH

13023886SQ

Stainless Steel−RH

2 Screw

13001201 Handle−Mount−(2)

12804701SP

Door, Dairy

12369502SP

Tray, Dairy

12801902V

Bucket, Medium (2)

12801901V

Bucket−Small (2)

8 Gasket, Door

W10164031

Black

9 Handle, Door

W10291144

Stainless

10 12990504 Screw

11 Stop, Door

10447112 Black

W10170766

Nameplate

13 12690501 Retainer, Ref Door

14 Bushing (4)

10961006B

Black

15 Closure, Door

12028505B

Black

16 12991703 Screw−Flat−(2)

UNIT PARTS

For Models: MBL1956KES5, MBR1956KES5

(Stainless−LH) (Stainless−RH)

W10300584

UNIT PARTS

For Models: MBL1956KES5, MBR1956KES5

(Stainless−LH) (Stainless−RH)

W10300584

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 12992301 Screw

2 12825803 Blade, Fan

W10210982

Basepan

4 12990511 Screw

W10217744

Tube, Discharge

W10280423

Harness, Evap

Heater

W10296784

Pan, Drain

W10216919

Screw, Shoulder

10 12729127 Evaporator Heater

W10216075

Strap, Bale

12 Start Protect,

Combo

2320150 Production

W10136414

Service

12639324SP

Thermostat,

Defrost

W10206336

Extension, Basepan

10835903SP

Grommet (4)

W10135028

Condenser

W10206339

Fastener, Basepan

Extension

12225401WD

Tray, Drip

21 12990701 Screw

22 12726401 Evaporator

23 Dam

12225702 Right Side

12225602 Left Side

24 12825101 Motor, Fan

25 10428101 Clip, Heater

W10234024

Harness, Unit

W10143759

Drier

W10130129

Compressor Kit

(Contains Items

12, 17, 27, & 29)

29 2264017 Capacitor

30 12477202 Axle, Roller

W10189184

Shroud

34 10547003 Clip, Drier

35 12477102 Roller (2)

36 10623002 Clip, Evap (2)

W10137529

Grommet (4)

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.25 Ozs.

(R−134A)
