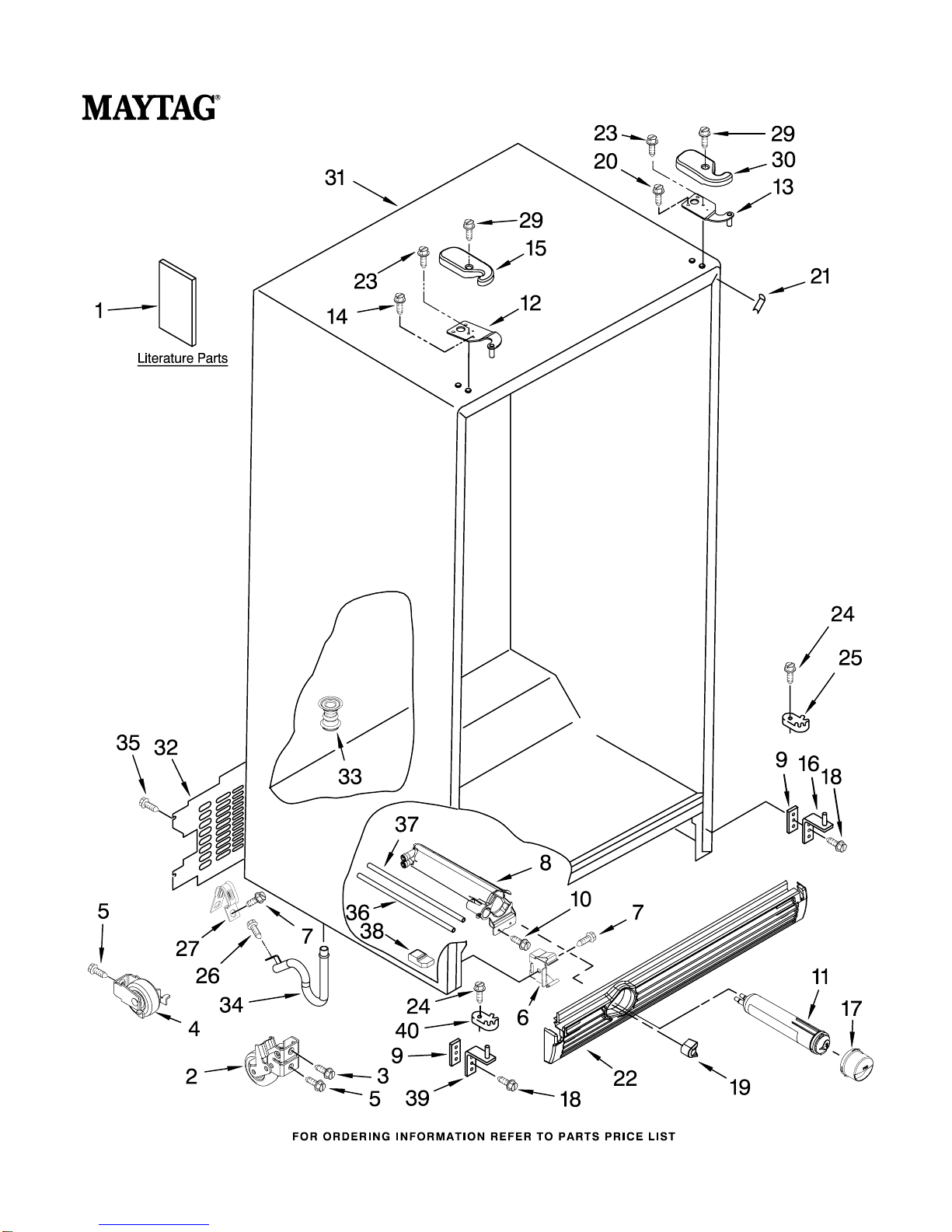

CABINET PARTS
For Models: MSD2552VEW00, MSD2552VEB00, MSD2552VEY00, MSD2552VEA00
(White) (Black) (Stainless Steel) (Monochromatic Satina)
03−09 Litho In U.S.A. (wam) (eeb) Part No. W10224246 Rev. B
REFRIGERATOR
CABINET PARTS
2
For Models: MSD2552VEW00, MSD2552VEB00, MSD2552VEY00, MSD2552VEA00
(White) (Black) (Stainless Steel) (Monochromatic Satina)
W10224246
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10159882
Use & Care Guide
W10180856
Service & Wiring
Sheet
W10172624
Energy Label
628370 Modular Icemaker
Service Sheet
W10180407
Instruction Sheet,
Door Removal
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8
W10121138
Housing, Water
Filter
9 2209697 Shim
10 489500 Screw
11 8212650 Water Filter
12 2203770 Hinge Top (FC)
13 2203771 Hinge, Top (RC)
14 3400858 Screw
15 Hinge Cover (FC)
W10138581
White
W10138582
Black
W10138584
Apollo Grey
16 2323833 Hinge Bottom (RC)
17 Cap, Water
Filter
2260502W White
2260502B Black
2260502MG
Apollo Grey
18 3400113 Screw
19 Button, Water
Filter
2260503W White
2260503B Black
2260503MG
Midnight Grey
20 3400858 Screw (2)
21 Filler, Wrapper
2201014 White
2201017 Black
2254507 Apollo Grey
22 Grille
2323580W White
2323580B Black
2323580MG
Midnight Grey
23 489497 Screw
24 489483 Screw
25 2155311 Door Closer (RC)
Lower Cam
26 489084 Screw
27 549193 Clamp, Service
Cord
29 8281227 Screw
30 Hinge Cover,
W10138576
White
W10138577
Black
W10138579
Apollo Grey
31 Cabinet (Not A
Serviceable Part)
32 2188735 Cover, Unit
33 2304888 Drain Fitting
34 2304937 Extension Tube
35 489464 Screw
36 2255012 Tube, Filter
Outlet
37 2319867 Tube, Filter
Inlet
38 2260519 Block, Housing
Support
39 2323833 Hinge Bottom (FC)
40 2223751 Door Closer (FC)
2223751 Lower Cam

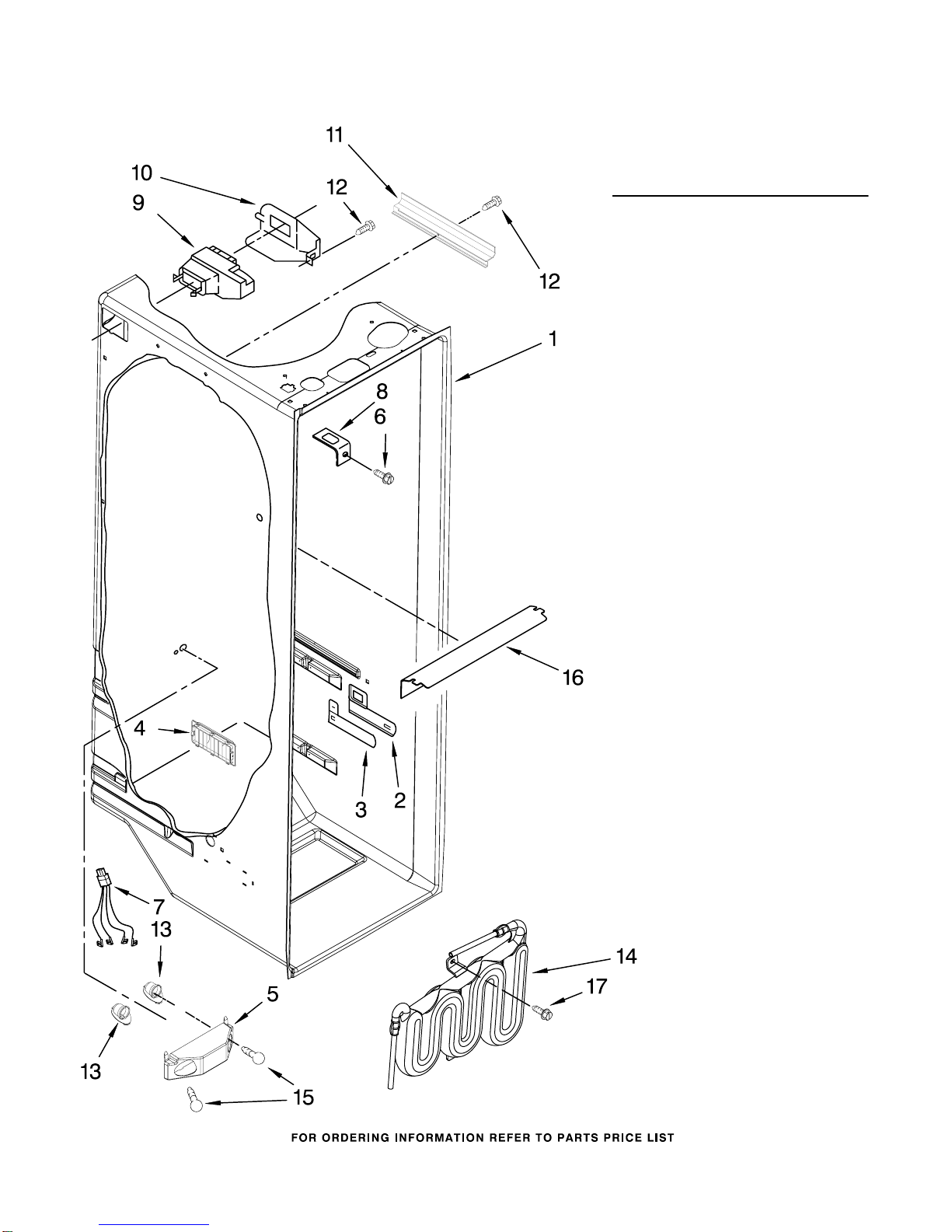

REFRIGERATOR LINER PARTS
3
For Models: MSD2552VEW00, MSD2552VEB00, MSD2552VEY00, MSD2552VEA00
(White) (Black) (Stainless Steel) (Monochromatic Satina)
W10224246
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2
W10175967
Escutcheon, Meat
Pan Control
3 2182757 Slide, Meat
Pan Control
4 2257741 Louver
5 2256035 Bracket,
Dual Crisper
Light
6 489290 Screw (2)
7 2311637 Wire Assembly,
Crisper Light
8 2256085 Bracket Retainer
9 2209753 Air Diffuser
Assembly
10 2152019 Air Diffuser
Cover
11 2150331 Cover, Conduit
12 486298 Screw
13 2162085 Socket
14
W10204356
Reservoir
15 2311792 Light Bulb
16 2209769 Light Lens
17 488280 Screw (2)
REFRIGERATOR SHELF PARTS
4
For Models: MSD2552VEW00, MSD2552VEB00, MSD2552VEY00, MSD2552VEA00
(White) (Black) (Stainless Steel) (Monochromatic Satina)
W10224246
Illus. Part
No. No. DESCRIPTION
1 2309560 Shelf, Snack Pan
2 2179259 Glass, Cover
3 2209698 Cover, Crisper
4 2255593 Trim, Pan
5 2179259 Glass, Cover
6 2179350 Deflector
7 2255592 Trim, Meat Pan
8 2311726 Cover, Meat Pan
9 2179342 Slide, Humidity
(Control)
10 2188652 Crisper Pan
11 2188654 Meat Pan
12 2196485 Stud Assembly
13 2309519 Trim, Snack Pan
14 2179343 Housing, Humidity
(Control)
15 3400894 Screw
16 2196483 Stud Assembly
17 2309518 Snack Bin
18 8281158 Screw
19 2309524 Shelf Assembly
Spillguard
5
FREEZER LINER PARTS
For Models: MSD2552VEW00, MSD2552VEB00, MSD2552VEY00, MSD2552VEA00
(White) (Black) (Stainless Steel) (Monochromatic Satina)
W10224246
6
FREEZER LINER PARTS
For Models: MSD2552VEW00, MSD2552VEB00, MSD2552VEY00, MSD2552VEA00
(White) (Black) (Stainless Steel) (Monochromatic Satina)
W10224246
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2171713 Door, Ice
Compartment
3 842534 Clip, Air Duct (2)
4 2196206 Support, Stud (4)
5 2309597 Shelf, Wire
6 2309596 Shelf, Wire
7 2309757 Basket, Freezer
8
W10130299
Cup, Shelf Mount
9 2309522 Shelf, Wire
10 1115373 Switch, Rocker Arm
11 8281158 Screw
12 2196483 Stud Assembly
13 2171714 Shelf, Top
Compartment
14 2171705 Light Lens
15 2311792 Light Bulb
16 2162085 Light Socket
17 2196207 Stud, Rear
18 Slide, Container
1119237 Left Side
1119293 Right Side
19 489100 Screw
20 3400893 Screw

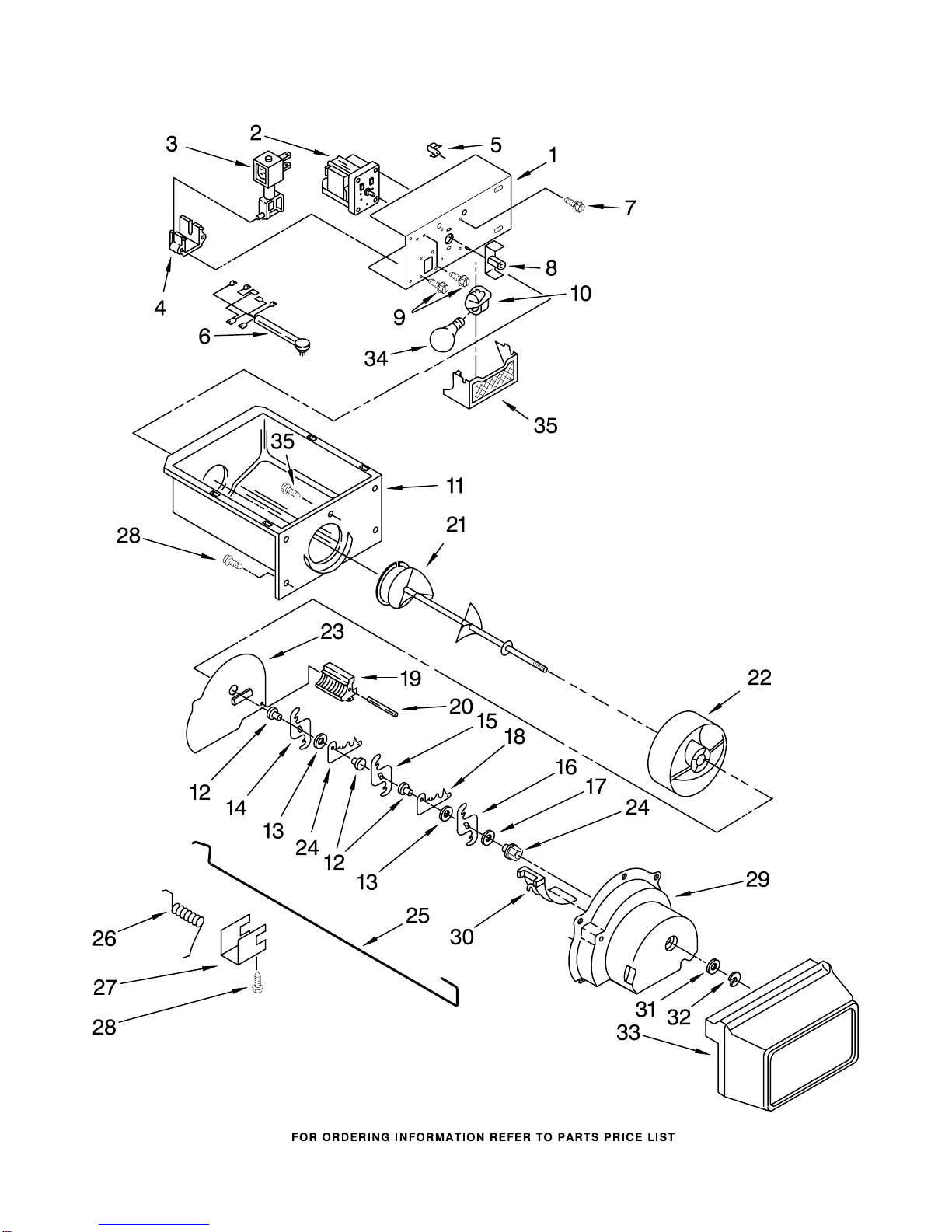

MOTOR AND ICE CONTAINER PARTS
7
For Models: MSD2552VEW00, MSD2552VEB00, MSD2552VEY00, MSD2552VEA00
(White) (Black) (Stainless Steel) (Monochromatic Satina)
W10224246
MOTOR AND ICE CONTAINER PARTS
8
For Models: MSD2552VEW00, MSD2552VEB00, MSD2552VEY00, MSD2552VEA00
(White) (Black) (Stainless Steel) (Monochromatic Satina)
W10224246
Illus. Part
No. No. DESCRIPTION
1 2254587 Bracket, Motor
2
W10181208
Motor, Dispenser
3 2152713 Soleniod Assembly
4 2149100 Guide, Solenoid
5 1115374 Clip, Wiring
6 2325303 Wiring Assembly,
Ice Dispenser
7 489399 Screw
8
W10140958
Coupling, Motor
9 489478 Screw
10 2162085 Socket, Light
11 2196091 Ice Container
12 1119005 Spacer, Step (3)
13 1119007 Spacer, Flat (2)
14 2257022 Blade, Rotary
15 2257023 Blade, Rotary
16 2257024 Blade, Rotary
17 489235 Washer, Plain
18 1119009 Blade, Fixed (2)
19 2157405 Block, Blade
20 489229 Roll Pin
21 2196295 Auger
22 2305377 Drum
23 2171682 Floating Baffle
24 1119018 Nut, Bearing
25 2155231 Control Arm
26 1119020 Spring, Return
27 1119021 Retainer Clip, Rod
28 488886 Screw
29 2180348 Housing, Crusher
30 1119017 Deflector, Ice
31 489234 Washer, Plain
32 489236 Retainer Ring
33 2204321 Front Cover,
Ice Container
34 2311792 Light Bulb
35 2171706 Light Lens,
Dispenser
100
W10192856
Ice Container
(Complete)

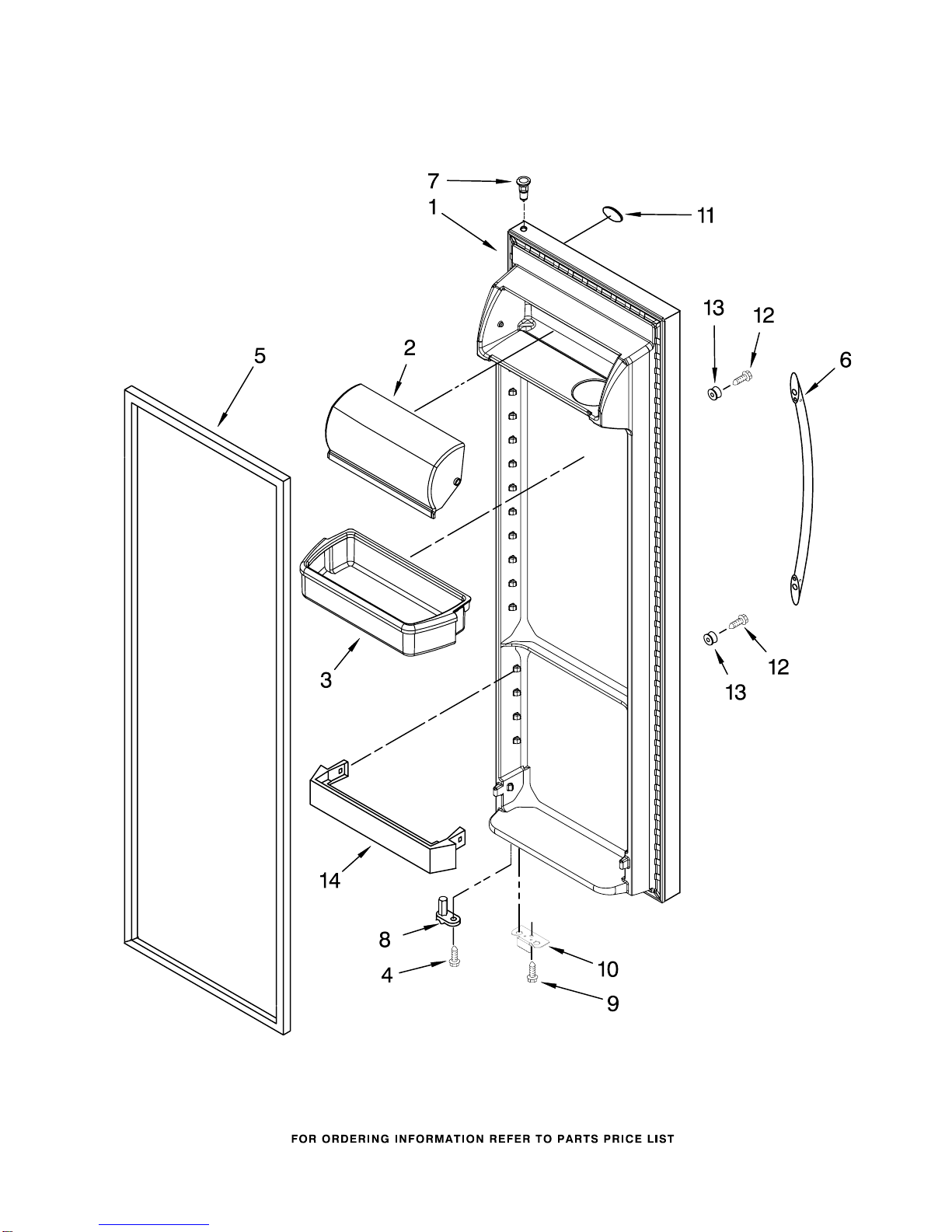

REFRIGERATOR DOOR PARTS
9
For Models: MSD2552VEW00, MSD2552VEB00, MSD2552VEY00, MSD2552VEA00
(White) (Black) (Stainless Steel) (Monochromatic Satina)
W10224246
REFRIGERATOR DOOR PARTS
10
For Models: MSD2552VEW00, MSD2552VEB00, MSD2552VEY00, MSD2552VEA00
(White) (Black) (Stainless Steel) (Monochromatic Satina)
W10224246
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item 5)
W10172362
White
W10172363
Black
W10172369
Stainless Steel
W10172476
Monochromatic
2 2256101 Door, Compartment
3 2304235 Door Bin (3)
4 3400012 Screw
5 Door Gasket,
Magnetic
2309528 Mist Beige
2309529 Black
2327163 Apollo Grey
6 Handle
67006114 White
67006115 Black
67006391 Stainless Steel
7 2308091 Thimble, Top
8 2182178 Door Closer,
Upper Cam
9 489420 Screw
10 Bracket, Door Stop
2206629 Chrome
2206629B Black
11 2324038 Nameplate
12 488208 Screw
13 2326259 Stud, Handle
14 2156022 Trivet, Shelf
