INSTALLATION INSTRUCTIONS FOR PART 99-5807

99-5807

KIT FEATURES

•DIN Mount Radio Provision with Pocket

•ISO Mount Radio Provision with Pocket

•Double DIN Mount Radio Provision

•Stacked ISO Units Provision

A) Radio Housing (single DIN w/ pocket) •B) Radio Housing (double DIN / stacked ISO DIN) • C) Double DIN

Brackets D) ISO Brackets E) Trim Plate

KIT COMPONENTS

TOOLS REQUIRED:

Cutting Tool • Phillips Screwdriver • Socket Set

1-800-221-0932

www.metraonline.com

FORD

Edge 2007-2008

Expedition 2007-2008

Explorer 2005-2009

F-150 2004-2008

Five-Hundred 2005-2007

Freestyle 2005-2007

Mustang 2005-2009

Sport Trac 2006-2009

Taurus/Taurus X 2008-2009

LINCOLN

Mark LT 2004-2008

MERCURY

Montego 2005-2007

Mountaineer 2005-2009

Sable 2008-2009

APPLICATIONS

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Harness:

•70-5520 - FordHarness 2003-up

•70-5521 - Ford Amplified Harness 2003-up

•70-5522 - FordSub Harness 2003-up

•XSVI-5520 NAV - Ford Interface 2006-up

Antenna Adapter:

•40-CR10 - Chrysler/GM Antenna Adapter 2002-up

TABLE OF CONTENTS

99-5807

*Note:

Refer also to the instructions included with the aftermarket radio.

NOWLEDGE IS

OWER

Enhanceyour installation and fabrication skillsby

enrolling in the most recognizedandrespected

mobile electronics school in our industry.

Log onto www.installerinstitute.comor call

800-354-6782 for more informationandtake steps

toward abetter tomorrow.

Dash Disassembly

FORD

Edge2007-2008.....................................

Expedition2007-2008................................

Explorer2005-2009 ..............................

. . . 1

F-1502004-2008..............................

. . . . . 2

Five Hundred 2005-2007 . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . 3

Freestyle2005-2007............................

. . . . . 4

Mustang2005-2009............................

. . . . . 5

Sport Trac 2006-2009 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Taurus 2008-2009 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

-Taurus X 2008-2009 . . . . . . . . . . . . . . . . . . . . . . . . .

......4

Lincoln

Mark LT2004-2008 . .......... ..................

..... 2

Mercury

-Montego 2005-2007...............................

. . 3

-Mountaineer2005-2009..............................

-Sable2008-2009....................................

Kit Assembly

-DIN Mount Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . 6

-ISO Mount Radio Provision with Pocket .. . . . . . . . . . . . . . . . . . . . . . . 7

-Double DIN Radio Provision . . . . . . . . ........................ 8

-Stacked ISO Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Final Assembly ..........................................10

99-5807 DASH DISASSEMBLY

Remove dash panel surrounding radio

to access the factoryradio screws.

(

Figure B)

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Open center console and remove (2)

Phillips screws then unclip and

remove entire panel surrounding

shifter. (

Figure A)

Remove (4) 9/32” screws to remove

the factoryradio.

(Figure C)

FORD EXPLORER 2005-2009/SPORT TRAC2006-2009

MERCURYMOUNTAINEER 2005-2009

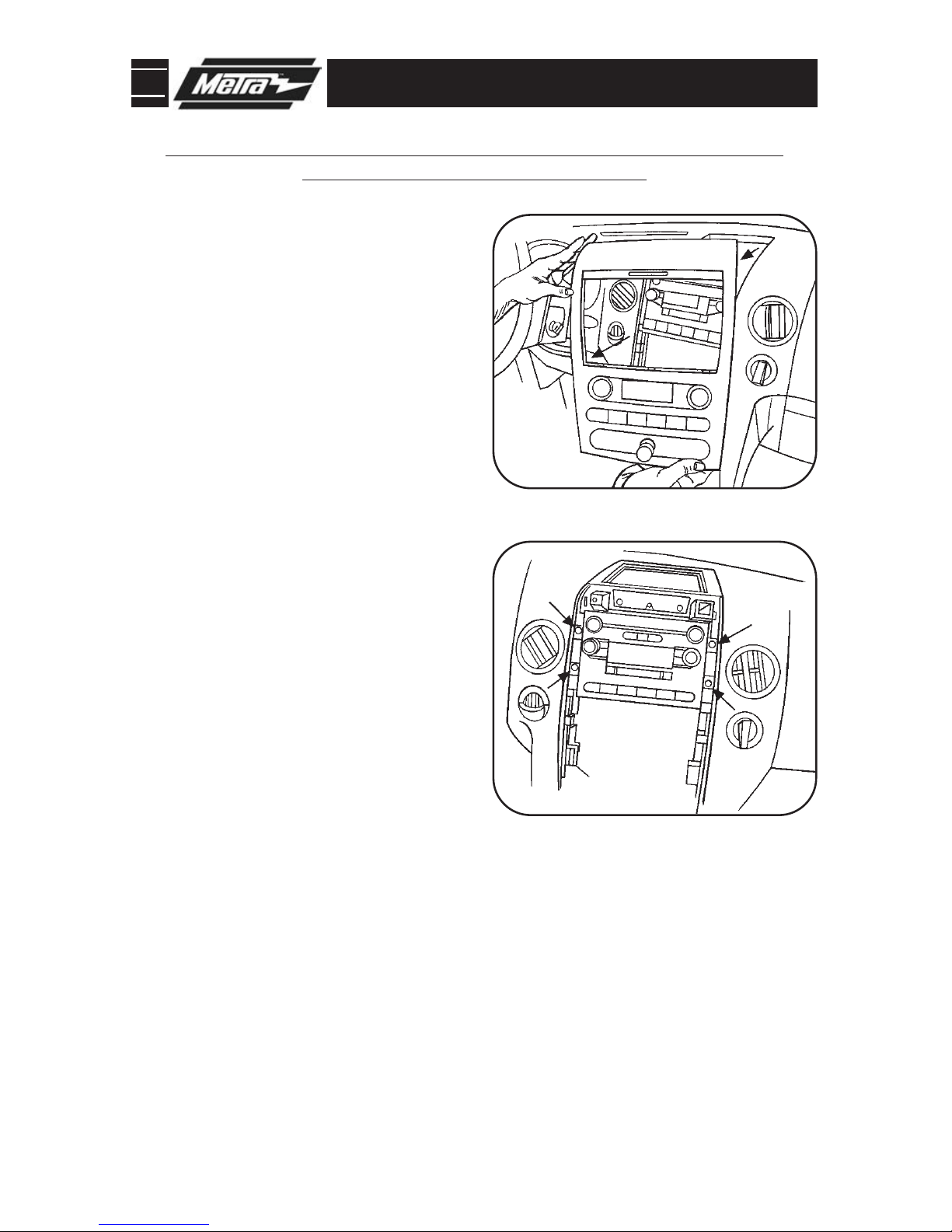

99-5807 DASH DISASSEMBLY

Unsnap and remove entire panel sur-

rounding the radio and climate con-

trols. (

Figure A)

Remove (4) 9/32” screws to remove

the factory radio.

(Figure B)

Continue to kit assembly.

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

FORD EDGE/EXPEDITION 2007-2008/F-150 2004-2008

LINCOLN MARK LT2004-2008

99-5807 DASH DISASSEMBLY

Unclip and remove the small rectangu-

lar trim around shift lever. (

Figure A)

Unclip and remove the entire panel

(including cup holders) surrounding

the shift lever.

(Figure B)

Remove (2) 9/32” screws at the bot-

tom of the center radio/ climate con-

trol panel.

(Figure C)

Unclip and remove the center panel.

(Figure D)

Remove (4) 9/32” screws from the

radio to remove.

Continue to kit assembly.

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

FORD FIVE HUNDRED 2005-2007/TAURUS 2008-09

MERCURYMONTEGO 2005-2007/SABLE 2008-09

99-5807 KIT ASSEMBLY

Disconnect the negative battery termi-

nal to prevent an accidental short cir-

cuit.

Unclip and remove the entire center

panel surrounding the radio and a/c

controls. (

Figure A)

Remove (4) 9/32” screws from radio to

remove.

(

Figure B)

Continue to final assembly.

Note: Refer also to the instructions included with the aftermarket radio.

FORD FIVE HUNDRED 2005-2007/TAURUS 2008-09

MERCURYMONTEGO 2005-2007/SABLE 2008-09

99-5807 DASH DISASSEMBLY

FORD MUSTANG 2005-2009

Remove the small rectangular shifter

lever trim panel if equipped. (

Figure A)

Unclip and remove panel. (

Figure B)4

Unclip and remove panel. (

Figure E)7

Remove (6) 9/32” screws from center

trim panel surrounding the radio and

climate controls then unclip and

remove panel. (

Figure D)

Unclip and remove the (2) center stack

trim panels from the left and right side

of the radio and climate controls.

(

Figure C)

Remove (2) Phillips screws from

under the center armrest at the back

of the shifter trim panel (including

cup holders).

(Figure B)

Continue to kit assembly.

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

99-5807 KIT ASSEMBLY

DIN RADIO PROVISION WITH POCKET

Slide the DIN cage into the Radio

Housing and secure by bending the

metal locking tabs down.

(Figure A)

Slide the aftermarket head unit into the

cage and secure.

(Figure B)

Continue to final assembly.

Note: Refer also to the instructions included with the aftermarket radio.

99-5807 KIT ASSEMBLY

ISO RADIO PROVISION WITH POCKET

Mount the ISO Brackets to the head

unit with the screws supplied with

the unit.

(Figure A)

Slide the head unit into the radio

opening until the side clips engage.

(Figure B)

Snap the Trim plate into the Radio

Housing.

Continue to final assembly.

Note: Refer also to the instructions included with the aftermarket radio.

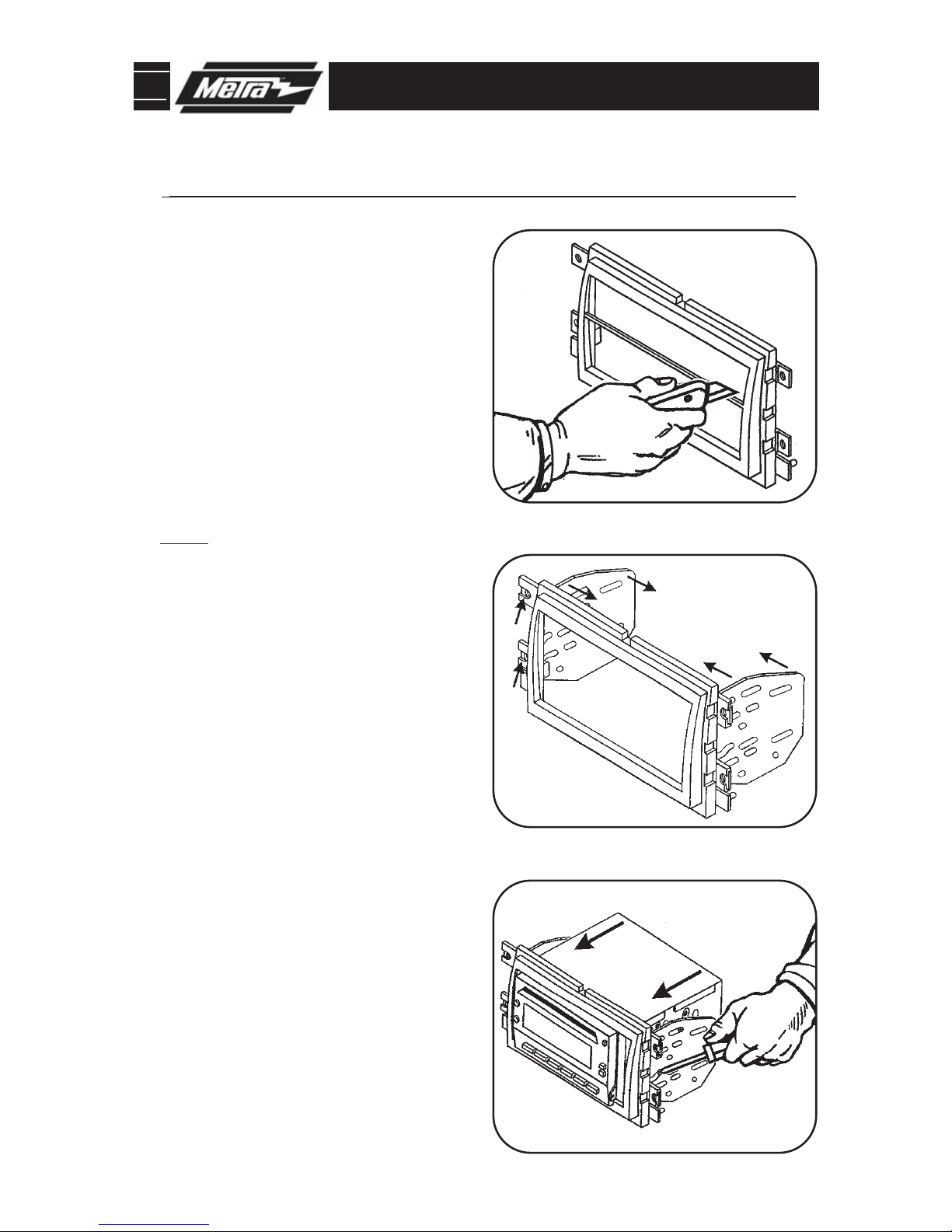

99-5807 KIT ASSEMBLY

DOUBLE DIN MOUNT RADIO PROVISION

Slide the appropriate side bracket over

the mounting legs of the Double DIN

trim plate aligning the holes in the trim

plate and the bracket.

(Figure B)

Slide the DDIN radio unit into the trim

plate bracket assembly and secure the

unit to the kit using the screws sup-

plied with the head unit.

(Figure C)

Continue to final assembly.

Note: Refer also to the instructions included with the aftermarket radio.

NOTE:

The notch in the housing should be

on top.

Remove the center bar from the

Double DIN trim plate.

(Figure A)
