Metra Electronics 99-7340B Bedienungsanleitung

APPLICATIONS

KIT FEATURES

KIT COMPONENTS

TOOLS REQUIRED

METRA. THE WORLD’S BEST KITS.™

1-800-221-0932 metraonline.com

INSTALLATION INSTRUCTIONS FOR PART 99-7340B

2011 KIA SORENTO

99-7340B

• DIN Head unit provisions with pocket

• ISO DIN Head unit provision with pocket

• Painted Matte Black to Match Factory

• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate

WIRING & ANTENNA CONNECTIONS (Sold Separately)

• 70-7303 2009-Up Kia/Hyundai Harness

• 40-KI11 2007-Up Kia Antenna Adapter

• Panel Removal Tool • Phillips Screwdriver • Socket Wrench

AB C

TABLE OF CONTENTS

DASH DISASSEMBLY

• 2011 KIA SORENTO . . . . . . . . . . . . . . . . . . . . . . 1-2

KIT ASSEMBLY

2011 KIA SORENTO

• DIN HEAD UNIT PROVISION . . . . . . . . . . . . . . . . . . 3

• ISO DIN HEAD UNIT PROVISION . . . . . . . . . . . . . . . 4

*NOTE: Refer also to the instructions included with the aftermarket radio.

CAUTION: Metra recommends disconnecting the negative battery terminal

before beginning any installation. All accessories, switches, and especially

air bag indicator lights must be plugged in before reconnecting the battery

or cycling the ignition.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP certified

technicians

INSTALLATION INSTRUCTIONS FOR PART 99-7340B

2011 KIA SORENTO

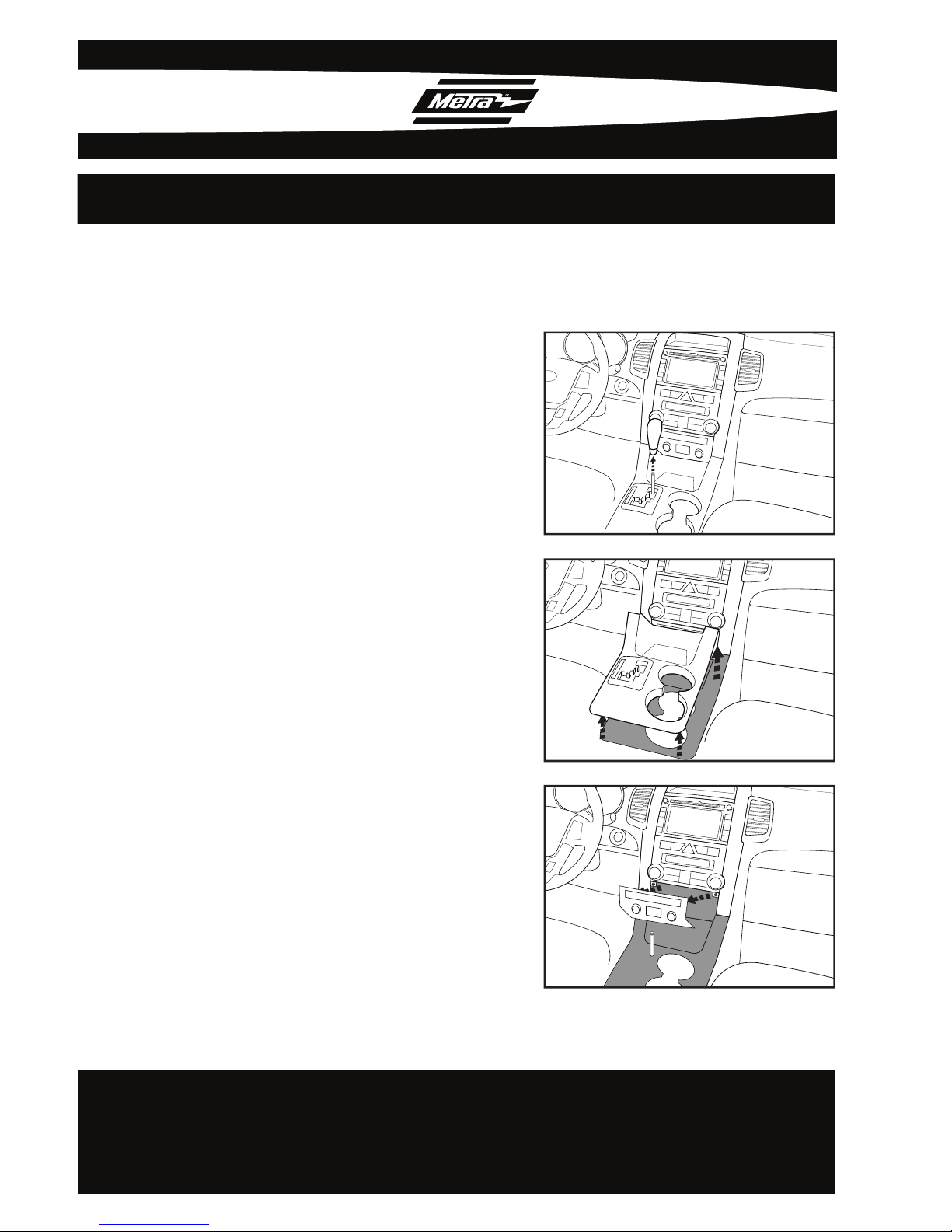

99-7340B DASH DISASSEMBLY

Remove Shifter knob. (Fig. A)

Remove the shifter surround panel.

(Fig. B)

Remove panel under the heater &

A/C controls. (Fig. C)

Continued on Pg. 2 .......................

Remove (2) Phillips screws from

bottom and remove center fascia

panel. (Fig. D)

Remove (4) Phillips screws securing

the heater & A/C controls. (Fig. E)

Remove (4) Phillips screws securing

the radio. (Fig. F)

2011 KIA SORENTO

99-7340B DASH DISASSEMBLY

Continue to kit assembly...............

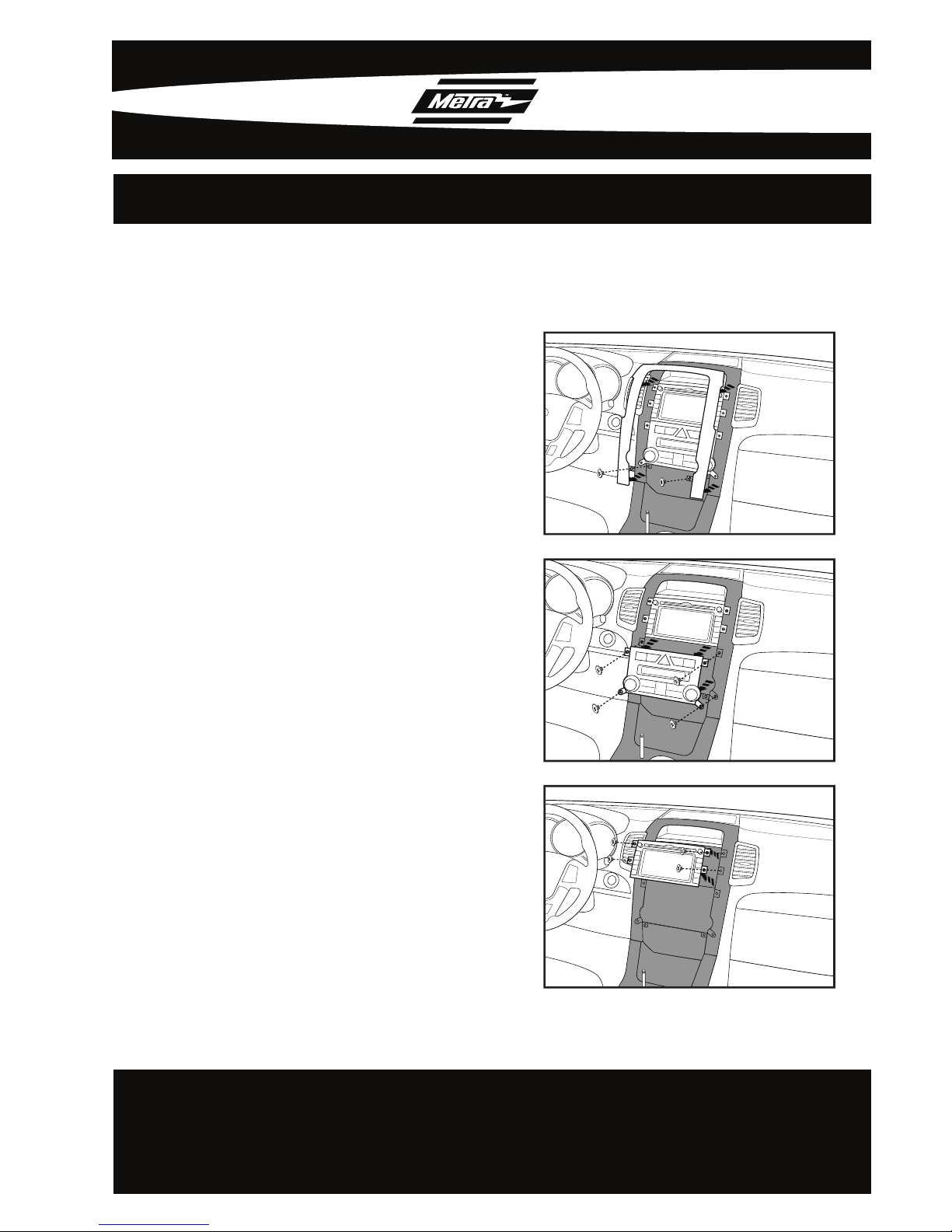

99-7340B KIT ASSEMBLY

DIN HEAD UNIT PROVISION

Slide the DIN cage into the Radio

Housing and secure by bending the

metal locking tabs down. (Fig. A)

Snap the pocket into the bottom

opening of the radio housing.

(Fig. B)

Slide the aftermarket head unit into

the cage and secure. (Fig. B)

Locate the factory wiring harness

and antenna plug in the dash. Metra

recommends using the proper

mating adapters from Metra and/or

AXXESS.

Reassemble dash in reverse order

of disassembly.

ISO DIN HEAD UNIT PROVISION

Mount the ISO Brackets to the head

unit with the screws supplied with

the unit. (Fig. A)

Slide the head unit into the radio

opening until the side clips engage.

(Fig. B)

Snap the Trim plate into the Radio

Housing. (Fig. B)

Locate the factory wiring harness

and antenna plug in the dash. Metra

recommends using the proper

mating adapters from Metra and/or

AXXESS.

Reassemble dash in reverse order

of disassembly.

99-7340B KIT ASSEMBLY

INSTALLATION INSTRUCTIONS FOR PART 99-7340B

NOTES

REV. 6/28/2010

METRA. THE WORLD’S BEST KITS.™

1-800-221-0932 metraonline.com

INSTALLATION INSTRUCTIONS FOR PART 99-7340B
