Metra Electronics 99-7300 Bedienungsanleitung

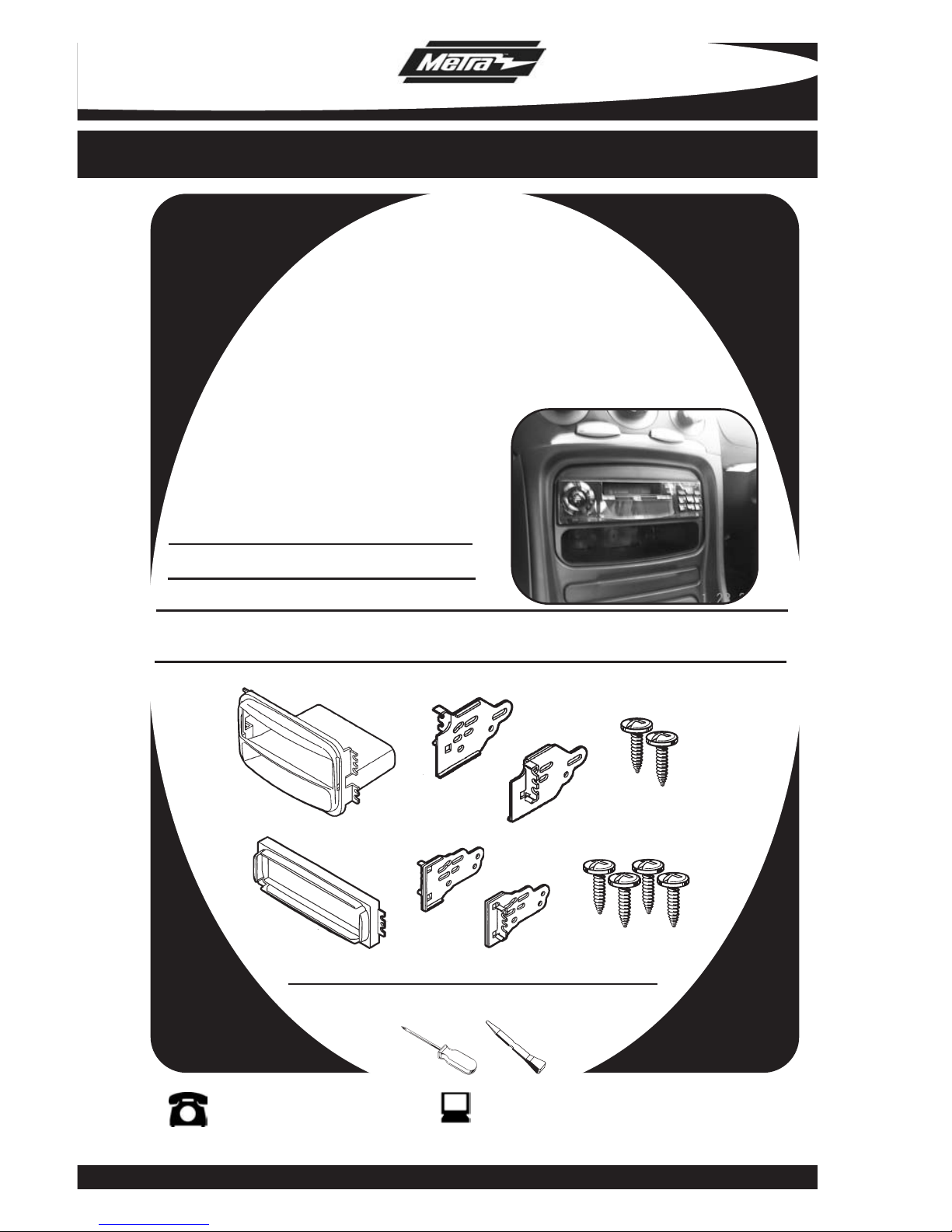

INSTALLATION INSTRUCTIONS FOR PART 99-7300

99-7300

APPLICATIONS

HYUNDAI Tiburon 1997-2002

HYUNDAI Accent 2000-2001

KIT FEATURES

•ISO Mount Radio Provision

A) Radio Housing 1 • B) Bracket Set 1 • C) (2) #10 x 3/4” Phillips Screws • D) Radio Housing 2

• E) Bracket Set 2 • F) (4) #10 x 3/4” Phillips Pan Headed Screws

KIT COMPONENTS

Phillips Screwdriver • Panel Removal Tool

1-800-221-0932

www.metraonline.com

TOOLS REQUIRED:

DEF

Dash Disassembly

HYUNDAI Tiburon 1997-2002 . . . . . . . . . . . . . . . . . . .

. . . . . . .1

HYUNDAI Accent 2000-2001 . . . . . . . . . . . . . . . . . . .

........2

Kit Assembly

-Tiburon ISO Mount Radio Provision with Pocket . . . . . . . . . . . . . . . . . .3

-Accent ISO Mount Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Final Assembly ...........................................5

TABLE OF CONTENTS

99-7300

*Note:

Refer also to the instructions included with the aftermarket radio.

99-7300 DASH DISASSEMBLY

HYUNDAI Tiburon 1997-2002

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Remove (4) Phillips screws securing

the center console. Pry out on the

front edge of the console and unclip

the radio trim bezel. Remove (4)

Phillips screws securing the factory

head unit and disconnect the wiring.

(

Figure A)

Continue to final assembly.

99-7300 DASH DISASSEMBLY

HYUNDAI Accent 2000-2001

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Open the cupholder and remove (2)

Phillips screws exposed. Lower the

glove box and detach the vent cable

exposed. Reach under the driver's

side dash and detach the vent cable

exposed. Reach under the driver's

side dash and detach (2) vent cables

located above the accelerator. Unclip

the dash trim bezel and remove.

Remove (4) screws securing the fac-

toryhead unit and disconnect the

wiring.

(Figure A)

Continue to final assembly.

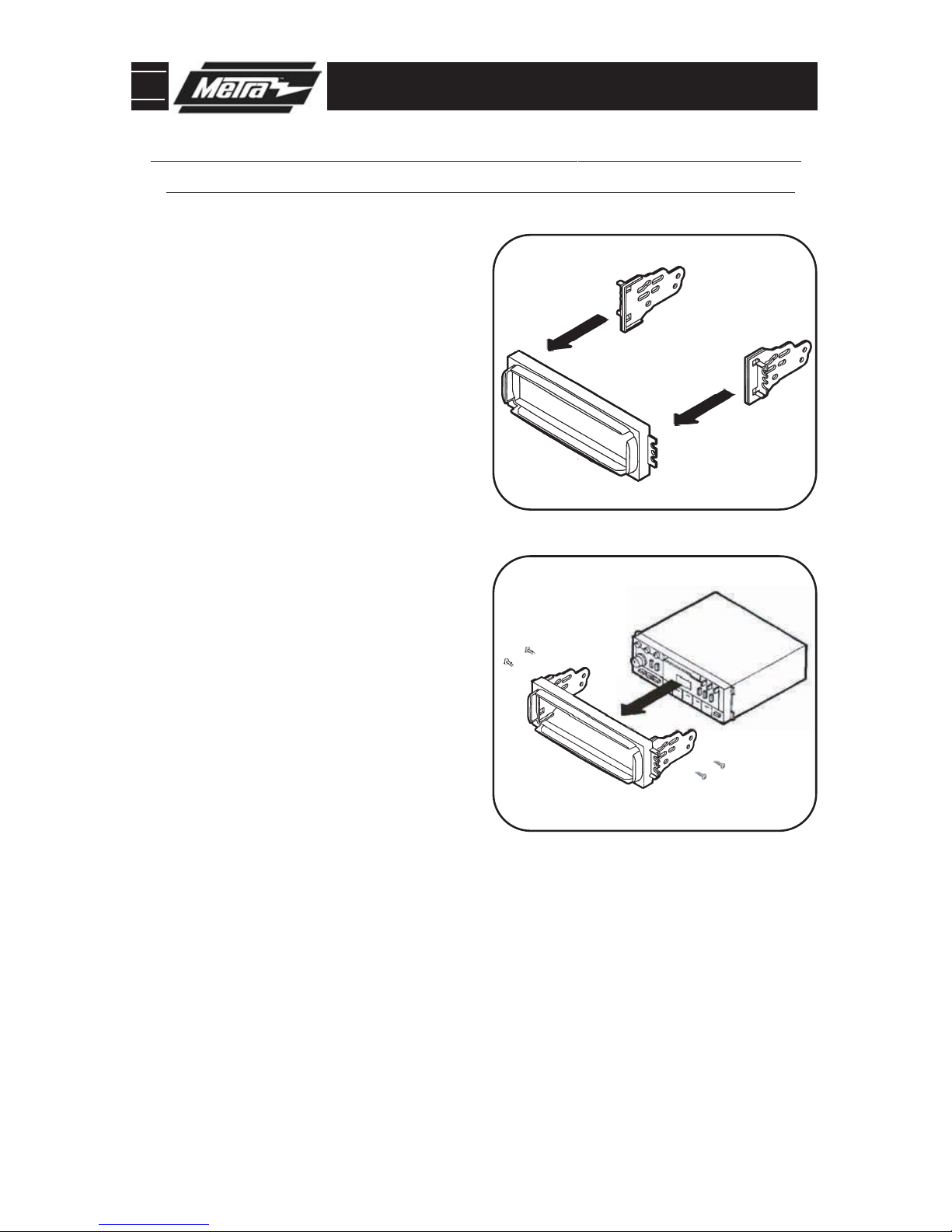

99-7300 KIT ASSEMBLY

Snap the ISO Brackets over the mount-

ing tabs on the Radio Housing.

(Figure A)

Slide the head unit into the Radio

Housing, align the holes in the head

unit with the holes in the

Housing and

mount the unit with the screws supplied

with the unit. (Figure B)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

HYUNDAI TIBURON ISO MOUNT

RADIO PROVISION WITH POCKET

99-7300 KIT ASSEMBLY

Snap the ISO Brackets over the

mounting tabs on the Radio Housing.

(Figure A)

Slide the head unit into the Radio

Housing, align the holes in the head

unit with the holes in the Housing and

mount the unit with the screws sup-

plied with the unit.

(Figure B)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

HYUNDAI ACCENT ISO MOUNT RADIO PROVISION

99-7300 FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown. (Isolate and individ-

ually tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown below and the instructions included with the

head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground..................Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer . . . . . . . . . . . . . . . . . Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) .............Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

:When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

:To mount Radio Housing assembly in Tiburon use (2) factory screws removed during

disassembly and (2) #10 X 3/4” Phillips screws supplied with this kit.

99-7300 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
