Metra Electronics 99-5025 Bedienungsanleitung

KIT COMPONENTS

Equalizer

Dummy

Plate

(4) Phillips Oval-

head Screws

Rear Support

Bracket

KIT FEATURES

Shaft and

DIN unit

provisions

Equalizer

provisions

Radio Housing

99-5025

INSTALLATION

INSTRUCTIONS

APPLICATIONS

CAR PAGE

FORD

Mustang 1987-93.....................................................1-2

TOOLS REQUIRED

Cutting tool

Phillips screwdriver

86-5618 - Head unit

removal keys

1-800-221-0932 www.metraonline.com

rev. 030701

4 5

Locate the factory wiring harness in the

dash. Metra recommends using the

proper mating adaptor and making

connections as shown. (Isolate and

individually tape off the ends of any

unused wires to prevent electrical short

circuit).

Re-connect the battery terminal and test the unit

for proper operation. Mount the Rear Support

Bracket to the back of the unit. Mount the head

unit/kit assembly to the sub-dash with (4) Phillips

Oval-head Screws supplied. (Be sure the Rear

Support Bracket engages the support shelf in the

dash).

A) Strip wire ends back ½"

B) Twist ends together

C) Solder

D) Tape

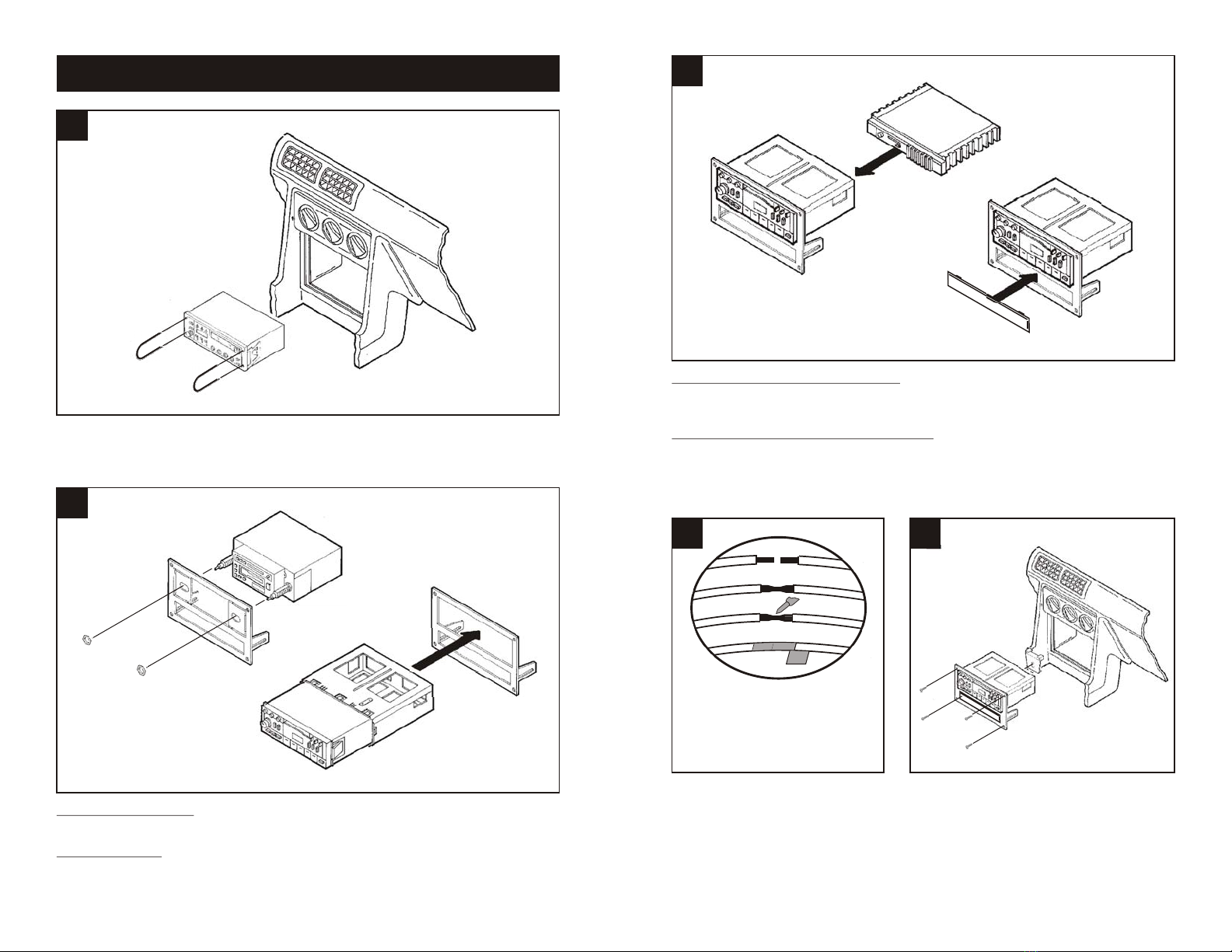

Disconnect the negative battery terminal to prevent an accidental short circuit. Using Metra's

86-5618, pull the factory head unit from the dash and disconnect the wiring.

2-SHAFT HEAD UNITS: Slide the aftermarket head unit into the kit and secure with shaft

nuts. (see Fig. A)

DIN HEAD UNITS: Cut and remove the shaft supports from the Radio Housing. Slide the

DIN cage into the Housing and secure by bending the metal locking tabs down. Slide the

aftermarket head unit into the cage until secure. (see Fig. B)

IF AN EQUALIZER WILL BE INCLUDED: Slide the aftermarket equalizer into the back of the

Radio Housing. Using the hardware included with the equalizer, mount the unit to the kit.

(see Fig. A)

IF AN EQUALIZER WILL NOT BE INCLUDED: Snap the Equalizer Dummy Plate into the

Radio Housing. (see Fig. B)

Fig. A

Fig. B

Fig. A

ALL VEHICLES

Fig. B
