METRA. The World’s best kits.®

Installation instructions for 99-3010S-LC

CAUTION!

All accessories, switches, climate controls panels, and

especially air bag indicator lights must be connected before cycling

the ignition. Also, do not remove the factory radio with the key in the

on position, or while the vehicle is running.

• A) Radio trim panel • B) Radio housing • C) ISO brackets • D) ISO trim plate • E) ISO DDIN brackets

• F) ISO DDIN trim plate • G) Pocket • H) Axxess interface and harness (not shown)

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness:

• Axxess interface included

Antenna Adapter:

• 40-EU55

• Panel removal tool • Phillips screwdriver

• 7mm socket wrench • T-20 Torx Wrench • Cutting tool

TOOLS REQUIRED

• DIN radio provision with pocket

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

•Painted silver to match factory finish

KIT FEATURES

Chevrolet Camaro 2010-2015

99-3010S-LC

A B C D E

F G

99-3010S-LC

Dash Disassembly ........................................... 2-3

Kit Preparation.....................................................3

Kit Assembly

– DIN radio provision with pocket ..........................4

– ISO DIN radio provision with pocket ....................4

– ISO DDIN radio provision.....................................5

Axxess Interface Installation

– Connection to be made.......................................6

– Installing the Axxess interface.............................6

– Initializing the Axxess interface ...........................6

– Vehicle customization with optional AX-LCD........7

– Changing display backlight color.........................7

Table of Contents

For vehicles without UMQ gauge panel, unsnap

and remove shifter trim panel and skip to step 8

Unclip and remove the (2) side trim panels running

the length of the center console. (Figure A)

2. Remove (1) Phillips screw from each side of

the front of the center console. (Figure B)

3. Remove (2) Phillips screws per side from the

cover on the back of the center console then

unclip and remove the cover. (Figure C)

4. Remove (2) Phillips screws exposed under the

cover on the back of console. (Figure D)

5. Remove gauge cluster/trim panel around

shifter. (Figure E)

Continue onto next page

Dash Disassembly

70 9

180

200

320

300

100

(Figure B)

70 9

180

200

320

300

100

(Figure C)

70 9

180

200

320

300

100

(Figure D)(Figure A)

99-3010S-LC

1. Cut and remove the sub dash

radio support to make room for the

interface and harnesses. (Figure A)

2. Remove panel clips from factory

radio and attach to the top of the

kit housing. (Figure B)

Continue to kit assembly

Kit Preparation

(Figure I)

(Figure A)

(Figure B)

For automatic models, remove one

T-20 Torx screw from the front of the

shifter, and then remove the knob

and shifter surround panel. (Figure F)

7. Remove (4) Phillips screws now

exposed, and then lift up on the

rear of the center console. Slide

toward the back of the vehicle

then unclip and remove the entire

center console. (Figure G)

8. Remove (2) 7mm screws securing

the climate control/radio trim panel

and remove. (Figure H)

Remove (4) 7mm screws securing

the radio chassis, and then remove.

(Figure I)

Continue to kit preparation

70 9

180

200

320

300

100

(Figure H)

(Figure G)

(Figure F)

(Figure E)

Dash Disassembly

99-3010S-LC

DIN radio provision with pocket

1. Remove the metal DIN sleeve from

the aftermarket radio.

2. Slide the sleeve into the radio

housing and secure by bending the

metal locking tabs down. (Figure A)

3. Snap the pocket into the bottom

opening of the radio housing.

(Figure B)

4. Slide the radio back into the sleeve

until it clicks in. (Figure B)

5. Continue to Axxess Interface

Installation, and once completed,

reassemble the dash in reverse

order of disassembly using the

99-3010S-LC radio trim panel

instead of the factory panel.

Kit Assembly

(Figure A)

(Figure B)

ISO DIN radio provision with pocket

1. Remove the metal DIN sleeve and

trim ring from the aftermarket radio.

2. Mount the ISO brackets to the

radio with the screws supplied

with the radio. (Figure A)

3. Snap the pocket into the bottom

opening of the radio housing.

(Figure B)

4. Slide the radio into the radio

opening until the side clips engage.

(Figure B)

5. Snap the ISO trim plate into the

radio housing. (Figure C)

6. Continue to Axxess Interface

Installation, and once completed,

reassemble the dash in reverse

order of disassembly using the

99-3010S-LC radio trim panel

instead of the factory panel.

(Figure B)

(Figure A)

(Figure C)

99-3010S-LC

ISO DDIN radio provision

1. Cut and remove the center support.

(Figure A)

2. Snap the ISO DDIN brackets to the

inside edge of the radio housing.

(Figure B)

3. Slide the radio into the bracket/

radio housing assembly and secure

it using the screws supplied with

the radio. (Figure C)

4. Snap the ISO DDIN trim plate into

the radio housing. (Figure C)

5. Continue to Axxess Interface

Installation, and once completed,

reassemble the dash in reverse

order of disassembly using the

99-3010S-LC radio trim panel

instead of the factory panel.

Kit Assembly

(Figure B)

(Figure C)

(Figure A)

Axxess interface

Installation

• Wire cutter • Crimping tool • Tape • Solder gun

• Connectors (butt-connectors, bell caps, etc.)

TOOLS REQUIRED

• 3010S-LC interface • 3010S-LC harness

INTERFACE COMPONENTS

FEATURES

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (retained accessory power)

• Provides NAV outputs (parking brake, reverse, and speed sense)

• Used in non-amplified models

• Used in models without OnStar

• Retains all warning chimes

• High level speaker input

• Retains balance and fade

• Micro “B” USB updatable

Connections to be made

From the 3010S-LC harness to the aftermarket radio:

• Connect the Black wire to the ground wire.

• Connect the Yellow wire to the battery wire.

• Connect the Red wire to the accessory wire.

• Connect the Pink wire to the Pink wire located in the HVAC harness

(ignore the writing on this wire, this is NOT a “mute” wire).

• Connect the Blue/White wire to the power antenna wire.

• If the aftermarket radio has an illumination wire, connect the Orange/White wire to it.

• Connect the White wire to the left front positive speaker output.

• Connect the White/Black wire to the left front negative speaker output.

• Connect the Gray wire to the right front positive speaker output.

• Connect the Gray/Black wire to the right front negative speaker output.

• Connect the Green wire to the left rear positive speaker output.

• Connect the Green/Black wire to the left rear negative speaker output.

• Connect the Purple wire to the right rear positive speaker output.

• Connect the Purple/Black wire to the right rear negative speaker output.

The following (3) wires are only for multimedia/navigation radios that require these wires.

• Connect the Blue/Pink wire to the VSS/speed sense wire.

• Connect the Green/Purple wire to the reverse wire.

• Connect the Light Green wire to the parking brake wire.

Installing the Axxess interface

With the key in the off position:

• Connect the 3010S-LC harness into the interface, and then to the wiring harness

in the vehicle.

Initializing the Axxess interface

Attention: If the Axxess interface loses power for any reason,

the following steps will need to be performed again.

• Turn the key (or push-to-start button) to the ignition position and wait until the

radio comes on.

Note: If the radio does not come on within 60 seconds, turn the key to the off

position, disconnect the interface, check all connections, reconnect the interface,

and then try again.

• Turn the key to the off position, and then start the vehicle.

• Cycle the A/C fan speed all the way to high, and then back to low.

•

Test all functions of the installation for proper operation, before reassembling the dash

Axxess interface installation 99-3010S-LC

The AX-LCD allows the retention of the vehicles personalization

menu that is lost after removing the OE radio.

From the DIN harness with leads on the AX-LCD harness:

• Connect the Black wire to ground.

• Connect the Red wire to accessory power.

•

Connect the Pink wire to the Pink wire of the 3010S-LC harness.

Note: This wire will have to be soldered onto the 3010S-LC.

• Tape off and disregard the Blue/Pink wire, it will not be used in

this application.

• Press and hold the “Return/ESC” button on the LCD screen for 5

seconds until “Select Interface” comes up.

• Select “Connection Type”, and then press “Enter”

• Scroll up or down to “Gateway”, and then press “Enter”

•

Once done, press the “Return/ESC” button two times to get back

to the main menu

Axxess interface installation 99-3010S-LC

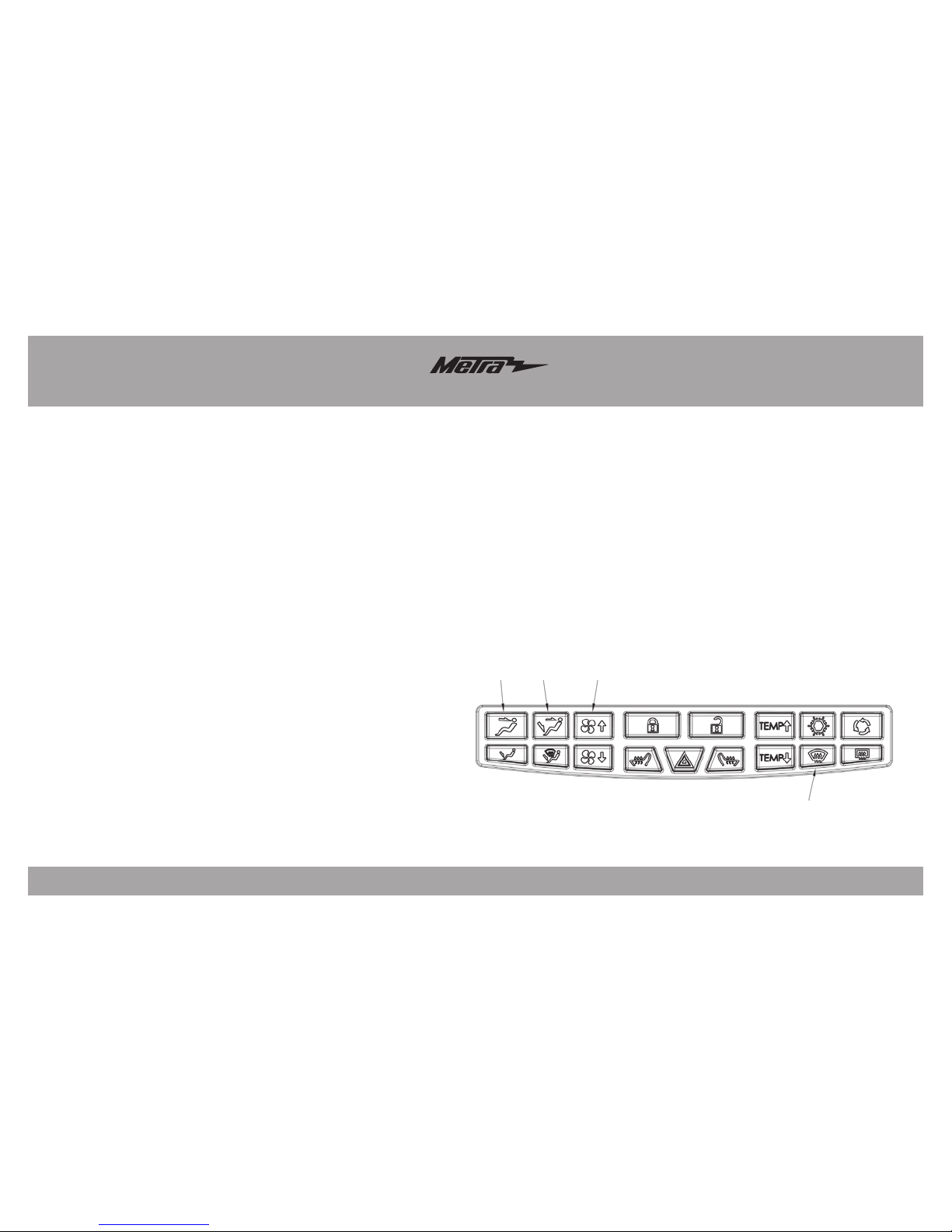

Red

Color level up

Color level down

Green Blue

Press and hold to enter

“Configure backlight color” mode

(Figure A)

1. Press the front defrost button for 5 seconds,

this will engage the “Configure Backlight

Color” mode. (Figure A)

Note: Backlight will blink while in this mode.

2. Create your backlight color (Figure A):

• Press and hold the “Face” button to

increase Red.

• Press the “Foot” button to decrease Red.

• Press and hold the “Face/Foot” button to

increase Green.

• Press and hold the “Def/Foot” button to

decrease Green.

• Press and hold the “Fan Up” button to

increase Blue.

• Press and hold the “Fan Down” button to

decrease Blue.

3. After you have your desired color stop

pressing the button(s) and the blinking will

stop leaving your desired color. (Figure A)

Changing display backlight color

Vehicle customization with the

optional AX-LCD (sold separately)

Learn more about installation parts we have.

Inhaltsverzeichnis

Andere Metra Electronics Autoempfänger Handbücher

Metra Electronics

Metra Electronics 99-7607B Bedienungsanleitung

Metra Electronics

Metra Electronics AT-807HD Bedienungsanleitung

Metra Electronics

Metra Electronics 95-2005B Bedienungsanleitung

Metra Electronics

Metra Electronics 99-5600 Bedienungsanleitung

Metra Electronics

Metra Electronics Ford F-150 2009-up Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8712 Bedienungsanleitung

Metra Electronics

Metra Electronics DP-3021B Bedienungsanleitung

Metra Electronics

Metra Electronics 99-7313 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-3044 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-2003 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-3311B Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8270HG Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8209 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-5025 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-7519B Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8163 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-5025 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-6543HG Bedienungsanleitung

Metra Electronics

Metra Electronics 99-3528 Bedienungsanleitung

Metra Electronics

Metra Electronics Hyundai Santa Fe 2007 95-7325 Bedienungsanleitung

Metra Electronics

Metra Electronics 95-7510 Bedienungsanleitung

Metra Electronics

Metra Electronics 95-7377B Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8219 Bedienungsanleitung

Metra Electronics

Metra Electronics Nissan Pathfinder 2013-up Bedienungsanleitung

Beliebte Autoempfänger Handbücher anderer Marken

Motorola

Motorola VWA63 Bedienungsanleitung

Nextar

Nextar D3201 Bedienungsanleitung

Alpine

Alpine CDE-163BT Bedienungsanleitung

Pioneer

Pioneer DEH-P645R Bedienungsanleitung

Axxera

Axxera XDMA7600 Betriebsanleitung

XM OnyX Bedienungsanleitung

Sound Storm

Sound Storm STM93R Bedienungsanleitung

Soundstream

Soundstream VIR-5000 Bedienungsanleitung

Avson

Avson MKT Platform Bedienungsanleitung

Sony

Sony MEX-1HD - Audio Library System Bedienungsanleitung

Pioneer

Pioneer DVH-P500UB Bedienungsanleitung

JVC

JVC KD-AHD69 Bedienungsanleitung

Blaupunkt

Blaupunkt SANTIAGO CR 87 Bedienungsanleitung

Sony

Sony CDX-4160 - Cd Receiver Bedienungsanleitung

XFIRE AUDIO

XFIRE AUDIO BMW42S Bedienungsanleitung

VDO

VDO CD 2253 Bedienungsanleitung

Volvo

Volvo 13 84 580 Bedienungsanleitung

ZENEC

ZENEC ZE-160DVD Bedienungsanleitung
