Metra Electronics 99-7516B Bedienungsanleitung

METRA. THE WORLD’S BEST KITS.™

APPLICATIONS

1-800-221-0932 metraonline.com

INSTALLATION INSTRUCTIONS FOR PART 99-7516B

Small Flat Blade Screwdriver • Panel Removal Tool • Phillips Screwdriver

TOOLS REQUIRED

Mazda CX9 2007-up

99-7516B

A D

• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets

• E) Double DIN Trim Plate • F) Pocket

KIT FEATURES

KIT COMPONENTS

• DIN radio provision with pocket

• ISO radio provision with pocket

• Double DIN radio provision

• Stacked ISO units provision

• Painted matte black to match factory

WIRING & ANTENNA CONNECTIONS (Sold Separately)

• MZTO-01 - Mazda Amp Integration Harness 2007-Up

• 70-7903T - Mazda service harness 2007-up

Table of Contents

Dash Disassembly

– Mazda CX9 2007-up 3-4

Kit Assembly

– DIN Head Unit provisions with pocket 5

– ISO DIN head unit provisions with pocket 6

– DDIN/stacked ISO DIN head unit provision 7

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certified technicians

99-7516B

Caution

Metra recommends disconnecting the negative battery terminal before beginning any

installation. All accessories, switches, and especially air bag indicator lights must be

plugged in before reconnecting the battery or cycling the ignition.

*NOTE: Refer also to the instructions included with the aftermarket radio.

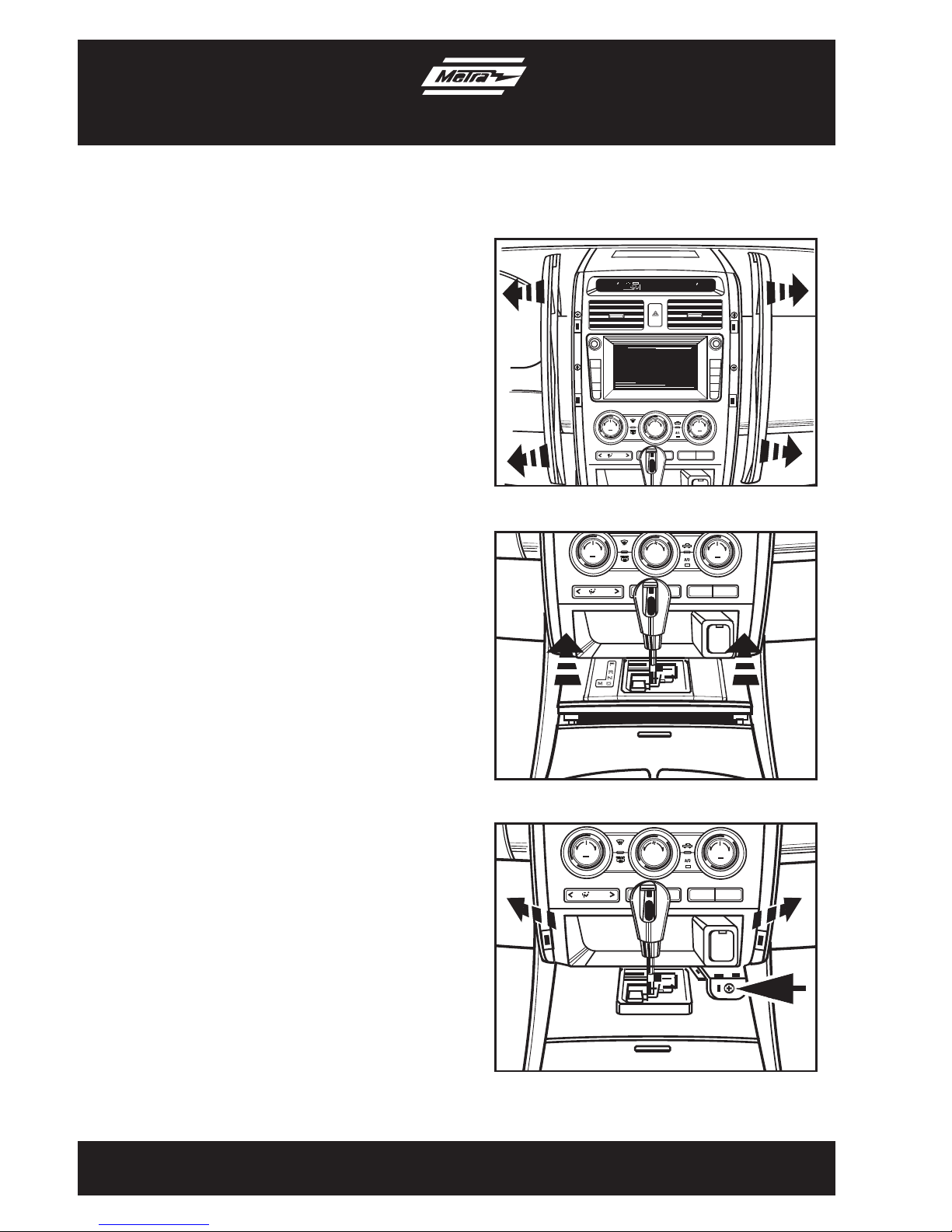

1. Unclip and remove both side panels

from center radio trim panel.

(Figure A)

2. Unclip and remove the shifter trim

panel. (Figure B)

3. Remove (1) Phillips screw from the

accessory socket trim panel then unclip

and remove the panel. (Figure C)

Continued on next page

Dash Disassembly

99-7516B

73 73

883

0FM1ch1

VOL

PUSH POWER

TUNE

PUSH AUDIO

LOAD/

SOURCE

SCAN

INFO

RETURN

DISP

MAP

VOICE

SEEK

TRACK

PUSH

AUTO ON

PUSH

OFF

PUSH

DUAL

PASS

A/C

LO HI

FRONT

REAR

MODE OUTSIDE

TEMP

73 73

883

0FM1ch1

VOL

PUSH POWER

TUNE

PUSH AUDIO

LOAD/

SOURCE

SCAN

INFO

RETURN

DISP

MAP

VOICE

SEEK

TRACK

PUSH

AUTO ON

PUSH

OFF

PUSH

DUAL

PASS

A/C

LO HI

FRONT

REAR

MODE OUTSIDE

TEMP

73 73

883

0FM1ch1

VOL

PUSH POWER

TUNE

PUSH AUDIO

LOAD/

SOURCE

SCAN

INFO

RETURN

DISP

MAP

VOICE

SEEK

TRACK

PUSH

AUTO ON

PUSH

OFF

PUSH

DUAL

PASS

A/C

LO HI

FRONT

REAR

MODE OUTSIDE

TEMP

(Figure A)

(Figure B)

(Figure C)

99-7516B

Dash Disassembly

4. Remove (2) Phillips screws from the

radio trim panel. (Figure D)

5. Unclip and remove the entire radio trim

panel including the A/C controls.

(Figure D)

6. Remove (4) Phillips screws securing

the radio.

Continue to kit assembly

VOL

PUSH POWER

TUNE

PUSH AUDIO

LOAD/ INFO

RETURN

MAP

VOICE

SEEK

TRACK

73 73

883

0FM1ch1

PUSH

AUTO ON

PUSH

OFF

PUSH

DUAL

PASS

A/C

LO HI

FRONT

REAR

MODE OUTSIDE

TEMP

(Figure D)

Kit Assembly 99-7516B

1. Locate the factory wiring harness in the

dash. Metra recommends using the

proper mating adapter from Metra or

AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

2 Slide the DIN cage into the radio

housing and secure by bending the

metal locking tabs down. (Figure A)

3. Snap the pocket into the bottom

opening of the radio housing.

(Figure B)

4. Slide the aftermarket head unit into the

cage and secure. (Figure C)

5. Reassemble dash in reverse order

of disassembly.

DIN head unit provision with pocket

(Figure A)

(Figure B)

(Figure C)

Kit Assembly 99-7516B

ISO DIN head unit provision with pocket

(Figure A)

(Figure B)

(Figure C)

1. Locate the factory wiring harness in the

dash. Metra recommends using the

proper mating adapter from Metra or

AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

2 Mount the ISO brackets to the head unit

with the screws supplied with the unit.

(Figure A)

3. Snap the pocket into the bottom

opening of the radio housing. (Figure B)

4 Slide the head unit into the radio

opening until the side clips engage.

(Figure C)

5. Snap the Trim plate into the radio

housing. (Figure C)

6. Reassemble dash in reverse order

of disassembly.

Kit Assembly 99-7516B

Double DIN head unit provision/

stacaked ISO DIN head unit provision

(Figure A)

(Figure B)

(Figure C)

1. Locate the factory wiring harness in the

dash. Metra recommends using the

proper mating adapter from Metra or

AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

2 Cut and remove the center bar from the

radio housing. (Figure A)

3. Snap the Double DIN brackets to the

inside edge of the Double DIN trim

plate. (Figure B)

4. Slide the double DIN head unit or

stacked ISO head units into the bracket/

radio housing assembly and secure the

double DIN head unit or stacked ISO

head units to the assembly using the

screws supplied with the radio.

(Figure C)

5. Snap the double DIN trim plate into the

radio housing. (Figure C)

6. Reassemble dash in reverse order

of disassembly.

METRA. THE WORLD’S BEST KITS.™

1-800-221-0932 metraonline.com

INSTALLATION INSTRUCTIONS FOR PART 99-7516B

REV. 6/02/11
