Metra Electronics 99-7376B Bedienungsanleitung

REV. 9/27/2016 INST99-7376B

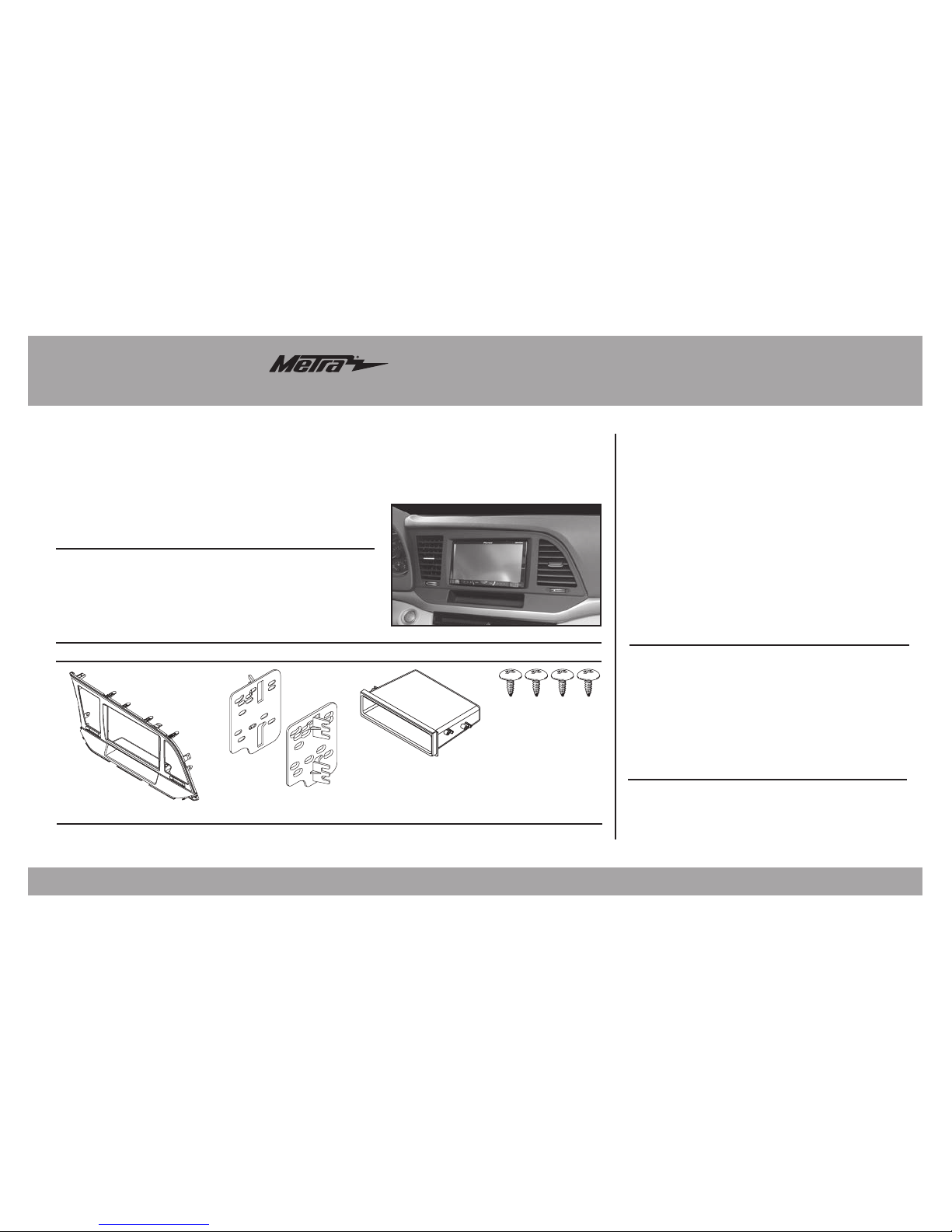

INSTALLATION INSTRUCTIONS FOR PART 99-7376B

CAUTION!

All accessories, switches, climate controls panels,

and especially air bag indicator lights must be connected before

cycling the ignition. Also, do not remove the factory radio with

the key in the on position, or while the vehicle is running.

• ISO DIN radio provision with pocket

• Painted matte black

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws

KIT FEATURES

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: 70-7304 (without 7-inch display radio) • 70-7306 (with 7-inch display radio)

Antenna Adapter: N/A (without 7-inch display radio) • 40-KI11 (with 7-inch display radio)

• Panel removal tool • Phillips screwdriver

TOOLS REQUIRED

Hyundai Elantra 2017-up

99-7376B

Table of Contents

A B C D

Dash Disassembly ................................................. 2

Kit Preparation....................................................... 3

Kit Assembly

–ISO DIN radio provision with pocket...................... 3

99-7376B

Dash Disassembly

1. Open the passenger front door,

then unclip and remove the trim

panel from the side of dashboard.

Remove the (1) Phillips screw

securing the silver trim panel.

2. Unclip and remove the silver

trim panel that runs along the

dashboard from under the radio,

and above the glovebox.

3. Open the driver’s door, then unclip

and remove the trim panel from

the side of the dashboard. Remove

the (1) Phillips screw securing the

silver trim panel.

4. Unclip and remove the silver trim

panel from under the driver’s side

A/C vent.

Please visit Metraonline.com for

dash disassembly illustrations.

5. Unclip the trim panel above the

steering column, and then unclip

and remove the entire panel

surrounding the instrument cluster.

Note, these two panels are one

assembly.

6. Remove the (2) Phillips screws

securing the radio trim panel, then

unclip and remove the panel.

7. Remove the (4) Phillips screws

securing the radio and then

remove.

Continue to Kit Assembly

99-7376B

Kit Preparation Kit Assembly

ISO DIN radio provision with pocket

1. Secure the pocket to the radio

brackets using the (4) #8 x 3/8”

Phillips screws provided. (Figure A)

2. Remove the metal DIN sleeve and

trim ring from the aftermarket radio.

3. Attach the radio to the bracket/

pocket assembly using the screws

supplied with the radio. (Figure B)

4. Locate the factory wiring harness

and antenna connector in the

dash and complete all necessary

connections to the radio. Metra

recommends using the proper

mating adapter from Metra and/or

AXXESS. Test the radio for proper

operation.

5. Secure the assembly into the dash

opening using the factory hardware.

6. Snap the radio trim panel over the

radio/pocket assembly, and then

reassemble the dash in reverse

order of disassembly.

1. Remove the (3) Phillips screws

securing the A/C vents to the radio

trim panel and then remove.

2. Secure the vents onto the radio

trim panel using the factory

hardware. Please visit Metraonline.com for

kit preparation illustrations.

(Figure B)

(Figure A)

REV. 9/27/2016 INST99-7376B

INSTALLATION INSTRUCTIONS FOR PART 99-7376B

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certified technicians

IMPORTANT

If you are having difficulties with the installation

of this product, please call our Tech Support line

at 1-800-253-TECH. Before doing so, look over

the instructions a second time, and make sure

the installation was performed exactly as the

instructions are stated. Please have the vehicle

apart and ready to perform troubleshooting

steps before calling.
