Metrohm 916 Ti-Touch Betriebsanleitung

916 Ti-Touch

Tutorial

8.916.8002EN

Metrohm AG

CH-9100 Herisau

Switzerland

Phone +41 71 353 85 85

Fax +41 71 353 89 01

[email protected]

www.metrohm.com

916 Ti-Touch

Tutorial

8.916.8002EN 10.2011 dm/ebe

Teachware

Metrohm AG

CH-9100 Herisau

[email protected]

Although all the information given in this documentation has been

checked with great care, errors cannot be entirely excluded. Should you

notice any mistakes please send us your comments using the address

given above.

Documentation in additional languages can be found on

http://products.metrohm.com under Literature/Technical documenta-

tion.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of contents

916 Ti-Touch ￭￭￭￭￭￭￭￭ III

Table of contents

1Introduction 1

1.1 Structure of the tutorial ....................................................... 1

1.2 Further information .............................................................. 1

1.3 Symbols and conventions .................................................... 1

2Installation 3

2.1 Setting up and connecting the instrument ........................ 3

2.2 Mounting the propeller stirrer ............................................ 7

2.3 Inserting an electrode and buret tip ................................... 8

3Switching the instrument on and off and selecting the dia-

log language 11

3.1 Switching the instrument on and off ............................... 11

3.2 Selecting the dialog language ........................................... 12

4Fundamentals of operation 14

4.1 Touch-sensitive screen ....................................................... 14

4.2 Display and operating elements ........................................ 14

4.3 Status display ...................................................................... 16

4.4 Entering text and numbers ................................................ 16

5Setup and configuration 19

5.1 Preparing devices and material ......................................... 19

5.2 Configuring a new titrant .................................................. 19

5.3 Configuring a new sensor .................................................. 22

5.4 Configuring a printer .......................................................... 24

6Carrying out simple titrations 26

6.1 Creating a titration method ............................................... 26

6.2 Entering user name and sample data ............................... 35

6.3 Carrying out the determination ........................................ 37

6.3.1 Preparing the titration ............................................................ 37

6.3.2 Carrying out the titration ....................................................... 38

6.3.3 Displaying the results ............................................................. 39

6.3.4 Recalculating the determination ............................................. 40

6.3.5 Printing a report manually ...................................................... 42

Table of contents ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

IV ￭￭￭￭￭￭￭￭ 916 Ti-Touch

7Performing titration with supplementary functions 44

7.1 Statistical function .............................................................. 44

7.2 Saving the determination and the PC/LIMS report ......... 45

7.3 Modifying the titration parameters .................................. 47

7.4 Creating a sample table ..................................................... 49

7.5 Carrying out titrations using the sample table ................ 52

7.6 Showing the statistics data ............................................... 53

8Setting up the user administration 54

8.1 Creating a user list ............................................................. 54

8.2 Automatic login with USB flash drive ............................... 56

8.3 Login with password .......................................................... 58

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 1 Introduction

916 Ti-Touch ￭￭￭￭￭￭￭￭ 1

1 Introduction

1.1 Structure of the tutorial

This tutorial describes the installation and the first steps with the

916 Ti-Touch. You will be guided step by step through the most important

dialog pages by using a simple pH titration as an example. In addition, you

will find information regarding titrations with extended functions and for

user administration.

1.2 Further information

Detailed information concerning the 916 Ti-Touch can be found in the

manual.

1.3 Symbols and conventions

The following symbols and formatting may appear in this documentation:

Cross-reference to figure legend

The first number refers to the figure number, the sec-

ond to the instrument part in the figure.

Instruction step

Carry out these steps in the sequence shown.

Method Dialog text, parameter in the software

File ▶ New Menu or menu item

[Next] Button or key

Warning

This symbol draws attention to a possible life hazard

or risk of injury.

Warning

This symbol draws attention to a possible hazard due

to electrical current.

Warning

This symbol draws attention to a possible hazard due

to heat or hot instrument parts.

1.3 Symbols and conventions ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

2￭￭￭￭￭￭￭￭ 916 Ti-Touch

Warning

This symbol draws attention to a possible biological

hazard.

Caution

This symbol draws attention to a possible damage of

instruments or instrument parts.

Note

This symbol marks additional information and tips.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2 Installation

916 Ti-Touch ￭￭￭￭￭￭￭￭ 3

2 Installation

2.1 Setting up and connecting the instrument

916 Ti-Touch

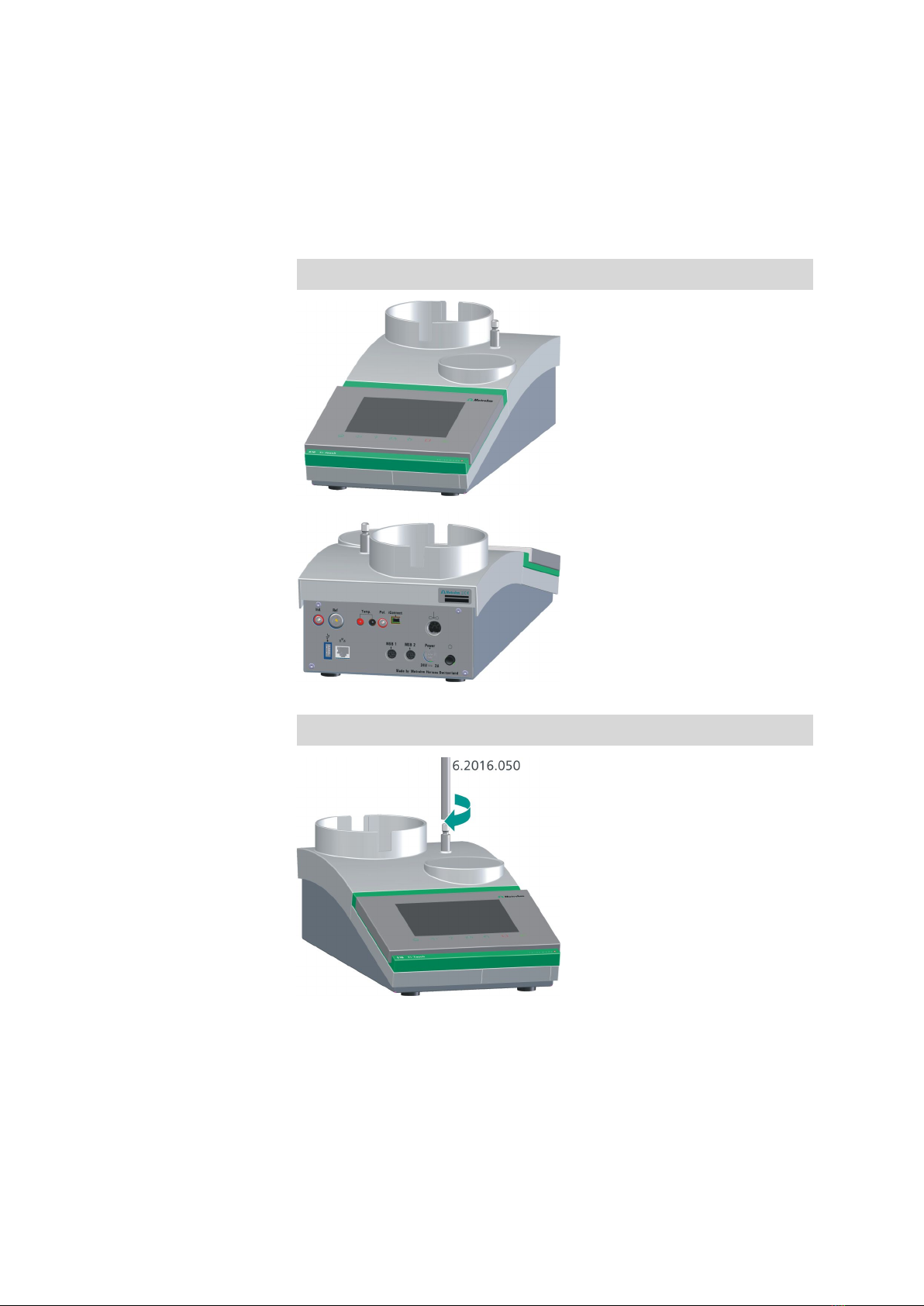

Mounting the support rod

2.1 Setting up and connecting the instrument ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

4￭￭￭￭￭￭￭￭ 916 Ti-Touch

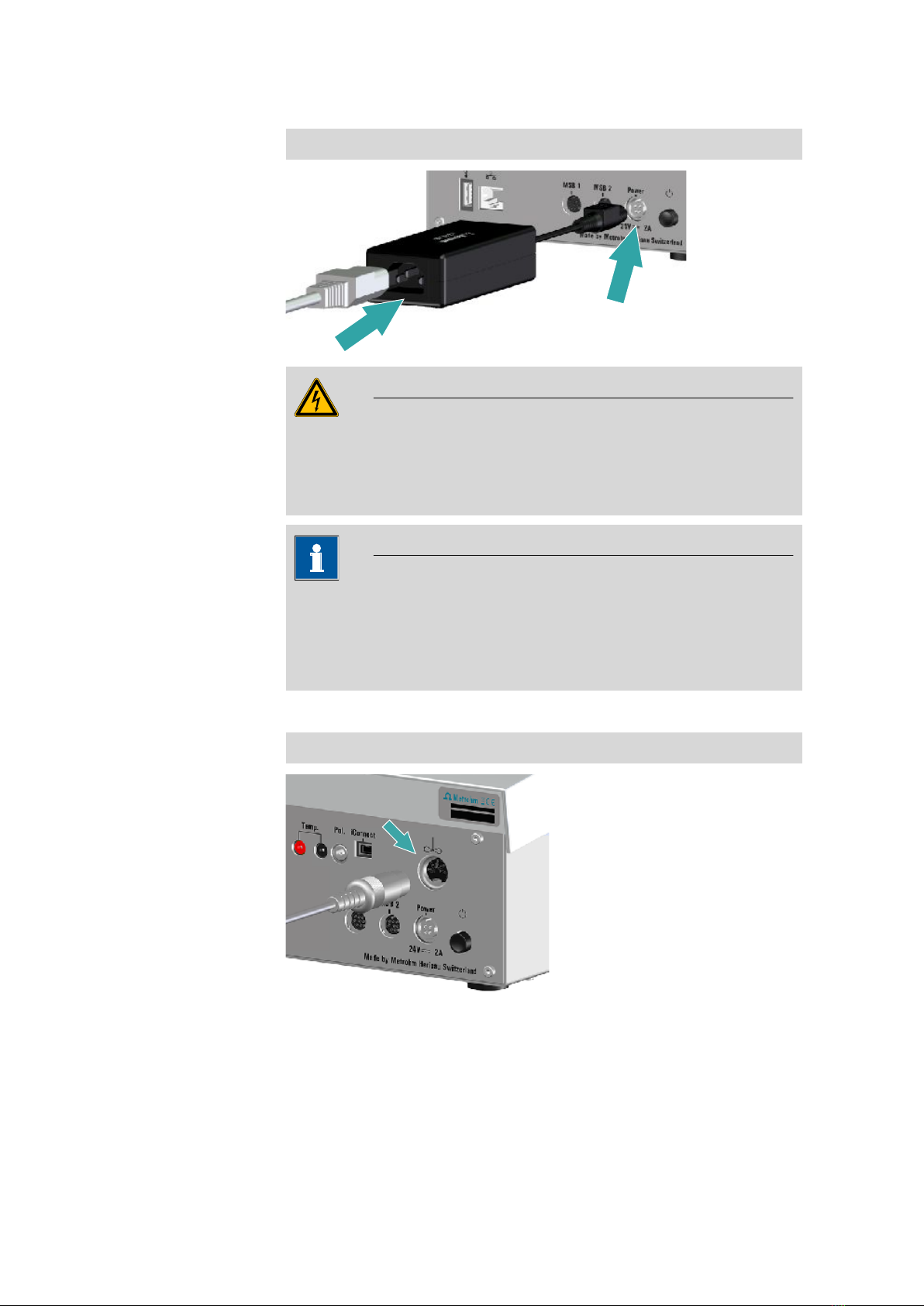

Plugging in the mains cable

6.2164.010

Warning

An incorrect mains voltage can damage the device.

Operate the device only with the mains voltage specified for it. Use the

supplied power supply unit exclusively.

Note

The plug of the power supply unit is protected against accidental dis-

connection of the cable by means of a pull-out protection feature. If

you wish to pull out the plug, you will first need to pull back the outer

plug sleeve marked with arrows.

Connecting a propeller stirrer 802 Stirrer
