INTRODUCTION

The IS4225 ScanGlove®is a fully automatic single-line laser barcode scanner.

It is designed to be used as a “hands-free” wearable scanner or a stationary

desktop scanner.

Every ScanGlove is equipped with ScanQuest®, a patented activation technology

that allows the scanner to read bar codes automatically as the operator presents

the bar code to the scanner. Additional features include; 52 scan lines a second,

short or long range activation and two universal glove sizes with left and right-

hand capabilities.

The IS4225 has built in decoding for applications that use a RS232, Keyboard

Wedge, Stand Alone Keyboard, Light Pen Emulation, or USB communication

interfaces. All models have Flash upgradeable firmware. For additional

information on other system interfaces call please call a Metrologic Customer

Service Representative at 1-800-ID-METRO.

SCANGLOVE MODEL NO. INTERFACE

IS4225-07 USB Keyboard

IS4225-14 RS232

IS4225-15 Light Pen Emulation

IS4225-47 PC Keyboard Wedge and Stand Alone Keyboard

IS4225-41 Full RS232 and Light Pen Emulation

SCANNER AND ACCESSORIES

PART NUMBER DESCRIPTION

IS4225 IS4225 Laser Scanner

00-02348 Installation and User’s Guide

00-02544 MetroSelect Single-Line Configuration Guide

00-02259 USB Configuration Addendum

45-45455 Black Adjustable Glove

If any item is missing or to order additional items, contact the dealer, distributor or call

Metrologic’s Customer Service Department at 1-800-ID-METRO or 1-800-436-3876.

SCANNER INSTALLATION

1. Turn off power to the host system.

2. Connect the communication cable to the proper port on the host device.

3. Turn on power to the host system.

When the IS4225 first receives power, the red LED will flash, the

green LED will flash, and then the scanner will beep once.

Caution:

To maintain compliance with applicable standards, all circuits connected to

the scanner must meet the requirements for SELV (Safety Extra Low

Voltage) according to IEC 60950-1, EN 60950-1, UL 60950-1.

To maintain compliance with standard CSA C22.2 No. 60950-1, UL 60950-1

and norm EN 60950, the power source should meet applicable

performance requirements for a limited power source.

To maintain compliance with federal regulations 21 CFR, Part 1040.10,

section (f)(6) the scanner must be plugged into an electrical outlet with a

switch accessible to the user or be powered by a host system containing a

switch that will disable power to the scanner.

SCANNER CONFIGURATION TO THE HOST SYSTEM

The IS4225 is shipped from the factory pre-configured to a set of default

parameters. It may be necessary to change the default parameters to match the

host system’s requirements or to enable additional scanner functions. For a list

of possible parameter settings, refer to the Default Settings section of this guide.

Important notes for the -07, IS4225 USB Interfaces.

The IS4225-07 is pre-configured for USB Emulation before leaving the

factory. If the recall defaults bar code is scanned the unit must be

re-configured for USB Emulation before enabling or disabling any

additional features documented in the MetroSelect Single-Line

Configuration Guide (MLPN 00-02544).

To re-configure the unit for USB Keyboard Emulation or USB POS

Emulation refer to the IS4225 USB Configuration Addendum

(MLPN 00-02259).

To modify the scanner’s default parameters follow the steps below using the

bar codes located in the MetroSelect Single-Line Configuration Guide

(MLPN 00-02544).

1. Scan the

ENTER CONFIGURATION MODE bar code to enter configuration mode.

The scanner will beep three times.

2. Scan the bar code(s) for the desired parameter(s).

The scanner will beep once.

3. Scan the

EXIT CONFIGURATION MODE bar code to exit and save the new

parameter settings. The scanner will beep three times.

If during the configuration process, there is a need to return the

scanner to the original factory settings, scan the recall defaults bar

code in the MetroSelect Configuration Guide. All settings selected

during that session or any previous sessions are discarded when you

scan the recall defaults code.

Please read the warning above for the IS4225-07 model before using

the recall defaults bar code.

PARTS OF THE SCANNER

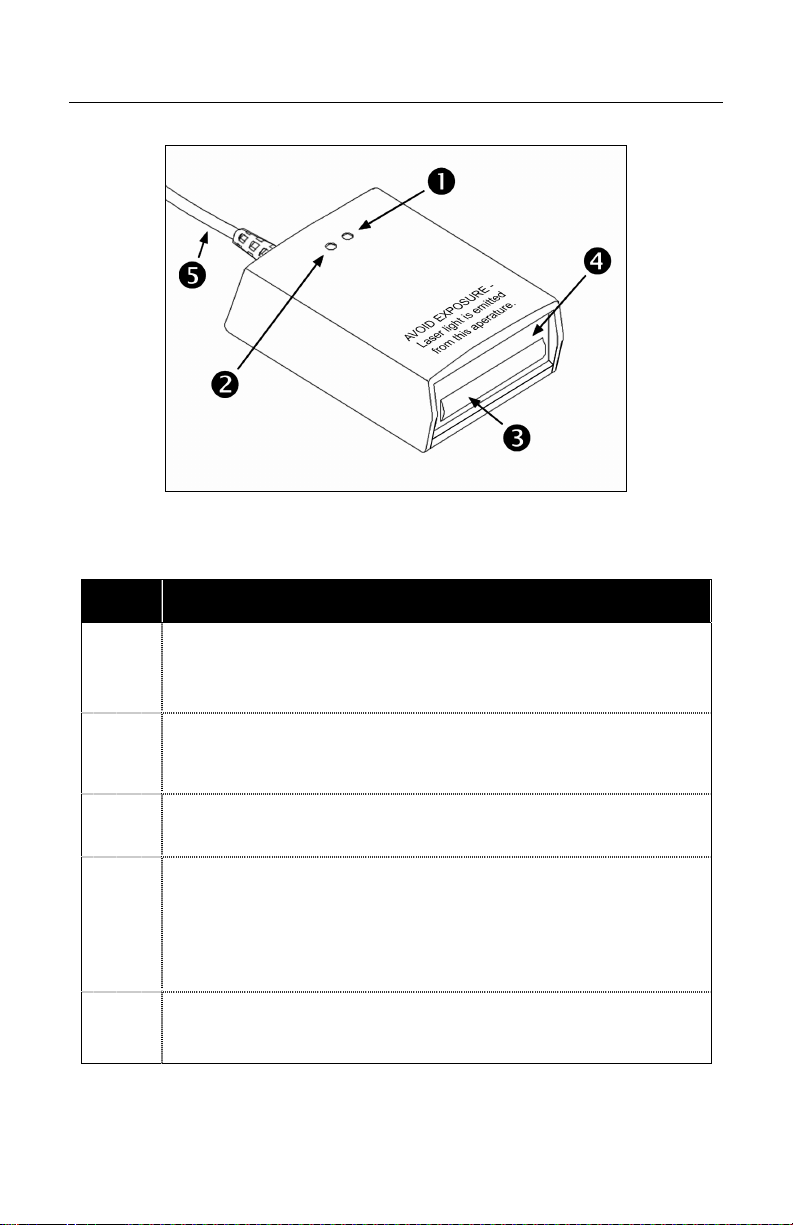

Figure 1. Scanner Parts

Item

No. Description

 Green LED

When a bar code is read successfully the green LED will flash.

 Red LED

When the red LED is illuminated, the laser is on.

 Red Output Window (Laser Aperture)



Infrared Sensor (IR)

If a specified time has elapsed without any scanning, the unit will

enter a “standby” mode. To reactivate the unit, place an object in

front of the IR sensor. The red LED will turn on when the scanner

is ready to scan.

 Communication/Power Cable

This cable’s termination is application dependent.

VISUAL INDICATORS

There is a red and a green LED located on the top of the scanner. When the

scanner is on, the flashing or constant illumination of the LEDs indicates the

status of the current scan and the scanner.

No Red LED Illumination of the LEDs will not occur if the scanner has

remained dormant for a specified time and the scanner is

not receiving power from the host. To reactivate the unit,

direct the output window up then down toward the object.

Red Flash;

Green Flash;

Steady Red

When the scanner first receives power, the red LED will

flash, followed by the green LED, and then the unit will

beep once. The red LED will stay on after it flashes once.

Steady Red When the laser is on, the red LED will be on. This occurs

when an object is detected in the scan field. If the scanner

cannot detect a bar code within approximately 2.5 seconds,

the unit will go into a standby mode and the red LED will

shut off indicating that the laser is no longer on.

Steady Red

LED; Green

Flash

When the scanner successfully reads a bar code, the green

LED will flash and the unit will beep once. If the green LED

does not flash or the scanner does not beep, then the bar

code was not successfully read.

Repetitive Red

LED Flashing

When the red LED flashes several times while it rests upon

a stationary surface, then an object is within the scan field

and is activating the IR sensor repetitively.

To eliminate this disturbance, direct the scan window

toward a different location.

Steady Green

LED

After a successful scan, the scanner transmits the data to

the host device. When the host is not ready to receive the

information, the green LED will remain on until data can

transmit.

SIGNAUX OPTIQUES

Sur la partie supérieure du scanner se trouvent une diode LED rouge et une

diode LED verte. Quand le scanner est sous tension, les diodes rouge et verte

clignotantes ou allumées vous informent sur l'état de palpage et de scanner.

Ni la diode

rouge, ni la

diode verte

n'est allumée

Il existe deux raisons possibles pour que les diodes ne

s'allu-ment pas. Si le scanner ne reçoit pas d'énergie de

l'ordinateur PC, les diodes ne s'allument pas. Quand le

scanner reçoit de l'énergie et ne s'allume cependant pas, le

scanner est resté pendant une certaine période sans être

utilisé et le laser et lemoteur sont désactivés. Pour

réactiver l'unité, déplacer un objet devant le palpeur

infrarouge ou prendre le scanner et diriger la fenêtre de

palpage vers le bas.

Diode rouge

clignotante;

diode verte

clignotante;

diode rouge

reste allumée

Quand le scanner reçoit pour la première fois de l'énergie,

la diode rouge se met d'abord à clignoter, puis la diode

verte. Ensuite, le scanner émet un bip sonore unique. Une

fois cette séquence de démarrage effectuée, la diode

rouge reste allumée pendant un certain temps indiquant

que le laser est en service. Quand le scanner ne détecte

aucun objet, la diode rouge et le laser s'éteignent.

Diode rouge

reste allumée

Quand le laser est activé, la diode rouge s'allume

également. C'est par exemple le cas quand un objet se

trouve devant la fenêtre de palpage. Si, en l'espace de 2,

5 secondes, aucun code barres n'est détecté, la diode

rouge s'éteint, ce qui signifie que le laser est désactivé.

Diode rouge

reste allumée;

diode verte

clignotante

Après lecture avec succès d'un code barres par le scanner,

la diode verte se met à clignoter, suivie d'un bip sonore

unique. Si la diode verte ne clignote pas ou quand aucun

bip sonore n'est émis, cela signifie que le code barres n'a

pas pu être lu avec succès.

Clignotement

répété de la

diode rouge

Quand la diode rouge clignote plusieurs fois pendant que

l'appareil repose sur une surface non déplacée, un objet

activant le palpeur infrarouge se trouve devant la fenêtre

de palpage. Ceci peut se produire même quand le scanner

se trouve sur une table ou un reposoir. Pour éliminer ce

défaut, positionner le scanner de façon différente.

Diode verte

reste allumée

Une fois le palpage effectué avec succès, le scanner

transmetles donnéesà l'ordinateur PC. Si ce dernier n'est

pas prêt à recevoir les données, la diode verte du scanner

s'allume jusqu'à ce que les donnés puissent être

transmises.

Andere Handbücher für IS4225 ScanGlove

Inhaltsverzeichnis

Andere Metrologic Scanner Handbücher

Metrologic

Metrologic MS9524 VoyagerPDF Series Bedienungsanleitung

Metrologic

Metrologic MS9500 Voyager Series Bedienungsanleitung

Metrologic

Metrologic Orbit MS7120-38 Bedienungsanleitung

Metrologic

Metrologic FocusBT MS9535 Bedienungsanleitung

Metrologic

Metrologic MS9535 Voyager Kurzanleitung

Metrologic

Metrologic MS9544 VoyagerPDF Series Bedienungsanleitung

Metrologic

Metrologic MS9540-38-3 - Metrologic MS9540 VoyagerCG Bedienungsanleitung

Metrologic

Metrologic IS4220 ScanGlove Montage- und Bedienungsanleitung

Metrologic

Metrologic MS9500 Voyager Series Bedienungsanleitung

Metrologic

Metrologic MS9524 VoyagerPDF Series Bedienungsanleitung

Metrologic

Metrologic MS951 Betriebsanleitung

Metrologic

Metrologic IS4813 Kurzanleitung zur Einrichtung

Metrologic

Metrologic IS4320 ScanGlove Betriebsanleitung

Metrologic

Metrologic OrbitCG MS7180 Bedienungsanleitung

Metrologic

Metrologic Eclipse MS5145-00 Bedienungsanleitung

Metrologic

Metrologic MS951 Betriebsanleitung

Metrologic

Metrologic ARGUSSCAN MS7220 Bedienungsanleitung

Metrologic

Metrologic Laser Scanner Bedienungsanleitung

Metrologic

Metrologic MS951 Bedienungsanleitung

Metrologic

Metrologic IS8000 Bedienungsanleitung

Metrologic

Metrologic MK2320KD-60B241 - Metrologic MS 2320 Stratos... Bedienungsanleitung

Metrologic

Metrologic MS9590i VoyagerGS Series Bedienungsanleitung

Metrologic

Metrologic MK9535-39B538 Bedienungsanleitung

Metrologic

Metrologic iQ160 Benutzerhandbuch

Beliebte Scanner Handbücher anderer Marken

Plustek

Plustek Scanner Bedienungsanleitung

Z/I Imaging

Z/I Imaging PhotoScan 2001 Bedienungsanleitung

Renkforce

Renkforce DS100-5M Bedienungsanleitung

Image Access

Image Access WideTEK A2 Bedienungsanleitung

Canon

Canon imageFORMULA CR-120N Bedienungsanleitung

Fujitsu

Fujitsu FI-4860C2 Bedienungsanleitung

GeoSlam

GeoSlam ZEB Horizon Montageanleitung

Kodak

Kodak i5800 Scanner Bedienungsanleitung

Kodak

Kodak i7300 Bedienungsanleitung

Revopoint

Revopoint POP Bedienungsanleitung

Fujitsu

Fujitsu fi-4860C Bedienungsanleitung

Eddyfi Technologies

Eddyfi Technologies Floormap X Bedienungsanleitung

Faselase

Faselase F6 Bedienungsanleitung

Fujitsu

Fujitsu CardMinder Bedienungsanleitung

Uniden

Uniden BC340CRS Bedienungsanleitung

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Bedienungsanleitung

Mustek

Mustek PageExpress 4800 Pro Bedienungsanleitung

Optex

Optex 750830 Bedienungsanleitung
