MICROMATIC 941-094 Bedienungsanleitung

DEDICATED TO

DRAFT QUALITY

NEW ”HOLDER”

FINGER

REPLACEMENT OF HOLDER AND

FINGER FOR TOOL NO. 941-094

HOLDER/FINGER

FOR 941-094

2 |MICRO-MATIC.COM

Fig. 1

Fig. 2

Fig. 3

FOR TOOL 941-094

HOLDER AND FINGER

Release the set screw.

Pull off the outer tube.

REPLACEMENT OF “HOLDER AND FINGER”

New ”Holder” with

new ”Finger”

Old ”Holder” with

old ”Finger”

MICRO-MATIC.COM |3

Fig. 4

Fig. 5

Fig. 6

Remove the 1st pin.

Turn the tool 180° and remove the 2nd pin.

Release the set screw.

FOR TOOL 941-094

HOLDER AND FINGER

4 |MICRO-MATIC.COM

Fig. 7

Fig. 8

Fig. 9

FOR TOOL 941-094

HOLDER AND FINGER

Pull out the handle bar.

Remove the plastic plug.

Release the set screw.

MICRO-MATIC.COM |5

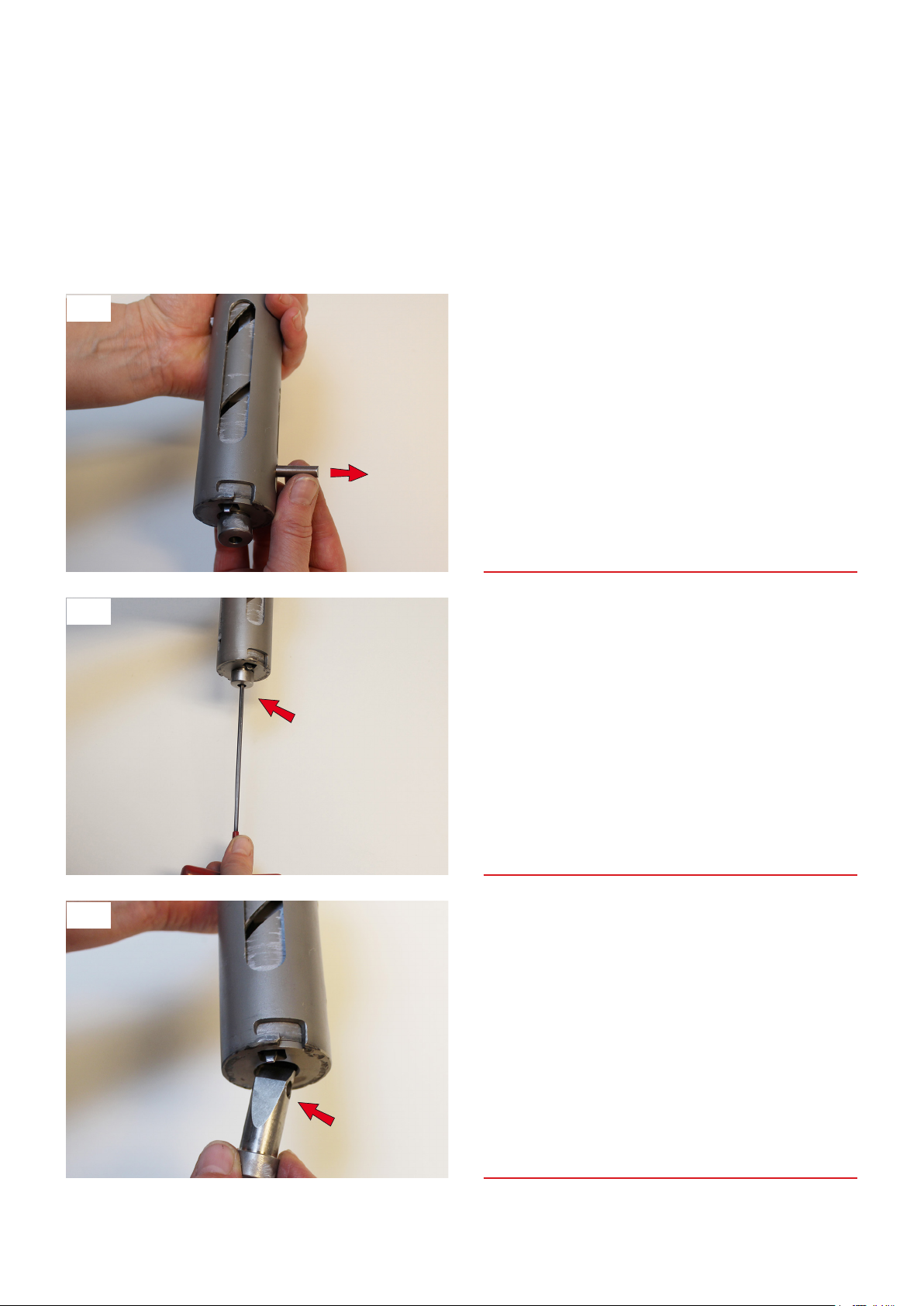

Fig. 10

Fig. 11

Fig. 12

Pull out the 3rd pin.

Release the set screw for venting tap.

Release the venting tap.

FOR TOOL 941-094

HOLDER AND FINGER

6 |MICRO-MATIC.COM

Fig. 13

Fig. 14

Fig. 15

FOR TOOL 941-094

HOLDER AND FINGER

Pull out the 4th pin.

Release the set screw.

Remove the 5th pin.

MICRO-MATIC.COM |7

Fig. 16

Fig. 17

Fig. 18

Remove the old “holder with nger” from the tool.

Align the holes.

Turn the tool anti-clock wise 180°.

FOR TOOL 941-094

HOLDER AND FINGER

8 |MICRO-MATIC.COM

Fig. 19

Fig. 20

Fig. 21

FOR TOOL 941-094

HOLDER AND FINGER

Put in the new “holder with nger”.

Mount the Allen key on the “holder with nger”.

Slide-in the “holder with nger” and place it in the

square hole.

MICRO-MATIC.COM |9

Fig. 22

Fig. 23

Fig. 24

Insert the 5th pin. (xxx mm long)

(You are still having the Allen key in the “holder with

nger”).

Tighten the set screw.

Place the 4th pin. (xxx mm long).

FOR TOOL 941-094

HOLDER AND FINGER

10 |MICRO-MATIC.COM

Fig. 25

Fig. 26

Fig. 27

FOR TOOL 941-094

HOLDER AND FINGER

Tighten the set screw.

Put in the venting tap.

Place the 3rd pin.
