Micron Wings Student Flyer Bedienungsanleitung

Aileron Modification Instructions

Ailerons can be added to the Student flyer during the build process or afterwards. There are two options

for mounting servos as described below. Please note that adding ailerons will not make this plane

aerobatic –it’s still a trainer plane. Some pilots may prefer to fly using ailerons or prefer not having both

rudder and elevator on the one stick. Please also consider that a similar effect can be achieved by simply

plugging the rudder servo into the aileron port on the receiver or setting up mixing on your transmitter.

Single Servo Above Wing Mount.

Advantages:

Only one servo needed so less weight.

Quick and easy to implement.

Disadvantages:

Rubber bands need to be threaded under pushrods.

Servo position requires control horns to be placed

an angle on the control surfaces.

Dual Servos Under Wing Mount.

Advantages:

Better aileron surface control

Looks better than single servo mounted on top

Disadvantages:

JST SH Y Connecter is needed to split the servos.

2 Servos needed so extra weight and expense.

More time required to implement.

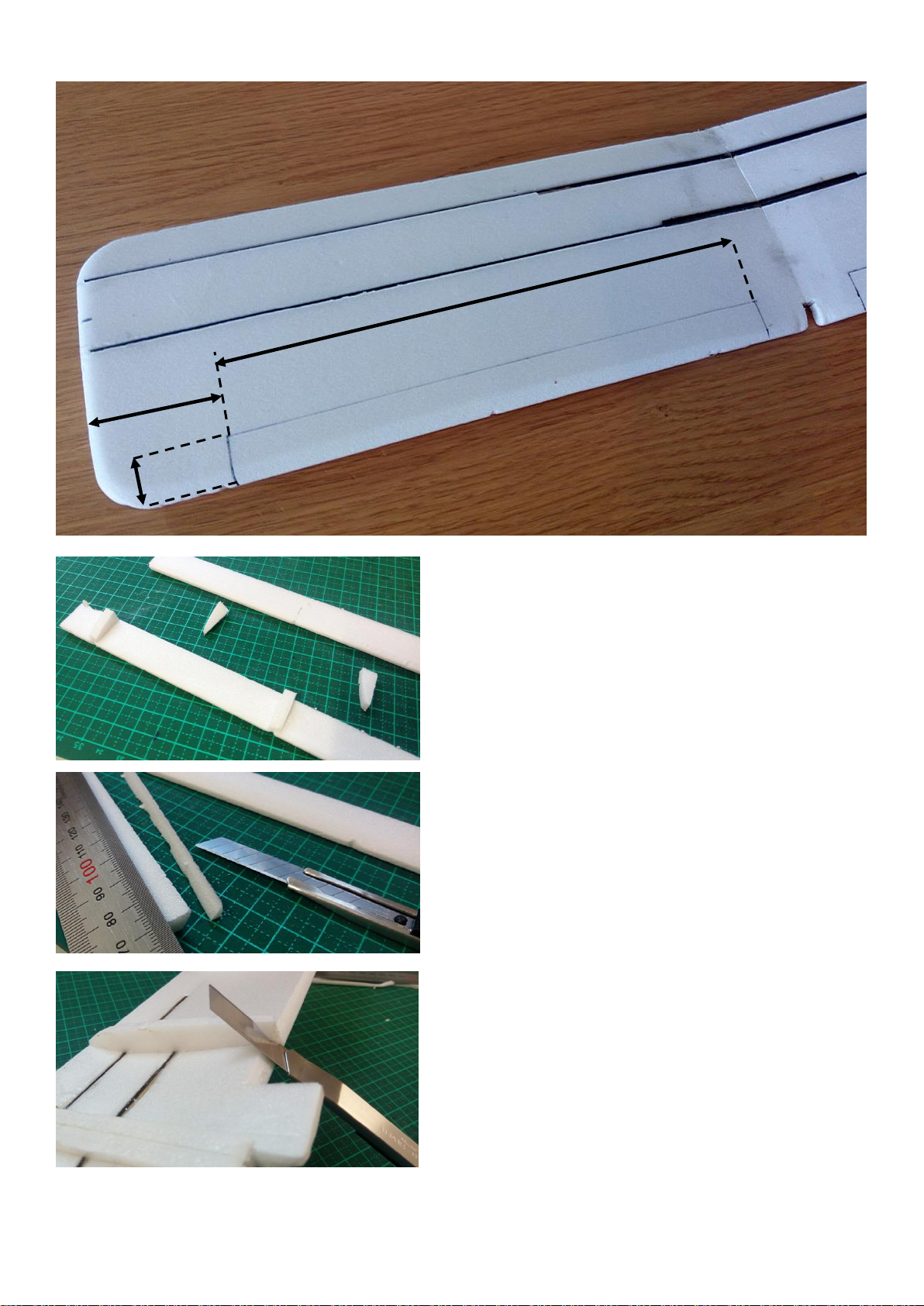

Cut the ailerons according to the dimensions shown below.

If modifying a pre-built airframe, remove these rib parts

from the aileron surface.

If adding ailerons before you build the wings, measure ad

pre-cut these parts off 4 of the 6 wing ribs.

Cut an angle into the aileron control surface to allow it to

hinge.

Do the same for the wing and also cut back the wing ribs.

45mm

18mm

220mm

Trim 2mm off the end of each control surface to give

clearance for when it moves.

Use masking tape as shown to hold the control surfaces

in place if the wing has been pre-built and use blenderm

hinge tape to attach the control surfaces.

Procedure for Single Servo Above Wing Mount

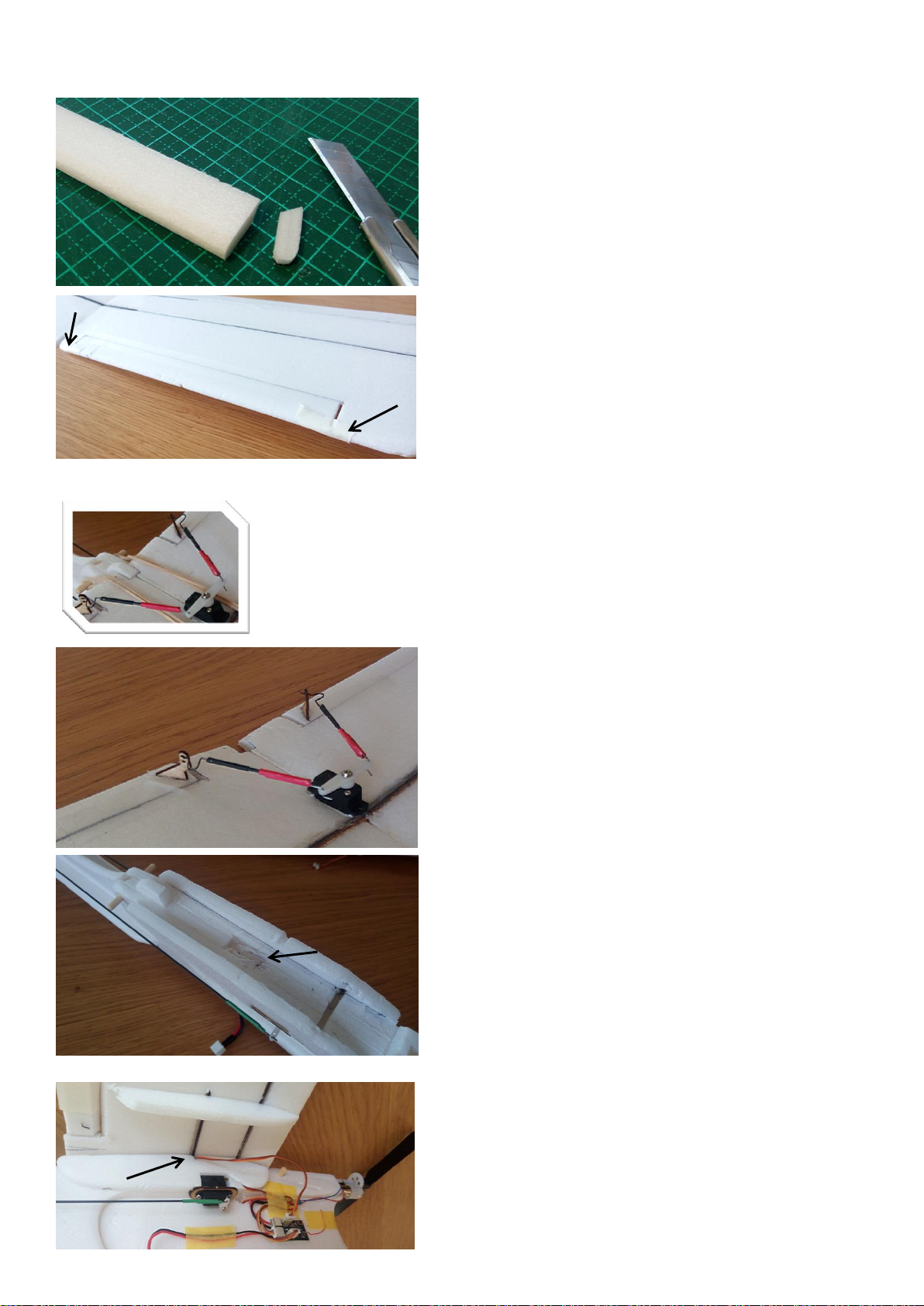

Use a ruler and lay it from the hole in the aileron horn to

where the control horn will be placed and rule a line on

the control surface to indicate where to cut the slot for

mounting the control horn.

Glue the control horns in place and attach your control

linkages.

The servo will protrude under the wing surface so you

will need to cut a slot in the airframe here to accept the

bottom of the servo when the wings are attached.

Cut out a gap in the airframe here to allow the servo lead

to exit the airframe, and plug it into the aileron port on

your receiver.

Procedure for Dual Servos Under Wing Mount.

Cut a servo mounting hole in the middle rib of each wing.

You may optionally wish to use servo mounting plates so

you can screw the servo in, instead of gluing it in.

5320 Servo Mounts Product Link

Secure the servo in place and cut a small hole in the rib

closest to the fuselage to feed the plug through.

Connect your Y Connector to the servo leads.

JST SH Y-Connector Product link

Note: the wire order on this connector is different but

the colour of the wires is not important when using this

connector in this scenario.

Use Blenderm Hinge tape to tape down the servo lead.

Mount your hinge in line with the servo arm and

connect up your control linkages as shown here.

Cut out a gap in the airframe here to allow the

Y-Connector lead to exit the airframe, and plug it into the

aileron port on your receiver.

Mixing

Note: You may wish to set some aileron Rudder mixing on your transmitter.

This manual is for personal use only. No unauthorized copying or digital distributing permitted

without permission from MicronWings.
