MicroNet SP607FA Bedienungsanleitung

User’s Manual

EtherFast 10/100M Smart Switch

Model No.: SP607FA/SP607FB

http://www.micronet.info

Table of Content

-------------------------------------------------------------------------------------------------------------------------

1. Introduction...............................................................................2

1.1 Package Contents.............................................................................2

1.2 Features............................................................................................2

1.3 Physical Description..........................................................................3

2. Installation.................................................................................4

2.1 Preparing the Site..............................................................................4

2.2 Settling the Switch.............................................................................4

2.3 Connecting to Power.........................................................................4

2.4 Connecting to Network......................................................................4

3. Configuration.............................................................................6

3.1 Setting UP Connection......................................................................6

3.2 Main Page.........................................................................................6

3.3 Port Setup .........................................................................................6

3.4 IP Setup.............................................................................................7

3.5 VLAN Setup.......................................................................................8

3.6 Password Setup................................................................................9

3.7 Restore Default ...............................................................................10

3.8 Reboot Device.................................................................................10

4. Specifications..........................................................................11

1. Introduction

Micronet SP607FA/SP607FB EtherFast 10/100M Smart Switch provides an easy way to boost

your network performance while preserving the flexibility of network infrastructure. With the fiber

optic connection, it can accommodate with FTTX solutions. In addition, an intuitive web-based

management interface makes it simple to monitor port status, configure ports, and even setup

VLAN or port priority.

1.1 Package Contents

Verify your package contains the following items:

SP607FA/SP607FB 10/100M Smart Switch

Quick Installation Guide

Manual CD

Power adapter

Magnetic pad

1.2 Features

Micronet SP607FA/SP607FB provides the following features:

Compliant with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.1q tag-based

VLAN, IEEE802.1p traffic prioritization (CoS) and IEEE802.3x flow control standards

Support auto-link and auto-negotiation for all 6 RJ-45 ports

Support one 100M multi-mode fiber optic connection with ST (SP607FA) or SC (SP607FB)

connector

Provide web-based management interface

Support DHCP client for IP configuration

Support 16 groups of port-based or tag-based (802.1q) VLAN

Support IEEE802.1p tag-based priority to achieve QoS

Support 2 outgoing priority queues, with service ratio of 1:4 (Low:High)

2K MAC address entries

768 KBytes memory buffer

Forward and filter packets at non-blocking, full wire speed

1.3 Physical Description

SP607FA front view

SP607FB front view

SP607FA/SP607FB rear view

Please refer to the following table for LED definition

LED Status Operation

On/Green Power is onPOWER Off Power is off

On 100M link detected10/100M Off 10M link detected

On/Green Link detected

Blink/Green Traffic detected

LINK/ACT

Off No link

On/Green Full duplex

Blink/Green Collision

FDX/COL

Off Half duplex

2. Installation

2.1 Preparing the Site

Select the site that meets the following requirements:

Characteristic Requirement

Temperature 0 to 40˚C

Humidity 10% ~ 90%, non-condensing

2.2 Settling the Switch

The switch can sit on desktop or be mounted on the wall by magnetism, which two rubber

magnet stands provide.

Step 1: Simply put the two rubber magnet stands on the button of switch.

Step 2: Mount the switch on the wall.

2.3 Connecting to Power

Locate the provided AC power cord.

Step 1: Connect the power adapter to the receptacle at the back of the switch.

Step 2: Attach the plug into a standard AC outlet with a voltage ranging from 100 to 240

VAC.

Step 3: The power LED on the front panel will come on then.

2.4 Connecting to Network

Step 1: First, ensure the power of the switch (and end devices) is turned off.

LIt may cause electric shock or any possible harm to you if the power is not switched off.

Step 2: Prepare cable with corresponding connectors for each type of port in use.

Step 3: Connect one end of the cable to the switch and the other end to a desired device.

Step 4: Once the connections between two end-devices are made successfully, turn on the

power.

SP607FA/B provides 6 RJ-45 ports of 10/100M, plus 1 fiber port of 100M. Just connect

your stations to it and play. These RJ-45 ports support auto-uplink, and you can make

inter-switch connection with no more cross-over cable.

For fiber connections, operation mode is forced to 100M and full duplex without

auto-negotiation. Two alternative models can be selected for different connections:

SP607FA is equipped with ST connector, and SP607FB is equipped with SC connector.

For cable selection, refer to the following table：

Network Speed Cable Type Max. Length

10Mbps Cat. 3, 4, 5 UTP/STP 100 meters

Cat. 5 UTP/STP 100 meters100Mbps Fiber, 50 or 62.5/125µm

multi-mode 2000 meters

Note: To prevent costly equipment damage and downtime, please consider installing a

surge suppression device or a UPS (Un-interrupted Power Supply).

3. Configuration

3.1 Setting UP Connection

SP607FA/SP607FB is embedded in an http server, and users can access it by web

browser over Internet. Default system information of SP607FA/B is

IP address: 192.168.0.2 Mask: 255.255.255.0

3.2 Main Page

After passing the authentication, the main page appears as below.

On the main page, you can select the configuration by clicking the menu tabs located on

the left side of the UI. It includes:

Port Setup

IP Setup

VLAN Setup

Password Setup

Restore Default

Reboot Device

3.3 Port Setup

On the page, you can view the Port status, and set up the Speed/Duplex mode. All TX

ports can be enabled auto-negotiation with other end of link for 100Full, 100Half, 10Full,

and 10Half. They also can be forced to specified operation modes without

auto-negotiation.

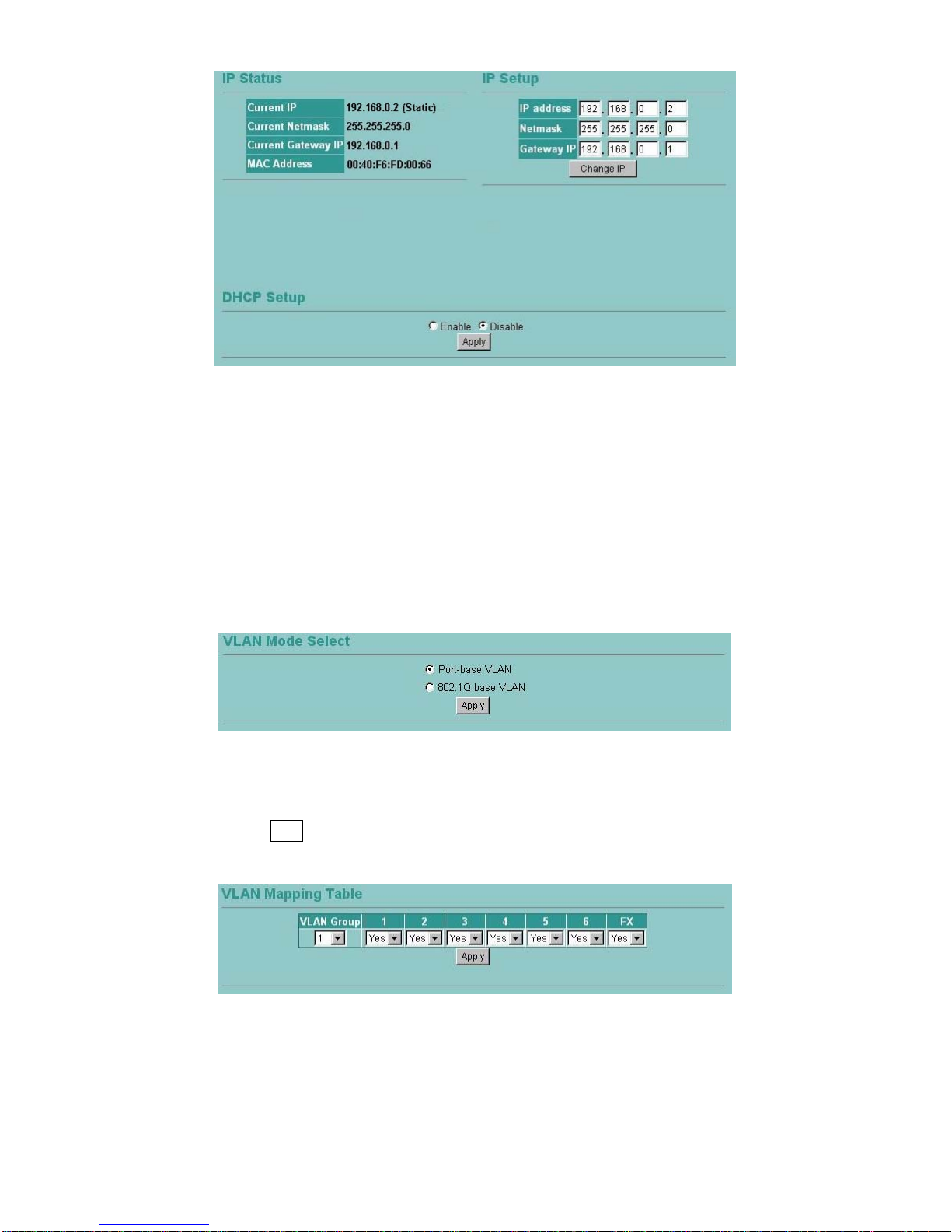

3.4 IP Setup

The switch must be assigned an IP address before it can be managed via web browser.

The switch provides two methods for IP configuration:

DHCP mode:

The switch supports DHCP client, and can request a dynamic IP address from the first

discovered DHCP server in the network when boot up. In general, the assigned IP can be

monitored in the client list on the DHCP server. The model name and MAC address of the

switch is referred as the DHCP client ID.

If no DHCP server is discovered after a retry period for about 40 seconds, the

pre-configured static IP is used automatically.

Static mode:

One pre-configured IP address is used when DHCP mode is disabled or when DHCP

mode is enabled and no DHCP server is available.

Note: Any changes are only effective after next bootup.

3.5 VLAN Setup

SP607FA/SP607FB supports two modes of VLAN: One is Port-based VLAN, and the other

is 802.1Q tag-based VLAN. There are three necessary configurations for VLAN setup:

VLAN Mode: Port-based or 802.1Q VLAN

VLAN mapping table setup: Setup member ports of VLAN

Port PVID setting: Setup PVID and Tag

Port-based VLAN Mode

This mode supports 16 VLAN groups, Group 0 ~ Group 15.

Select Yes to setup members of VLAN in VLAN mapping table. One port can

belong to more than one VLAN groups.

Per port PVID setting is used for index to VLAN Group table. Packet is inserted

with PVID (ex. 3) of the input port as VLAN ID and new CRC. Then, traffic

forwarding is performed only among all member ports of VLAN group (ex. 3).

Note: Tag mode settings are preset with untagged mode for all ports and not changeable

in Port-based VLAN mode. VLAN tag in every input tagged packet is ignored.

802.1Q tag-based VLAN Mode

This mode supports 16 VLAN groups, Group 0 ~ Group 15.

Select Yes to setup members of VLAN in VLAN mapping table. One port can

belong to more than one VLAN groups.

Per port PVID setting is used for index to VLAN Group table when an untagged

packet is received. Packet is inserted with PVID (ex. 3) of the input port as VLAN

ID and new CRC. Then, traffic forwarding is performed only among all member

ports of VLAN group (ex. 3). The tagged packet is received and forwarded with no

change.

For outbound transmission, Tag mode of the output port is applied as follows:

Tagged port: The packet is forwarded with no change.

Untagged port: The VID of the packet is removed and forwarded with new CRC.

Note: To provide more flexibility for LAN administrator in performing web management

task, the internal MNG port which connects to the embedded Http server is disclosed for

PVID configuration. The MNG port is also configured as the member port for all VLAN

groups and untagged port permanently.

3.6 Password Setup

To change password setting, enter your new password and reconfirm the input again. Click

on Apply to apply the new password immediately.
