Safety Instructions
- Do not place the vacuum cleaner close to heat sources, radiation
sources or burning cigarette butts. Sucking in the following objects is
strictly forbidden:
1. All liquids such as water and solvent;
2. Construction dust and trash such as lime and cement dust.
3. Heat sources, such as carbon butts and cigarette butts that have
not been put out.
4. Sharp fragments, such as glass.
5. Flammable and explosive articles, such as gasoline and alcohol
products.
- This product can only be disassembled by authorized technical
personnel. Disassembling without guidance is strictly forbidden.
- Children, persons with reduced phycial, sensory or mental
capabilities, and persons who lack knowledge and/or experience of
using household appliances are strictly forbidden to use this product
without special guidance!
- This product is an indoor household product, please do not use it
outdoors.
- The vacuum cleaner is an electric appliance that must be used under
normal use conditions. Do not leave it unattended while running.
- Do not touch the power cord, socket or power adapter with wet hands.
- Clean the dust cup when it is full before using this product.
- Turn off the power when cleaning, repairing or not using the vacuum
cleaner.
- Do not immerse the vacuum cleaner in water or place it near heat
sources or in the sun, so as to avoid fire.
- Use only the original power adapter that comes with the package for
this product. Use of other adapters may damage this product.
- Turn off the power when taking out the battery. Do not disassemble
the battery by yourself. If you need Please contact the after-sales
maintenance personnel for replacement if needed. Please properly
dispose of the battery when discarding the product.
- Do not touch the pole piece or jack with conductors to avoid short
circuit.
Safety Instructions
- Power cut-off: Do not pull the power cord, hold the plastic part of the
plug with your hand and unplug the plug.
- Do not pass the power cord of the vacuum cleaner through sharp
objects, so as not to damage the power cord.
- Do not drag the power cord to move the charging base.
- Check the power supply voltage to ensure the same voltage as the
charging voltage of the vacuum cleaner.
- Avoid running for a long time when the suction inlet is blocked, so
as to avoid motor damage and heating deformation of the vacuum
cleaner.
- Do not use the vacuum cleaner and send it to the maintenance
department designated by Midea for maintenance in time under the
following circumstances:
1. The vacuum cleaner has obvious damage or abnormal operation
condition after falling to the floor
2. The power cord is damaged.
Tips
1. Longer charging time may be needed in the following circumstances.
a. When charging in a place where the indoor temperature exceeds
30°C;
b. When charging immediately after stopping running.
2. Please charge the vacuum cleaner after using no matter how long
it is used.
3. When not charging, it is recommended to unplug the power plug
in time.
4. If the vacuum cleaner is not in use for a long time (more than
2 months), please unplug the power plug, but in order to ensure
the battery life, please fully charge it every 2 months.
5. During charging, the machine or the power adapter may heat up,
which is a normal phenomenon. Please rest assured to use it.
Introduction to the Product
Installation and Parts
Battery pack
On/off button
Mode button
Dust bin release button
Dust empty button
Tube release button
Bend switch
Electric brush release button
List of accessories
Motorized
bed brush
Upholstery
brush
Battery
Charge Base
Water
Tank
Crevice
nozzle
Storage rack
assembly Adaptor
Storage buckle
assembly Instructions
Function Operation
Use of bendable tube
Pull upwards the upper sleeve of the bendable tube, and the bendable tube
automatically rotates and bends.
Battery charging
Note
1. The battery is not charged when leaving the factory, so please fully charge the bat-
4. When the battery life of the machine is obviously shortened and the charging time
is prolonged, please replace the battery with professionals. Do not disassemble and
assemble the machine by yourself to avoid danger.
S/N Operation Instructions
Plug one end of the power cord into the
socket and insert the other end into the
charging port at the tail of the handle on the
a period of full power, the indicator will go
out.
Charging time: 5-7 hours
Discharge time: About 10 minutes for High
mode About 20 minutes for
Intermediate mode About 70
minutes for Low-mode
Function Operation
Cleaning
Note
1. To avoid blocking the air duct, please clean up large pieces of garbage (such as large piec-
4. It is strictly forbidden to remodel the complete machine, accessories and replace the power
5. Battery model: BP28825A
S/N Use of the machine
Press the "On/Off button" once to start;
Press the "On/Off button" again to stop;
it is an alarm that requires professional
maintenance.
It defaults to the Intermediate mode when
powered on with a full battery (Indicator 1, 2, and
3 are on simultaneously). Press the "Mode
button" once for High mode (Indicator 1 and 2 is
on and Indicator 3 is blue), and press the "Mode
button" again for Low mode (Indicator 1
and 2 is on and Indicator 3 is off);
Energy indication during charging:
battery power is low, and it needs to continue charging.
When Indicator 1 and 2 are on, the battery is fully
charged, and the indicator will go out after a period
of full charge.
Energy indication during operation (discharge):
When Indicator 1 and 2 are on, it shows that the
or Indicator 2 goes off, it shows that the battery
power is low. Please charge in time.
Mode
button
On/Off
button
Indicator 2
Indicator 1 Indicator 3
On/Off
button
Indicator Mode
button
Indicator
Indicator
Indicator
Cleaning and Maintenance
Storage and use of the cleaner
Note
1. When the cleaner is placed on the storage station or when the storage station
is placed alone, it must be placed on a horizontal ground to avoid falling and
damage to the cleaner.
2. The cleaner should be ued with care whether it is in work or placed on the
storage station, so as not to damage the machine.
1. Installation of storage station
Install the storage rack assembly and the storage base as shown in the figure,
and place the storage station vertically on the horizontal ground as shown in the
right figure.
2. Storage of the cleaner
Before placing the cleaner on the storage station, please make sure once again
whether the ground is horizontal and the cleaner has been turned off. Gently place
the cleaner on the rack of storage station as the position shown on the below figure,
then leave after the cleaner is placed stablly.
Cleaning and Maintenance
Disassembling and cleaning of dust cup
Note
1. To keep the suction of the vacuum cleaner, please clean the dust regularly,
bottom cover of the dust cup to dump the dust.
Dust full
position Press
with one hand and take out the dust cup assembly with the other hand.
Push the button
Note
1. The parts in the dust cup are washable
2. Please make sure that every part has been dried after cleaning and be-
fore mounting it back!
1. Remove the dust cup
assembly from the machine
Filter
sponge
Filter
assembly
Cleaning and Maintenance
Disassembling and cleaning of cyclone cone
according to the disassembly procedure.
Close Close
Disassembl and cleaning of electric scrubbing brush
Note
2. When disassembling and maintaining, be sure to stop the operation of the
3. It is not recommended to wash the scrubbing brush with water. The entan-
gled hair can be cleaned with scissors or blades, and the dust stuck on the
roller brush can be cleaned with a brush.
Cleaning and Maintenance

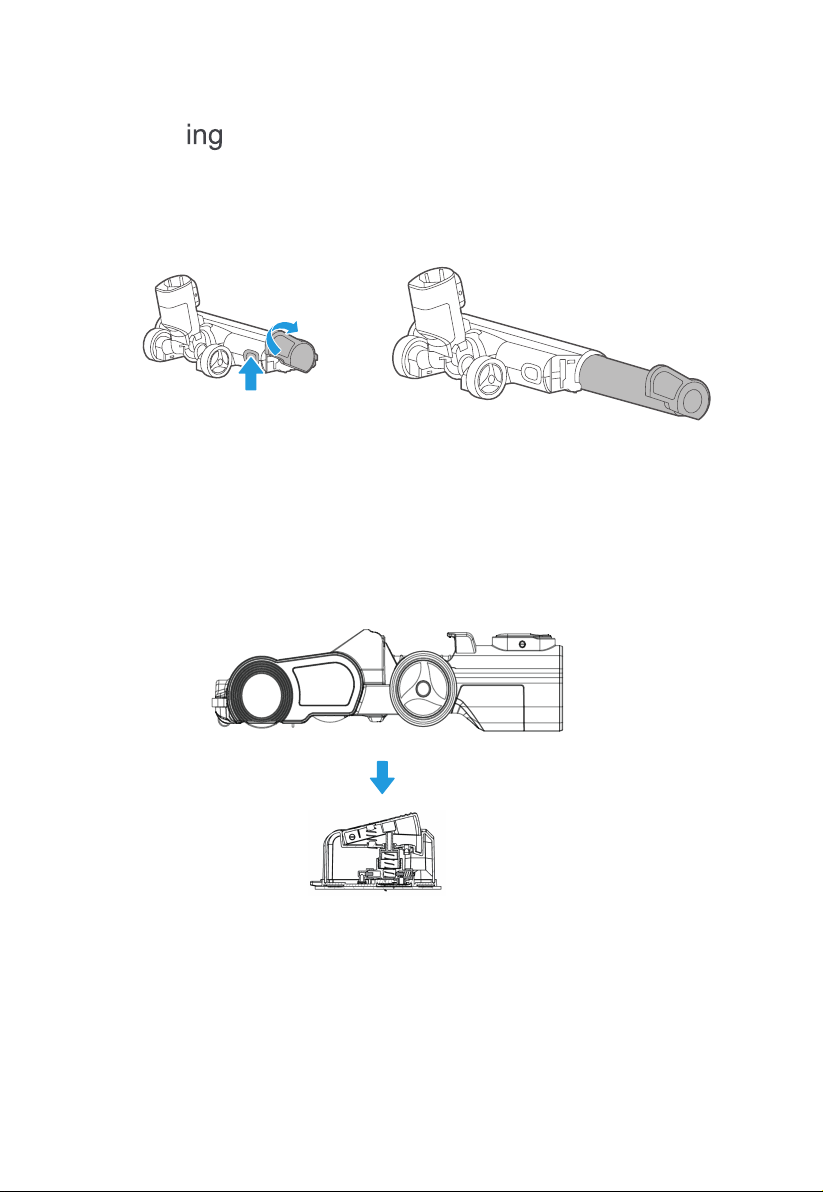

Disassembl and cleaning of electric scrubbing brush
2.
3.
Unscrew the gland of the roller brush according to the instructions, draw the
Put the brush wheel side to water tank, they will be connected by built-in
magnets. Step the pedel 3-5 times, then the cloth will get wet and can be used
to mop the floor.
roller brush assembly to one side and clean it. Mount it back according to the
disassembly procedure after cleaning.
Press
Release the gland of the
roller brush
Draw out the roller brush
assembly
